Punch Blanks
Semi-Finished Blanks for Custom In-House Grinding. Browse 36 products from MISUMI and DAYTON with configurable dimensions and same-day shipping on standard catalog items.
Punch Blanks (36 Products)
Ejector Punch Blanks (Blank, Standard)
Ejector Punch Blanks for die work with blank shank and standard mounting part shape. Choose SKD11, SKH51 or high-speed steel options for reliable punch perfo...
View Details
SKD11 Equivalent Steel Ejector Punch Blanks with Locating Dowel Hole
SKD11 equivalent steel ejector punch blanks with locating dowel hole for precise center positioning in dies. Built to m5 tolerance for consistent assembly—re...
View Details
Large-Diameter Pin Type Ejector Punch Blanks
Large-diameter pin type ejector punch blanks for metric die applications. Choose standard or spring reinforced, with SKD11 equivalent, SKH51/M2, or SKH40. Re...
View Details
SKD11 Steel Ejector Punch Blank with Locating Dowel Hole (D2 Equivalent)
SKD11 Steel Ejector Punch Blank with Locating Dowel Hole (D2 Equivalent) for heavy-duty die work. Built for secure centering and stable punch alignment. Requ...
View Details
Heavy Load Punch Blanks - Metric (Diameters 10-25 mm)
Heavy load punch blanks for heavy-duty tool builds, metric diameters 10-25 mm. Blank shank for standard mounting with MISUMI manufacturing—request a quote.
View Details
Metric Tapped Punch Blanks for Bolt-Fixed Punches
Metric tapped punch blanks for bolt-fixed punches. Heat-treated pre-cut blanks with shank diameter finished to tolerance for reliable tool assembly. Request ...
View Details
Heavy Load Ejector Punch Blank with Center Dowel Hole
Heavy Load Ejector Punch Blank with Center Dowel Hole for metric die builds. Available in hardened steel grades with locating dowel for stable alignment—requ...
View Details
Ejector Punch Blanks for Heavy Load with Dowel Hole
Ejector Punch Blanks for Heavy Load with Dowel Hole (SKH40 equivalent powdered high-speed steel) for reinforced blank shanks. Request a quote.
View Details
SKD11 Steel Tapped Ejector Punch Blanks
Tapped ejector punch blanks for metric punch making. SKD11 steel blanks with standard tap-type mounting for secure installation in ejector punches. Request a...
View Details
JIS Standard SKH51 Steel Heavy Load Punch Blank with Locating Dowel Hole
Heavy Load Punch Blank with Locating Dowel Hole (SKH51 steel) supports rigid punch retention for die assembly and heavy-duty stamping. Request a quote.
View Details

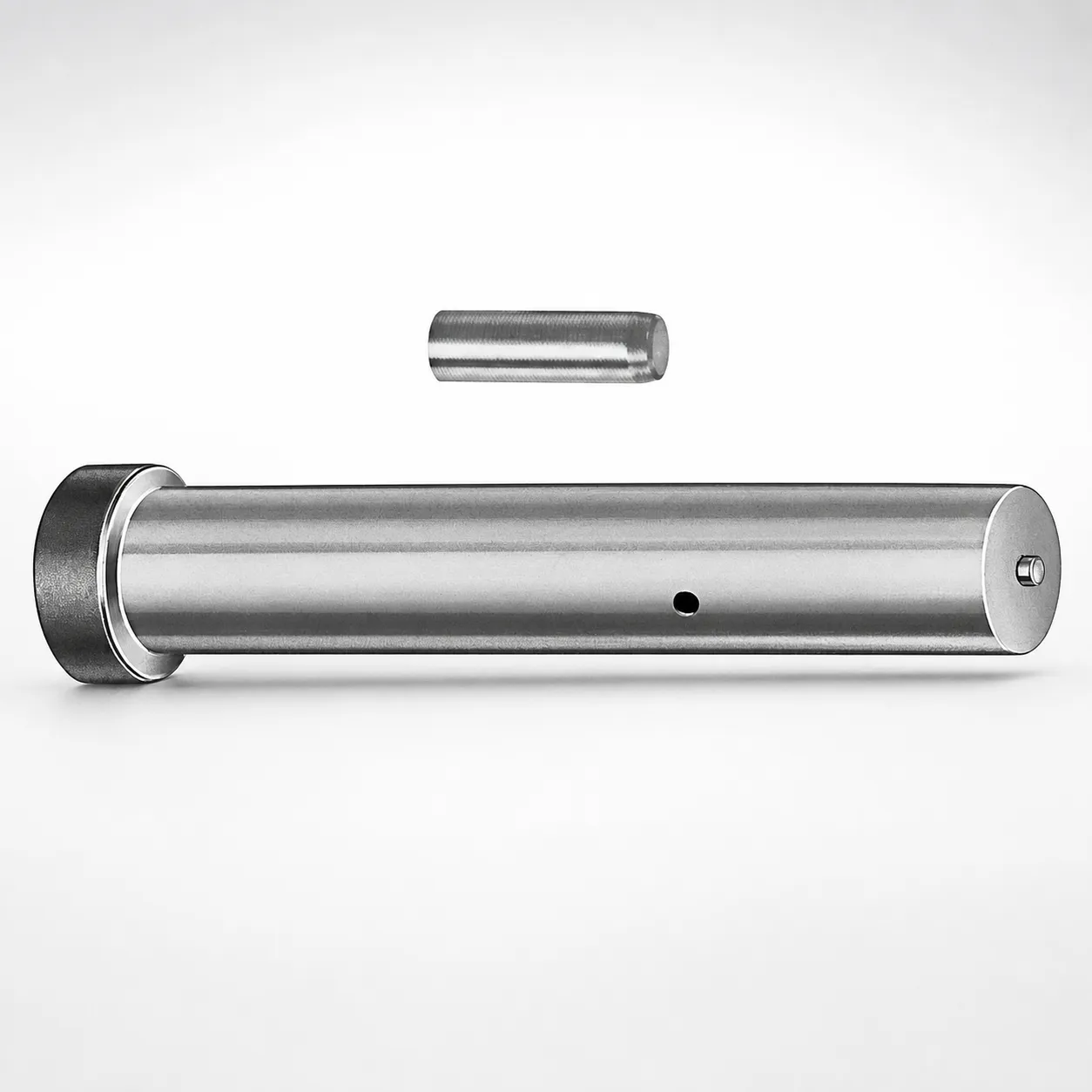

Center Dowel Ejector Punch Blanks - Metric
Center Dowel Ejector Punch Blanks - Metric for stable guiding in die sets. Available in M2 or A2 steel. Streamlined DAYTON part blanks—order today.
View Details

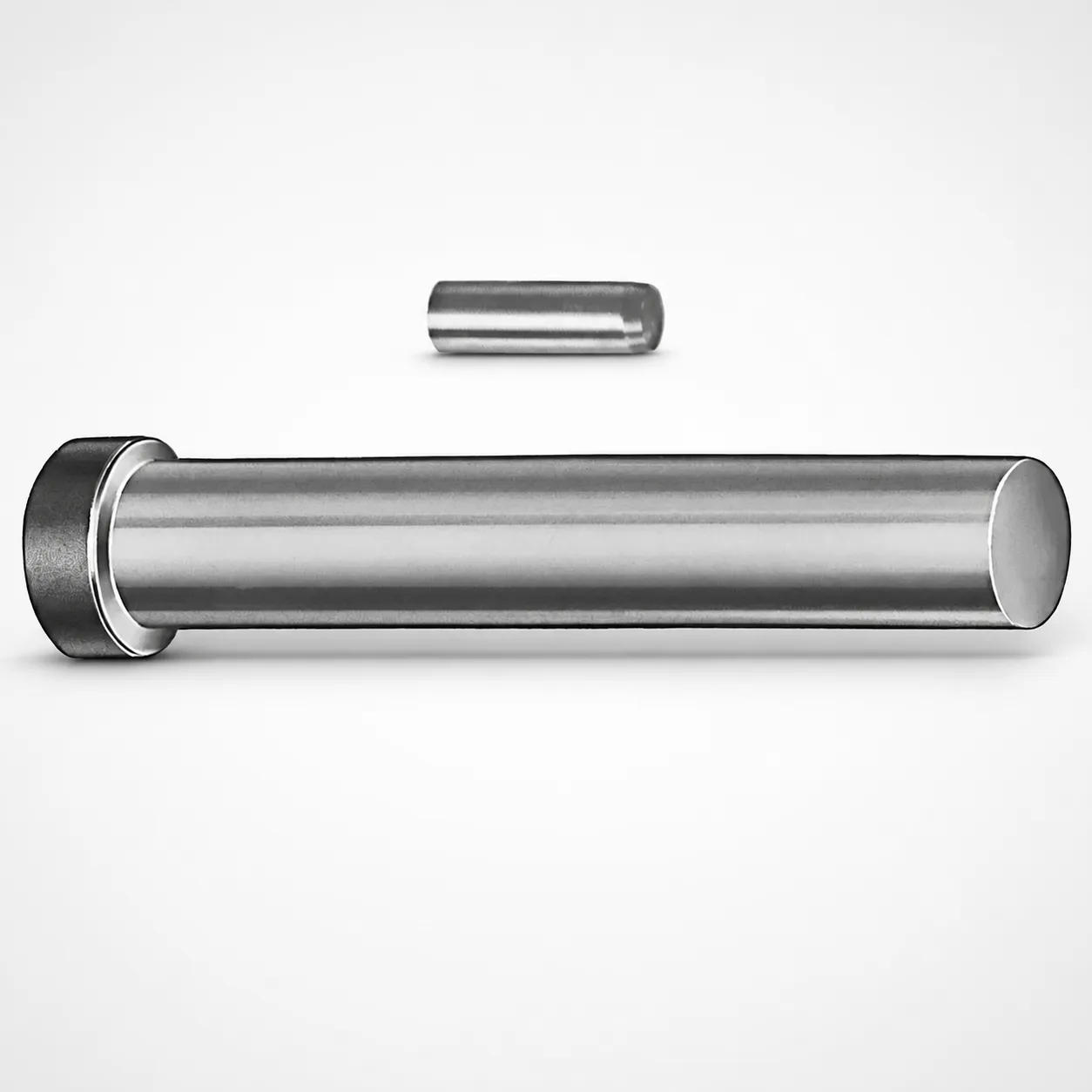

Regular Center Dowel Punch Blanks - Metric (M2 Steel)
Regular Center Dowel Punch Blanks - Metric by DAYTON, made from M2 steel for durability. For punch die sets, request a quote for availability.
View Details
Ejector Punch Blanks - Metric with Center Dowel Hole
Ejector Punch Blanks - Metric with Center Dowel Hole for die spotting and guidance. Offered in PS, M2, or A2 steel. Durable blanks.
View Details
DAYTON Regular Punch Blanks - Metric
DAYTON Regular Punch Blanks - Metric for PS, M2, and A2 steel options. Sized for shank dia. 4–32 mm and length 40–100 mm—optimized for blanking and forming. ...
View Details
Inch Heavy Load Ejector Punch Blanks
Inch Heavy Load Ejector Punch Blanks by DAYTON for center locating-dowel applications. Optimized blank design for consistent punch fabrication. Request a quote.
View Details
Inch Regular Punch Blanks for Heavy Load
Inch Regular Punch Blanks for Heavy Load by DAYTON provide standardized punch blank stock for heavy-duty tooling. Select shank diameters and lengths to reque...
View Details
Inch Ejector Punch Blanks
Inch Ejector Punch Blanks by DAYTON for tool-and-die production. Available in M2 or A2 tool steel options to match wear needs. Request a quote.
View Details
Inch Regular Punch Blanks
Inch Regular Punch Blanks by DAYTON for punch press tooling. Available in M2 or A2 tooling steel options for reliable blanking performance. Order today.
View Details
DAYTON Regular Center Dowel Punch Blanks for Heavy Load - Metric
DAYTON Regular Center Dowel Punch Blanks for Heavy Load - Metric for punch components requiring stable center dowel location and robust performance. Request ...
View Details
Regular Punch Blanks for Heavy Load - Metric
Regular Punch Blanks for Heavy Load - Metric for Dayton and Lamina part numbering. Suitable for shank diameters 8–25 mm, get the tooling blank you need.
View Details
Metric Heavy Load Ejector Punch Blanks
Metric Heavy Load ejector punch blanks for precision die building and long-run production. DAYTON quality for reliable punch performance. Request a quote.
View Details
Center Dowel Ejector Punch Blanks for Heavy Load - Metric
Center Dowel Ejector Punch Blanks for Heavy Load - Metric from Dayton LAMINA. Metric dowel-hole support for die components. Request a quote.
View Details

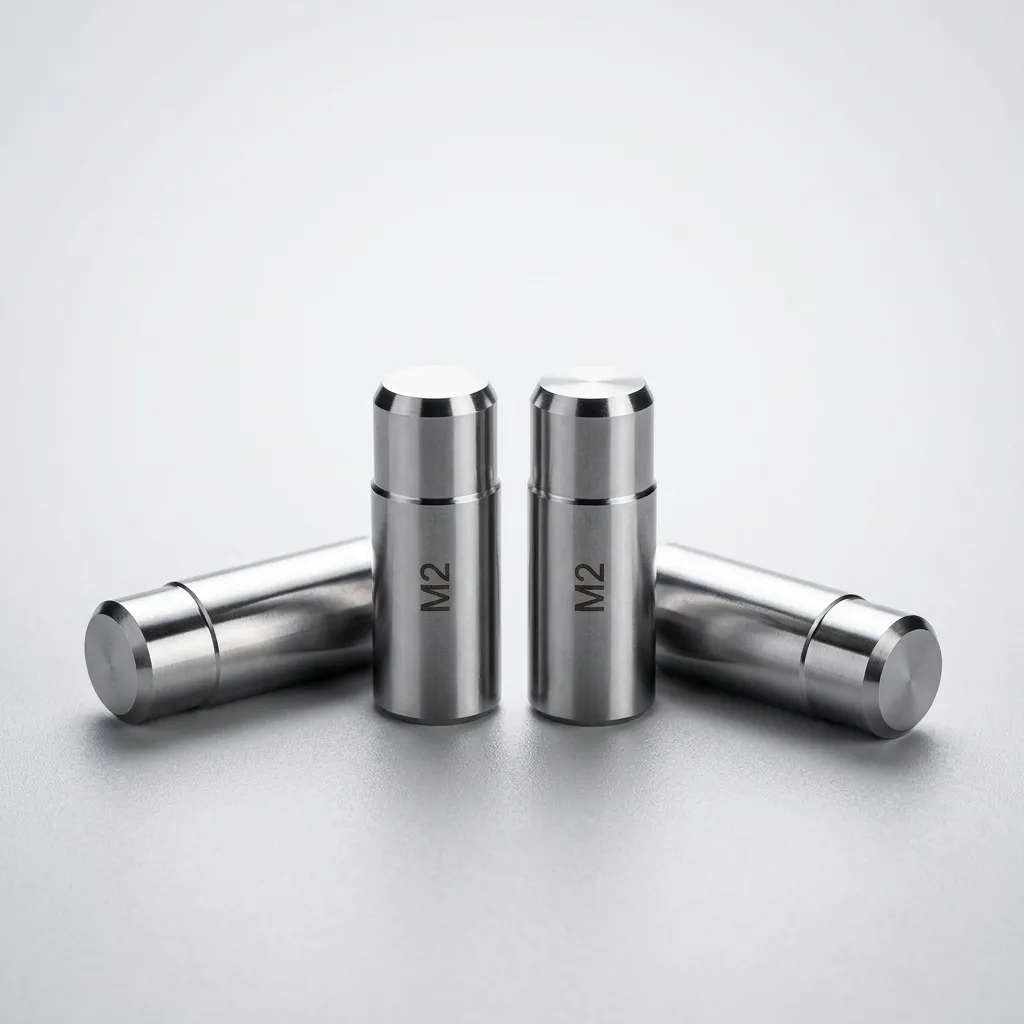

M2 Steel Close Space Punch Blanks - Metric
Close Space Punch Blanks - Metric (M2 steel) for ejector assemblies in tight die layouts. Dayton hardened punch blanks for stable forming performance. Order ...
View Details
Metric Close Space Punch Blanks - CRN Coating
Metric Close Space Punch Blanks with CRN coating for precise blanking operations. Designed for toolmakers needing consistent punch performance. Request a quote.
View Details
Metric Close Space Punch Blanks with XAN DayTAN™ Coating
Metric Close Space Punch Blanks with XAN DayTAN™ coating for clean, controlled blanking in tight die spaces. Durable Dayton solution for punch building.
View Details
Close Space Punch Blanks - Metric, XCD Coating
Close Space Punch Blanks - Metric, XCD Coating for compact punch tooling. Built for stable fit and repeatable press performance—supported by Dayton LAMINA pr...
View Details
Close Space Punch Blanks - Metric XCDP Coating
Close Space Punch Blanks - Metric with XCDP coating from DAYTON for consistent punch performance in tight clearance tooling. Contact us to get started.
View Details
Close Space Punch Blanks - Metric XCN Coating
Close Space Punch Blanks - Metric XCN Coating for compact punch press builds. Durable coating supports stable forming and long service life—Request a quote.
View Details
Close Space Punch Blanks Metric XN DayTride Coating
Close Space Punch Blanks Metric with DAYTON XN DayTride® coating for smooth punching performance. Metric sizes help minimize handling time. Request a quote.
View Details
Close Space Punch Blanks - Metric with XNA Coating
Close Space Punch Blanks - Metric with XNA Coating for precision ejector plate support. Metric shank options for reliable forming. Contact DAYTON for supply.
View Details
Metric Close Space Punch Blanks with XNAD Coating
Metric close space punch blanks with XNAD coating by DAYTON for precision die assemblies. Durable surfaces help reduce wear and improve performance. Order now.
View Details
Close Space Punch Blanks - Metric XNP Coating
Close Space Punch Blanks - Metric XNP Coating for compact punch applications. Optimized for die tooling wear and stable performance. Request a quote.
View Details
Close Space Punch Blanks - Metric (XNM Coating)
Close Space Punch Blanks - Metric (XNM Coating) for compact punch applications. DAYTON blanks support precise fit and wear-resistant surface for stable produ...
View Details
Close Space Punch Blanks - Metric, XNP Coating
Close Space Punch Blanks - Metric, XNP Coating by DAYTON LAMINA help maintain tight die clearances and stable piercing performance. Request a quote.
View Details
Close Space Punch Blanks - Metric XNT DayTiN® Coating
Close Space Punch Blanks - Metric with XNT DayTiN® coating for wear-resistant punch applications. Built for close-space tooling compatibility—request a quote.
View Details
DAYTON Close Space Punch Blanks - Metric XVP Coating
Close Space Punch Blanks (Metric) with XVP coating for tight die space applications. DAYTON blanks support stable punching and longer service life—request a ...
View DetailsPunch Blanks vs Finished Punches: When to Buy Blanks
You Should Buy Blanks If:
- You have in-house CNC grinding or wire-EDM capability
- Your punch profiles are non-standard (custom shapes not in any catalog)
- You consume >50 punches/month of the same base size (volume grinding is efficient)
- You need to control the final heat treatment profile (blanks are supplied pre-hardened or annealed per your choice)
Buy Finished Punches Instead If:
- Your profiles match standard JIS shapes (faster delivery, no grinding setup cost)
- You lack in-house grinding capability (outsourcing grinding adds lead time and cost)
- Quantity is less than 10 pieces (grinding setup cost per piece is too high)
- Tolerance requirements are beyond your grinding machine capability
Cost Savings Analysis: In-House Grinding
| Cost Factor | Custom Finished Punch (Outsourced) | Blank + In-House Grinding |
|---|---|---|
| Material Cost | Included in finished price | $8-25 per blank (SKD11/SKH51) |
| Grinding Cost | Included (typically $20-60 per piece) | $5-15 per piece (in-house, amortized machine time) |
| Total Cost per Piece | $40-120 (custom finished) | $13-40 (blank + in-house grinding) |
| Lead Time | 5-10 business days | 1-3 days (blank from stock + immediate grinding) |
| Minimum Quantity | 1 piece | 1 piece (but economics improve at 10+) |
| Cost Savings | Baseline | 50-65% savings at scale |
About Punch Blanks
Punch blanks are semi-finished punch bodies supplied with precision-ground shanks but unfinished tips, ready for in-house custom grinding to any profile. Available in both pre-hardened (HRC 58-62, ready to grind) and annealed (for shops that want to machine before hardening) conditions. This 36-product range covers standard shank diameters from 3mm to 32mm in SKD11, SKH51, and SKH40 materials. Grinding allowance: 0.5-1.0mm on tip end.
Application Scenarios
Custom Profile Tooling Shops
Die-making shops with CNC grinding capability that produce custom punches for multiple clients need a flexible, cost-effective starting material.
Why punch blanks fit: Pre-hardened blanks eliminate the heat treatment step from the custom punch workflow. Shops only need to grind the profile - no hardening, tempering, or stress relieving required.
Prototype Die Development
R&D teams developing new stamping processes need to iterate on punch geometry quickly without waiting for custom finished punch deliveries.
Why punch blanks fit: Stock blanks can be wire-EDM cut or ground to any profile within hours, enabling rapid design iteration. When the profile is finalized, production punches can be ordered as finished customs.
Frequently Asked Questions
What is the cost advantage of grinding punch blanks in-house?+
Are punch blanks supplied fully hardened or annealed?+
What grinding allowances are left on the tip of the blanks?+
Can I order punch blanks in non-standard specialty alloys?+
Engineering Resources
Need a Custom Quote?
Send your specifications and receive a quote. MOQ: 1 piece. Custom dimensions available.
