Ejector Sleeves & Center Pins Selection & Pairing Guide
Product Categories
Straight Ejector Sleeve Components
Straight hollow sleeves and matched center pin sets for standard-stroke cylindrical ejection.
View Subcategories
Stepped Ejector Sleeve Components
Stepped outer guide diameters to minimize plate contact and sliding friction under heavy load.
View Subcategories
Straight Center Pins
Precision-ground solid pins with standard, tip-processed, or gas release channel variations.
View Products

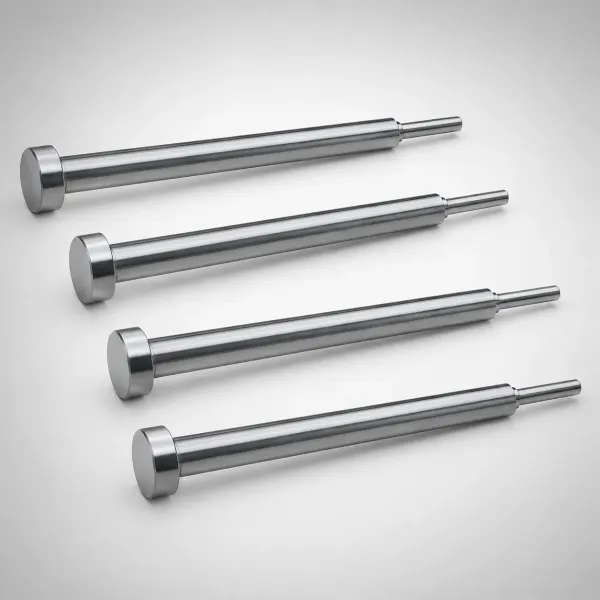

Taperless Center Pins
Core pins with zero taper transitions, significantly extending fatigue life in high-cycle packaging molds.
View Products
Stepped Center Pins
One-step and two-step center pins for stepped cores, secondary ejection, or built-in cooling water paths.
View SubcategoriesApplication Router: Find the Right Ejection Method
Identify your molding challenge below to find the most suitable ejector layout:
High-Cycle Packaging
Molds operating under 3-second cycle times face rapid fatigue failure at pin shoulder transitions.
Severe Thermal Cycles
High mold temperatures in hot-runner setups can cause sleeves to expand and seize on core pins.
Deep Boss & Long Stroke Ejection
Standard straight sleeves buckle under high compression load during long stroke travels.
Secondary Stage Ejection
Multi-cavity electrical connectors that require a delayed, dual-stage release action to prevent core damage.
Selection tip: Start by identifying whether your part feature is a boss (use sleeves) or a flat surface (use pins). For a detailed comparison of the two approaches, see our Ejector Pins vs. Ejector Sleeves guide.
Metallurgy Deep Dive: Steel Alloy Selection
The choice of core steel dictates the wear resistance and thermal fatigue profile of your ejection system:
SKD61 (Hot-Work Steel)
Vacuum hardened to 48-52 HRC and nitrided to 900+ HV. Features exceptional resistance to thermal softening, hot wear, and hydrogen embrittlement. Ideal for hot-runner setups, zinc/aluminum die casting, and high-temperature polymers.
SKH51 (High-Speed Steel / M2 Equivalent)
Through-hardened to 58-61 HRC. Contains high percentages of tungsten and molybdenum, offering excellent toughness and high resistance to abrasive wear. Best suited for high-speed stamping and cleanroom medical molding.
M2 (Premium HSS)
Hardened to 61-64 HRC with extremely fine carbide distribution. Delivers unmatched edge retention and sliding fatigue life. Recommended for processing abrasive engineering resins loaded with glass fiber or carbon fiber.
Engineering note: Material selection directly affects both wear life and seizure resistance. For a full comparison of SKD61, SKH51, and M2 properties, see our Ejector Sleeve Material Guide.
Boundary Check: Do You Need Ejector Pins Instead?
Ensure you are selecting the correct category of ejection components before detailing your core assembly:
Use Ejector Sleeves & Center Pins If:
- You are ejecting circular bosses, screw ribs, or thin cylindrical walls.
- The core pin must remain stationary to form a hollow feature while the sleeve slides to eject.
- Uniform 360-degree force is required around the boss circumference to prevent deformation.
Switch to Standard Ejector Pins If:
- The ejection surface is completely flat with no circular core features.
- You are building standard ejector plates where simple solid pin layouts suffice.
- Refer to the Ejector Pins Cluster for simpler flat-surface ejection.
About Ejector Sleeves & Center Pins
Hollow ejector sleeves play a critical role in injection molding by wrapping around a core pin to cleanly release plastic bosses without causing stress marks or warping. Pre-aligned tolerances are vital to prevent flash and lockup.
Manufacturing Tolerances & Specs
| Specification | Straight Series | Stepped Series | Center Pins |
|---|---|---|---|
| Outer Diameter (OD) Tolerance | g6 (-0.005 / -0.020mm) | g6 (-0.005 / -0.020mm) | h6 / m6 (+0.008 / +0.002mm) |
| Inner Diameter (ID) Tolerance | H7 (+0.015 / 0mm) | H7 (+0.015 / 0mm) | N/A (Solid Pin) |
| Concentricity Limit | ≤ 0.015mm | ≤ 0.010mm | N/A |
| Surface Roughness | Ra 0.1µm (Bore) / Ra 0.4µm (OD) | Ra 0.1µm (Bore) / Ra 0.4µm (OD) | Ra 0.2µm (Shaft) |
Industry Applications
See how ejector sleeves and center pins solve real engineering challenges across industries:
Automotive Interior & Exterior Molds
Deep bosses on bumpers, door panels, and instrument housings require long-stroke ejection with zero core deflection. Stepped ejector sleeves provide the column rigidity needed for reliable demolding at high clamp tonnages.
Why these products fit: Stepped sleeve-pin sets maintain concentricity over 150mm+ ejection strokes. SKD61 nitrided surfaces resist the abrasion from glass-filled PA66 and PC/ABS compounds common in automotive applications.
Medical Device & Cleanroom Molding
Sterile medical components require lubricant-free ejection to meet cleanroom contamination standards. DLC-coated stepped sleeves enable dry-running operation without compromising part cleanliness.
Why these products fit: DLC or TiAlN coated ejector sleeves eliminate the need for grease lubrication, meeting ISO Class 7/8 cleanroom requirements. High-precision tolerance grades ensure zero-flash molding on critical syringe barrel and diagnostic cartridge features.
High-Cycle Packaging Molds
Food containers and consumer packaging run at cycle times under 5 seconds, accumulating millions of ejection cycles per year. Standard center pins fail at the taper transition under this fatigue loading.
Why these products fit: Taperless center pins eliminate the stress concentration at the head-to-shaft transition, providing significantly extended fatigue life. The reduced maintenance downtime justifies the higher unit cost within months of operation.
Frequently Asked Questions
What is the primary function of an ejector sleeve in injection molding?+
What is the difference between an ejector sleeve and a standard ejector pin?+
What tool steel options are available for ejector sleeves, and how do they compare at a high level?+
Do I need to buy a matched set, or can I order individual sleeves and pins?+
Related Product Categories
Engineering Resources
Ejector Pins vs. Ejector Sleeves: Which Do You Need for Boss Ejection?
Compares stress distribution, ejection force uniformity, and use cases for solid ejector pins vs. hollow sleeves.
Ejector Sleeve Material Guide: SKD61 vs SKH51 vs M2 Steel
How alloy composition, heat treatment, and temperature resistance affect sleeve wear life.
Need a Custom Quote?
Send your specifications — sleeve OD, center pin diameter, material grade, surface treatment — and receive a quote. Custom dimensions, coatings, and tolerance upgrades available.
