Custom POM (Delrin / Acetal) Injection Mold Tooling
Specialized tooling for POM-H (Homopolymer Delrin) and POM-C (Copolymer Acetal) mechanical components. Engineered for DIN Class 8–9 precision gears, low-friction sliding bushings, zero centerline porosity, and moisture-stable valve housings.
Crystallization Kinetics & Centerline Porosity Prevention
POM has high crystallinity (70%–80%) and high volumetric shrinkage (1.8%–2.5%). Without proper gate design, thick gear hubs develop internal centerline porosity voids:
Thick-Section Hub Feeding
Direct diaphragm or ring gates positioned directly on the thick central bore guarantee sustained packing pressure until the core freezes.
85°C–105°C Pressurized Oil Heating
Maintaining 95°C surface temperatures produces fine, uniform spherulite crystal growth, maximizing gear tooth wear resistance.
Corrosion-Resistant S136 ESR Steel
Vacuum-hardened stainless steel (52 HRC) prevents mold pitting caused by formaldehyde outgassing over 1M+ shots — see our injection mold steel guide (S136, H13, NAK80) for corrosion comparisons.
Full-Perimeter Micro-Venting
0.015mm deep vents around all tooth roots prevent trapped air compression, eliminating diesel burn and tooth tip voids.
POM Resin Grades & Gear Precision Specifications
Engineering properties and achievable manufacturing tolerances for Delrin homopolymer and copolymer resins:
| Polyacetal Grade | Tensile Yield Strength | Flexural Modulus | Achievable Gear Accuracy | Best Fit Tooling Application |
|---|---|---|---|---|
| POM-H (Delrin Homopolymer) | 70 – 75 MPa | 3,100 – 3,400 MPa | DIN 8 / AGMA 9 | High-torque drive gears, spring clips, fastener snaps (higher stiffness and fatigue limit) |
| POM-C (Acetal Copolymer) | 65 – 70 MPa | 2,700 – 2,900 MPa | DIN 8 / AGMA 9 | Hot water plumbing valves, sanitary fittings, fuel pump flanges (better thermal & chemical stability) |
| POM + 20% PTFE / Silicone (Self-Lubricated) | 50 – 58 MPa | 2,400 – 2,600 MPa | DIN 9 | Zero-backlash sliding guides, silent motor bushings, printer paper feed rollers |
| POM + 25% Glass-Fiber Reinforced | 130 – 145 MPa | 7,500 – 8,500 MPa | DIN 8 | High-rigidity industrial conveyor links, heavy actuator housings, heavy-load levers |
To eliminate unexpected mold venting issues, read how Moldflow simulation prevents molding defects.
Polyacetal (POM) Limitations & Material Boundary Guide
Evaluating operating conditions where Polyacetal should be substituted with alternative polymers:
| Operational Environmental Constraint | POM (Acetal) Failure Mechanism | Recommended Alternative Polymer |
|---|---|---|
| Strong Acidic Environments (pH <4) | Acid-induced hydrolysis unzips polyacetal molecular chains, causing rapid embrittlement | PVDF or PEEK for extreme acid and aggressive chemical resistance |
| Continuous Elevated Heat (>100°C) | Gradual thermal degradation and loss of creep resistance over 90°C–100°C | PBT+GF or PPS (Ryton) for continuous 150°C–200°C service (see PPS high-temperature applications) |
| Direct Adhesive Bonding & Painting | Extremely low surface energy makes solvent gluing or painting impossible without etching | ABS or Polycarbonate for direct bonding and cosmetic coating |
| Flame Retardancy (UL94 V-0) | POM burns cleanly with an invisible blue flame and cannot be made flame-retardant (UL94 HB only) | Flame-Retardant PBT (UL94 V-0) for electrical housings |
Precision POM Kinematics & Valve Solutions We Deliver
Tooling delivered for high-precision mechanical kinematics, silent gear trains, and sanitary fluid devices:
DIN 8 Dual-Stage Planetary Spur Gear

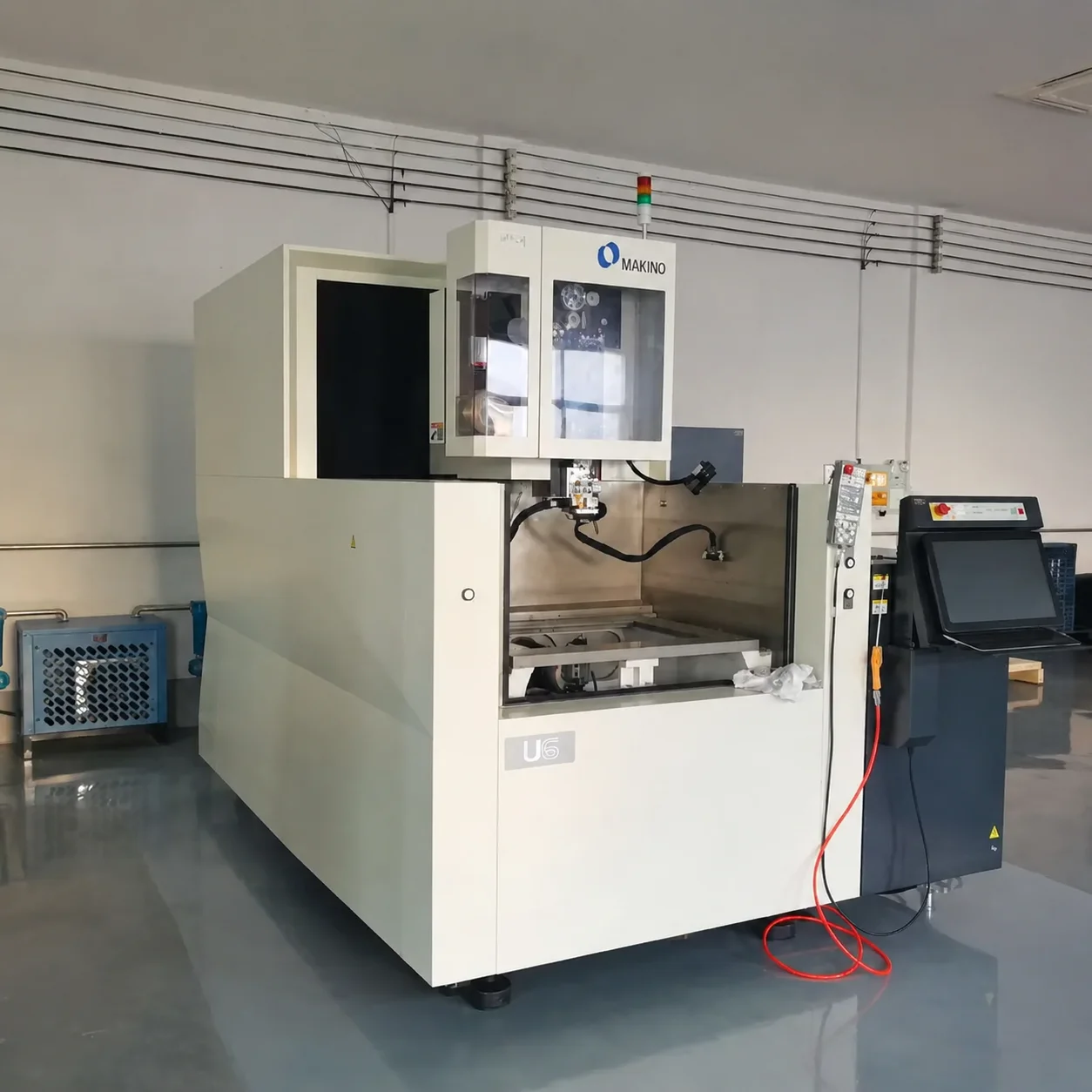

Homopolymer Delrin tooling with wire-EDM mirror cavities. Symmetrical diaphragm gating holding total pitch runout within ±0.006mm.
Gasoline Fuel Pump Check Valve
Copolymer POM-C multi-cavity tooling certified for 100% gasoline and E85 ethanol immersion with sub-micron seal face flatness.
Ceramic Disc Water Faucet Cartridge
NSF/ANSI 61 drinking water certified POM cartridge housing with anti-scale smooth surface and zero dimensional creep over 500K cycles.
Insulin Pen Click-Dosing Mechanism
Medical-grade POM ratchet gear tooling with optical vision sorting, guaranteeing audible tactile click feedback and exact micro-dose metering.
Related Engineering Guides & Technical Resources
How to Design POM Gears for Injection Molding: Shrinkage & Tolerance Guide
Non-linear tooth profile shrinkage compensation, Seibu wire EDM tooth cavities, and AGMA Class 8 precision.
How to Prevent POM Center Porosity and Surface Defects
Crystallization shrinkage voids, gate freeze timing, 0.018mm venting channels, and packing pressure DOE.
How CNC, EDM and Wire-Cut Achieve ±0.002mm Mold Accuracy
Makino V33i high-speed milling, Sodick AG40L mirror EDM, and Seibu M500S wire EDM inside 20°C cleanrooms.
Frequently Asked Questions
Why choose POM (Delrin) over Nylon for precision gears and sliding components?+
What special mold venting is required for POM to prevent gas burning?+
What gear accuracy standards can you achieve in molded POM gears?+
Engineer Your Precision POM Injection Mold
Upload your 3D gear or mechanical CAD models for a free DIN gear accuracy DFM review, shrinkage analysis, and factory quote within 24 hours.
