Precision PEEK Injection Mold Manufacturing
Engineered tooling solutions for Polyetheretherketone (PEEK) high-performance polymers. Mastering 380°C processing temperatures, precise crystallinity control, and hardened mold steels to deliver aerospace, medical, and industrial components with ±0.002mm precision.
High-Temperature Thermal Management & Crystallinity Control
PEEK injection molding requires exceptional thermal engineering. We utilize robust oil-heated circuits, high-performance insulation plates mounted to press platens, and Invar36 low-CTE core pins to maintain the extreme 220°C–280°C mold temperatures required for optimal semi-crystalline part formation.
| PEEK State | Required Mold Temperature | Crystallinity Level | Mechanical & Visual Properties |
|---|---|---|---|
| Amorphous | 180°C – 220°C | < 10% (Low) | Translucent/brown color, highly ductile, lower tensile strength, reduced chemical resistance. Often used for specific optical or thermoforming applications. |
| Semi-Crystalline | 220°C – 280°C | 30% – 35% (Optimal) | Opaque beige/grey color, maximum dimensional stability, extreme tensile strength, superior wear and chemical resistance. Ideal for high-stress aerospace and medical parts. |
🔥 High-Temperature Thermal Management: Uniform 220°C–280°C mold temperatures prevent uneven crystallization and warpage. Explore our engineering guide on why PEEK molds need special steel and heating systems, or see how conformal cooling cuts injection mold cycle times.
PEEK Material Grades: Medical vs. Aerospace Applications
We custom engineer tooling designed specifically around the unique shrinkage rates and viscosity profiles of various specialized PEEK resin grades:
| PEEK Grade | Key Additives | Primary Characteristics | Target Industry & Application |
|---|---|---|---|
| PEEK 450G (General Purpose) | Unfilled | High toughness, excellent electrical insulation, FDA compliant for food contact. | Industrial pump components, electrical connectors, semiconductor wafer carriers. |
| PEEK 150CA30 (Carbon Filled) | 30% Carbon Fiber | Exceptional strength-to-weight ratio, high thermal conductivity, low thermal expansion. | Aerospace structural brackets, drone frames, high-load automotive gears. |
| PEEK-HT (Victrex) | High-Temp Formulation | Extended high-temperature performance, enhanced compressive strength. | Oil & gas downhole tools, extreme-environment automotive engine components. |
| PEEK-OPTIMA | Medical Grade | Biocompatible, radiolucent, withstands 134°C autoclave, gamma, and EtO sterilization. | Spinal fusion implants, trauma fixation devices, surgical instruments. |
Tooling ROI: Maximizing PEEK Mold Life & Minimizing Waste
With PEEK resin costing $80–$120/kg (compared to standard ABS at ~$2/kg), material waste through large runner systems or high scrap rates rapidly destroys project profitability. Our tooling strategies prioritize long-term ROI and material efficiency:
Hardened H13 & M390 Mold Steels
To withstand 380°C processing temperatures and the abrasive nature of carbon-filled PEEK, we utilize premium H13 or M390 tool steels hardened to 54+ HRC (see our injection mold steel selection guide), ensuring a tool life of 200,000 to 500,000 shots.
Runner Optimization for PEEK
High material costs mean cold runners are expensive waste. We design specialized high-temperature hot runner systems or highly optimized, minimal-volume cold runners (see our guide on when to use hot runner molds and calculate ROI) to drastically reduce raw material waste per cycle.
Precision ±0.002mm Machining

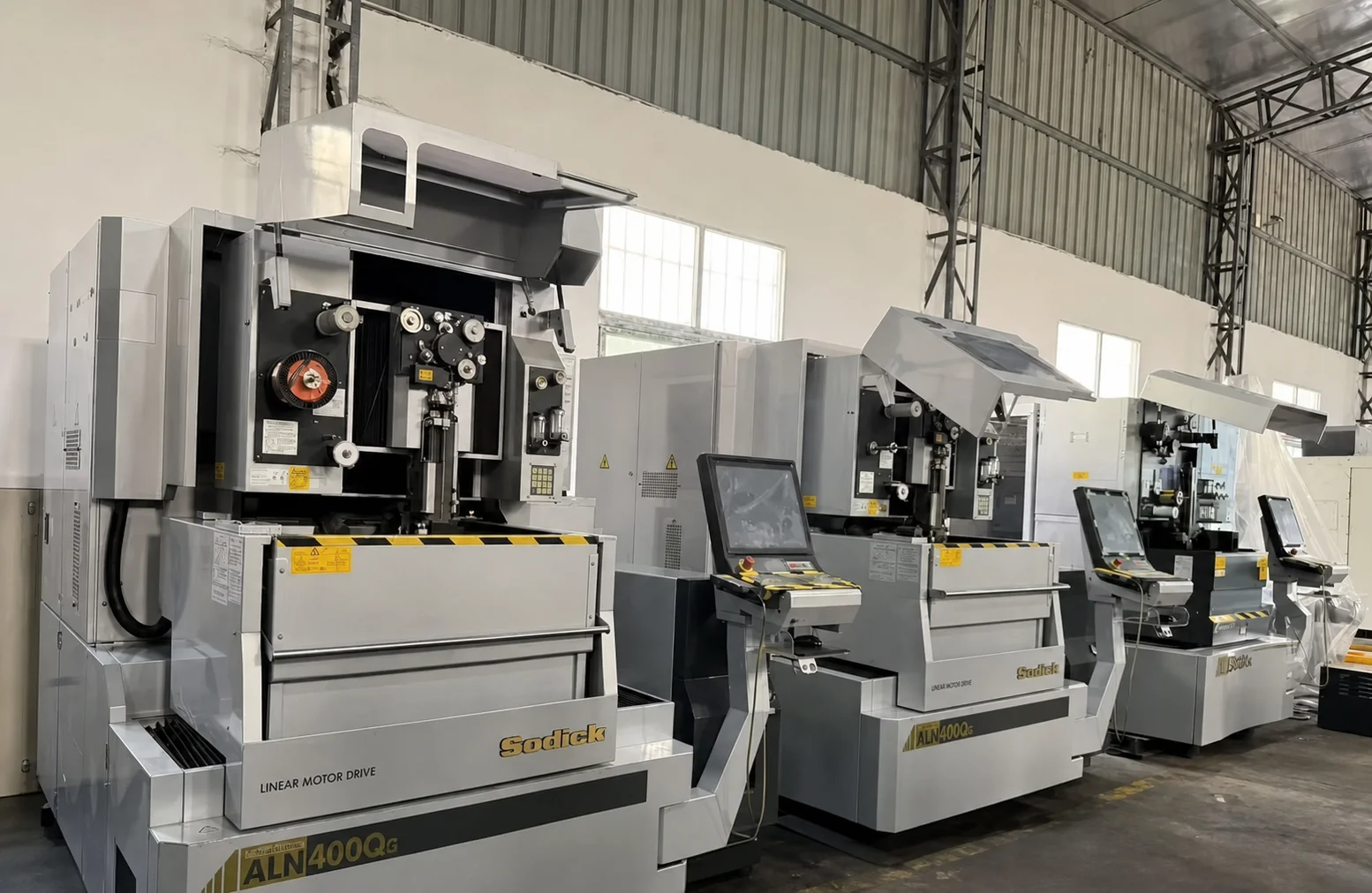

Utilizing our Makino V33i CNC and Sodick AG40L EDM machines, we achieve flash-free parting lines (see precision machining methods for ±0.002mm accuracy). PEEK's high fluidity at melt temperatures demands extremely tight shut-offs to prevent flashing and secondary rework.
5-Stage PEEK Tooling Manufacturing & QA Workflow
Processing super engineering plastics requires a tightly controlled, scientific approach from material preparation to final inspection:
Rigorous Material Drying
PEEK pellets are baked in specialized desiccant dryers at 150°C for a minimum of 4 hours to eliminate moisture, preventing splay and hydrolysis during injection.
Cavity Steel & Thermal Build
Machining H13 steel (min 54 HRC) with specialized conformal cooling layouts and thermal insulation boards to maintain stable 220°C+ mold temperatures.
Scientific Molding Parameters
Establishing validated processes on 45T-3000T presses with specialized high-temp barrels operating at 380°C–400°C melt temperatures.
PEEK FAI & DSC Testing
First Article Inspection (FAI) using Zeiss ACCURA CMMs, alongside Differential Scanning Calorimetry (DSC) testing to verify exact crystallinity levels of the molded parts.
Related Engineering Guides & Technical Resources
How to Process PEEK Injection Molding: Temperature, Crystallinity & Mold Setup
380-400°C melt profiles, 160-190°C hot oil mold circuits, and post-mold crystalline annealing protocols.
Why PEEK Molds Need Special Steel and Heating Systems
Uddeholm Dievar / 1.2343 ESR (54 HRC), ceramic composite platen insulation, and thermal expansion offsets.
PPS vs PEEK vs LCP: Which High-Performance Plastic for Your Connector
SMT 260°C reflow endurance, thin-wall flow limits, high-frequency dielectric constant (Dk/Df), and material cost.
Frequently Asked Questions
Why is PEEK injection molding so expensive compared to other plastics?+
What mold temperature is required for proper PEEK crystallization?+
Can you mold both medical-grade and aerospace-grade PEEK?+
Consult Our PEEK Material Engineers Today
Leverage our expertise in high-temperature polymers. Upload your CAD for a specialized PEEK DFM review, mold flow analysis, and competitive tooling quote within 24 hours.
