Mold Opening Controllers
Mold Opening Controller Categories
Stop Bolts & Puller Bolts
Mechanical stop and pull-back bolts for three-plate mold plate separation control.
View Products

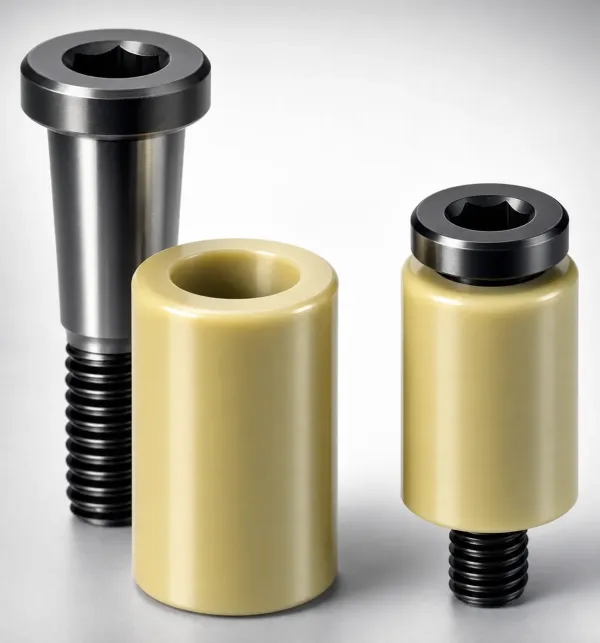

Parting Lock Sets
Controlled locking and release of parting surfaces — resin sleeve, side mount, roller, and magnetic types.
View Products
Tension Link Components
Stroke-limiting links, chains, and fasteners for controlled plate opening and safety restraint.
View Products
Mold Opening Components
Urethane washers, springs, and pusher pins for plate separation force and cushioning.
View Products
Mold Opening Prevention Plates
Safety plates and straps to keep molds closed during transportation and storage.
View ProductsMatch Your Application to the Right Controller
Different mold opening challenges require different control mechanisms. Select the scenario that best describes your situation:
Three-Plate Mold Stop & Pull Positions
You need to define stop positions and pull-back points between runner plate, cavity plate, and core plate in a three-plate mold.
Controlled Parting Surface Sequence
Your mold has multiple parting surfaces that must open and close in a specific sequence to avoid runner damage or short shots.
Plate Stroke Limitation & Safety Restraint
You need to limit how far plates can travel during opening, or need a safety chain to prevent plate separation during maintenance.
Plate Separation Force & Cushioning
You need elastic elements to provide initial separation force, cushion impact, or push runner stripper plates away.
Mold Safety During Transport & Storage
You need to keep mold halves securely closed during shipping, crane lifting, or warehouse storage to prevent accidental opening.
Selection guide: For a complete walkthrough of three-plate mold opening sequence design, see our How to Control Mold Opening Sequence in Three-Plate Injection Molds.
Quick Comparison of Controller Types
Compare the five categories of mold opening controllers at a glance:
| Criteria | Stop & Puller Bolts | Parting Lock Sets | Tension Links | Opening Components | Prevention Plates |
|---|---|---|---|---|---|
| Primary Function | Define stop positions & pull-back points | Lock/unlock parting surfaces in sequence | Limit plate travel stroke | Provide separation force & cushioning | Keep mold closed during transport |
| Active During Molding? | ✓ | ✓ | ✓ | ✓ | ✗ (transport only) |
| Controls Sequence? | Indirect (via stop length) | ✓ (primary function) | Indirect (via stroke limit) | ✗ | ✗ |
| Maintenance Frequency | Low | Medium (sleeve wear) | Low | Medium (spring fatigue) | None |
| Typical Mold Type | Three-plate mold | Three-plate, stripper plate | Three-plate, multi-plate | Any mold with plate separation | Any mold |
| Cost Level | $ | $$ – $$$ | $$ | $ | $ |
Solve a Mold Opening Problem
Experiencing mold opening issues? Match your symptom to the right solution:
| Problem | Likely Cause | Recommended Solution |
|---|---|---|
| Plates open in wrong order | Missing or worn parting locks; incorrect sequence control | Parting Lock Sets — control opening/closing sequence |
| Mold opens too far, damaging runners | No stroke limitation; runner plate overshoots | Tension Links — limit opening stroke precisely |
| Runner plate won't separate cleanly | Insufficient push force on runner stripper plate | Pusher Pins & Urethane Springs — provide separation force |
| Stopper bolt fails to hold plate position | Incorrect bolt length or thread engagement | Stopper Bolts — verify length calculation for plate stack |
| Mold halves separate during transport | No transport safety device installed | Prevention Plates & Mold Straps |
| Parting surface alignment drifts over cycles | Parting lock wear or insufficient locking force | Roller Lock Sets — higher accuracy, lower wear |
| Excessive maintenance on parting lock sleeves | Resin sleeve degradation at high temperature | Magnetic Lock Sets — zero mechanical wear |
Troubleshooting guide: For a systematic approach to diagnosing plate separation issues, see our How to Troubleshoot Plate Separation Issues in Multi-Plate Molds.
Are You in the Right Category?
✅ You're in the right place if:
- You need to control the opening sequence of a three-plate or multi-plate mold
- You need to limit plate travel stroke during mold opening
- You need to lock/unlock parting surfaces in a specific order
- You need safety devices to prevent accidental mold opening during transport
- You need elastic elements to push plates apart (runner stripper, etc.)
🔄 Consider switching to:
- Leader Pins & Bushings — if you need plate alignment and guiding (not sequence control)
- Mold Springs — if you need general return springs, not mold opening-specific components
- Ejector Pins — if you need part ejection from the cavity, not plate separation control
- Mold Heating & Cooling — if your issue is thermal expansion causing misalignment
About Mold Opening Controllers
Mold opening controllers are essential mechanical components that manage the sequence, stroke, and safety of plate separation in three-plate and multi-plate injection molds. In a three-plate mold, the mold must open at multiple parting surfaces in a controlled order — typically the runner parting line opens first (separating the runner plate from the cavity plate), followed by the main parting line (separating cavity plate from core plate). Without proper sequence control, plates can open randomly, causing runner breakage, gate vestige issues, or even mold damage. Our range includes stopper bolts and puller bolts for defining stop positions, parting lock sets for active sequence control, tension links and chains for stroke limitation, urethane-based elastic components for separation force, and prevention plates for transport safety.
Frequently Asked Questions
What is a mold opening controller and why is it needed in injection molds?+
How do I choose between parting locks, tension links, and stopper bolts?+
What causes uncontrolled plate separation in three-plate molds?+
Can mold opening controllers be retrofitted to existing molds?+
What is the lead time for custom mold opening controller components?+
Engineering Resources
How to Control Mold Opening Sequence in Three-Plate Injection Molds
Step-by-step guide to selecting and combining mold opening controllers for correct plate separation sequence.
How to Troubleshoot Plate Separation Issues in Multi-Plate Molds
Systematic diagnosis of common plate separation problems with root cause analysis and recommended solutions.
What Are Mold Opening Controllers — A Complete Guide to Sequence Control Components
Comprehensive overview of all mold opening controller types, their functions, and how they work together.
Need a Custom Quote?
Send your specifications — component type, dimensions, material, quantity — and receive a quote. Standard and custom configurations available for all mold opening controller categories.
