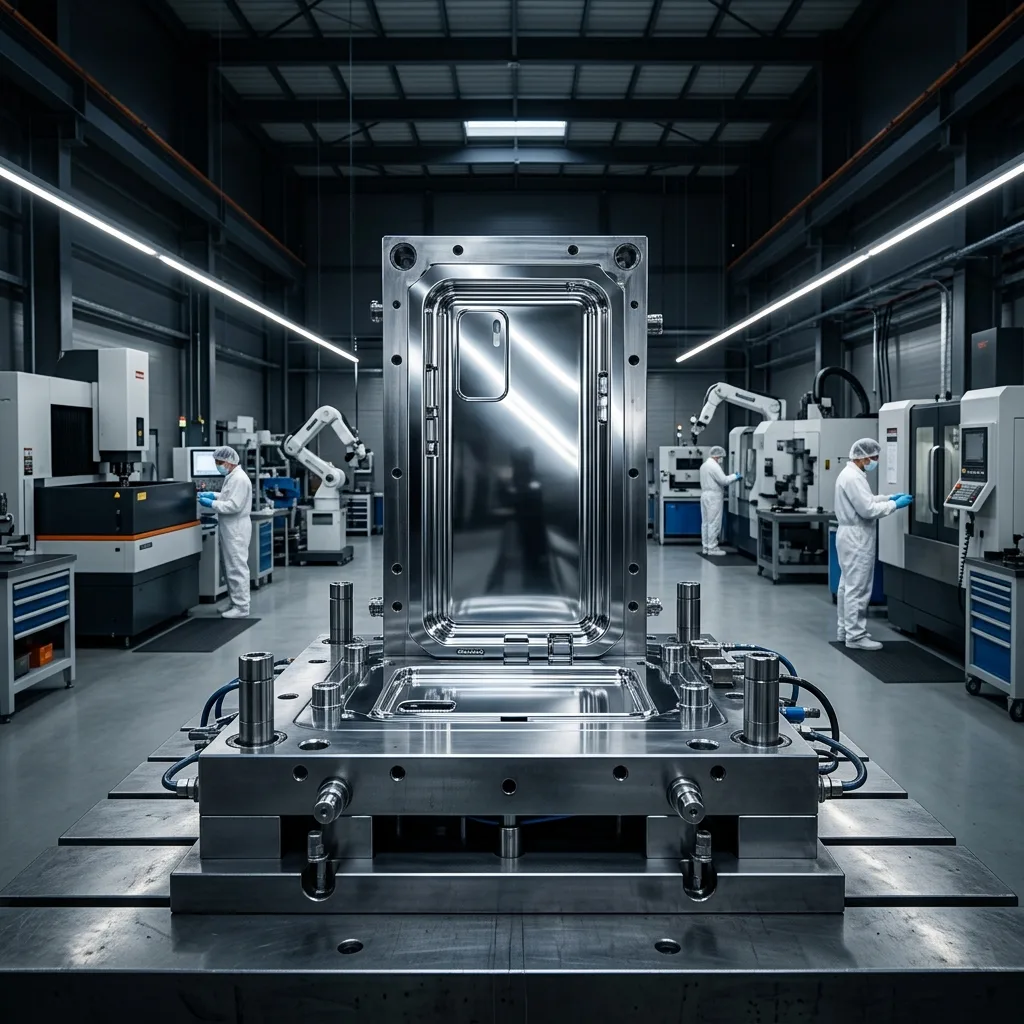

Consumer Electronics Injection Mold Manufacturing
Advanced electronics injection molding solutions for modern consumer devices. We specialize in sub-0.5mm thin-wall housings, EMI shielding integration, 5G antenna structures, and micro connector tooling designed for mass production.
Thin-Wall & Micro-Connector Tooling Architecture
Achieving sub-0.5mm wall thicknesses for smartphone and wearable housings requires extreme flow control. We engineer our tools to handle the immense cavity pressures of high-speed thin-wall molding.
High-Speed Injection (800mm/s+)
Robust mold base design preventing platen deflection under intense thin-wall injection speeds, ensuring uniform part dimensions.
Thin-Wall Flow Simulation
Rigorous Moldflow rheological analysis to predict and optimize polymer flow paths in ultra-thin micro-connector geometries.
Micro-Gate Design
Precision laser-machined valve and pinpoint gates that shear high-viscosity resins effectively without causing premature freeze-off.
Vacuum Venting Systems
Active vacuum evacuation to eliminate diesel-effect gas burns and short shots in blind ribs and deep bosses.
Thin-Wall Design Guidelines
| Feature | Standard Molding | Thin-Wall Electronics Molding |
|---|---|---|
| Nominal Wall Thickness | 1.5mm - 3.0mm | 0.3mm - 0.8mm |
| Flow Length to Thickness (L/t) Ratio | 100:1 to 150:1 | 200:1 to 300:1+ (Requires high-flow resins) |
| Rib to Wall Ratio | 60% of nominal wall | Up to 80% with advanced cooling to prevent sink marks |
| Draft Angles | 1° - 2° per side | 2° - 3°+ for ejection of deep, thin-walled enclosures |
5G, IoT & Wearable Device Capabilities
We deliver specialized tooling solutions tailored to the miniaturization and environmental protection demands of modern smart devices:
TWS Earbuds Charging Case
PC/ABS thin-wall structural enclosures (compare material choices in our ABS vs PC vs PC/ABS housing selection guide). Mirror polished cavity for seamless cosmetic appearance and snap-fit hinge precision.
Smart Ring & Wearable Band
Multi-shot injection molding combining rigid PC skeletons with soft TPU/Silicone overmolds for IP68-rated skin contact comfort.
5G Small Cell Antenna Housing
LCP/PPS high-temperature resins selected for low dielectric loss. Precision micro-features to support internal antenna array alignment.
IoT Sensor Node Enclosure
Ruggedized housings with integrated EMI shielding inserts or conductive paint masking features. Designed for harsh environmental deployment.
Prevent parting-line flash in liquid crystalline polymers with our guide to controlling flash in thin-wall LCP connector molding, and learn how sub-micron machining centers achieve tight tolerances in our overview of CNC, EDM, and wire-cut precision mold machining methods.
Precision Tolerance & Engineering Specifications
Consumer electronics demand strict dimensional control to ensure perfect assembly of miniaturized PCBAs, batteries, and display panels.
| Specification Category | Standard Parameter | Axiom Molds Electronics Standard |
|---|---|---|
| Wall Thickness Range | 1.5mm - 3.0mm | 0.3mm - 1.5mm (Ultra-thin processing) |
| Dimensional Tolerance | ±0.10mm | ±0.02mm - ±0.05mm (Critical PCB mounting datums) |
| Cosmetic Surface Finish | VDI 3400 / SPI C-1 | SPI B-1 to SPI A-1 (Optical/High-gloss exteriors) |
| EMI / RFI Shielding | Post-process only | In-mold metal insert or precise masking geometry for conductive paint |
| Common Engineering Resins | ABS, PP, standard PC | PC, PC/ABS, LCP, PPS, PA66+GF (High-flow, high-temp, low-warp) |
🔧 Tooling Verification: Ensure your electronics mold meets all aesthetic and dimensional criteria before shipment by reviewing our 8-point injection mold acceptance checklist.
Fast-Track Design-to-Export Process
Speed-to-market is critical in consumer electronics. Our 5-step fast-track process delivers validated micro and thin-wall molds in a typical 25-40 day timeframe.
Industrial design feasibility check, draft analysis, and parting line placement to ensure flawless cosmetics.
Full 3D mold layout incorporating conformal cooling for rapid cycle times (learn how conformal cooling cuts cycle times by 30-50%) and hot runner integration.
Makino V33i milling and Sodick AG40L mirror EDM for precise cavity textures and micro-features.
Initial scientific molding trial with comprehensive Zeiss CMM dimensional and cosmetic sign-off.
Rust-prevention treatment, vacuum sealing, and ISPM-15 compliant crating for safe international transit.
Related Engineering Guides & Technical Resources
How to Design Micro Connector Molds for Sub-0.4mm Pitch Applications
0.08mm blade core pins, WF30 carbide tooling, LCP shear thinning, and sub-0.004mm flash threshold control.
How to Design Thin-Wall Injection Molds for Electronic Housings
Flow-length-to-thickness (L/T > 150:1), 2200 bar injection pressure, MoldMAX CuBe2 cooling, and stripper ejection.
How to Achieve High-Gloss Surface Finish in Appliance Injection Molding
Piano-black Class-A mirror finishes without spray painting using RHCM dynamic thermal cycle tooling.
Frequently Asked Questions
How do you achieve thin-wall molding (<0.5mm) for electronics housings?+
Can you integrate EMI shielding inserts into injection molds?+
What surface finishes are available for consumer electronics enclosures?+
