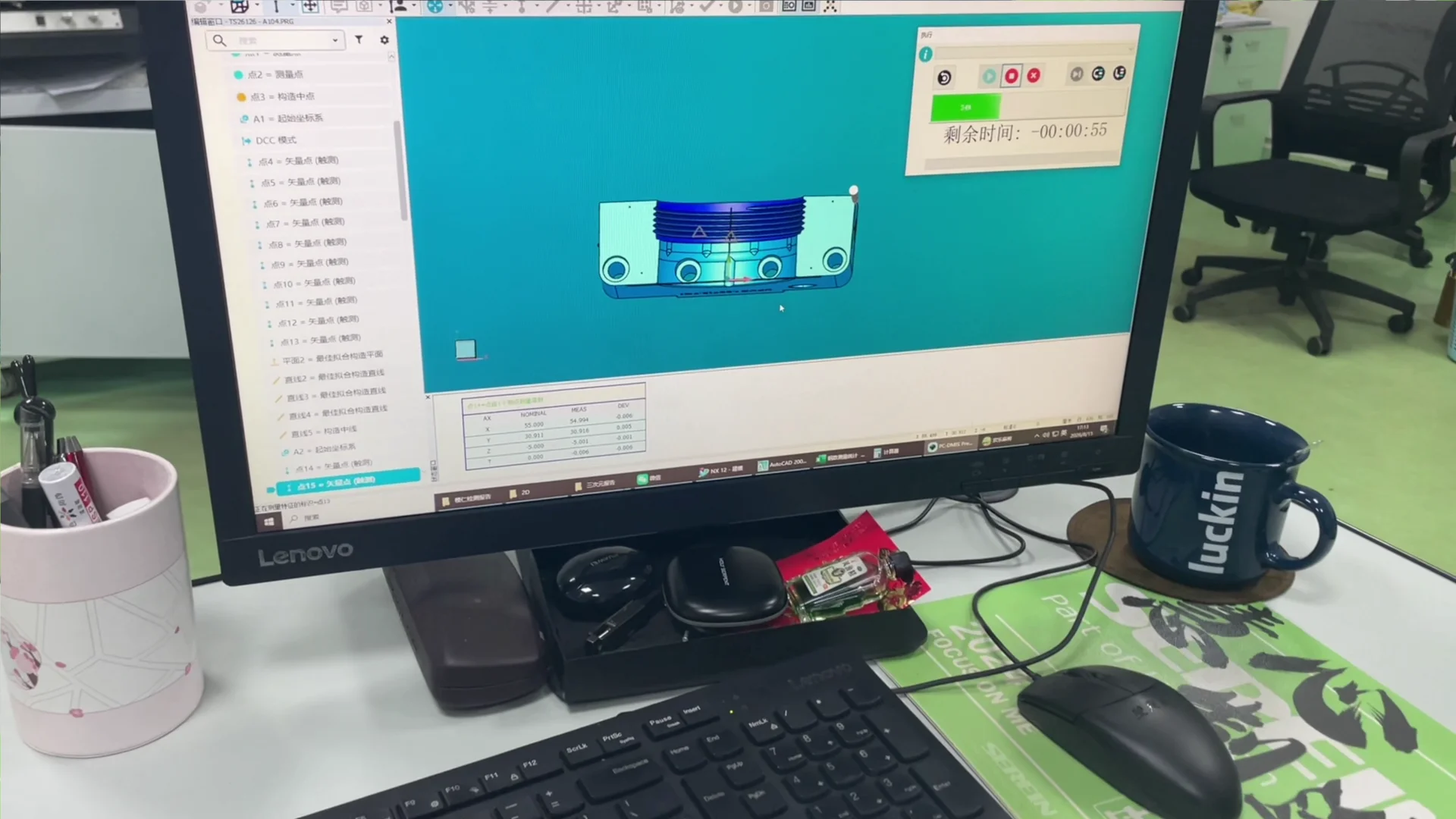

DFM Analysis for Injection Molding
Design for Manufacturability (DFM) is the critical first step in custom tooling. Our engineers analyze your 3D CAD data to optimize draft angles, uniform wall thickness, and gate locations, ensuring flawless injection molding production and preventing expensive tooling modifications.
Key Elements of Our DFM Analysis
Our 24-hour comprehensive DFM analysis acts as a gatekeeper, evaluating the moldability of your part geometry. We generate a detailed report breaking down critical design parameters to ensure molding success:
| Design Element | Evaluation Criteria | Our DFM Recommendation Focus |
|---|---|---|
| Draft Angles | 1-3° per side based on surface texture | Adding sufficient draft to cavity/core walls to prevent drag marks and ensure smooth ejection |
| Wall Thickness | ±10% uniformity across nominal walls | Identifying thick sections prone to sink marks or voids, and recommending coring out material |
| Undercuts | Internal/external geometry preventing linear ejection | Proposing design tweaks to eliminate undercuts or defining slide/lifter mechanisms if required |
| Gate Location | Resin flow paths, pressure drop, and shear rate | Optimizing gate location and style using our injection mold gate types guide for balanced filling and minimal vestige |
| Parting Line | Cosmetic vs functional surface separation | Routing parting lines to hide flash, protect critical dimensions, and simplify mold construction |
| Ejection Method | Part geometry and draft constraints | Selecting ejector pins, stripper plates, or sleeves to prevent part deformation during demolding |
📋 Sample DFM Report Structure: Every report includes an Executive Summary, Material Selection Review, Wall Thickness Analysis, Parting Line & Gate Placement Maps, Draft Angle Color Maps, and Ejection Pin Layouts. We commit to a 24-hour turnaround for standard parts.
The ROI of Early DFM Engagement
Engaging in DFM analysis before cutting steel catches 40-60% of potential rework issues—learn more in our report on how DFM analysis reduces mold modification costs by 40%.
❌ Without Upfront DFM
- Unidentified thick walls lead to sink marks during T1 trials.
- Insufficient draft causes parts to stick, requiring core polishing.
- Unexpected flash on cosmetic surfaces due to poor parting line design.
- Result: 2-3 extra modification cycles costing $5,000–$15,000 and delaying launch by 3-5 weeks.
For multi-component programs, review why cross-tooling DFM matters for multi-part connector molds and track development phases via our 6-step mold manufacturing project timeline.
Is DFM Necessary for Your Project?
While DFM is universally beneficial, its impact varies based on your project's maturity and complexity. Here is our decision framework for assessing DFM requirements:
| Project Type / Complexity | DFM Priority Level | Action Required |
|---|---|---|
| New Product Introduction (NPI) | CRITICAL | Full DFM analysis required. High risk of unproven geometry, complex undercuts, and unoptimized wall thicknesses. |
| Tight Tolerance / Engineering Grade | CRITICAL | Moldflow simulation mandatory to predict shrinkage and warpage—see how Moldflow simulation prevents costly injection molding defects. |
| Multi-Cavity High Volume | CRITICAL | Extensive runner balancing and gate optimization needed to ensure uniform filling across all cavities. |
| Design Iteration / Minor Update | RECOMMENDED | Focused review on updated features to ensure they don't introduce new undercuts or tool interference. |
| Simple Single-Cavity Prototype | SIMPLIFIED | Basic draft and thickness check is sufficient. Rapid tooling strategies can bypass complex simulations. |
🔍 Quick Self-Assessment: Does your part have side holes, snap fits, variable wall sections >2mm, or demanding cosmetic requirements? If yes to any, a formal DFM review is essential.
Related Engineering Guides & Technical Resources
How DFM Analysis Reduces Mold Modification Costs by 40%
The 1-10-100 economic rule, draft angle optimization, parting line simplification, and gate optimization.
How Moldflow Simulation Prevents Costly Injection Molding Defects
Fill-Pack-Cool-Warp 3D CAE simulation, weld line repositioning, and mold pre-camber compensation.
How to Choose the Right Gate Type for Your Injection Mold
Submarine, pin-point, edge, fan, and valve gates compared for cosmetic vestige, shear stress, and automated degating.
Frequently Asked Questions
How long does a DFM report take to complete?+
Will you suggest design changes to reduce my tooling cost?+
What file formats (STEP/IGES/3D) do you need to start a DFM?+
Upload Your 3D CAD for a Free DFM Analysis
Send us your STEP or IGES files today. Our engineers will provide a comprehensive DFM report and tooling quotation within 24 hours.
