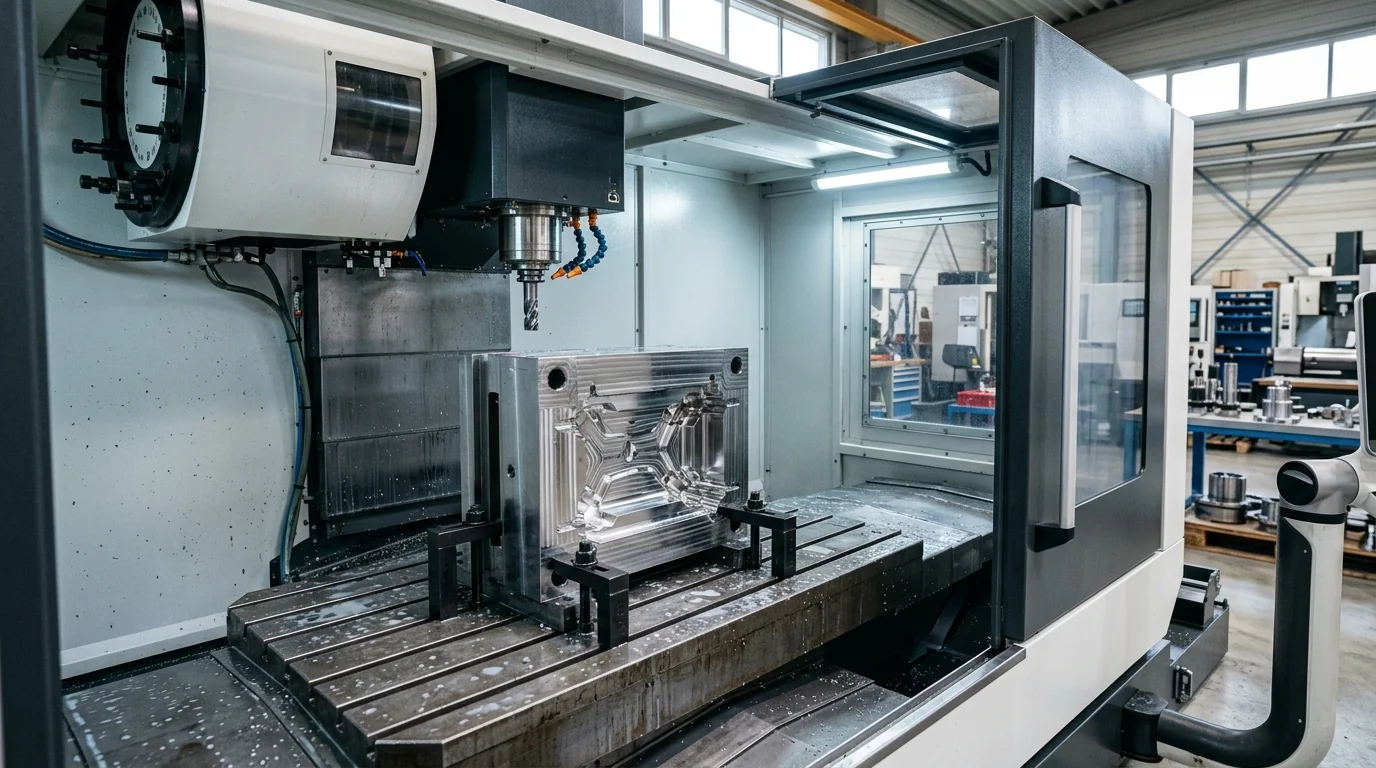

Hot Runner Injection Mold Manufacturing China
Precision zero-waste hot runner tooling with valve gate manifolds, sequential cascade gating (SVG), and independent PID multi-zone thermal control. Integrated with world-class YUDO, Husky, and Mold-Masters systems.
Hot Runner vs. Cold Runner Tooling Comparison Matrix
Selecting the optimal hot runner nozzle style depends on cosmetic appearance standards, part thickness, and resin rheology.
| Hot Runner System Feature | Pneumatic / Hydraulic Valve Gate | Thermal Open-Tip Nozzle |
|---|---|---|
| Gate Vestige Appearance | Flush pin mark (<0.05mm), virtually invisible | Small nub vestige (0.2mm to 0.6mm) |
| Gating Control | Timed pin actuation enables Sequential Valve Gating (SVG) | Simultaneous natural thermal gate opening |
| Compatible Resins | All plastics including abrasive GF-resins and shear-sensitive polymers | Best for unfilled commodity & engineering plastics (PP, PE, ABS, PC) |
| Weld Line Elimination | 100% weld line free via sequential cascade filling | Requires optimized part geometry to conceal weld lines |
| Maintenance & Investment | Higher initial tooling cost, valve pin seal maintenance | Lower initial cost, simple maintenance, zero moving parts |
📊 Runner System Comparison: Need to compute your exact material scrap savings and gate vestige options? Read our detailed hot runner vs cold runner comparison.
Thermal Manifold DFM & Multi-Zone PID Control
Uniform melt temperature throughout the manifold prevents material degradation and cavity imbalance:
Independent PID Zone Control
Every drop and manifold segment is monitored by J/K-type thermocouples with ±1.0°C closed-loop accuracy.
Rheologically Balanced Channels
Naturally balanced circular melt channels eliminate shear-induced temperature variations across all drops.
Zero-Leak Pre-Load Sealing
Calculated thermal expansion pre-loads guarantee complete seal-off between nozzle tips and cavity steel under operating temps.
Fast Color Change Geometry
Polished runner bores with zero dead-corners enable rapid color purging in <15 shots.
🏠 Large-Span Application: Discover how sequential valve gating resolves warpage in large appliance housings in our guide on how to solve warpage in large appliance injection molds.
For high-cavitation tooling layouts, see our technical guide on how to balance runners in multi-cavity injection molds.
Hot Runner Investment Payback & Material ROI Calculator
Calculate the exact production volume threshold where a hot runner system achieves 100% investment payback over cold runner tooling. Review our decision framework on when to use hot runner molds to evaluate resin savings and tooling CapEx:
📊 Break-Even Production Volume Formula
Break-Even Shots (N) = (Hot Runner Added Cost - Cold Runner Cost) / [(Sprue Scrap Mass × Resin $/kg) + (Cycle Time Savings in sec × Machine Press Rate/sec)]
Global Hot Runner Brand Integration & Support
We integrate and provide full factory support for leading global hot runner brands, ensuring worldwide spare parts availability:
| Hot Runner Manufacturer | Origin & Global Support | Recommended Application Specialty | Standard Delivery Lead Time |
|---|---|---|---|
| YUDO | Global (Korea / Worldwide) | Best cost-performance for consumer electronics, home appliances, and automotive components | 10–14 Days |
| Husky Injection Molding | Canada / Global | Ultra-high cavitation closure molds, medical consumables, PET preforms, and sub-second packaging | 18–25 Days |
| Mold-Masters (Milacron) | Germany / Canada | Master-Series high-precision engineered plastics, automotive interior components, and high-temp PEEK/LCP | 14–20 Days |
| Synventive (Barnes Group) | USA / Germany | ActiveGate servo-controlled pin actuation for sequential Class-A automotive bumper fascias | 16–22 Days |
| INCOE & HRSflow | USA / Italy | Direct gate hot halves, multi-material 2K tooling, and complex large-span industrial enclosures | 14–18 Days |
Hot Runner Troubleshooting & Failure Prevention Matrix
Preventive maintenance guidelines and root-cause solutions for the most common manifold operating challenges—see our in-depth manual on how to troubleshoot hot runner systems to resolve nozzle freeze-offs and melt leaks:
| Symptom / Failure Mode | Root Cause Analysis | Preventive Countermeasure & Engineering Fix |
|---|---|---|
| 1. Gate Drooling / Stringing | Nozzle tip temperature too high or insufficient decompress suck-back | Lower tip PID temp by 5-10°C; increase screw decompression by 3-5mm; inspect valve pin seal land |
| 2. Gate Freeze / Blockage | Nozzle tip heat sink to cold mold steel; thermocouple calibration drift | Add titanium insulator cap; inspect thermocouple seating; verify heater coil electrical resistance |
| 3. Manifold Plastic Leakage | Improper thermal expansion pre-load calculation or uneven bolting torque | Recalculate hot manifold stack height; torque bolts in criss-cross sequence to exact manufacturer Nm spec |
| 4. Silver Streaks / Degradation | Melt residence time too long or localized hot spots in manifold bore | Select smaller runner diameter; eliminate dead zones; verify heater wattage balance across zones |
| 5. Valve Pin Skew / Seizure | Guide bushing galling due to differential thermal expansion | Use high-hardness Ampco 940 bronze or DLC-coated hardened steel guide bushings; ensure air cooling to cylinders |
Related Engineering Guides & Technical Resources
When to Use Hot Runner Molds: ROI Calculation & Decision Framework
Volume break-even math, resin scrap reduction savings, and cycle time economics for hot manifold investment.
How to Troubleshoot Hot Runner Systems: 8 Common Issues & Fixes
Solving manifold melt leakage, nozzle tip freeze-off, thermal imbalances, and stringing on cosmetic parts.
Hot Runner vs Cold Runner Molds: The Complete Selection Guide
Compare upfront tooling cost, cycle time reductions, material scrap calculations, and ROI payback models.
Frequently Asked Questions
What is the difference between valve gate and thermal gate hot runners?+
Which hot runner brands and manifold systems do you support?+
How does Sequential Valve Gating (SVG) eliminate weld lines on large parts?+
At what production volume does a hot runner mold pay for itself?+
Request a Hot Runner Mold Proposal
Upload your 3D CAD files for a free Moldflow gating simulation and hot runner tooling quotation within 24 hours.
