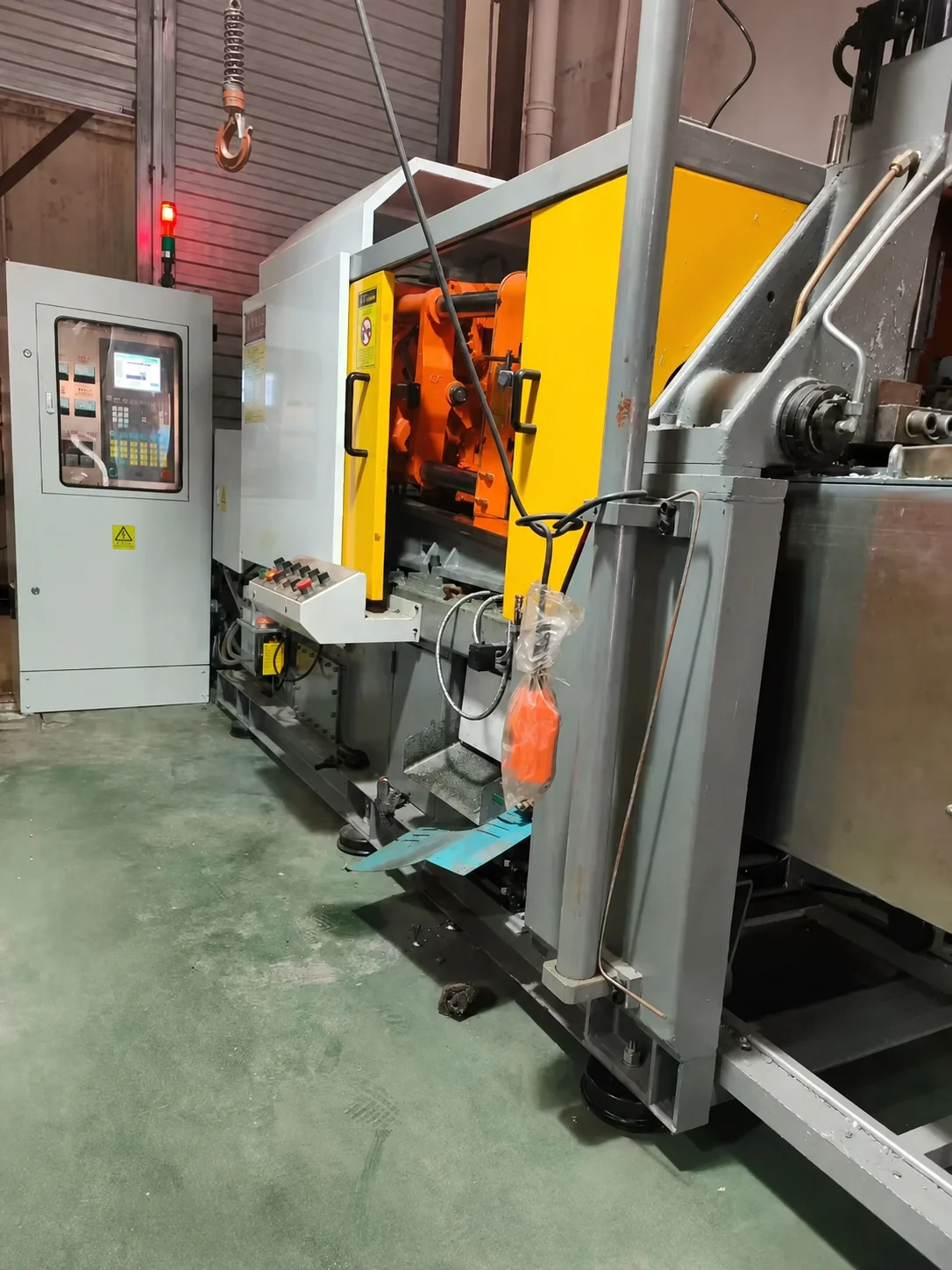

Custom TPE Overmolding Injection Tooling
Specialized two-shot and insert overmolding manufacturing for Thermoplastic Elastomers (TPE). Delivering superior soft-touch ergonomics, precise Shore A hardness matching, and permanent chemical bonding to rigid substrates for consumer, medical, and industrial applications.
Chemical Bonding to Polypropylene (PP) Substrates
Achieving permanent peel strength without adhesives requires precise material science and tooling execution. TPE bonds organically to PP through molecular diffusion and compatible solubility parameters:
Melt Temperature Overlap
Injecting TPE within the critical 180-220°C window partially melts the PP substrate's skin layer, allowing polymer chains to entangle before cooling into a singular bonded structure.
Surface Energy Matching
Since both SEBS-based TPE and PP are non-polar olefins, their matched surface energy ensures thermodynamic compatibility. For pairing rules across rigid engineering plastics, consult our two-shot material compatibility guide.
Zero-Flash Shut-Off Design
Because TPE is highly fluid, we design precision steel-safe shut-off lands (crush ribs) at 0.05mm interference to compress the substrate slightly, preventing any TPE flash seepage.
🔥 Tooling Precision: Guaranteeing a tight shut-off requires expert mold steel fitting. Learn our inspection protocols in our 8-point injection mold acceptance checklist.
Shore A Hardness & TPE Material Specifications
We process a wide range of thermoplastic elastomers (Santoprene, Dryflex, SEBS compounds) to meet strict tactile, visual, and performance criteria:
| TPE Property Parameter | Standard Specification | Axiom Tooling Capability |
|---|---|---|
| Shore Hardness Range | 30A (Ultra-Soft) to 90A (Semi-Rigid) | Tolerance control of ±2 Shore A across batches |
| Common TPE Grades | General Purpose, SEBS, SBS | Santoprene™ (TPV), Dryflex®, Medical FDA Grades |
| Color Matching | Black, Natural, Pre-colored | Custom Pantone/RAL Masterbatch without carrier delamination |
| Melt Processing Range | 160°C – 200°C | 180°C – 220°C optimized for chemical adhesion |
| Shrinkage Rate | 1.0% – 2.0% | Compensated differential shrinkage in DFM phase |
For soft-touch ergonomic grips and drop-tested tool bodies, review our power tool housing mold design guide.
Soft-Touch Consumer & Medical Applications
TPE overmolding dramatically enhances product ergonomics, safety, and perceived value across multiple industries:
Toothbrush Handles
FDA food-contact safe TPE overmolded onto PP cores. Provides a secure, non-slip grip in wet environments while resisting toothpaste chemicals.
Kitchen Utensil Grips
High-heat resistant TPV (Santoprene) bonded to rigid nylon or PP substrates. Ensures dishwasher safety and long-lasting ergonomic comfort.
Personal Care Device Housings
Skin-safe SEBS compounds providing vibration dampening and premium tactile feedback for electric shavers and massage guns.
Remote Control Button Pads
Ultra-thin TPE keypads overmolded seamlessly onto ABS/PC enclosures. Offers excellent flex fatigue resistance and zero dust ingress.
Overmolding Material Selection: TPE vs. TPU
Choosing the right elastomer depends on the mechanical stress, environmental exposure, and base substrate of the application:
| Performance Metric | TPE (Thermoplastic Elastomer) | TPU (Thermoplastic Polyurethane) |
|---|---|---|
| Cost Effectiveness | Excellent (Lower raw material & processing cost) | Moderate to High |
| Substrate Bonding Compatibility | Outstanding for PP, PE (Olefins) | Better for PC, ABS, Nylon |
| Recyclability | High (Easily re-ground and processed) | Moderate (Hygroscopic, requires drying) |
| Abrasion & Wear Resistance | Good for general consumer use | Superior (Ideal for industrial wheels, gears) |
| Chemical & Oil Resistance | Moderate (Varies by compound) | Excellent (Resists greases, fuels, solvents) |
| Processing Ease | High (Wide temperature window, less sticky) | Requires strict moisture control and mold release |
Related Engineering Guides & Technical Resources
TPE vs TPU Overmolding: Which Elastomer for Your Product
Shore 15A-90A TPE vs 60A-75D TPU: Taber abrasion, chemical bonding, and shut-off pre-crush steel design.
How to Ensure Strong TPE-to-Substrate Bond in Overmolding
Interfacial diffusion thermodynamics, 90° shoulder shut-off lands, and ASTM D903 90-degree peel testing.
Insert Molding vs Overmolding vs Two-Shot: Which Process to Choose
Engineering trade-offs between metal insert encapsulation, secondary overmolding, and 2K rotary platen injection.
Frequently Asked Questions
What Shore A hardness range do you offer for TPE overmolding?+
Does TPE chemically bond to PP substrates without adhesive?+
Can you match custom Pantone colors in TPE overmolded parts?+
Develop Your TPE Overmolding Soft-Touch Product
Upload your 3D CAD files for a free DFM analysis on chemical bonding feasibility, shut-off land design, and a factory tooling quote within 24 hours.
