Home Appliance Mold Manufacturing (Up to 25-Ton Molds)
Export-grade large injection tooling for major white goods, consumer electronics, kitchen appliances, and power tools. Backed by 5-axis gantry CNC machining, 3000T in-house trial presses, and RHCM high-gloss mirror surface technology.
RHCM Steam Dynamic High-Gloss & Surface Engineering
Eliminating spray painting through in-mold mirror finishing, high-temperature steam thermal cycling, and advanced conformal cooling:
RHCM Rapid Thermal Cycling
Cavity surface is preheated to 150°C using pressurized steam before injection, then chilled with water at 15°C, eliminating weld lines completely.
Piano-Black Class-A Polish
ESR electroslag remelted tool steels (S136 / 1.2343 ESR) hand-buffed with diamond paste to SPI A-1 optical mirror finish.
100% Weld-Line Elimination
High surface mold temperature allows converging polymer melt fronts to completely fuse, eradicating visible knit lines.
Rapid Chilled Water Quenching
High-flow 10°C chilled water circuits rapidly solidify the part immediately after cavity packing, locking in cycle time.
Eco-Friendly Paint Elimination
Achieve flawless SPI A-1 piano-black and high-gloss finishes straight from the mold, eliminating painting VOC emissions and scrap.
📐 Warpage Control Strategies: Managing large housing warpage across 1000mm+ spans? Learn how sequential gating and balanced cooling mitigate deflection in our guide on how to solve warpage in large appliance injection molds.
For cosmetic housings in ABS and PC/ABS blends, review our troubleshooting guide on eliminating sink marks and flow lines in ABS injection molding and compare polymers in ABS vs PC vs PC/ABS housing material selection.
Large-Scale Tooling Capacity & Machine Fleet
Our heavy mold facility handles tooling up to 25 tons with in-house sampling up to 3,000 tons:
| Machine / Equipment Classification | Fleet Capacity & Working Envelope | Technical Capabilities |
|---|---|---|
| 5-Axis Gantry CNC Centers | 3,200 mm × 2,200 mm × 1,000 mm (Up to 25T) | High-speed contour milling for large washing machine tubs, refrigerator liners, and TV bezels |
| Deep-Hole Gun Drilling | Up to 1,800 mm drilling depth (Ø4mm – Ø38mm) | Precision angled cooling waterlines and conformal circuit cross-drilling |

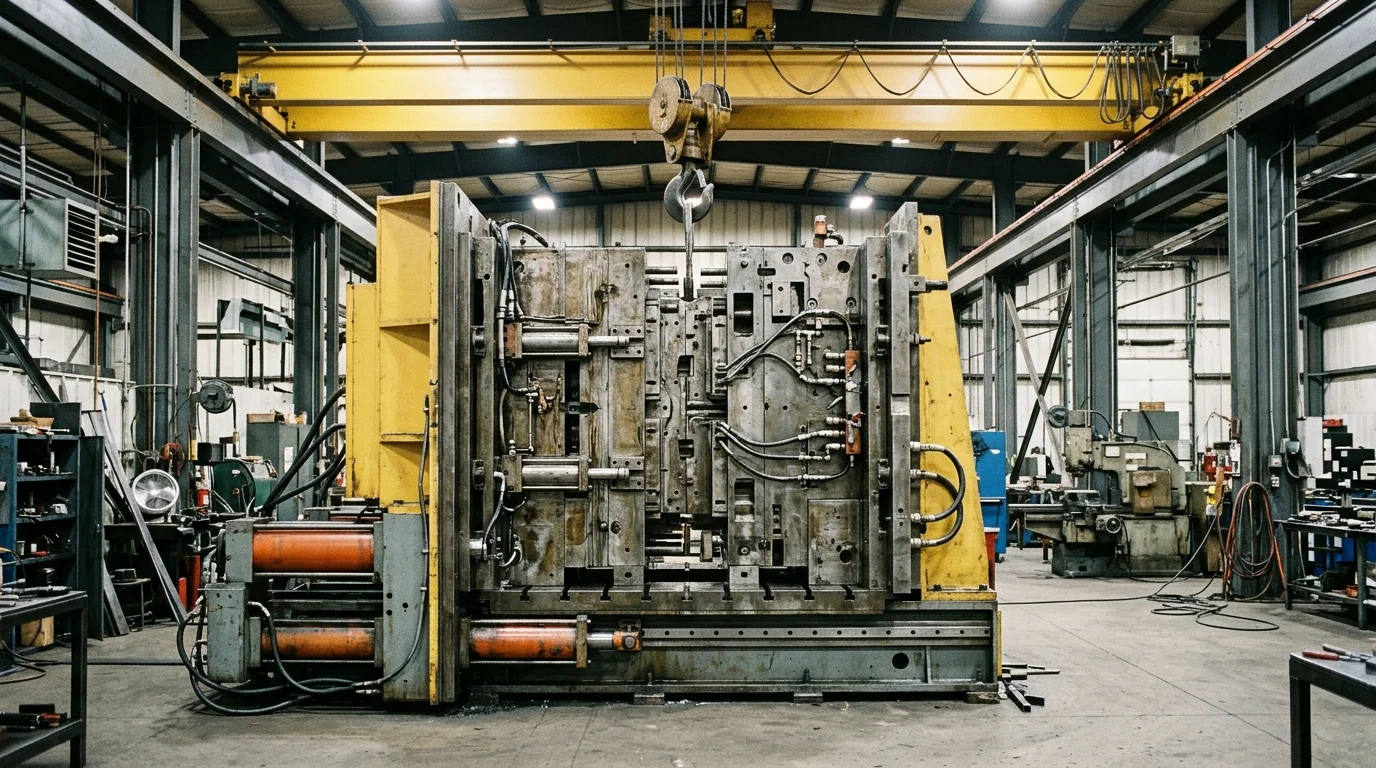

| Hydraulic Die Spotting Presses | Up to 500-Ton spotting capacity (3,000 × 2,500 mm platen) | 180° platen tilting for blue-dye shut-off verification and slide timing audits |
| In-House Injection Trial Presses | 120T up to 3,000-Ton Haitian Two-Platen Presses | Full T0/T1 sampling (see T1 vs T2 mold trial expectations), RJG sensor logging, and automated robot part extraction |
Home Appliance & Power Tool Sectors We Serve
Tooling solutions engineered for consumer aesthetics, structural durability, and high drop-impact resistance:
🧺 Major White Goods Tooling
Washing machine outer tubs, agitator drums, refrigerator door liners, air conditioner front panels, and dishwasher sumps.
☕ Small Domestic & Kitchen Appliances
Espresso machine housings, robotic vacuum cleaners, air fryers, blender jars, and electric kettle bodies.
🔨 Professional Power Tool Housings
PA66+GF30/50 impact-resistant motor housings, cordless drill clamshells, rotary hammer bodies, and 2K overmolded ergonomic grips.
Global Brand Experience & 4 Engineering Case Studies
Proven manufacturing delivery for leading global home appliance, smart home, and power tool brands:
Piano-Black Robotic Vacuum Top Panel
RHCM dynamic steam thermal tooling in high-impact ABS. Preheated to 150°C to eliminate weld lines around LiDAR sensor opening. SPI A-1 high-gloss mirror finish directly from tool.
12kg Front-Load Washing Machine Tub
18-ton multi-slide mold in PP+40% Talc. Sequential 6-drop hot runner, conformal water baffles maintaining <0.5mm concentricity roundness and balance.
Cordless SDS-Plus Rotary Hammer Body
PA66+GF50 heavy clamshell with integrated TPU soft grip. Hardened 1.2343 ESR inserts (52 HRC) resisting extreme glass-fiber abrasion under heavy vibration.
Semi-Automatic Espresso Machine Housing
Food-contact PCTG / Tritan water tank + high-gloss ABS outer chassis. 2K rotary tooling ensuring zero stress-cracking under boiling water contact.
Export Packaging, VCI Protection & Spares Kit
All molds exported to North America and Europe are prepared to withstand multi-week oceanic freight conditions:
| Protection Layer | Standard Specification | Engineering Assurance |
|---|---|---|
| Anti-Rust Preservation | Heavy Fuchs VCI corrosion inhibitor spray | 100% moisture vapor barrier sealing for 24+ months storage |
| Export Timber Crates | Solid fumigated hardwood / plywood | Complies strictly with international ISPM-15 export regulations |
| Safety Locking Hardware | High-tensile steel mold transport locking plates | Prevents cavity and core separation or slide shift during rough transit |
| Serialized Spare Parts Box | Spare ejector pins, heater bands, thermocouples & O-rings | Immediate replacement parts on hand for production launch |
🚢 Logistics & Customs: Planning international mold shipment? Read our complete buyer's guide to importing injection molds from China.
Related Engineering Guides & Technical Resources
How to Select a Home Appliance Mold Supplier: 5 Key Evaluation Criteria
Auditing 5-axis gantry machining envelopes, hot runner integration, 3000T trial presses, and warranty terms.
How to Solve Warpage in Large Appliance Injection Molds
Engineering countermeasures for differential cooling, volumetric shrinkage gradients, and sequential valve gating.
How to Achieve High-Gloss Surface Finish in Appliance Injection Molding
Piano-black Class-A mirror finishes without spray painting using RHCM dynamic thermal cycle tooling.
Frequently Asked Questions
Can you produce weld-line-free high-gloss piano black panels using RHCM?+
What is the maximum mold size and tonnage your facility can manufacture and trial?+
Which plastics are best for heat-resistant kitchen appliances?+
What export packaging and maintenance spare parts are provided upon shipment?+
Get a Large Appliance Tooling Quote
Upload your 3D CAD files for a free DFM review, moldflow warpage analysis, and competitive factory quotation within 24 hours.
