Full-Chain Custom Mold Manufacturing China

Integrated tooling design, high-speed CNC milling, mirror spark EDM, and cleanroom assembly under one roof. We build ultra-precision injection molds, progressive stamping dies, insert/overmolding tooling, and SPI Class 101–105 export tooling for global OEM/ODMs.

±0.002mm Machining PrecisionSPI Class 101–105 Tooling45T–3,000T Press CapacityDME / HASCO / MISUMI Standards24H DFM Turnaround

Chinese CNC Machinist Machining Precision Mold Cavity Block on Heavy-Duty Machine Bed at Axiom Molds

🏭 In-House Heavy CNC Toolroom±0.002 mm Tolerances

Explore Custom Mold Manufacturing Solutions

Navigate our full tooling manufacturing capabilities across 4 key dimensions: by manufacturing process, by structural feature and material grade, by target industry, and by project engineering service.

1. Tooling Manufacturing Processes

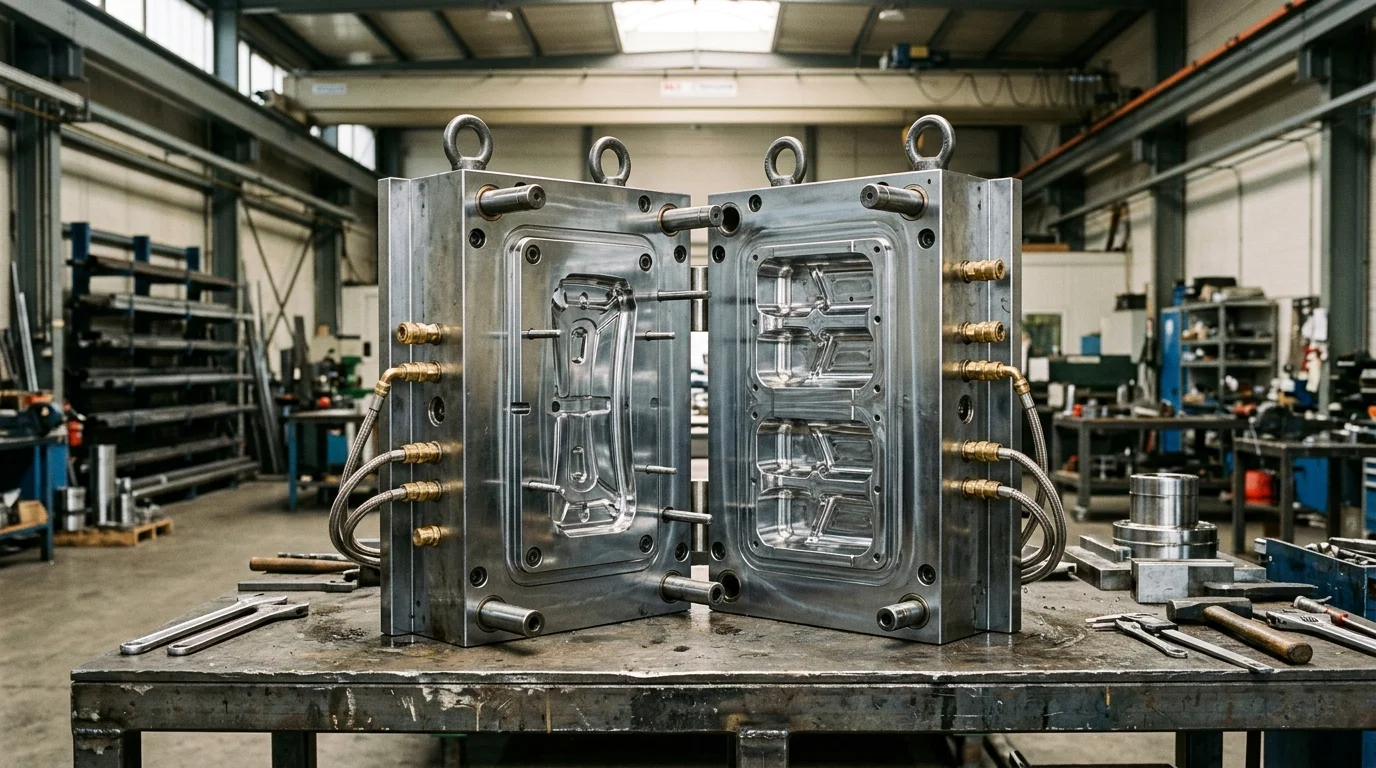

Hardened Steel Multi-Cavity Injection Mold on Steel Assembly Bench

Injection Tooling

Custom Plastic Injection Molds

Single & multi-cavity hardened steel tooling from rapid prototype bridges to 1,000,000+ shot SPI Class 101 production molds.

Explore Injection Molds →

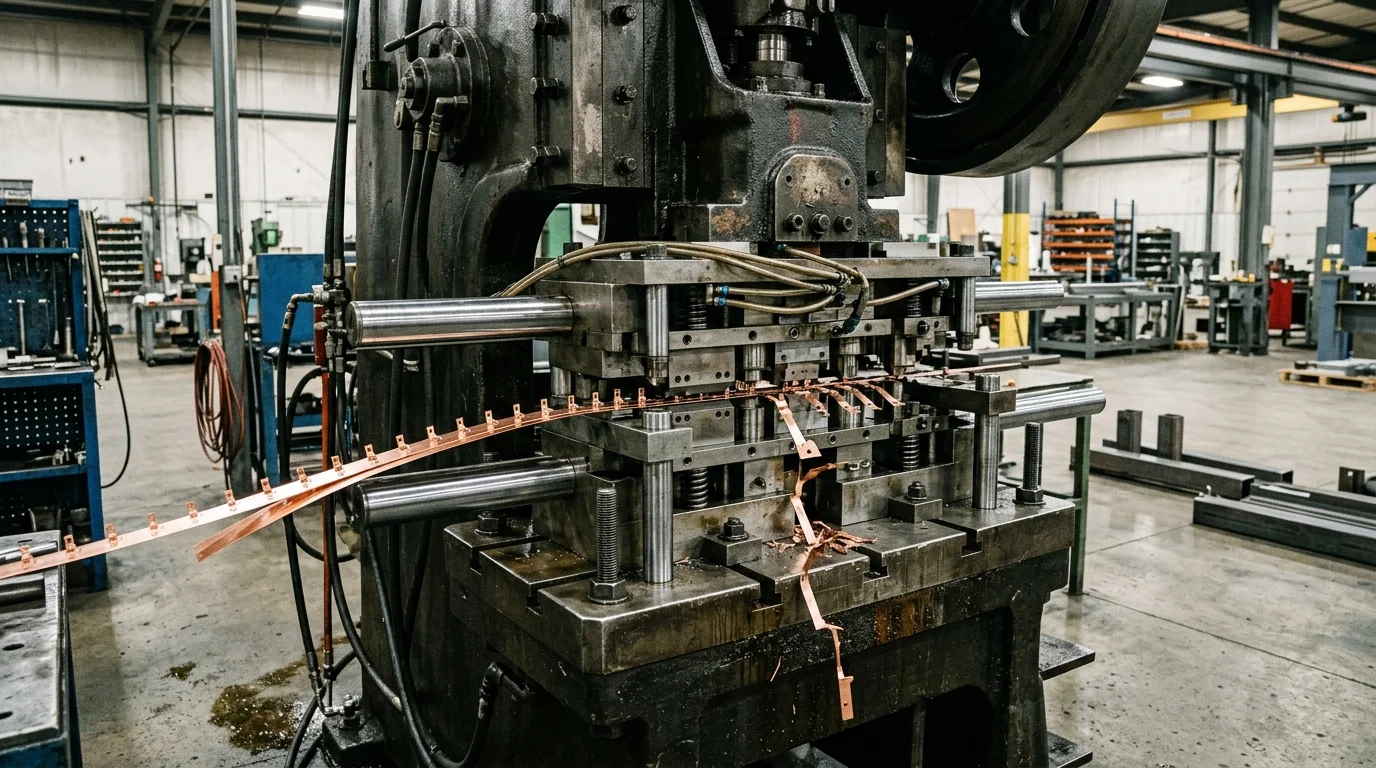

Progressive Stamping Die Mounted on Heavy Punch Press with Copper Strip

Stamping Tooling

Progressive Stamping Dies

High-speed precision progressive dies, copper terminal stamping, and deep-drawing tooling running up to 1200 SPM.

Explore Stamping Dies →

Insert Injection Mold Tooling for Electrical Terminals

Insert / Overmold

Insert & Overmolding Tooling

Pre-embedded metal terminal encapsulation, anti-shift mechanical locking, and soft-touch elastomer overmolding (TPE/TPU).

Explore Insert Tooling →

Two-Shot 2K Injection Mold with Rotary Table

Two-Shot Tooling

Two-Shot (2K) Multi-Material Molds

Rotary core/table dual-injection molds for seamless multi-color styling, integrated sealing gaskets, and rigid-soft integration.

Explore Two-Shot Molds →

2. By Structural Feature, Material & Target Industry

By Structural Feature

🔥 Hot Runner Molds →
Valve gate & open tip zero-waste manifolds
🔲 Multi-Cavity Molds →
4 to 128 cavities, balanced runners, stack molds
🎯 Precision Tooling (±0.002mm) →
Sub-micron optical PG ground core pins
⚙️ 6-Stage Manufacturing Process →
24H DFM, Moldflow, T1 trials & FAT acceptance

By Material

General Purpose

ABS
·
PP
·
PC
·
Nylon (PA+GF)
·
POM
·
PBT

High-Performance

LCP
·
PEEK
·
PPS

Elastomer Overmolding

By Target Industry

🔌 Precision Connector Molds →
0.35mm pitch B2B, FPC & 800V EV connectors
🏠 Home Appliance Tooling →
RHCM high-gloss & large molds up to 25 tons
🚗 Automotive Molds →
IATF 16949, bumper & under-hood tooling
🔨 Power Tool Molds →
PA66+GF50 impact-resistant housing tooling
📱 Consumer Electronics Molds →
Thin-wall, EMI shielding & micro-connector

International Standards & Precision Equipment Matrix

We adhere strictly to North American (DME) and European (HASCO) tooling standards, backed by premier Swiss and Japanese CNC, EDM, wire EDM, and Zeiss CMM metrology instrumentation.

Equipment Category	Brand Specification	Tolerance & Surface
5-Axis High-Speed CNC	Makino V33i, DMG MORI (42,000 RPM)	±0.002 mm / Ra 0.1 µm
Linear Motor Mirror EDM	Sodick AG40L, Makino EDGE3	±0.002 mm / Ra 0.05 µm
Slow-Feeding Wire EDM	Seibu, Sodick (Ø0.05mm wire)	±0.0015 mm Sub-micron
Optical Profile Grinding (PG)	Wasino DV-1 Profile Grinder	±0.001 mm Repeatability
3D CMM & Metrology	Zeiss ACCURA Bridge CMM	0.9 + L/350 µm Accuracy
Trial Injection Presses	FANUC & Haitian (45T to 3,000T)	Scientific Data Logging

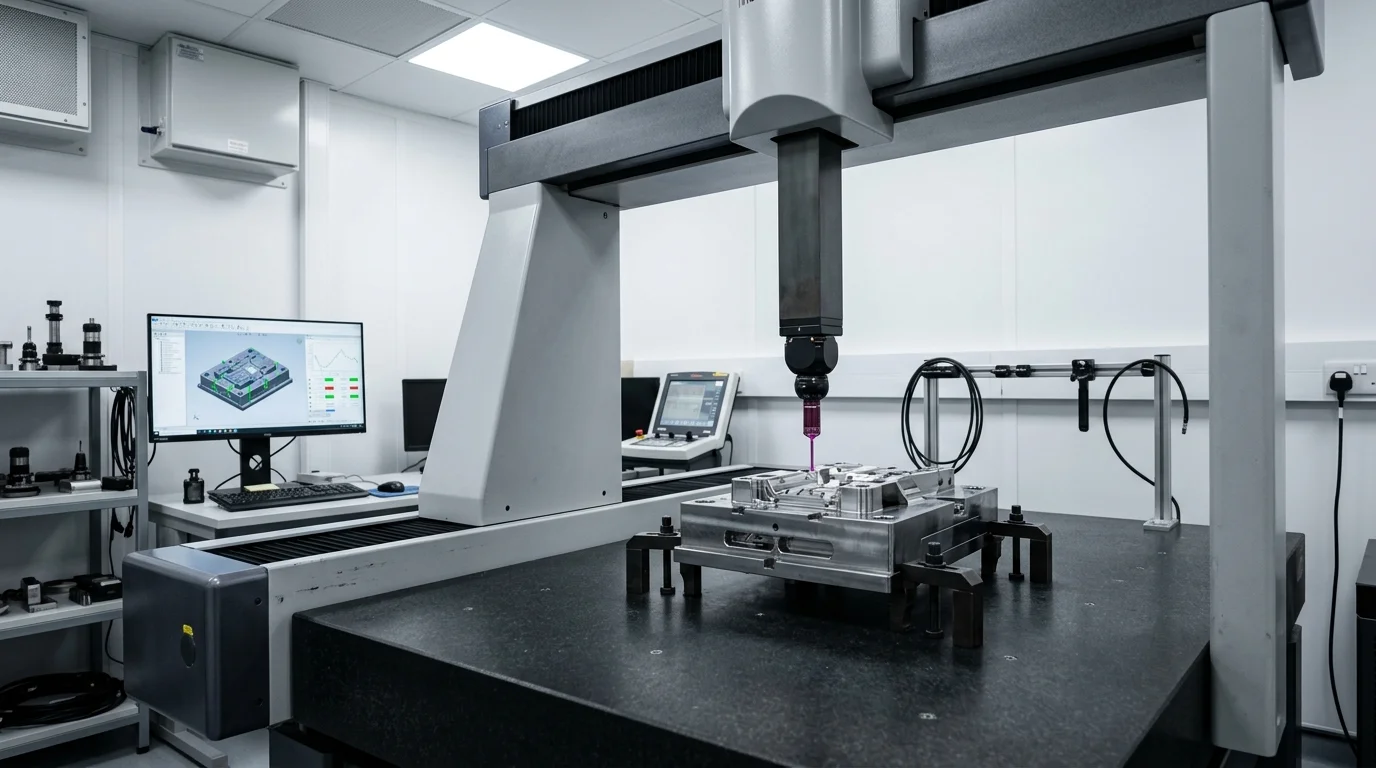

Chinese Quality Control Engineer Operating Bridge CMM at Axiom Molds

Climate-Controlled Bridge CMM Metrology Lab

Every mold cavity block and core insert undergoes 100% First Article Inspection (FAI) verification against native 3D CAD before press trial assembly.

💡 Navigating Steel Provenance & International Standards: When sourcing tools overseas, selecting appropriate cavity grades via our mold steel selection guide (comparing S136, NAK80, H13, and P20) and verifying certified mill certificates (Uddeholm, Bohler, Daido, LKM) is critical to prevent premature stress cracking. For a complete procurement framework, read our guide on importing injection molds from China.

6-Stage Mold Manufacturing Lifecycle & Milestone Gates

From initial 3D CAD design review to final FAT acceptance, our standardized 6-step workflow guarantees zero communication gaps, 100% drawing fidelity, and predictable on-time delivery.

Phase & Timeline	Core Engineering Activities	Client Milestone Gate & Deliverable
01. DFM & Moldflow Days 1–4	Draft angle audit, wall thickness check, parting line routing, gate location & filling simulation	Formal DFM Analysis Report Sign-Off
02. 3D CAD Tooling Design Days 5–12	Complete 3D mold base assembly (DME/HASCO), slide mechanisms, lifters, cooling layout	3D CAD Assembly Approval & Steel Order
03. CNC Machining & EDM Days 13–32	Rough CNC, vacuum heat treatment (52-54 HRC), Makino finish milling, Sodick mirror EDM, wire EDM	Core/Cavity Inserts Zeiss CMM Inspection
04. Tool Fitting & Assembly Days 33–36	Parting line blue spotting (>85% contact area), slide alignment, 10-bar cooling leak test	Assembly Ready for Press Trial
05. T1 Mold Trial & FAI Days 37–40	Scientific molding optimization, process parameter window definition, sample molding	T1 Samples & Zeiss CMM FAI Report Shipped
06. FAT Sign-Off & Export Days 41–45	4-hour dry cycle run, anti-rust VCI treatment, customized fumigated IPPC wooden crating	FAT Acceptance Sign-Off & Bill of Lading

📋 Project Management & Acceptance Protocols: Learn what critical path factors govern lead times in our mold manufacturing project timeline guide. Prior to approving final shipment, review our 8-point mold acceptance checklist to inspect parting line shut-offs, cooling circuits, and spare components.

Why Global OEMs Partner with Axiom Molds in China

Combining 40%–65% direct tooling capital savings with Western-standard project engineering, certified European steel provenance, and comprehensive export warranties.

Procurement Dimension	Domestic Western Toolmakers	Axiom Molds China Tooling Solution
Initial Tooling Capital Cost	High capital outlay ($25K–$85K+ due to high regional overheads)	40%–65% Direct Savings ($12K–$38K for identical steel & DME components)
Lead Time to T1 Samples	8–14 weeks standard queue for CNC/EDM machining slots	25–45 Days Fast-Track (Dedicated 24/7 parallel CNC/EDM workcells)
Standard Hardware Compatibility	Standard DME / HASCO components	100% DME/HASCO Metric & Inch (Fully serviceable locally worldwide)
Engineering DFM & Simulation	Basic quotation, additional charge for Moldflow simulation	Free 24H Engineering DFM & Virtual Moldflow Simulation
IP & Design Protection	Standard regional NDA contracts	Bilateral NNN Agreements, Air-Gapped CAD Servers, Dedicated Project Isolation

💰 Runner System ROI & Material Economics: Wondering whether to invest in a hot runner system? Check our engineering comparison on hot runner vs cold runner molds to calculate annual resin savings, cycle time reductions, and payback break-even volumes.

Client Success Stories & Performance Benchmarks

Real-world tooling projects engineered to eliminate field defects, reduce cycle times, and guarantee multi-year production stability.

0.35mm Pitch Server Board-to-Board LCP Connector Tooling

Telecom / Server

Challenge: 0.20mm ultra-thin wall filling, severe glass fiber wear on gate orifices, micro flash tolerance <0.005mm across 128 pins.

Engineering Countermeasure: Sub-micron Wasino optical PG ground tungsten carbide core pins, Sodick linear motor mirror EDM seal-offs, and vacuum cavity evacuation grooves.

✓ ±0.002mm Machining Tolerance✓ 800,000 Shots Zero Flash✓ >99.85% Auto-Stitching Yield

Piano-Black High-Gloss Robotic Vacuum Front Bezel

Smart Home Appliance

Challenge: Large decorative PC/ABS cover visible weld lines around button openings, differential wall shrinkage, surface sink marks.

Engineering Countermeasure: Rapid Heat Cycle Molding (RHCM) steam dynamic thermal cycling combined with sequential 8-drop valve gate hot runner.

✓ Class-A SPI A-1 Mirror Finish✓ 0 Secondary Spray Painting✓ Saved $2.80/Unit Direct Cost

PA66+50%GF Impact-Resistant Hammer Drill Clamshell Housing

Professional Power Tools

Challenge: Severe abrasive wear from 50% short glass fibers, structural warpage under 2.5m drop test, soft-touch grip delamination.

Engineering Countermeasure: Hardened 1.2343 ESR (54 HRC) cores, balanced conformal cooling, chemical-mechanical bonding undercut for TPE overmolding.

✓ Passed -30°C 2.5m Drop Test✓ 600,000 Shot Tool Life✓ 100% IP67 Seal Integrity

Featured Tooling & Engineering Resource Guides

Comparison Guide

Hot Runner vs Cold Runner Molds: The Complete Selection Guide

Compare upfront tooling cost, cycle time reductions, material scrap calculations, and ROI payback models.

Buyer's Guide

How to Import Injection Molds from China: Complete Buyer's Guide

Supplier evaluation audits, milestone payments, FAT remote video sign-offs, and customs logistics.

Project Management

What to Expect During a Mold Manufacturing Project: 6-Step Timeline

6 critical phases from 24H DFM kickoff to T1 sampling, CMM FAI inspection, and export crating.

Frequently Asked Questions

How much does a custom injection mold cost in China?+

Custom injection mold costs depend on part size, complexity, cavity count, and SPI classification. Prototype molds (SPI Class 104-105) typically range from $1,800 to $5,000. Multi-cavity production molds (SPI Class 101-102) with hot runner systems for engineering resins range from $8,000 to $45,000+. Sourcing from China provides a 40% to 65% direct cost reduction compared to North American or European tooling while matching DME/HASCO export standards.

How long does it take to get the first sample (T1) after placing a mold order?+

Typical lead time to T1 sample is 25 to 45 calendar days depending on mold complexity. Rapid prototype tooling can achieve T1 in 15-20 days. High-precision connector molds (±0.002mm) or large home appliance molds (20+ tons) take 35 to 60 days including full 3D DFM review, Moldflow simulation, CNC machining, mirror EDM, and initial trial testing.

What is the minimum order quantity (MOQ) for custom injection molding and tooling?+

We have no minimum order quantity (MOQ 1 set) for mold building. For molding production, we support bridge tooling batches from 500 parts up to continuous multi-million shot mass production runs across 45T to 3,000T injection molding machines.

Do you offer free DFM analysis and Moldflow simulation with every mold quote?+

Yes. Every RFQ submitted with 3D CAD files (STEP/IGES/X_T) receives a complimentary, engineering-grade DFM (Design for Manufacturability) analysis report within 24 hours. The DFM covers draft angle validation, wall thickness uniformity, parting line placement, gate location optimization, and potential sink mark or warpage risks before cutting steel.

Ready to Accelerate Your Custom Mold Project?

Upload your 3D CAD files (STEP, IGES, X_T) today to receive a comprehensive DFM analysis report and precision tooling quotation within 24 hours.

Get a Free Quote →WhatsApp Us

✓ 24H DFM Turnaround✓ ±0.002mm Machining Tolerance✓ SPI Class 101-105 Guaranteed
