Precision Taperless Center Pins
Precision core center pins built with zero taper transitions under the head, eliminating mechanical stress concentration to maximize fatigue life.
Products

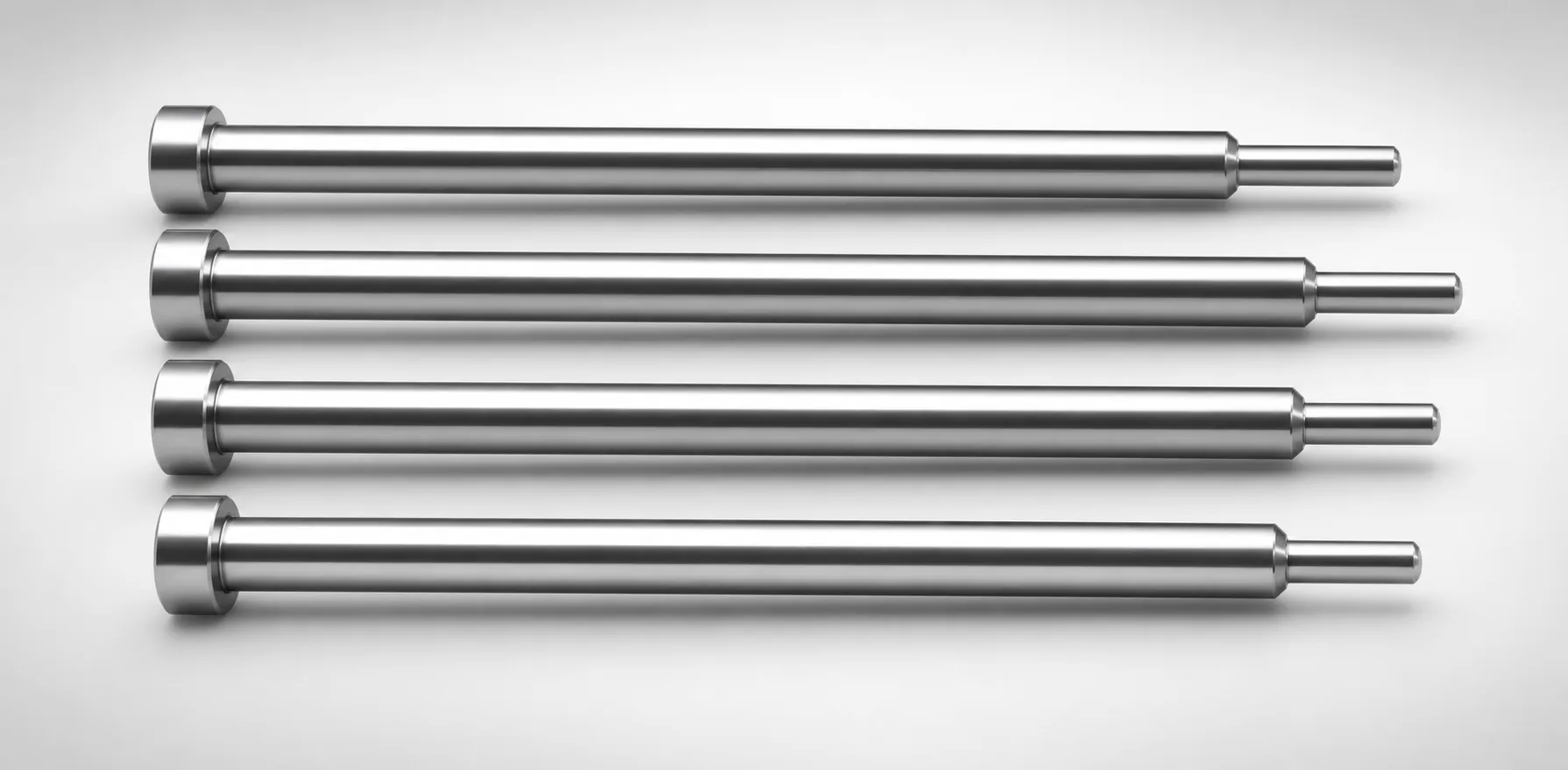

SKH51 Steel Taperless One-Step Center Pins
SKH51 steel taperless one-step center pins for precise alignment and faster setup in machining. Taperless design impr...
View Details

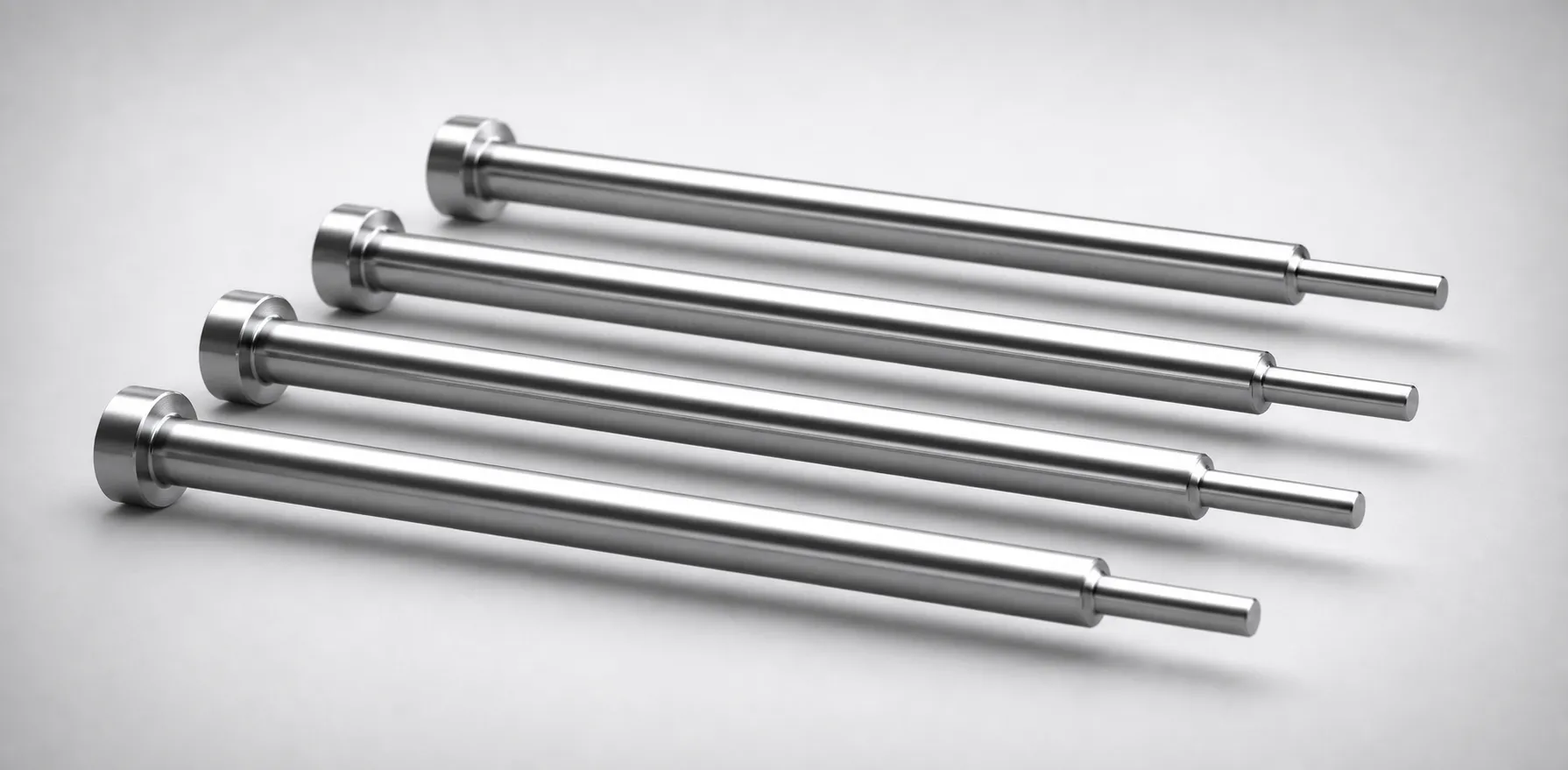

M2 Steel Taperless One-Step Center Pins
M2 Steel Taperless One-Step Center Pins for accurate machining alignment. Built for configurable shaft size to suit t...
View Details

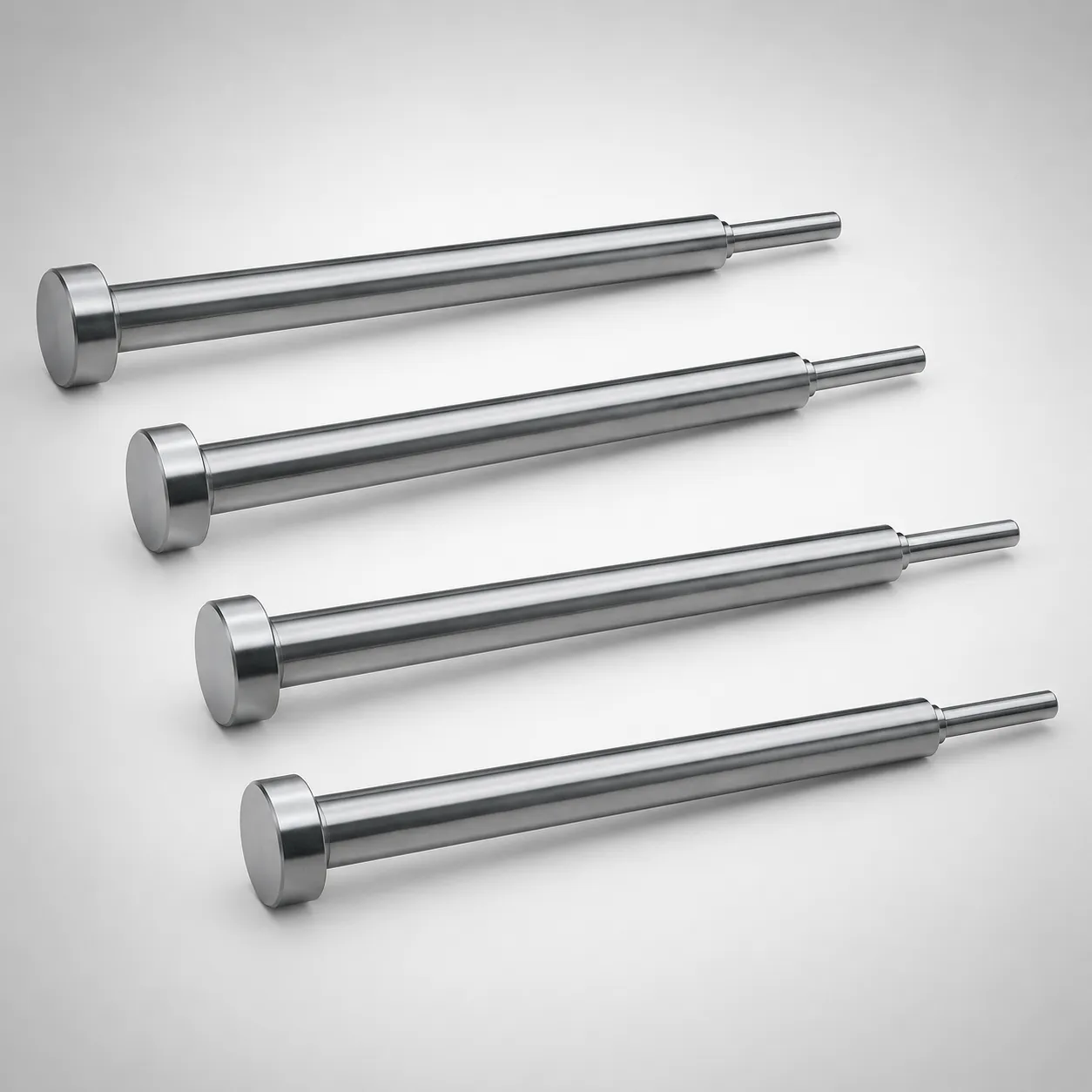

SKD61 Steel Taperless One-Step Center Pins
Taperless One-Step Center Pins with SKD61 steel and nitrided surface for reliable precision locating. Configurable le...
View Details

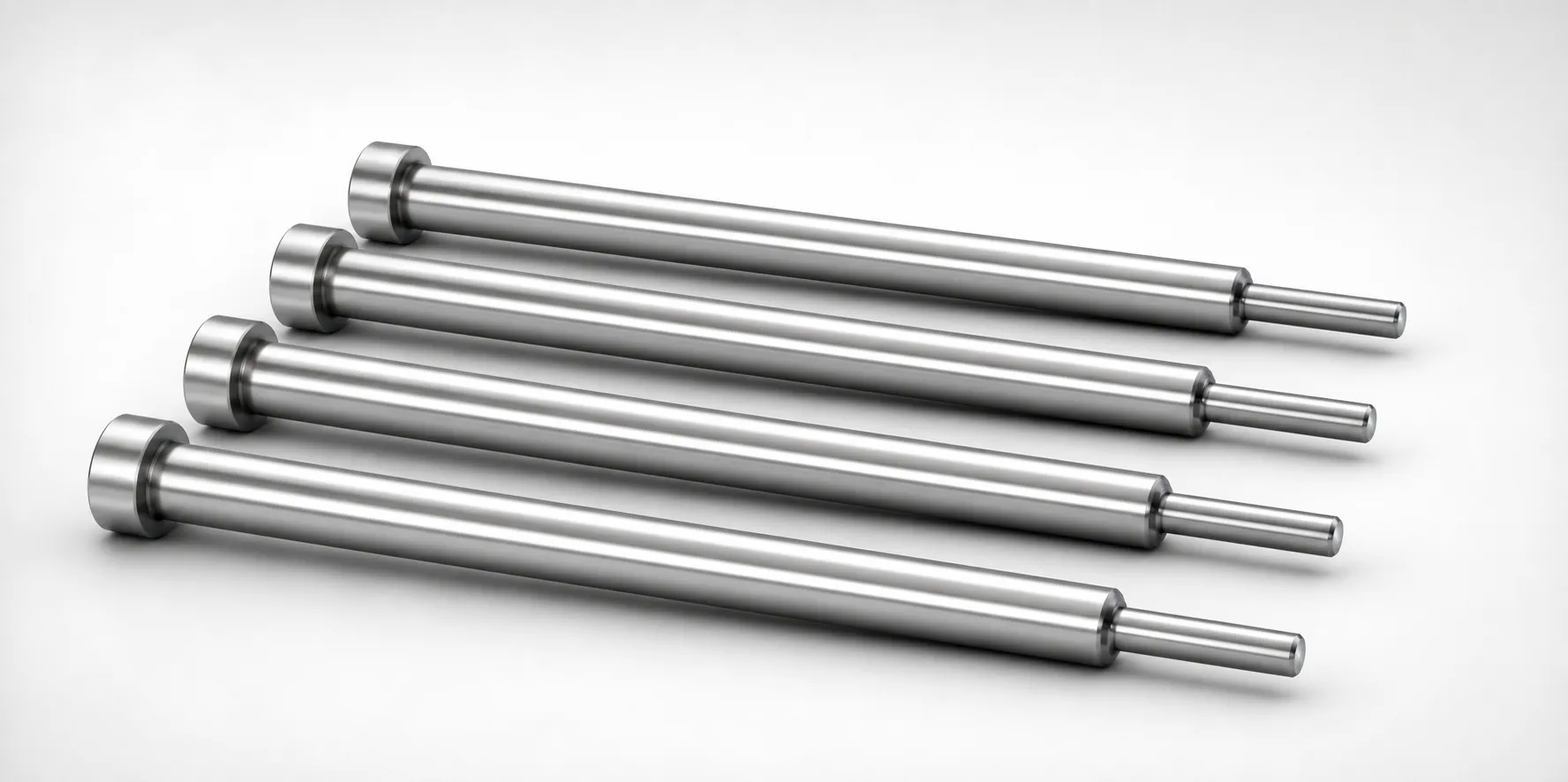

SKD61 Steel Taperless One-Step Center Pins with Nitrided ...
SKD61 Steel taperless one-step center pins with nitrided surface treatment for durable guidance in mold assemblies. B...
View Details

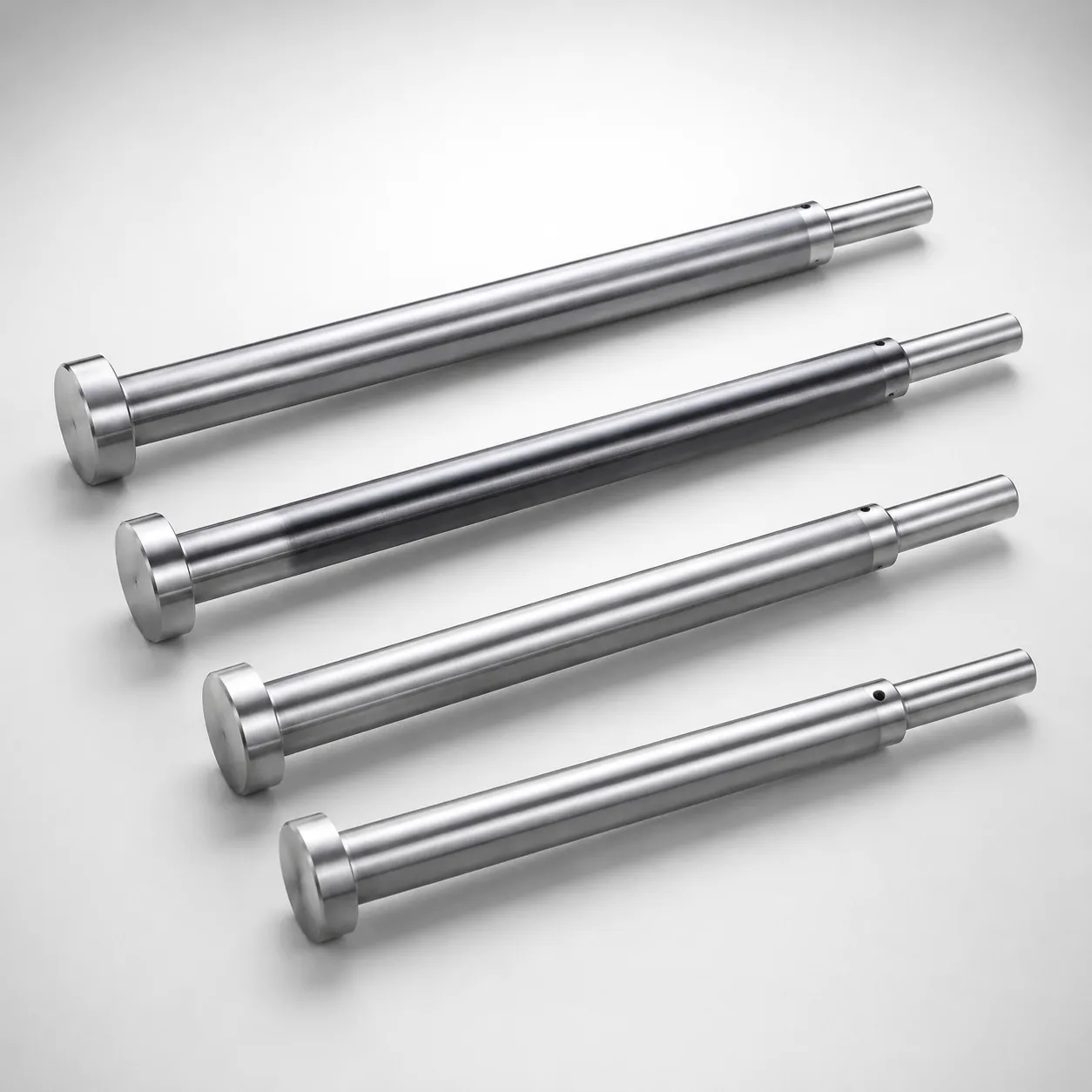

DIN Standard SKD61 Steel Nitrided Taperless One-Step Cent...
DIN Standard SKD61 steel nitrided taperless one-step center pins with cooling hole for precise mold alignment. Config...
View DetailsSelection Matrix: Taperless vs. Stepped Center Pins
Compare the design differences and structural performance of taperless core pins against standard stepped pins:
| Design Feature | Stepped Center Pins | Taperless Center Pins |
|---|---|---|
| Head Transition | Tapered transition area (high stress concentration) | Zero taper transition (stress-free undercut radius) |
| Fatigue Life Cycles | Standard cycle life | Significantly extended cycle life |
| Core Deflection Resistance | Standard | Excellent (continuous shaft thickness) |
Decision rule: For molds exceeding 1M shots, taperless pins eliminate all shoulder fatigue failures. For molds under 500K shots, stepped pins with R≥0.5mm fillet are usually adequate. For detailed fatigue life comparison data, see our Taperless Pin Fatigue Life Guide.
ROI Analysis: Taperless Pins in High-Volume Tooling
How implementing taperless pin designs reduces production downtime costs in high-cycle molds:
Application Scenarios: Taperless Center Pins
Industrial applications demanding the stress-free head transition of taperless core pins:
High-Cycle Food Packaging
Thin-walled plastic container molds operating at sub-3 second cycles fail rapidly from fatigue-induced head shear.
Why it fits: Undercut shoulder geometry removes localized tension build-ups, extending run life to 3+ million cycles.
High-Rigidity Connector Bosses
Fine connector pin molds require thin core pins that resist bending forces during dense plastic injection filling.
Why it fits: Continuous shaft diameter provides superior bending stiffness compared to stepped geometries.
Frequently Asked Questions
How does the lack of a taper transition increase the fatigue life of center pins?+
What is the ROI of taperless center pins in high-cycle packaging molds?+
Are taperless center pins compatible with standard stepped ejector sleeves?+
About Taperless Center Pins
Taperless center pins eliminate the traditional tapered transition between the head and shaft, replacing it with a straight or radius-blended profile. This removes the mechanical stress concentration point that causes fatigue fractures in high-cycle applications. While the unit cost is higher than standard stepped pins, the significantly extended service life makes them the preferred choice for high-cycle packaging, consumer electronics, and thin-walled container molds.
Engineering Resources
Need a Custom Quote?
Specify pin diameter, length, and material grade for taperless center pins. Ideal for high-cycle molds where extended fatigue life justifies the premium — contact us for volume pricing.
