Gas Springs — Nitrogen Cylinders & Mounting Hardware
Complete range of nitrogen gas spring bodies (13+ series from Ø10 mini to Ø63 standard) and mounting plates/brackets for vertical, horizontal, and groove-mount installations. ISO 11901 compliant.
Products in This Category

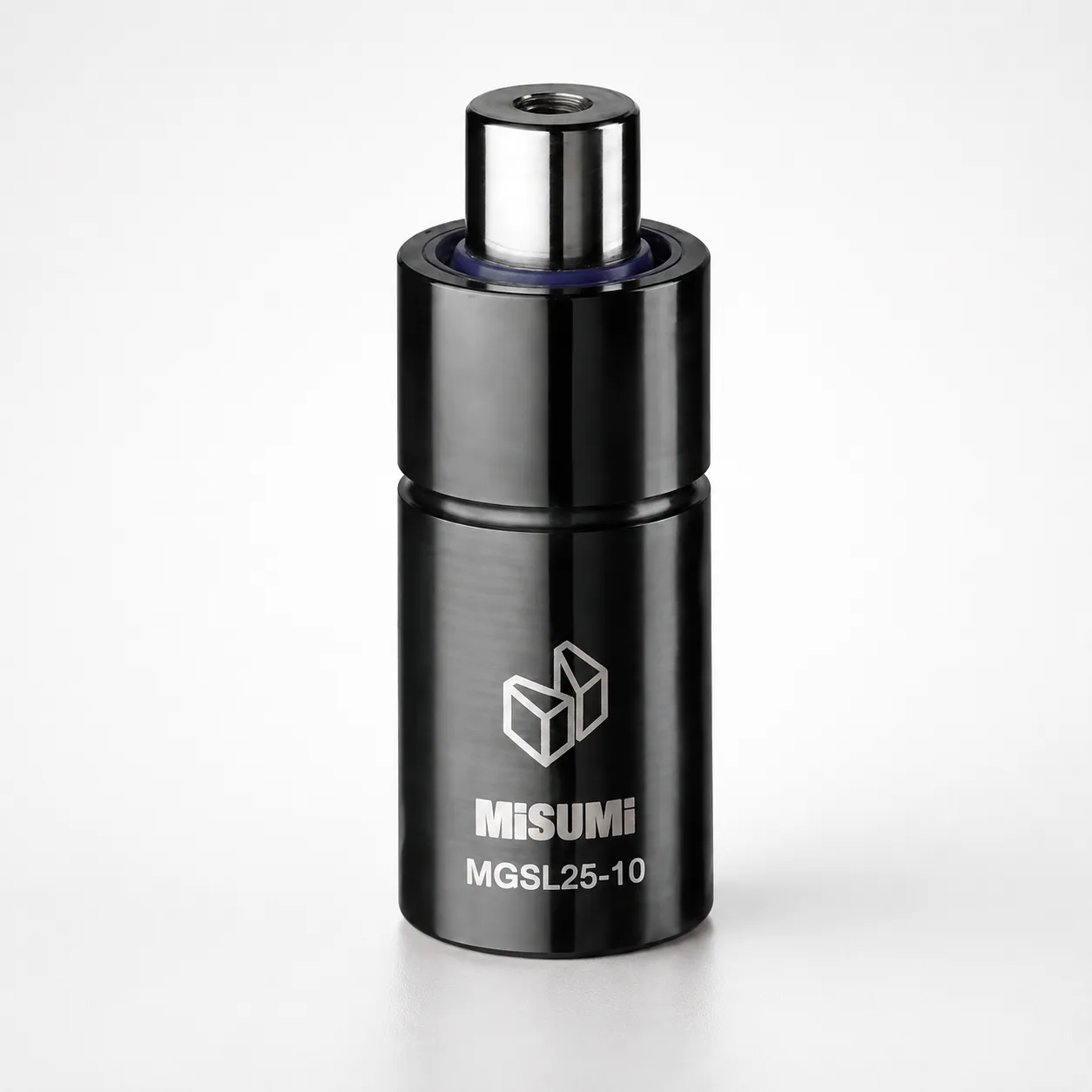

Gas Spring Plate - Mini Type MGSL Series | Precision Mounting Plates | MISUMI
Gas Spring Plate - Mini Type MGSL Series for controlled motion in fixtures. Compact mini design with plate options for reliable mounting. Request a quote.

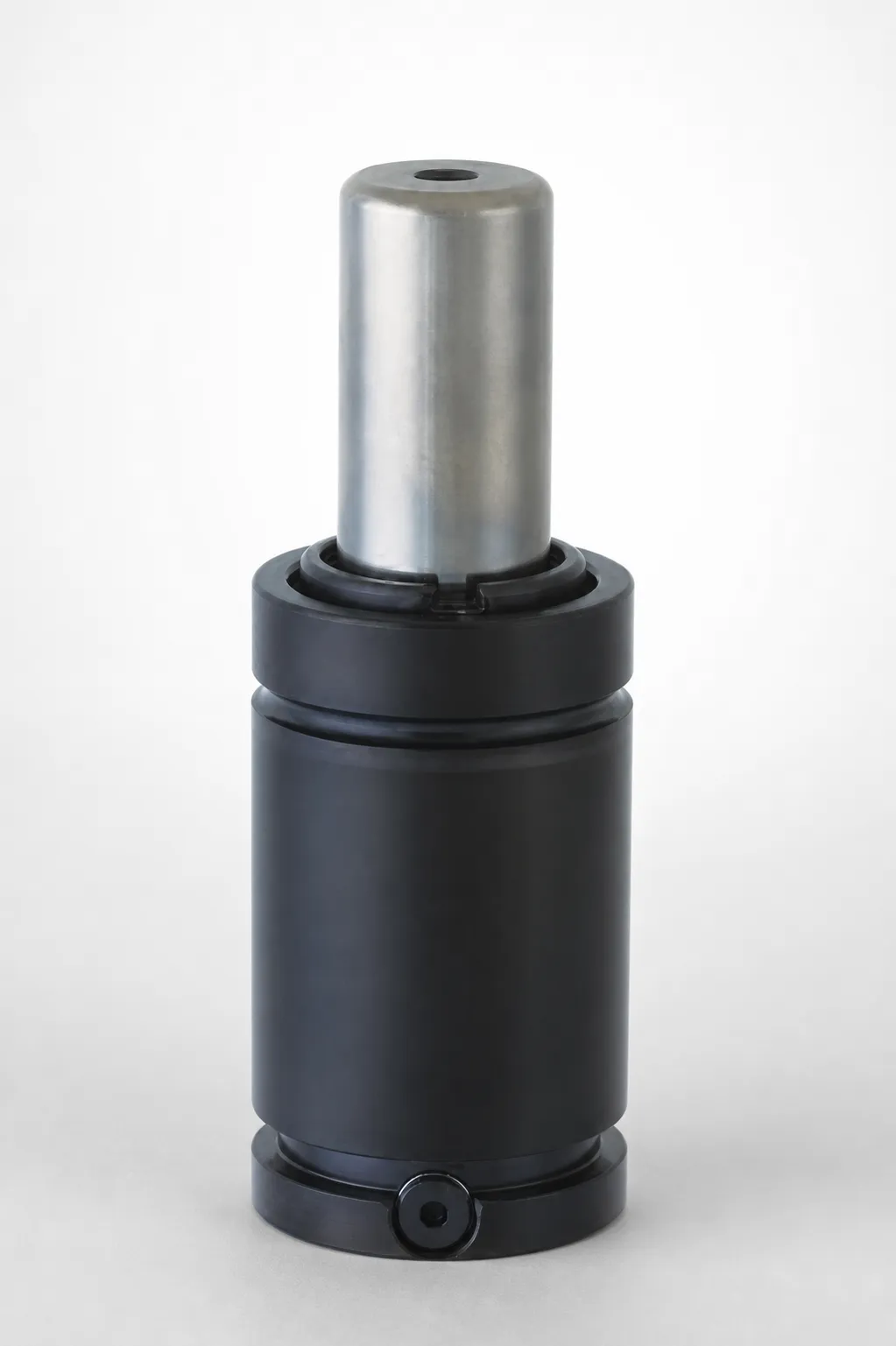

GSV Series Gas Springs (Body Only) | Global Standard Type | Fast Delivery | MISUMI
GSV Series gas springs (body only) built for global standard installations. Reliable operation across applications requiring consistent stroke and load response. Request a quote.

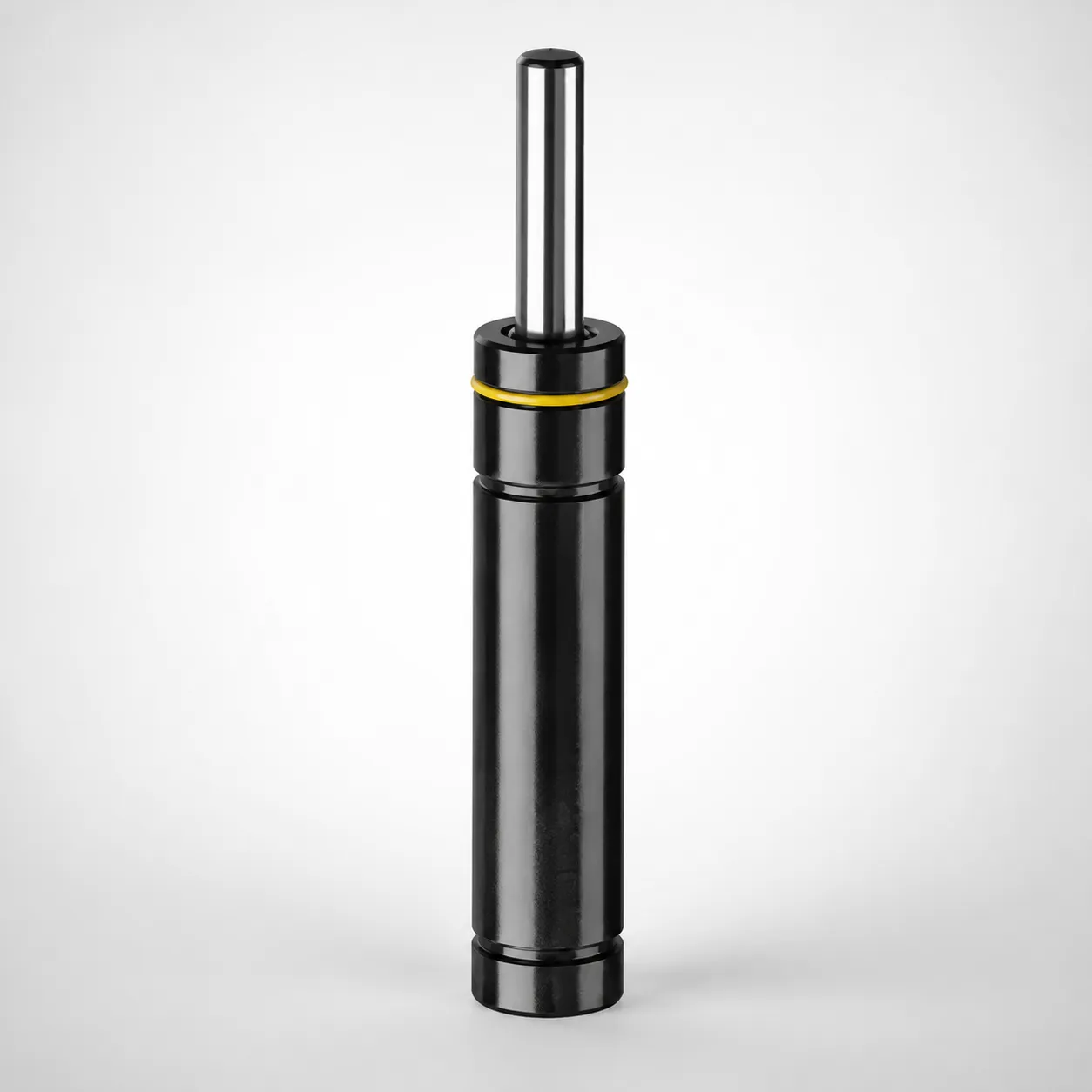

GSU Series Selective Charging Pressure Gas Springs | Small-Diameter Link System | Fast Delivery | MISUMI
GSU Series selective charging pressure gas springs for link systems. Small-diameter design with selectable loads within the same size and stroke—request a quote.

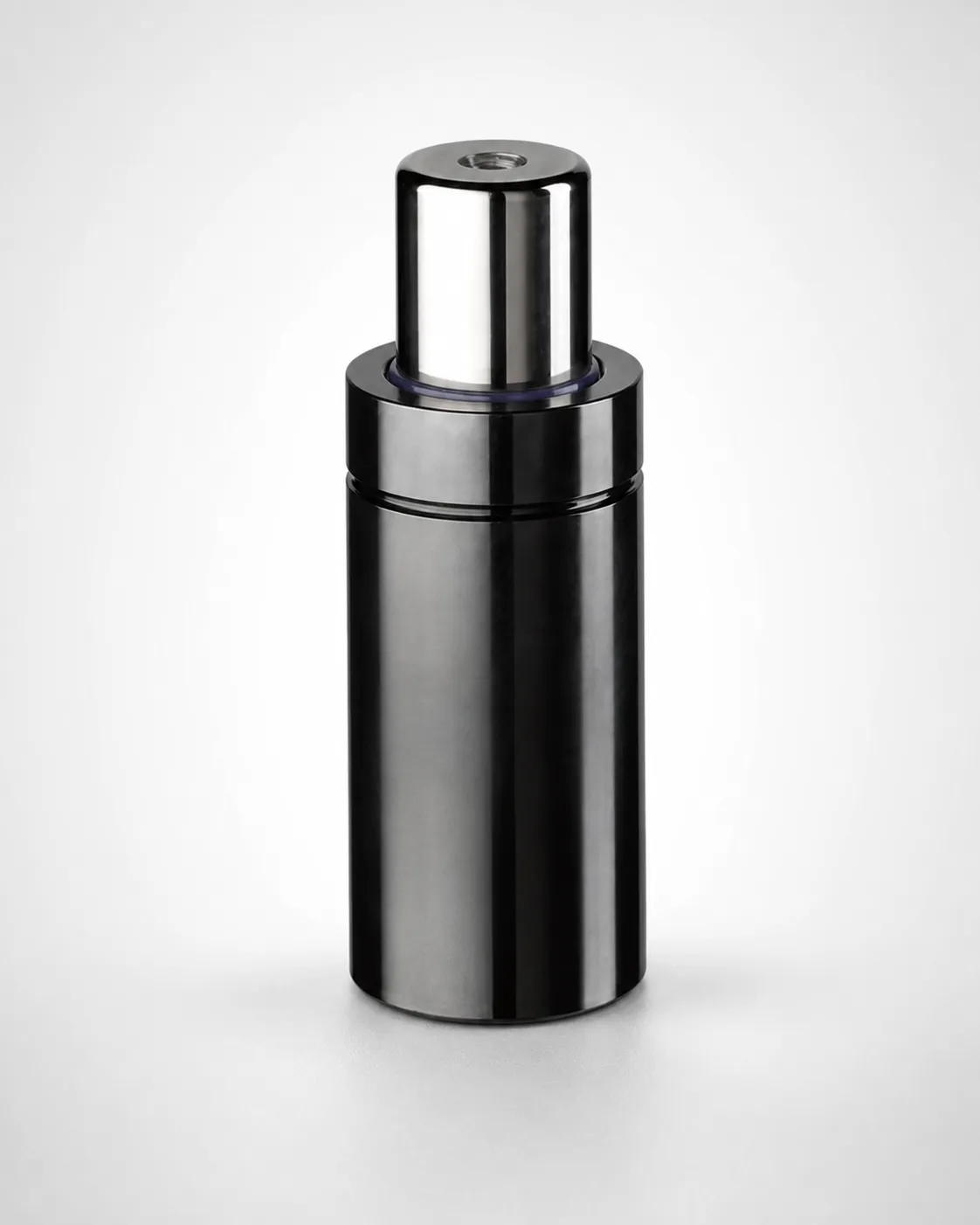

GSZ Body Only Gas Springs Compact High Load GSP Series | Factory Direct | MISUMI
GSZ Body Only Gas Springs Compact High Load GSP Series deliver stable motion with high initial load options for ergonomic lifting and industrial fixtures. Order now.

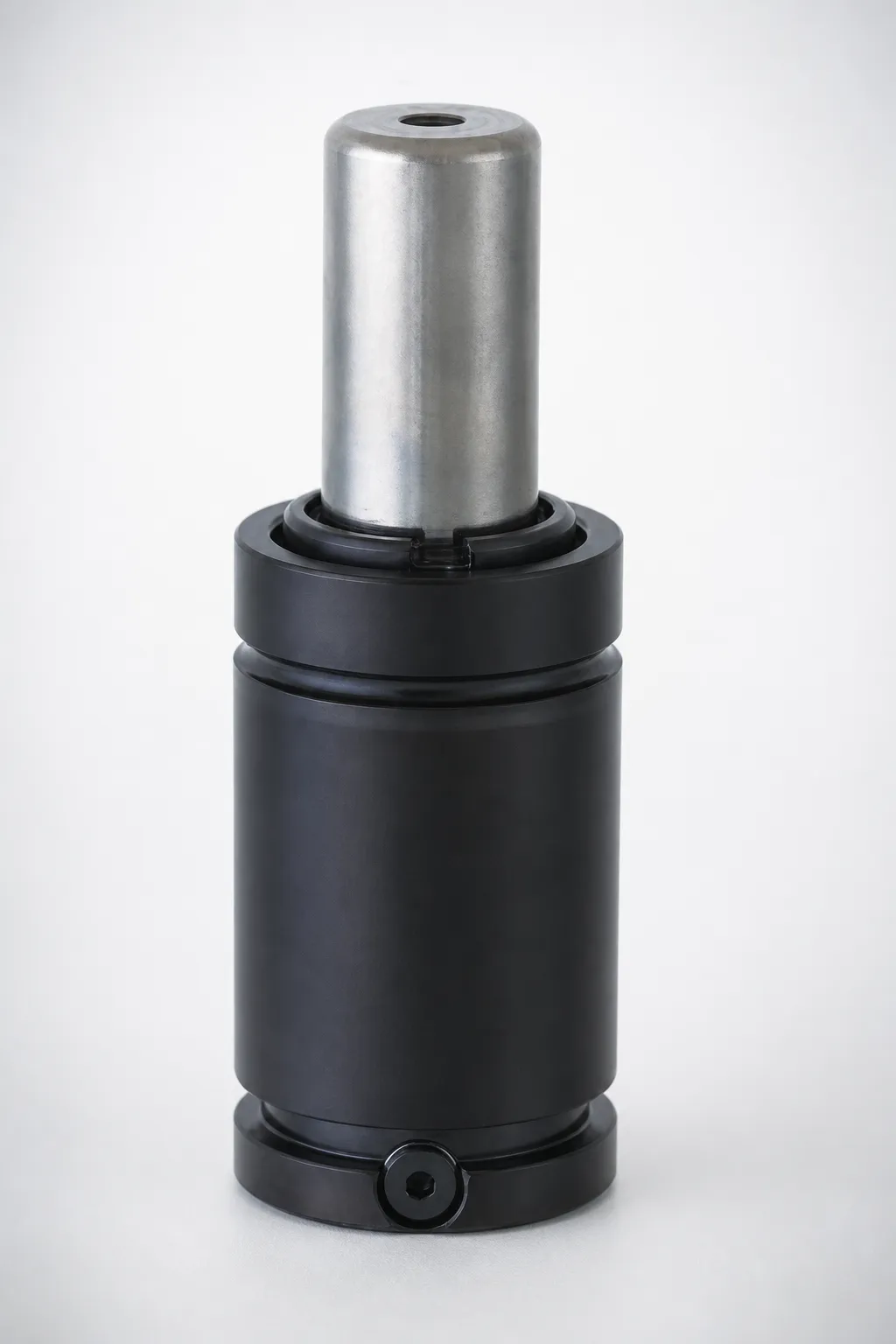

GST Series Body-Only Gas Springs | Consistent Force Through Stroke | Reliable Shock Support | MISUMI
GST Series body-only gas springs deliver consistent force through the stroke for reliable support. Designed to absorb shocks and vibration in industrial and automotive use.

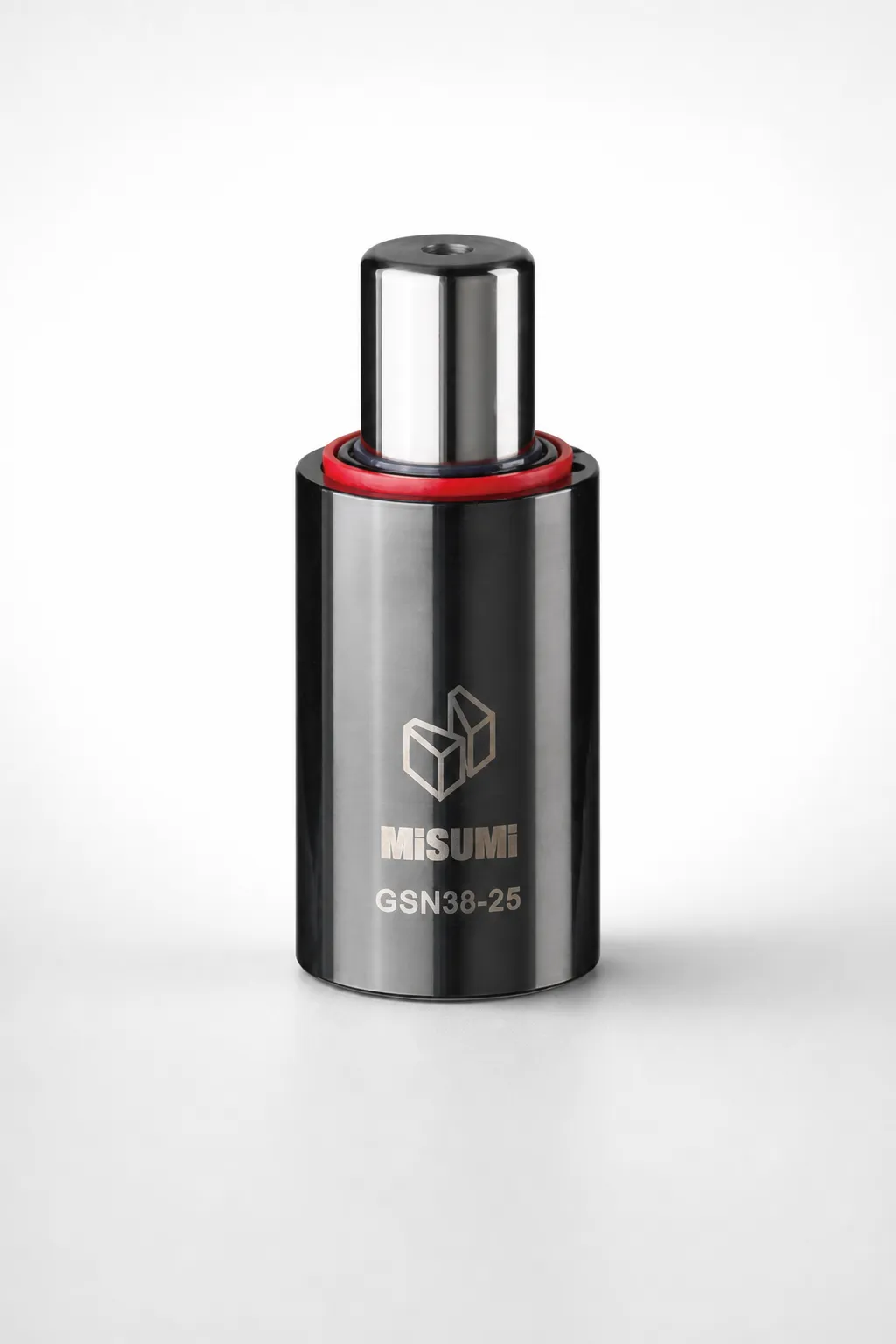

GSN Series Gas Springs Plate Type BM Body Only | Made for Bottom Face Clamping | MISUMI
GSN Series gas springs with BM plate type for body-only supply. Bottom face clamping square mounting supports compact assemblies. Request a quote.

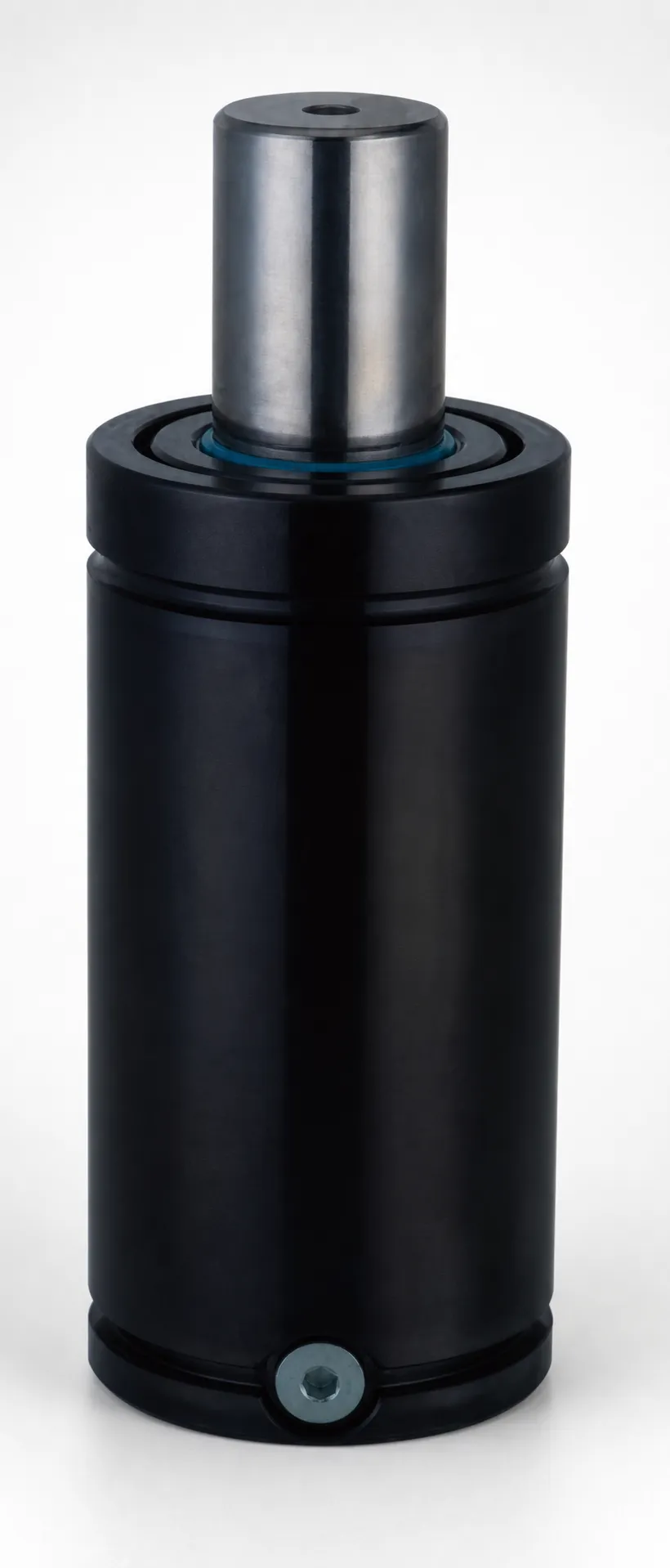

ISO11901 GSK Series Gas Springs (Body Only) | Consistent Force Support | MISUMI
ISO11901 GSK Series gas springs (body only) for stable, consistent support through the full stroke. Engineered type GSK for controlled motion. Request a quote.

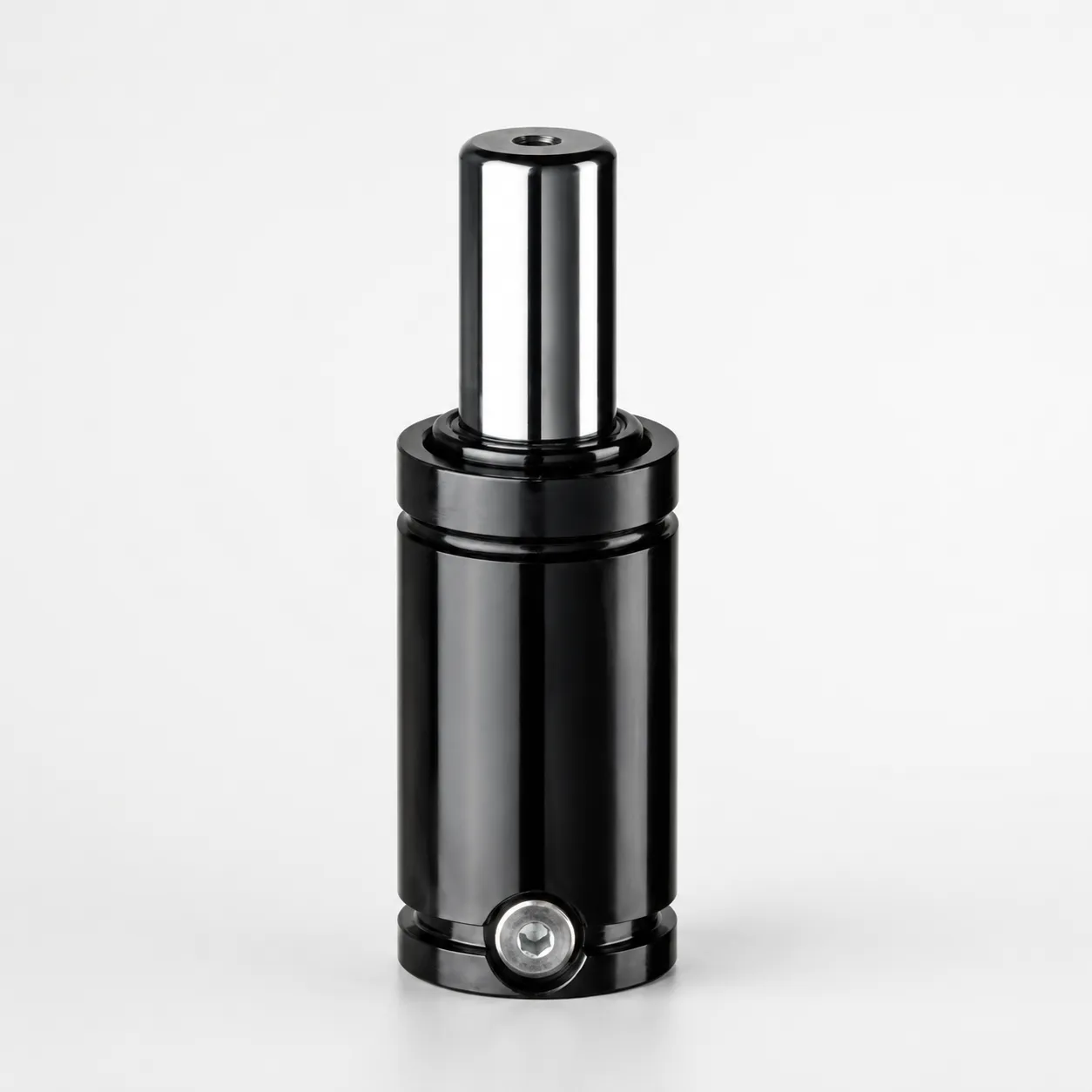

Global Standard Gas Springs GSH Type (G 1/8 Port) Body Only | Smooth Motion Support | MISUMI
Global Standard Gas Springs GSH Type body only for linked systems (G 1/8 port). Built for smooth motion, vibration absorption, and reliable positioning.

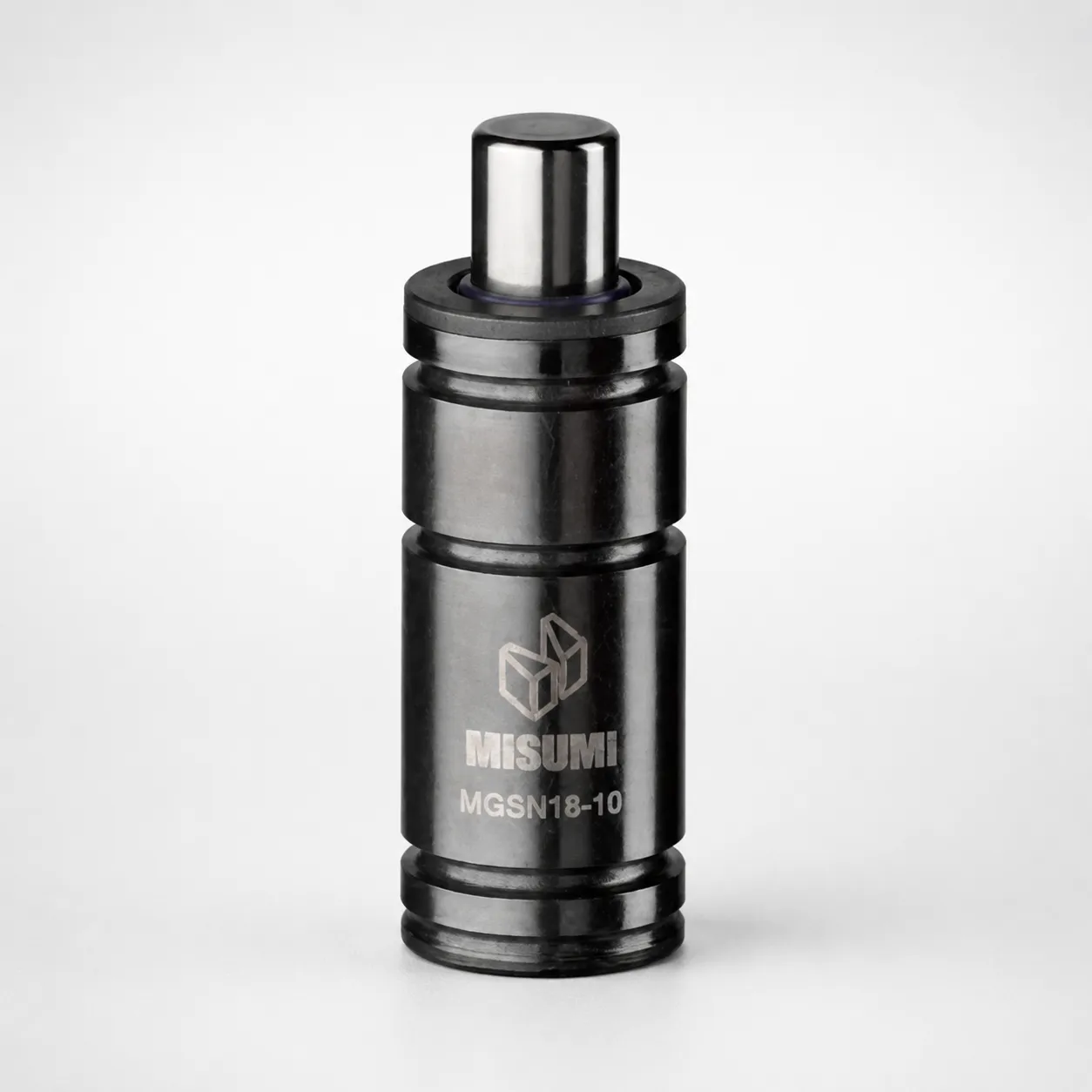

MGSN Series Heavy Load Mini Gas Springs | Heavy Load, Mini Type | Request Quote | MISUMI
MGSN Series Heavy Load Mini Gas Springs for compact, stable support in industrial applications. Successor to MGSC with heavy initial load. Request a quote.

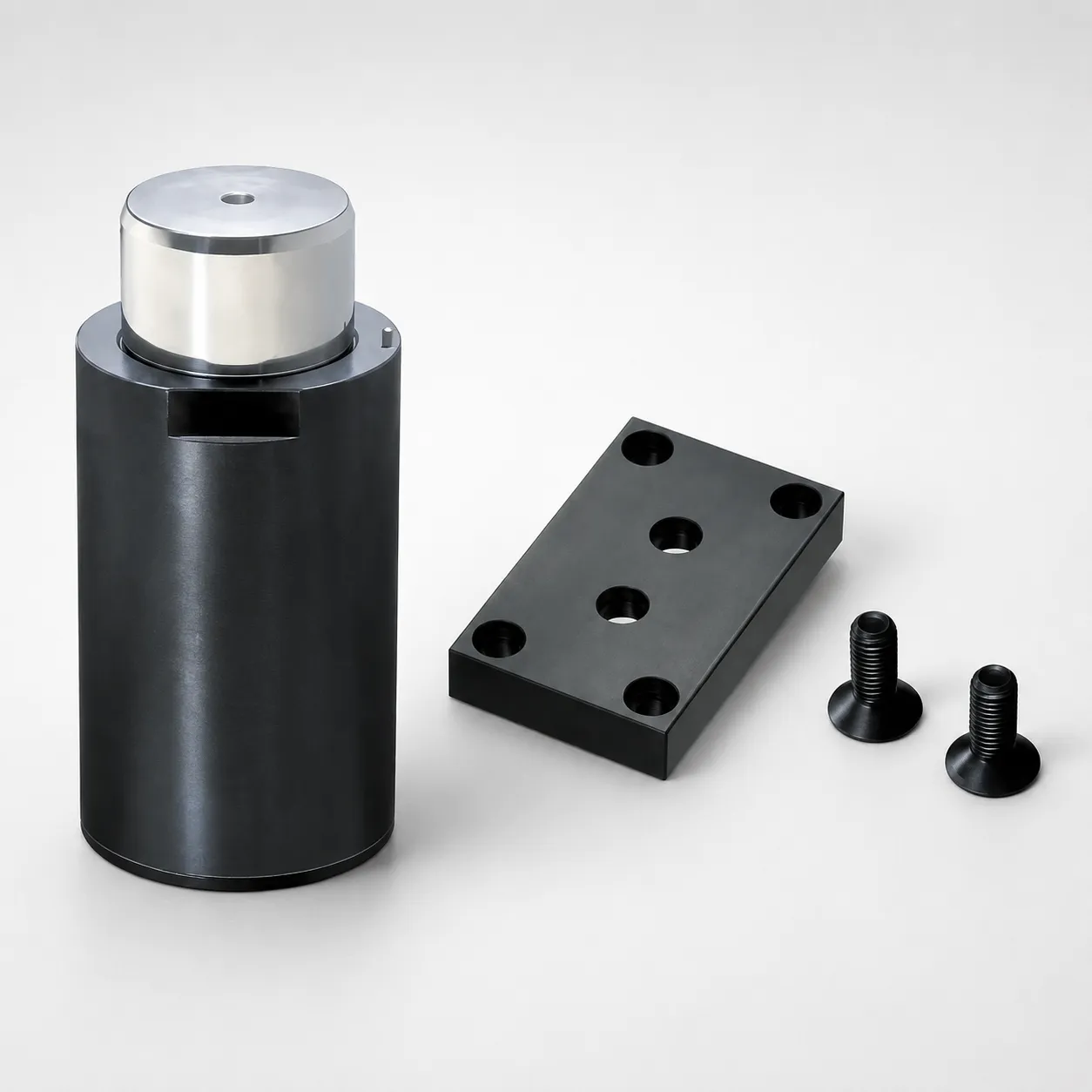

Gas Springs Square Flange Plate - Body Only | Classic Type GSX Series | Fast Delivery | MISUMI
Gas Springs Square Flange Plate - Body Only for bottom face clamping. Classic Type GSX Series provides stable mounting and reliable motion control—request a quote.

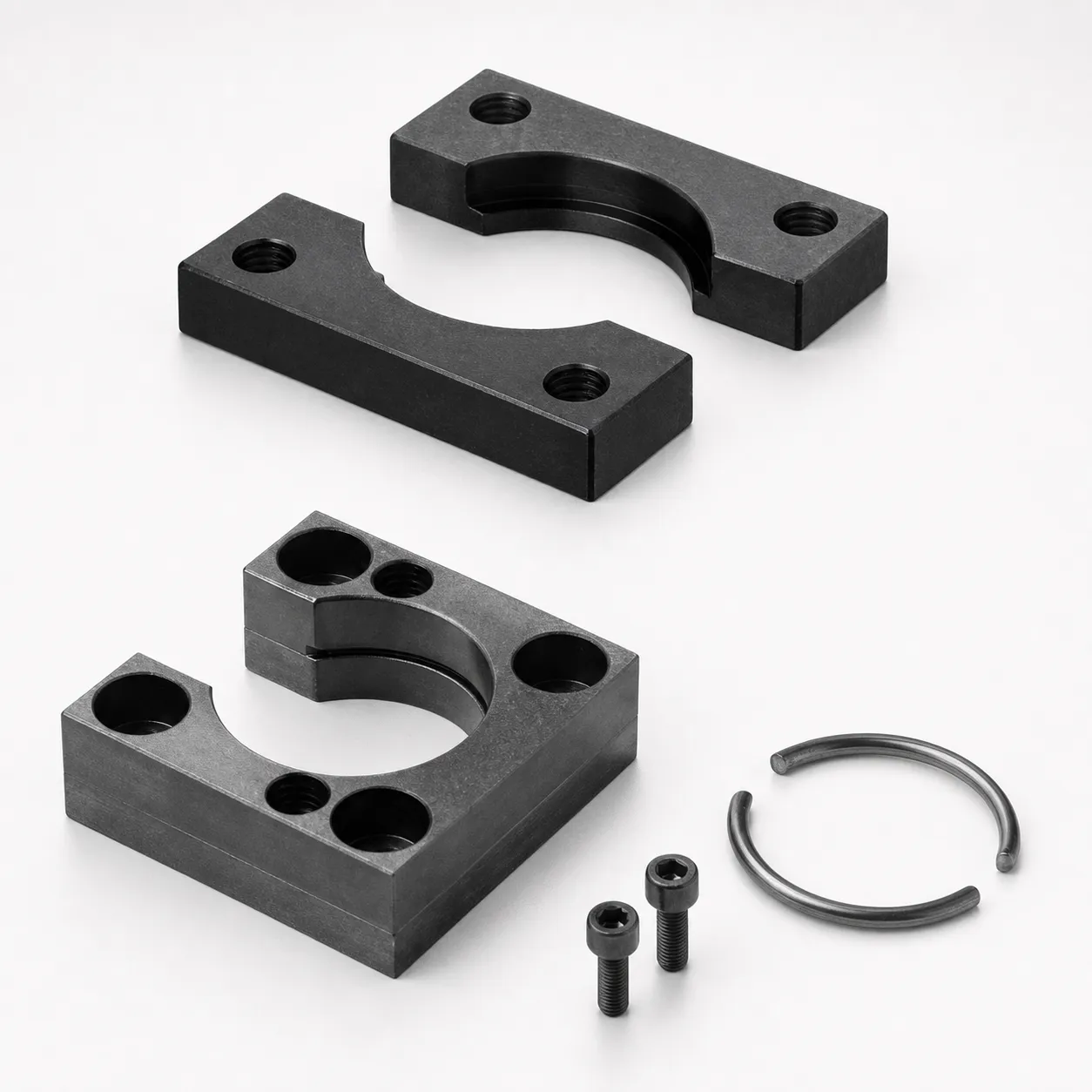

Gas Spring Lower Groove Mounting Plate | Plates Only | Mount for Relevant Gas Springs | MISUMI
Gas Spring Lower Groove Mounting Plate for compatible gas springs. Plates only for lower groove mounting—verify the applicable gas spring using the catalog table. Order now.

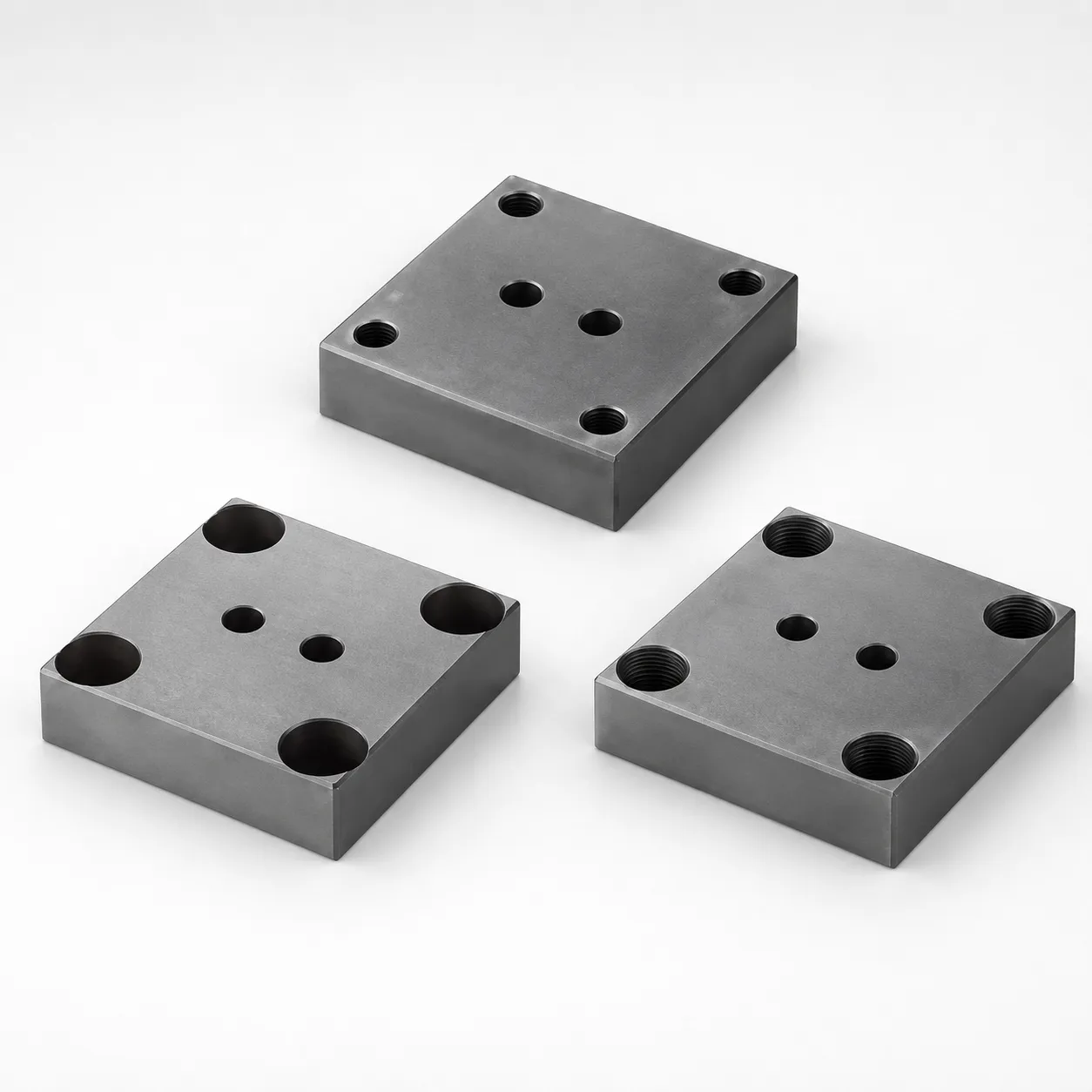

ISO Standard Steel Gas Spring Mounting Plate - Bottom Mount | Plates Only | Fast Delivery | MISUMI
Gas Spring Mounting Plate for bottom mount applications. Plates only for selecting matching gas springs. Verify the applicable gas spring from the catalog table.

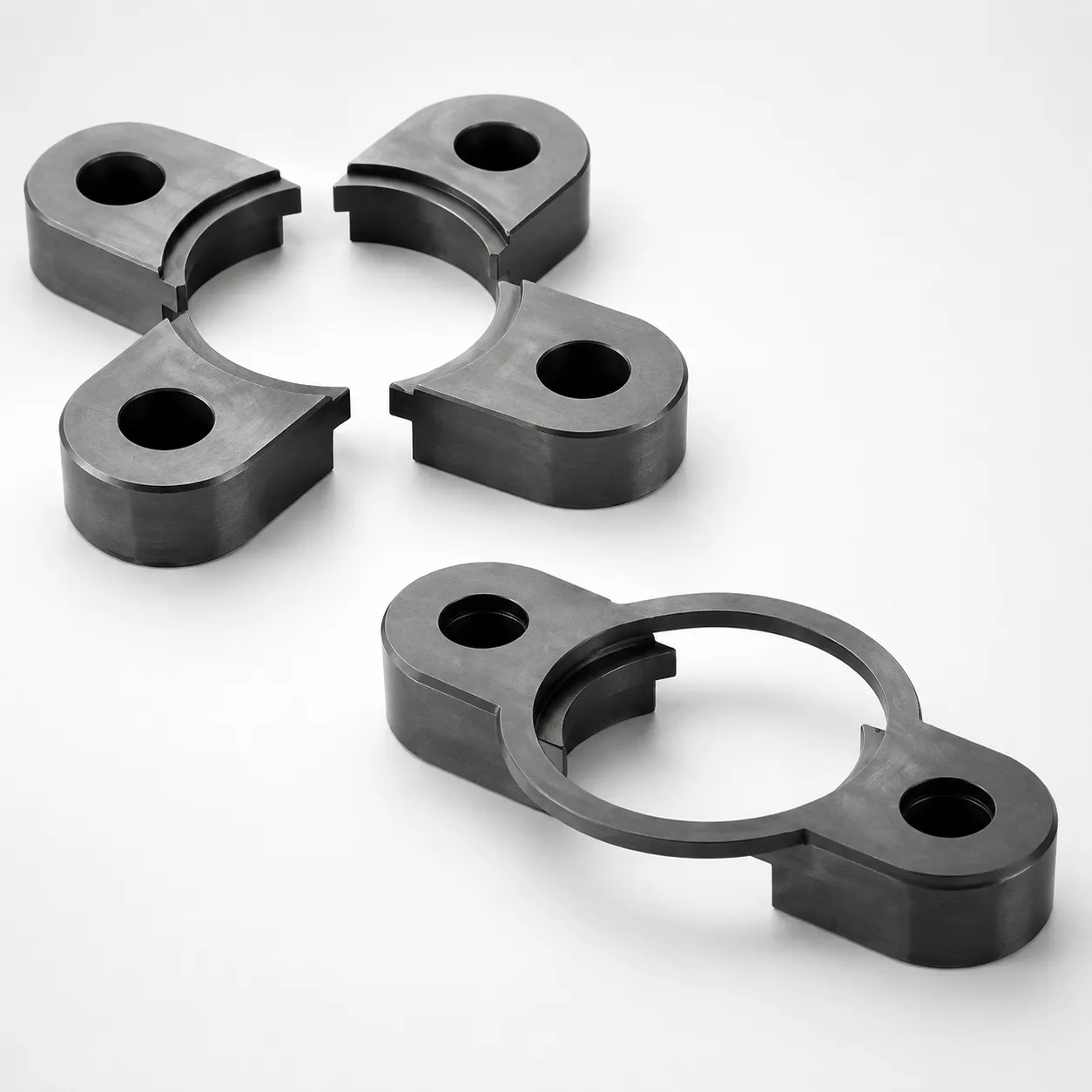

Gas Spring Mounting Brackets - Lower Groove Mount Plate | Leaf Shape | Plates Only | MISUMI | MISUMI
Gas Spring Mounting Brackets for Gas Springs - Lower Groove Mount, Leaf Shape plates only. Designed for correct lower-groove fitting. Please check applicable specs.

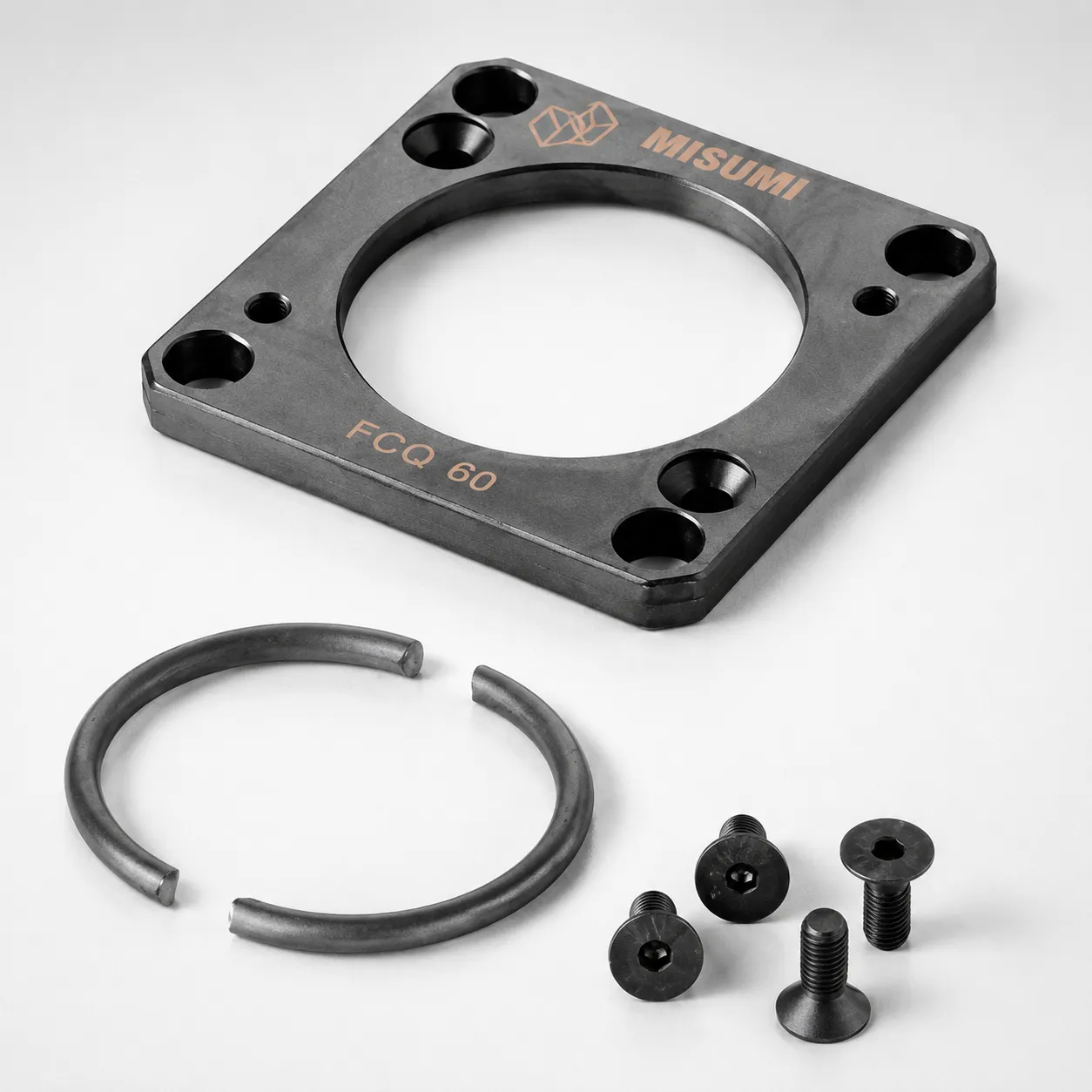

Upper Groove Mount Square Gas Spring Plate | Plates Only | Misumi Advantage | MISUMI
Upper Groove Mount Square gas spring plate (plates only) for FCQ/FCQB plate types. Use with the gas spring sizes listed in the catalog table.

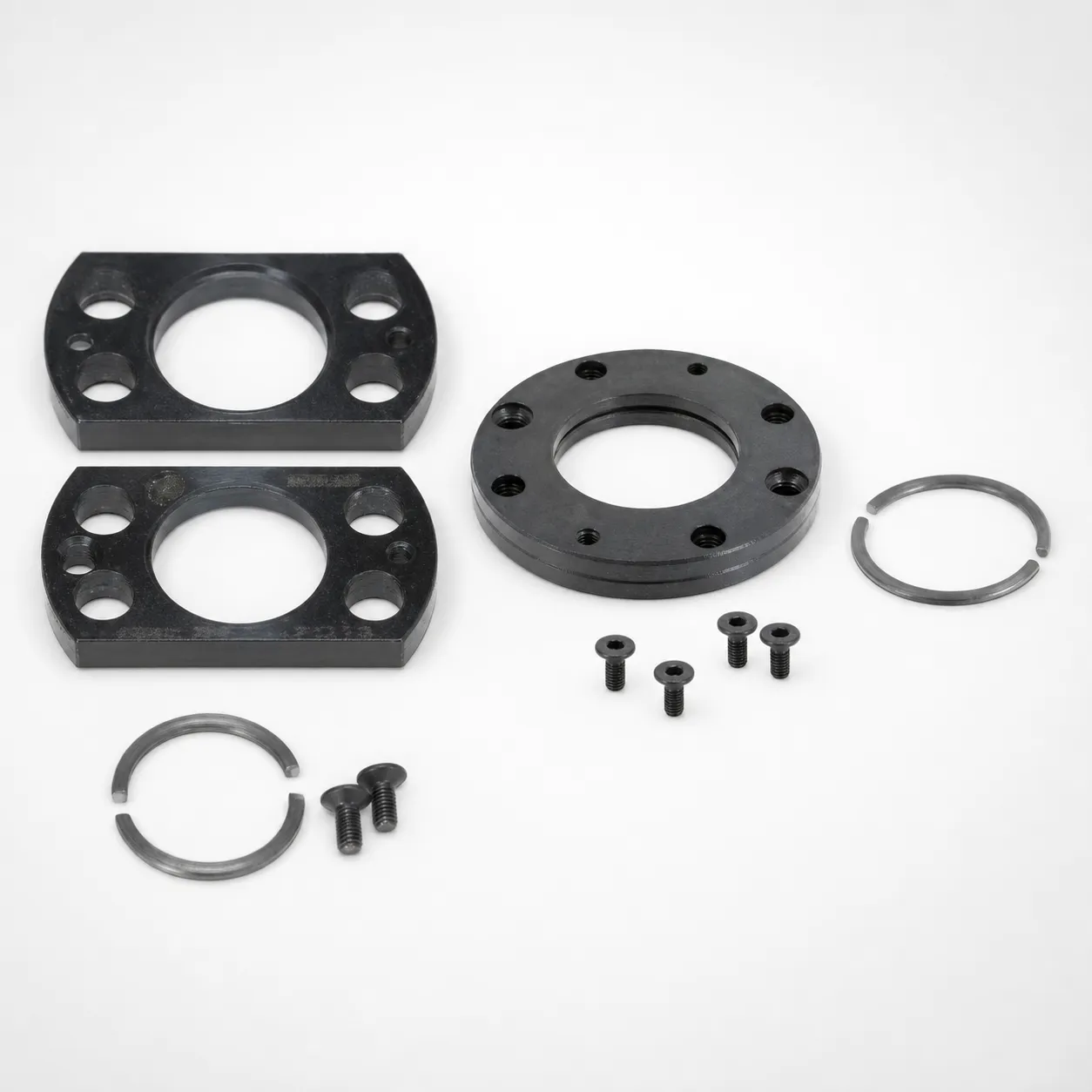

Gas Spring Upper Groove Mount Plates (Round/Oval) | Plates Only | Catalog Fit | MISUMI | MISUMI
Gas Spring upper groove mount plates (round/oval) for mounting bracket applications. Plates only; refer to the catalog table to match your gas spring.

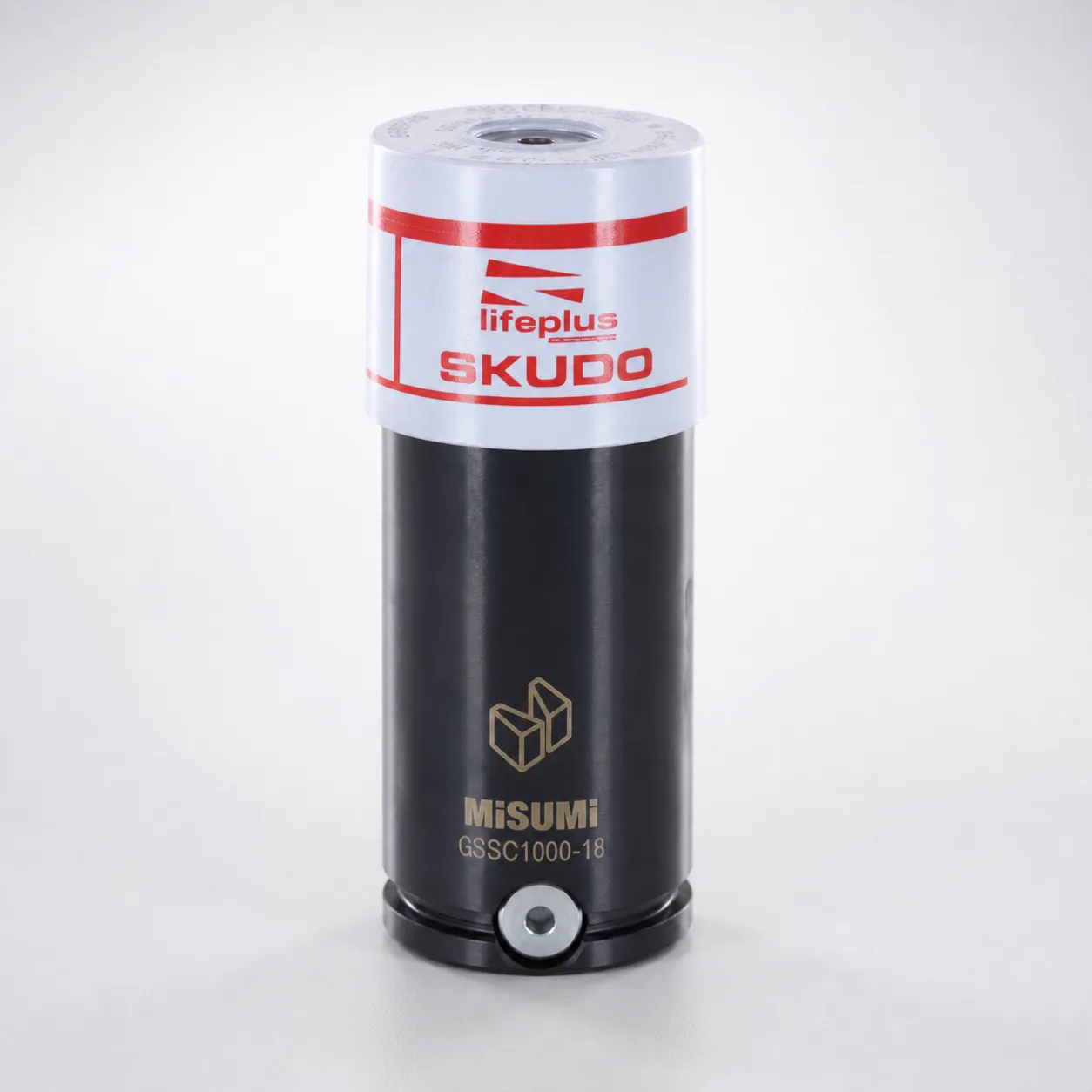

GSSC Series Gas Springs High Initial Load for Piping | Heavy-Duty Oil Covered Design | MISUMI
GSSC Series gas springs with high initial load for piping. Heavy-duty oil-covered construction supports stable motion and reliable performance for industrial systems. Request a quote.

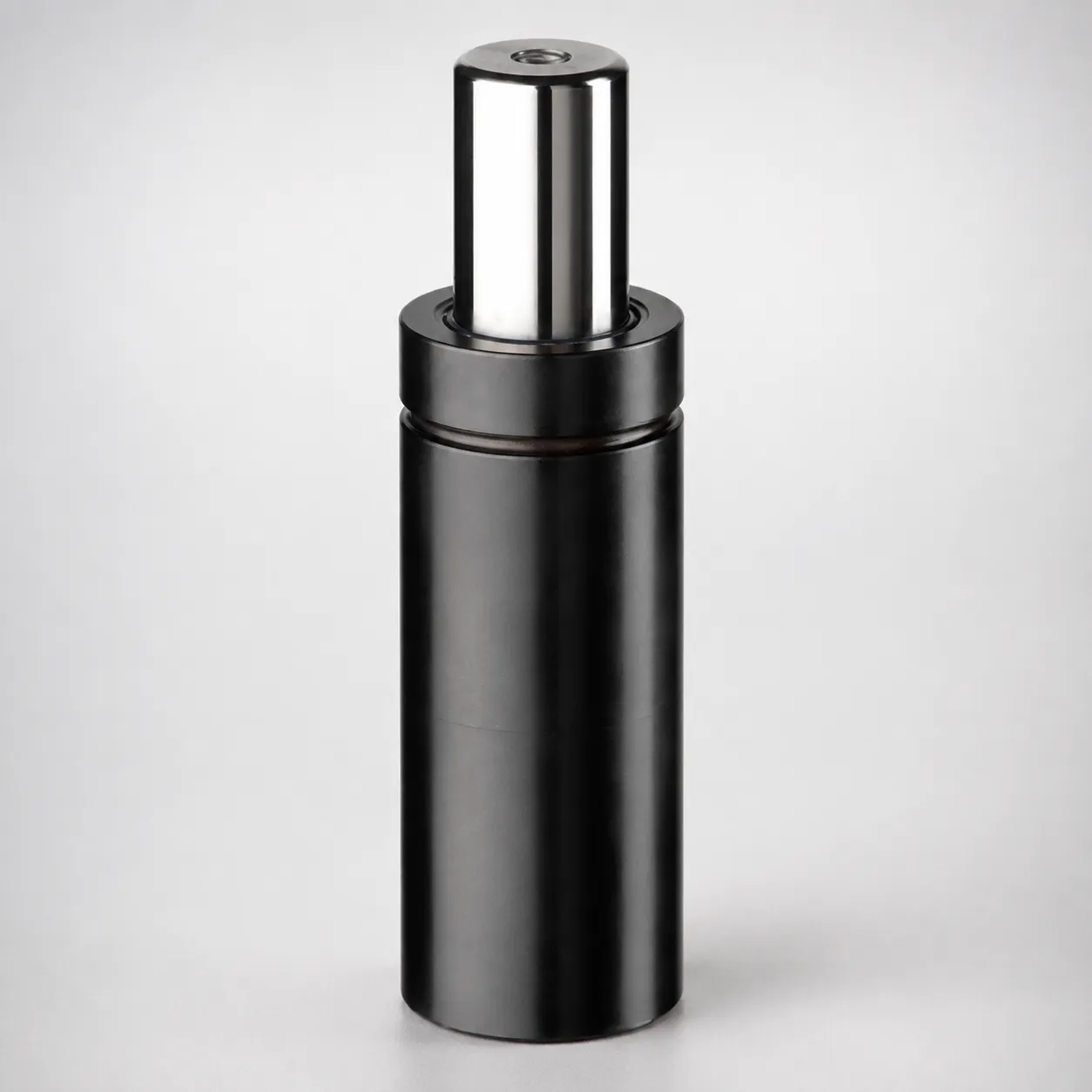

Gas Springs GSQ Series Plate Set for Heavy Load | Fast Delivery | MISUMI
Gas Springs GSQ Series plate set for heavy load applications. Compatible with GSP for 33% higher initial loads. Choose Body only or set options.

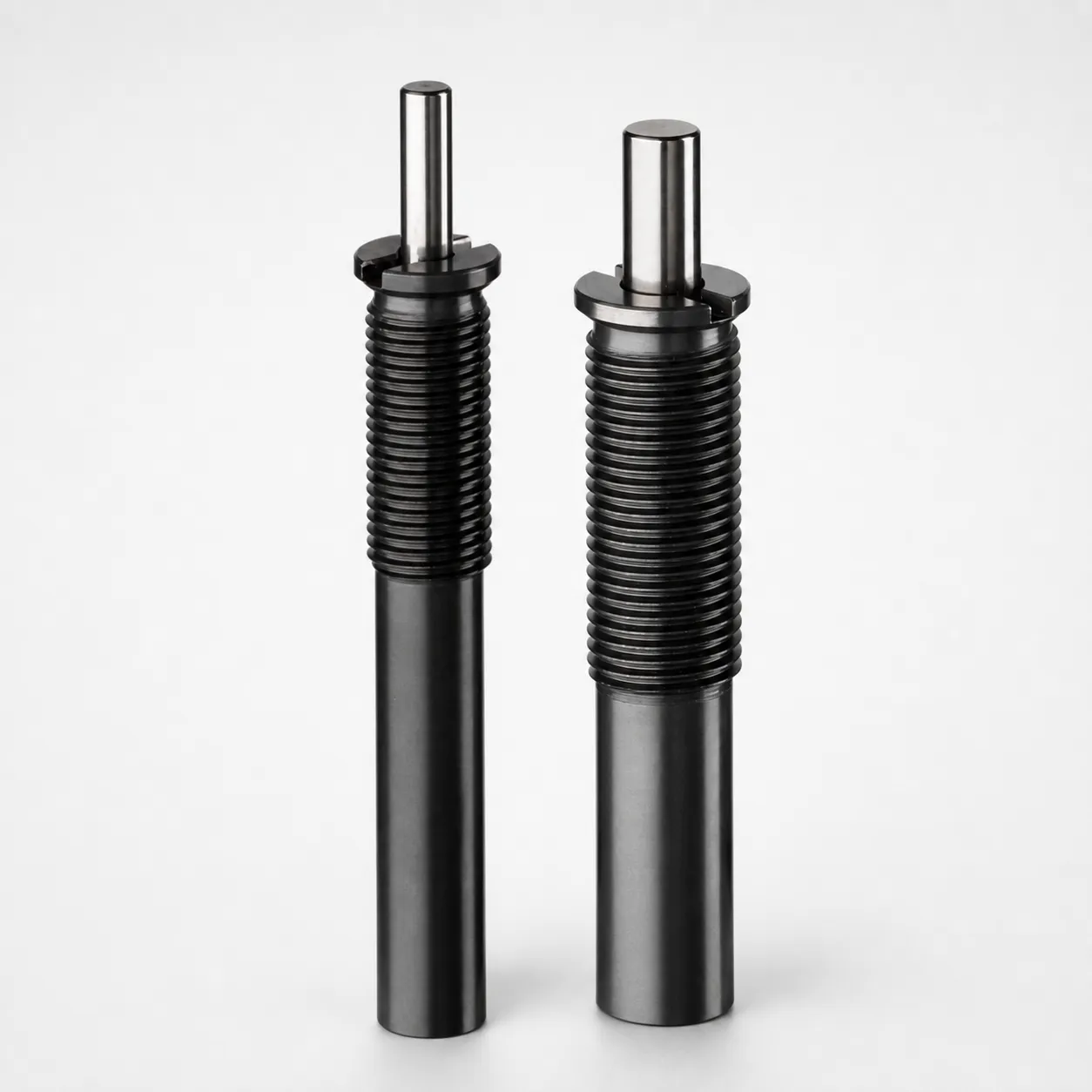

MGSM Series Gas Springs - Threaded Type | Fast Delivery | MISUMI
MGSM Series Gas Springs - Threaded Type for controlled motion on industrial assemblies. MGSM successor model for MGSB. Request a quote.

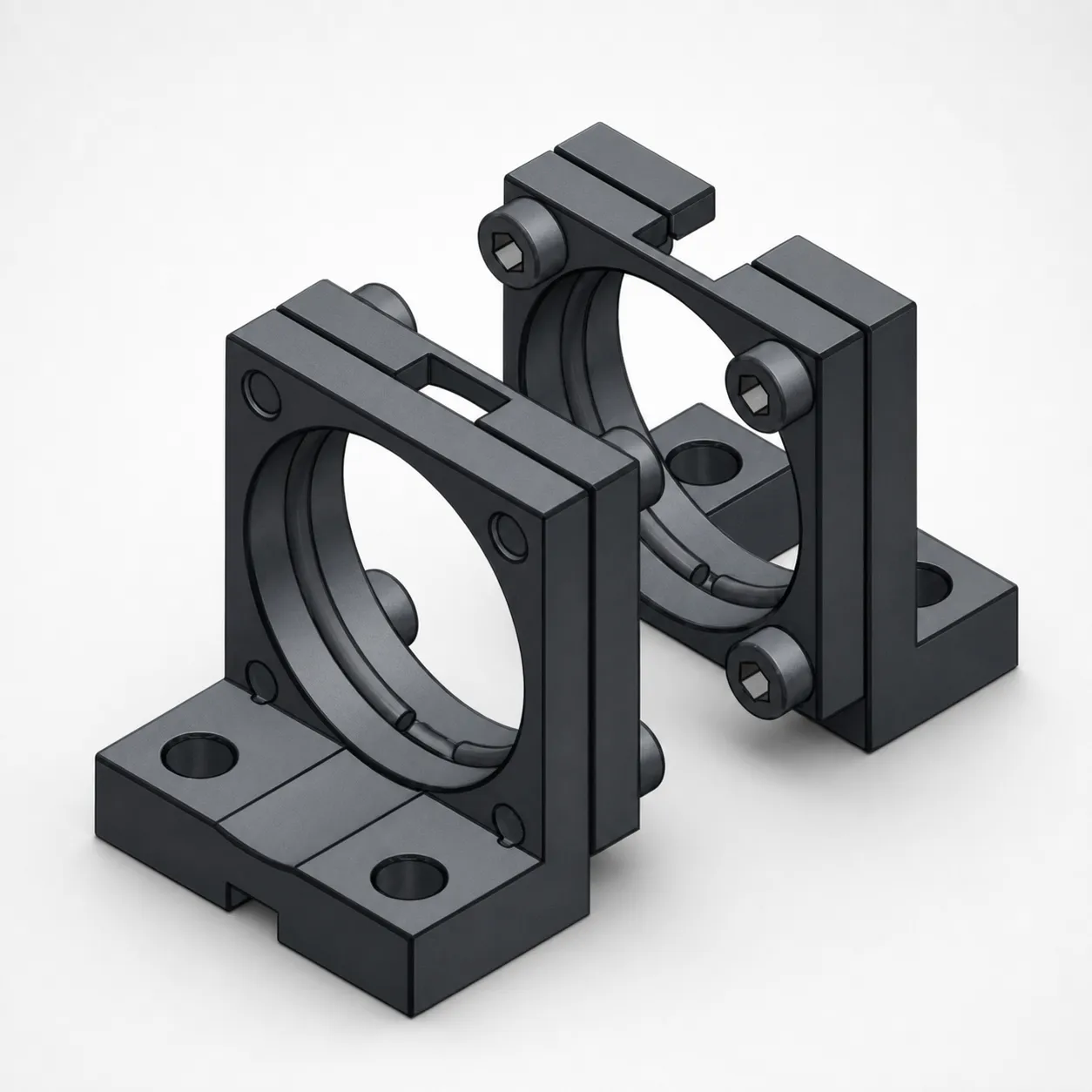

FSM Series Gas Spring Plate - Horizontal Mounting Plate | Made for Stable Horizontal Positioning | MISUMI
FSM Series gas spring mounting plate for horizontal installation. Fixes the gas spring body in position with stable alignment for consistent operation. Ask a quote.

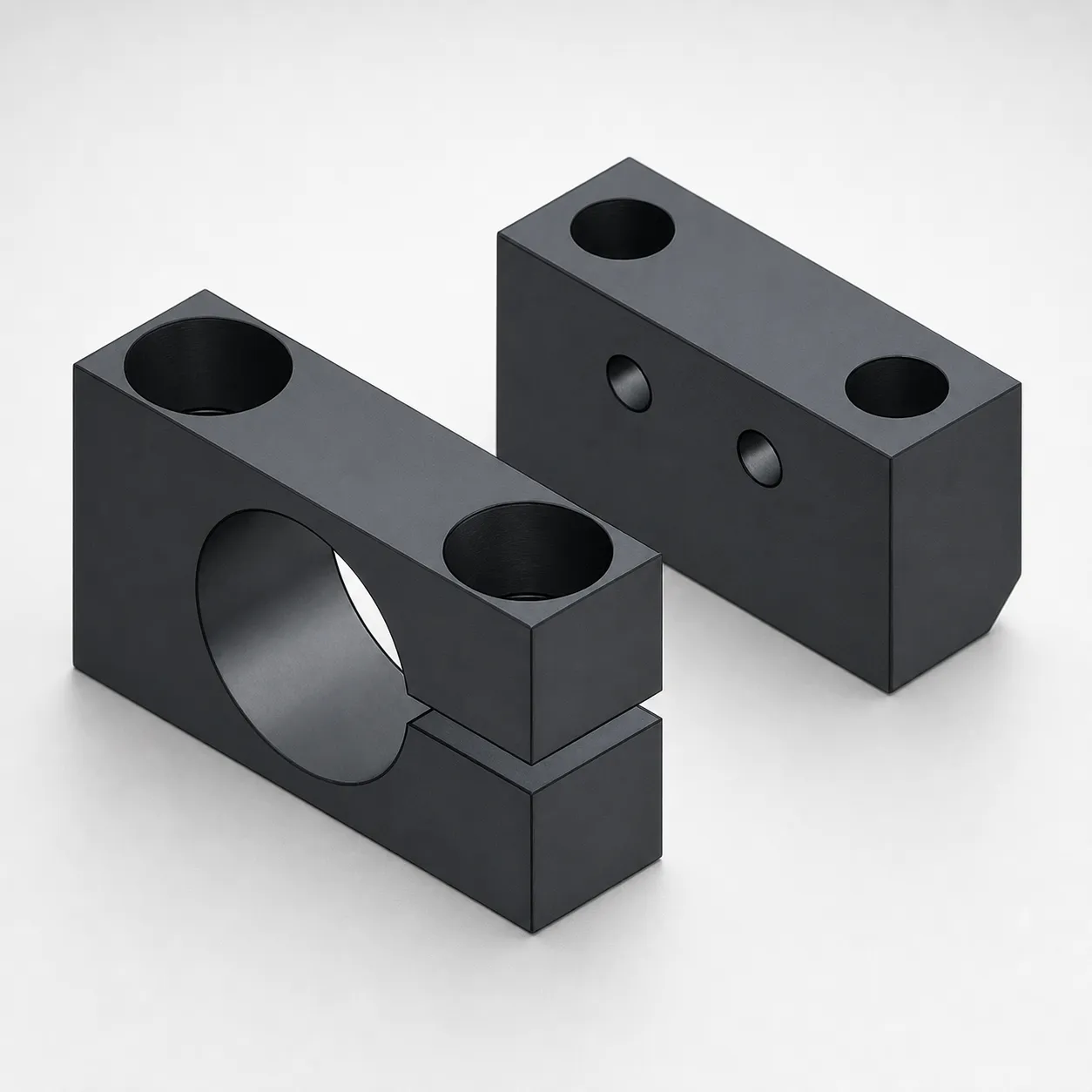

FHM Series Gas Spring Plate - Horizontal Mounting Plate | Fixed Type | Efficient Installation | MISUMI
FHM Series Gas Spring Plate - Horizontal Mounting Plate fixes the gas spring body horizontally for stable lifting. Fixed type for efficient installation. Request a quote.

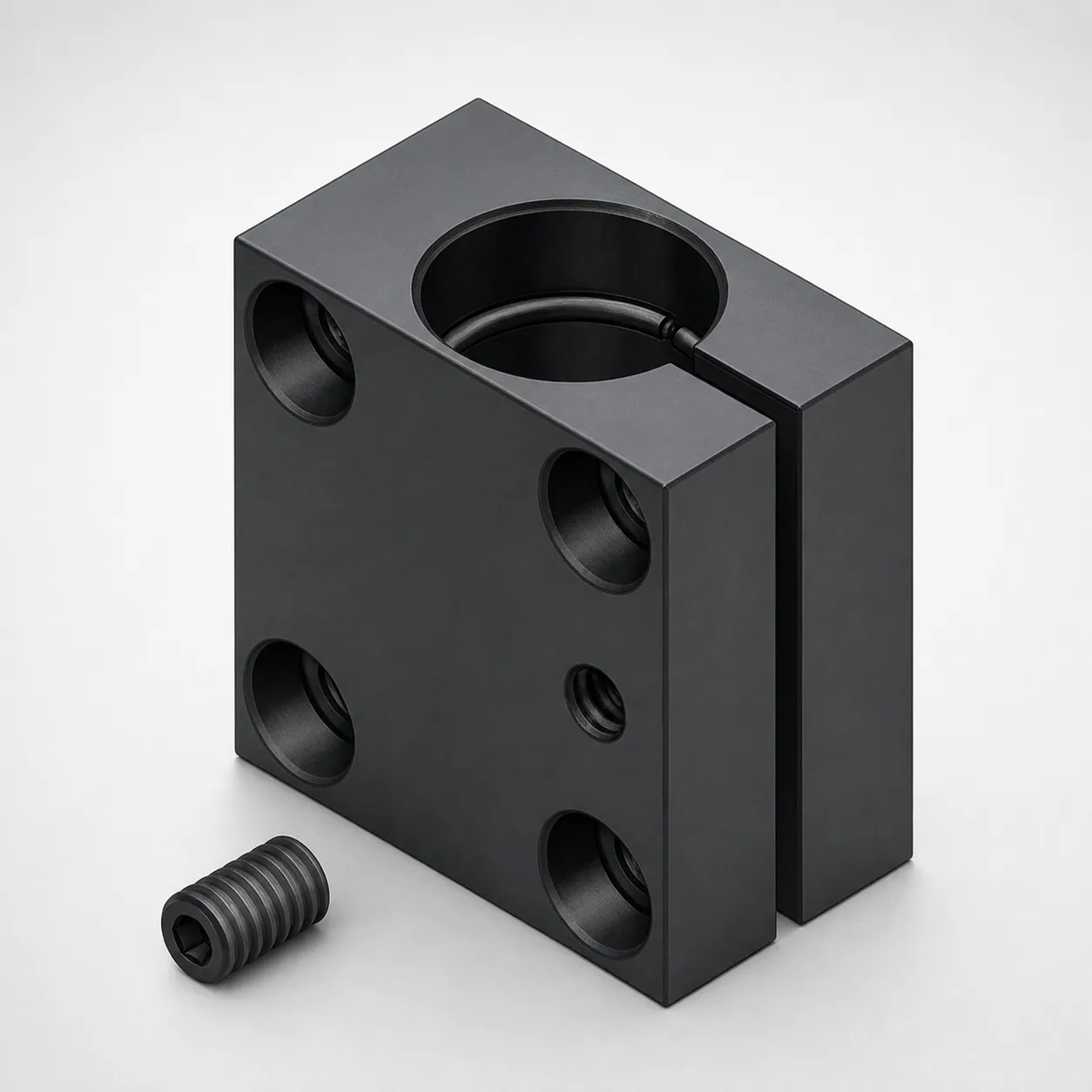

FSG Type Gas Spring Plate - Horizontal Mounting Plate | Fast Supply | MISUMI
FSG Type Gas Spring Plate - Horizontal mounting plate for securing gas spring bodies in FSG configurations. Durable build for reliable assembly—request a quote.

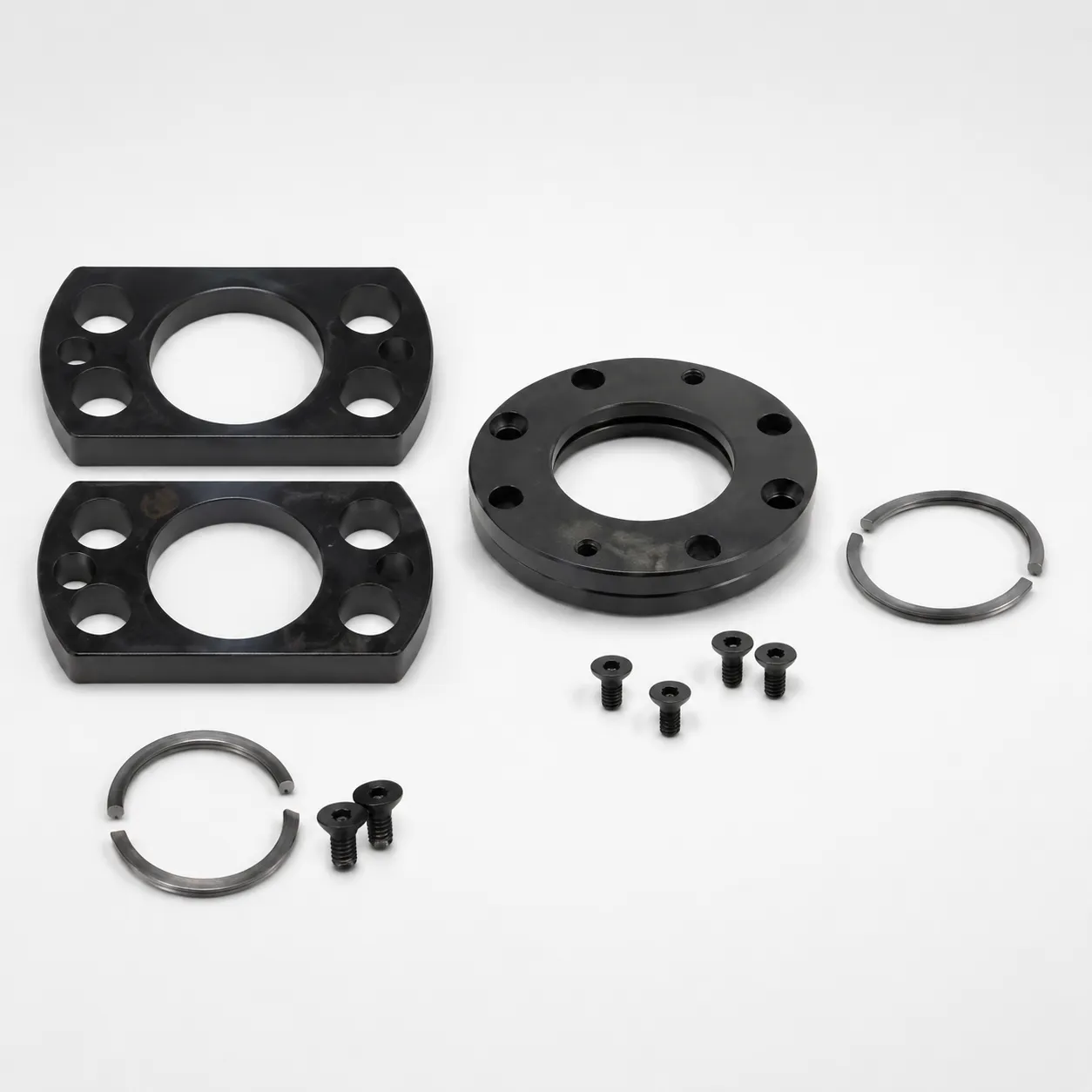

Upper Groove Mount Gas Spring Brackets (FC) | Mounting Plate for Gas Spring Body Groove | MISUMI
Upper Groove Mount Gas Spring Brackets (FC) provide a mounting plate fixed in the upper groove of the gas spring body for secure alignment and assembly. Order today.

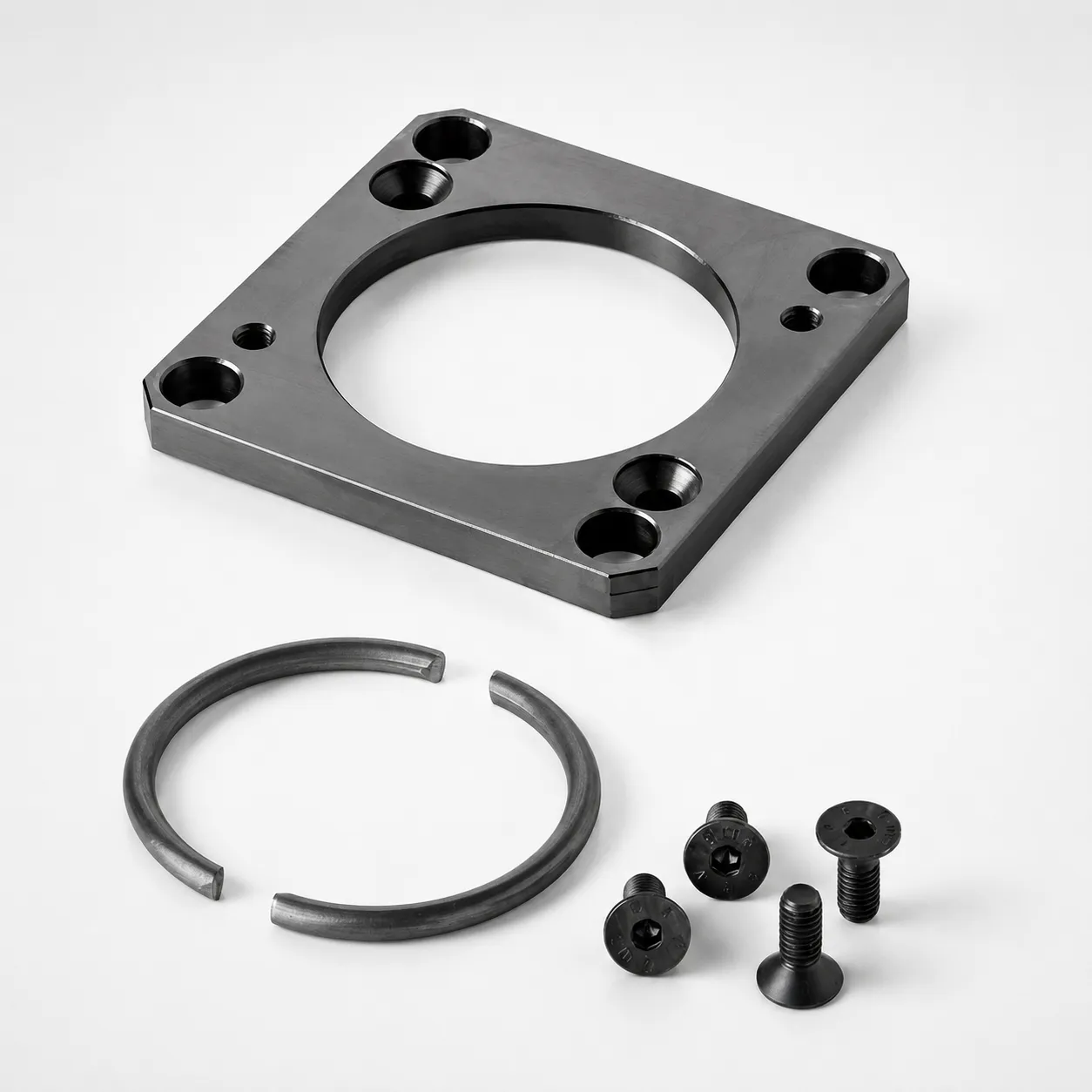

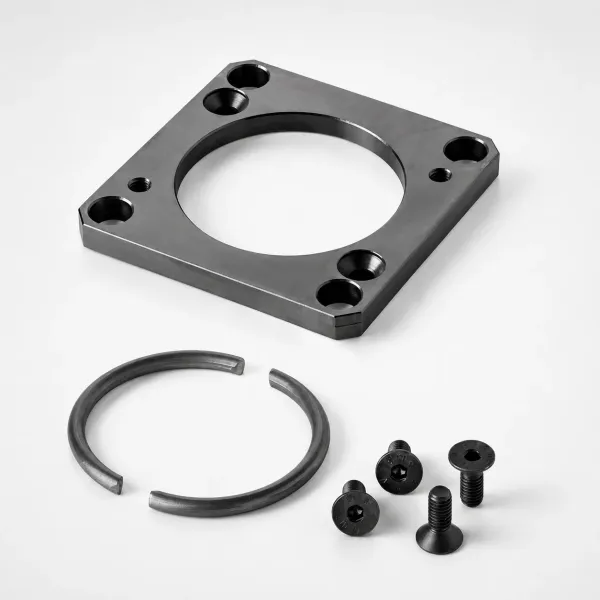

FCQ Type Gas Spring Plate - Upper Groove Fixed | Square Mounting Plate | MISUMI
FCQ type gas spring plate for upper groove fixed square mounting. Ensures stable installation on gas spring bodies and clean alignment for assemblies.

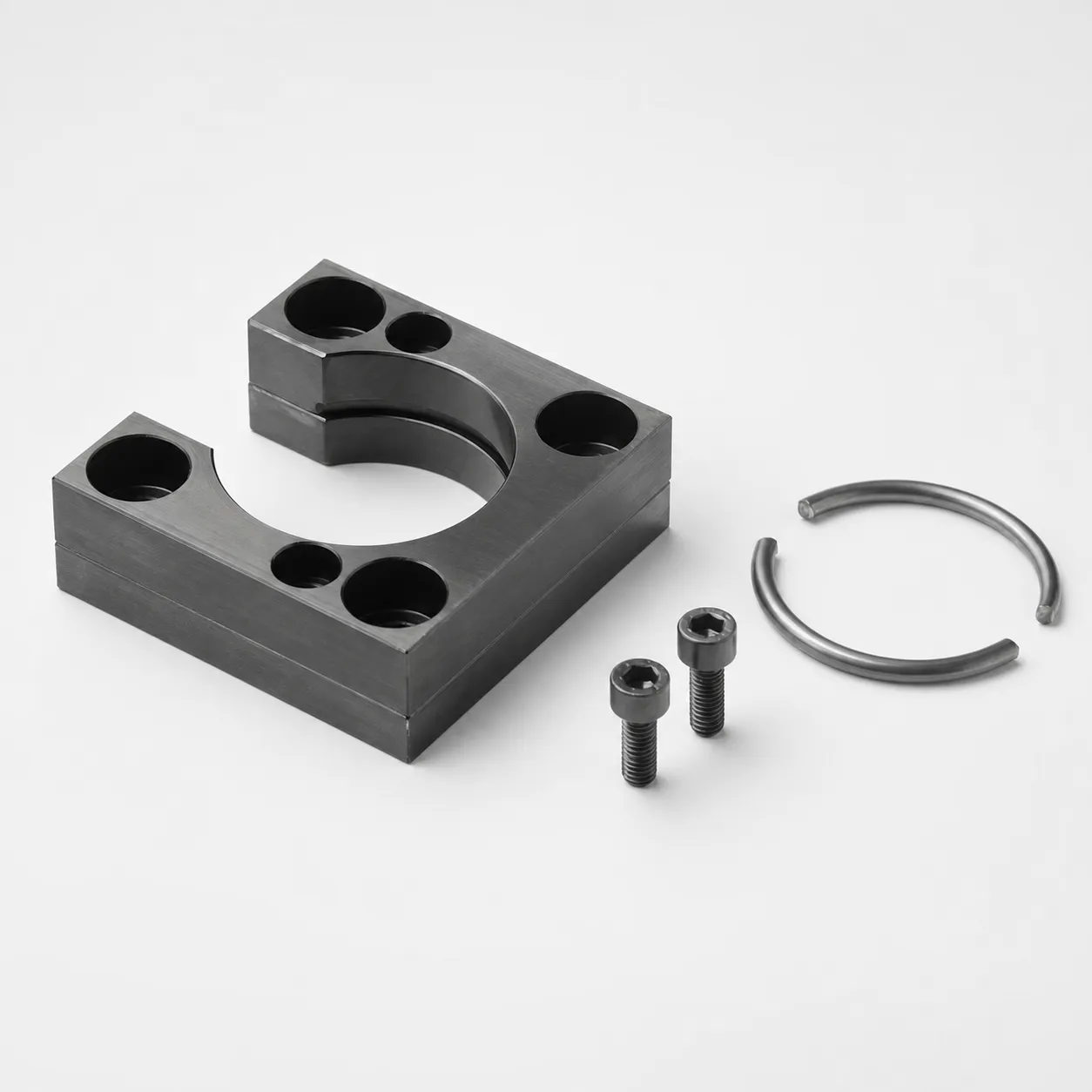

Gas Spring Plate - Lower Groove Fixed, FFS Type | MISUMI Engineering Fit | MISUMI
Gas Spring Plate - Lower Groove Fixed, FFS Type from MISUMI for mounting on the lower groove of the gas spring body. Type FFS, request a quote.
Gas Spring Series Selection Guide
13+ gas spring series serve different size, force, and feature requirements. Follow this decision tree:
| Series | Body Diameter | Key Feature | Best For |
|---|---|---|---|
| GSV | Ø24–Ø63 | Global Standard, broadest range | New die designs, general-purpose (recommended starting point) |
| GSK | Ø24–Ø50 | ISO 11901 compliant | International standard tooling, cross-manufacturer interchangeability |
| GSSC | Ø24–Ø50 | High initial load | Heavy blanking, deep drawing, maximum force at pre-load |
| GSU | Ø24–Ø50 | Adjustable charging pressure | Variable force requirements, fine-tuning without spring body change |
| GST | Ø24–Ø50 | Deeper mounting holes | Extra bolt engagement for high-vibration applications |
| GSH | Ø24–Ø50 | G 1/8 port for external gauge | Pressure monitoring, predictive maintenance |
| GSX | Ø24–Ø63 | Classic (original) type | Existing tooling replacement, legacy die compatibility |
| GSP | Compact | Compact high load | Maximum force-to-size ratio for space-constrained dies |
| GSN | Standard | Short type | Short stroke applications, minimal die height consumption |
| GSQ | Ø32 | Body Ø32, heavy load | Ø32 bore dies needing maximum force in this diameter |
| MGSL | Ø10–Ø16 | Mini type | Compact progressive dies, tight spaces |
| MGSN | Ø10–Ø16 | Mini heavy load | Compact dies needing higher force than MGSL |
| MGSM | Ø10–Ø16 | Threaded body | Direct insertion into threaded bores, no mounting plate needed |
Mounting Hardware Selection
| Criteria | Bottom Mount Plate | Lower Groove Mount | Upper Groove Mount | Horizontal Plate | Multi-Type |
|---|---|---|---|---|---|
| Installation | Vertical (bottom bolts) | Bottom (groove clip) | Top (groove clip) | Horizontal | Universal |
| Access for maintenance | Easy (open bottom) | Moderate | Moderate | Restricted | Flexible |
| Spring removal | Unbolt from bottom | Tool-free (slide out) | Tool-free (slide out) | Unbolt plate | Multiple options |
| Best for | Standard vertical dies (most common) | Quick-change dies | Top-access dies | Cam units, side-acting | Multi-series, mixed dies |
Default choice: Bottom mount plates are the most common mounting method. Switch to groove-mount brackets for quick-change die environments. Use horizontal plates only for cam and side-acting force applications. For detailed mounting guidance, see our How to Select Mounting Hardware for Nitrogen Gas Springs.
Gas Spring + Mounting Hardware Compatibility
| Gas Spring Series | Bottom Mount | Lower Groove | Upper Groove | Horizontal | Multi-Type |
|---|---|---|---|---|---|
| GSX / GSV / GSK / GST | ✅ | ✅ | ✅ | ✅ (FHM/FSG/FSM) | ✅ (FCQ/FFS) |
| GSSC / GSU / GSH | ✅ | ✅ | ✅ | ✅ | ✅ |
| GSP (Compact) | ✅ | — | — | — | — |
| GSN (Short) | ✅ | ✅ | ✅ | — | — |
| MGSL/MGSN (Mini) | ✅ (mini-size) | — | — | — | — |
| MGSM (Threaded) | N/A (direct thread) | — | — | — | — |
| GSQ (Ø32 Heavy) | ✅ | ✅ | ✅ | — | — |
About Gas Springs
Nitrogen gas springs deliver the most consistent force output of any press die spring technology — ≤8% variation across the full stroke. Our 24-product range includes 13+ MISUMI series spanning Ø10 mini (MGSL/MGSN/MGSM) through Ø63 standard (GSV/GSK/GST/GSSC/GSU), plus compact high-load (GSP) and short-stroke (GSN) variants. Complete mounting hardware: bottom plates, groove-mount brackets (upper/lower), horizontal plates, and multi-type universal brackets.
