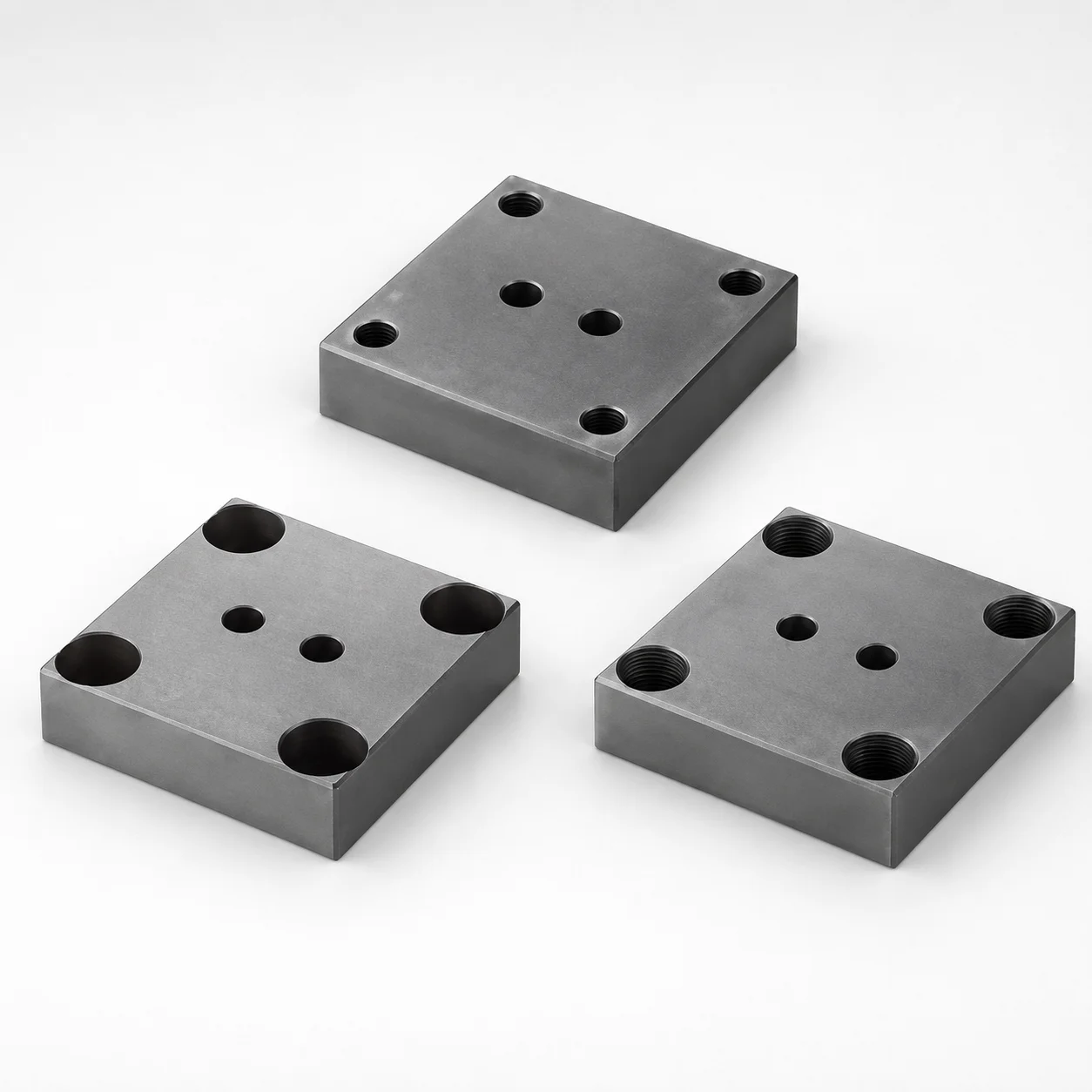

ISO Standard Steel Gas Spring Mounting Plate - Bottom Mount
Gas spring mounting plate - bottom mount (plates only) is designed to support the installation of compatible gas springs in bottom-mount configurations. Use the catalog table to match the applicable gas spring to the plate type.
- Plates only construction for a clean, direct bottom-mount interface
- Outer diameter (D) range 45–195 mm supports multiple mounting sizes
- Plate type options FB / FBA / FBB for selecting the right configuration
- Recommended for equipment using gas springs where catalog compatibility is required
Specifications
22 configurations available
| Outer diameter (D) (mm) | Plate Type |
|---|---|
| 45 | FB |
| 50 | FB |
| 75 | FB |
| 95 | FB |
| 120 | FB |
| 150 | FB |
| 195 | FB |
| 45 | FBA |
| 50 | FBA |
| 75 | FBA |
| 95 | FBA |
| 120 | FBA |
| 150 | FBA |
| 195 | FBA |
| 45 | FBB |
| 50 | FBB |
| 63 | FBB |
| 75 | FBB |
| 95 | FBB |
| 120 | FBB |
| 150 | FBB |
| 195 | FBB |
Product Guide
Application Scenarios+
This bottom-mount gas spring mounting plate is used inside injection molded equipment structures where the cylinder end must be fixed reliably to the moving or stationary assembly. In practice, it supports the installation of compatible gas springs while keeping the interface simple and direct—plates only, so the correct gas spring must be selected from the catalog compatibility table.
Scenario 1: Automotive interior and trim assemblies
- When a cabinet-style mechanism is actuated by a gas spring, the bottom-mount plate helps position the spring end consistently for repeatable motion.
- The wide D = 45–195 mm range supports different actuator sizes across model platforms.
Scenario 2: Industrial access panels and safety covers
- For hinged or vertically opening lids, choosing FB / FBA / FBB plate types allows selection of the correct mounting configuration for the targeted gas spring.
Why this variant fits
- Because it’s a plate-only component, engineers can ensure the interface matches the exact catalog-listed gas spring, reducing design mismatch risk.
Material & Process Details+
The provided data specifies mounting plate geometry and plate type (FB / FBA / FBB) and does not include the steel grade, coating, or heat-treatment state. Because the heat-treat and hardness directly depend on the actual manufacturing specification of the plate, the exact HRC value and wear/toughness trade-offs cannot be stated from the current metadata.
To select the correct material properties for your application, confirm the plate’s listed steel grade and processing (for example, whether it is pre-hardened, quenched & tempered, nitrided, or similar) in the product catalog documentation paired with the compatible gas spring.
- Data needed: steel grade designation, hardness (HRC), and heat-treatment condition.
- Process needed: surface treatment/coating (if any) to resist corrosion and fretting at the mounting interface.
Sizing & Selection Guide+
Use this plate to match your chosen bottom-mount gas spring. Selection is driven primarily by the outer diameter (D) and the plate type, which must correspond to the compatible gas spring listed in the catalog compatibility table.
- Outer diameter (D): choose a plate with D = 45–195 mm that fits the spring mounting envelope and adjacent structural clearances in your molded or fabricated housing.
- Plate type: select the correct configuration among FB, FBA, FBB to align with the bottom-mount interface requirement.
Fit and tolerance considerations
- Verify that the selected D and the gas spring’s mating features (as specified in the catalog) provide the intended functional clearance and assembly tolerance.
- Because this component is plates only, the final fit is achieved by confirming the complete gas spring-to-plate match from the table, rather than by geometry alone.
Frequently Asked Questions
Which parameters actually control compatibility for a bottom-mount gas spring plate?+
Compatibility is controlled by the outer diameter (D) range of 45–195 mm and the selected plate type (FB / FBA / FBB). Since the product is plates only, the gas spring must be verified against the catalog compatibility table to confirm the correct mating configuration.
How do I select the correct plate type (FB, FBA, FBB) for my application?+
Choose FB / FBA / FBB based on the bottom-mount interface configuration required by the specific gas spring you intend to use. The metadata indicates that correct matching depends on the catalog table; confirm the exact gas spring entry for your design before finalizing the plate type.
What happens if my gas spring outer diameter requirement falls near the edges of the 45–195 mm range?+
Select a plate whose D falls within 45–195 mm and then re-check the exact gas spring-to-plate match in the catalog table. Edge selections should be treated carefully because functional fit depends on the gas spring’s mating features and the intended clearance/assembly tolerances.
Does this plate include the gas spring cylinder, or is it interface-only?+
This item is explicitly plates only for bottom-mount applications. It is intended to support installation of a compatible gas spring, but the gas spring itself must be selected separately and verified via the catalog table.
Can I rely on material properties (steel grade, hardness) from the current listing?+
The provided metadata does not include the steel grade, heat-treatment condition, or hardness (HRC). To obtain the correct wear/corrosion performance expectations, confirm the plate’s specified material and processing in the catalog documentation used for compatibility with the chosen gas spring.
