Plain Leader Bushings
Standard cylindrical bushings in bronze alloy or hardened steel — the most economical option for general-purpose molds with regular lubrication.
Plain Leader Bushings (23 Products)
Short Shoulder Plain Guide Bushings
Short shoulder plain guide bushings engineered for compact mold plate installations with precision sliding fit.
View Details
Inch Pressed Fit Plain Guide Bushings (Bronze-Plated Copper Alloy)
Inch pressed fit plain guide bushings in bronze-plated copper alloy for durable mold and die alignment.
View Details
Plain Guide Bushings Pressed Fit Style Inch
Pressed fit style plain guide bushings in inch sizing for stamping die sets and mold tooling.
View Details
Plain Guide Bushings Pressed Fit Style, Inch (Copper Alloy, Loctite Mounted)
Copper alloy plain guide bushings with pressed fit mounting and Loctite retention for inch tooling.
View Details
Inch Wring Fit Plain Guide Bushings (Bronze-Plated Copper Alloy)
Inch wring fit plain guide bushings in bronze-plated copper alloy for smooth sliding and close tolerance guidance.
View Details

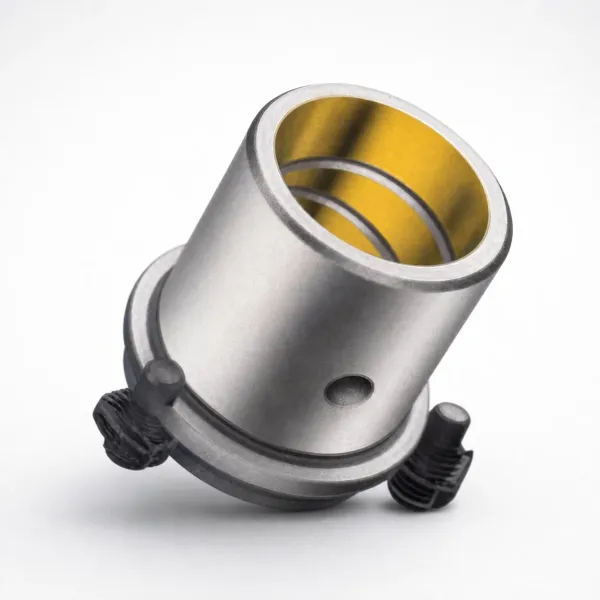

Metric Plain Guide Bushings Wring Fit Style
Metric plain guide bushings with wring fit mounting for precision mold sets and stamping dies.
View Details
Plain Guide Short Sleeves Press Fit Style Inch Bushing
Short sleeve press fit plain guide bushings in inch dimensions for compact die space applications.
View Details
Inch Plain Guide Bushings (Bronze-Plated) Pressed Fit
Inch bronze-plated plain guide bushings designed for Loctite bonding and pressed fit installation.
View Details

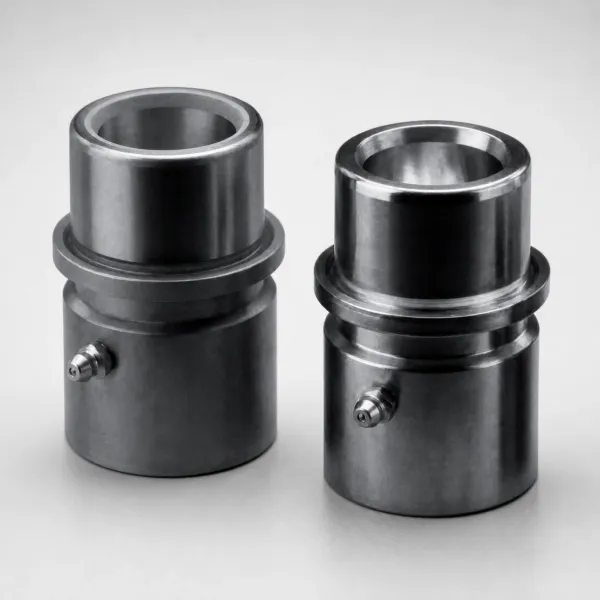

Bronze-Plated Plain Guide Bushings - Demountable Style
Bronze-plated demountable style plain guide bushings for easy replacement and low-wear operation.
View Details
Bronze-Plated Short Shoulder Bushings - Demountable Style
Demountable short shoulder guide bushings with bronze plating for reduced friction and extended tool life.
View Details
Plain Guide Steel Short Shoulder Bushings Press Fit Style (Inch)
Steel short shoulder plain guide bushings in inch press-fit style for heavy-duty die sets.
View Details
Metric Short Shoulder Plain Bearing Bushings - Demountable
Metric short shoulder demountable plain bearing bushings for fast maintenance and dependable guidance.
View Details
Metric Low Profile Plain Guide Bushings - Demountable Style
Low-profile metric demountable plain guide bushings for space-constrained mold bases.
View Details
Long & Extra Long Shoulder Bushings - Wring Fit Style, Inch
Inch wring fit long and extra-long shoulder bushings for extended guide pin engagement.
View Details
Metric Long & Extra Long Shoulder Bushings - Wring Fit Style
Metric wring fit long and extra-long shoulder bushings for deep-draw stamping and large molds.
View Details
Bronze-Plated Steel Extra Long Shoulder Plain Guide Bushings - Demountable
Extra long shoulder plain guide bushings in demountable bronze-plated steel construction.
View Details
Metric Long Shoulder Plain Bearing Bushings - Demountable Style
Metric long shoulder demountable plain bearing bushings for precision tooling alignment.
View Details
Long Shoulder Plain Guide Bushings - Demountable Style, Metric
Metric long shoulder plain guide bushings in demountable style for reliable mold alignment.
View Details
Demountable Style Bronze-Plated & Steel Oversize Shoulder Bushings (Inch)
Demountable bronze-plated and steel oversize shoulder bushings in inch dimensions for heavy tooling.
View Details
Plain Guide Bushings (Demountable Style) Bronze-Plated Copper Alloy
Bronze-plated copper alloy plain guide bushings with demountable mounting for inch die sets.
View Details
Inch Bronze-Plated Plain Guide Bushings - Demountable Style
Inch bronze-plated plain guide bushings with demountable clamp retention for quick changeover.
View Details

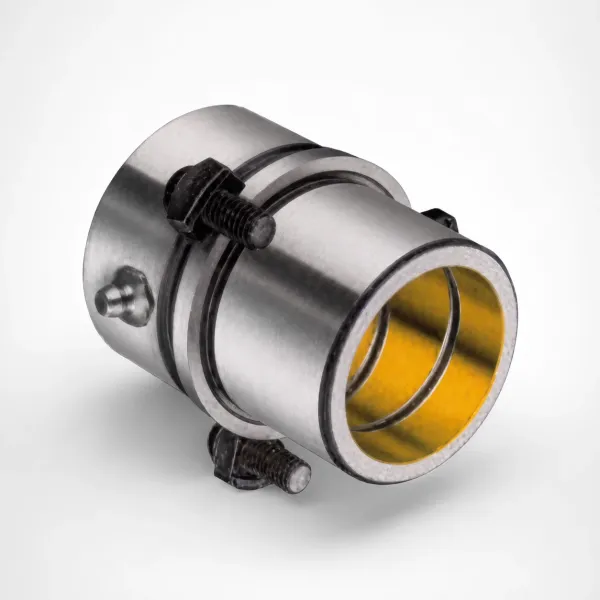

Metric Wring Fit Style Shoulder Bushings
Metric shoulder guide bushings with wring fit mounting for high-precision die sets.
View Details

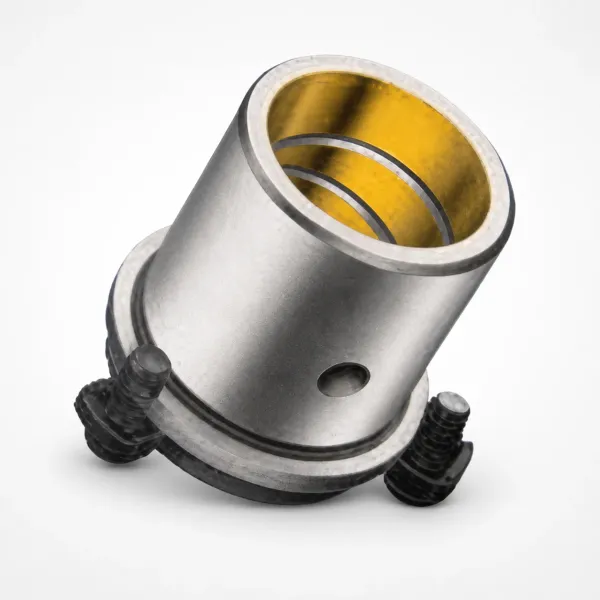

Copper Alloy Wring Fit Plain Guide Bushings for Die Sets
Copper alloy plain guide bushings with wring fit tolerance for die sets and mold plates.
View Details

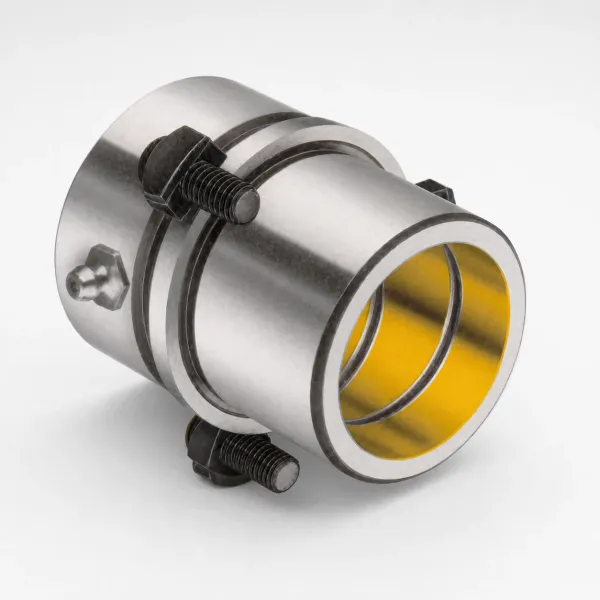

Wring Fit Shoulder Bushings - Inch
Inch shoulder bushings with wring fit shank for rigid positioning and accurate alignment.
View DetailsBronze vs Steel Plain Bushings
| Property | CAC301 Bronze | S45C Steel (Carburized) |
|---|---|---|
| Hardness | HB 80-100 | HRC 45-50 (surface) |
| Friction vs SUJ2 Pin | Low (dissimilar metals) | Higher (steel-on-steel) |
| Wear Pattern | Bushing wears (softer) — protects pin | Both surfaces wear |
| Lubrication Need | Every 5K-10K cycles | Every 2K-5K cycles |
| Corrosion Resistance | Good (naturally resistant) | Poor (requires anti-rust treatment) |
| Cost | $$ | $ |
| Best For | Production molds, standard choice | Budget molds, low-cycle prototyping |
Deep dive: For a detailed comparison, read Bronze vs Steel Leader Bushings — Which Material Lasts Longer?.
About Plain Leader Bushings
Plain leader bushings are solid cylindrical bore components that receive leader pins for mold-half alignment. Bronze alloy (CAC301) is the industry standard, providing low friction against SUJ2 steel leader pins with predictable wear patterns — the softer bushing wears first, protecting the more expensive pin. Steel (S45C carburized) bushings offer lower upfront cost for prototype and low-cycle molds.
Application Scenarios
General-Purpose Injection Molds
Standard production molds need reliable, cost-effective alignment bushings that pair well with SUJ2 leader pins.
Why it fits: CAC301 bronze provides the ideal combination of low friction, predictable wear, and corrosion resistance for standard mold environments.
Prototype and Short-Run Molds
Prototype molds running < 50K cycles need functional alignment at minimum cost.
Why it fits: S45C steel bushings cost 40% less than bronze and provide adequate performance for short production runs.
Frequently Asked Questions
What is the difference between bronze and steel plain leader bushings?+
What press-fit tolerance do plain bushings require?+
How often should plain leader bushings be replaced?+
Engineering Resources
Need Custom Plain Leader Bushings?
Precision plain leader bushings manufactured to JIS and DIN standards. Custom dimensions available. MOQ 1 piece.
