Tapered Head Punches
Conical Head for Self-Aligning Quick Insertion. Browse 17 products from MISUMI and DAYTON with configurable dimensions and same-day shipping on standard catalog items.
Tapered Head Punches (17 Products)

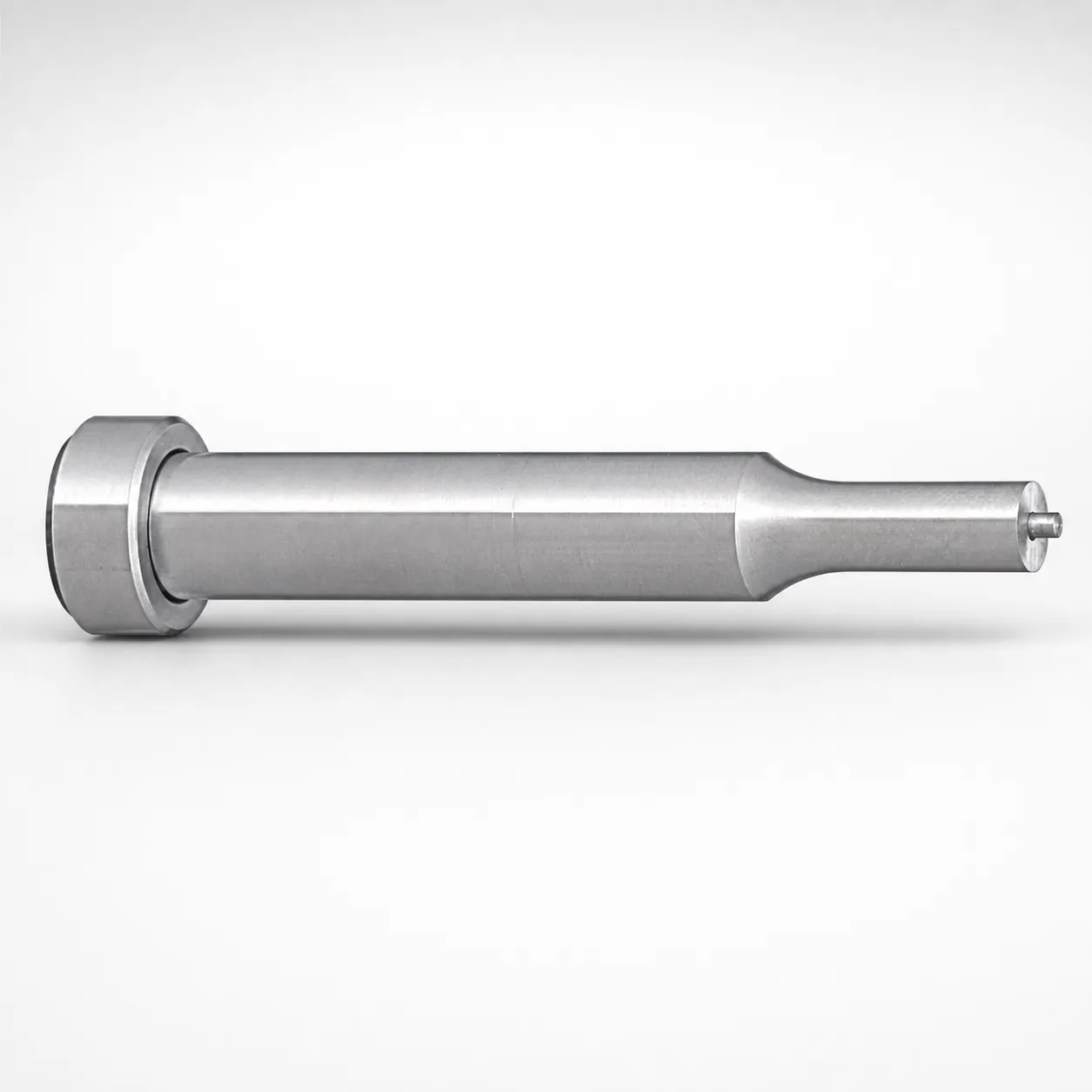

Tapered Head Ejector Punches (Heavy-Load) | Hard Wear Resistant Punching
Tapered Head Ejector Punches with heavy-load punching design for stable stripping and longer tool life. Choose SKH51 equivalent high-speed steel variants. Request a quote.

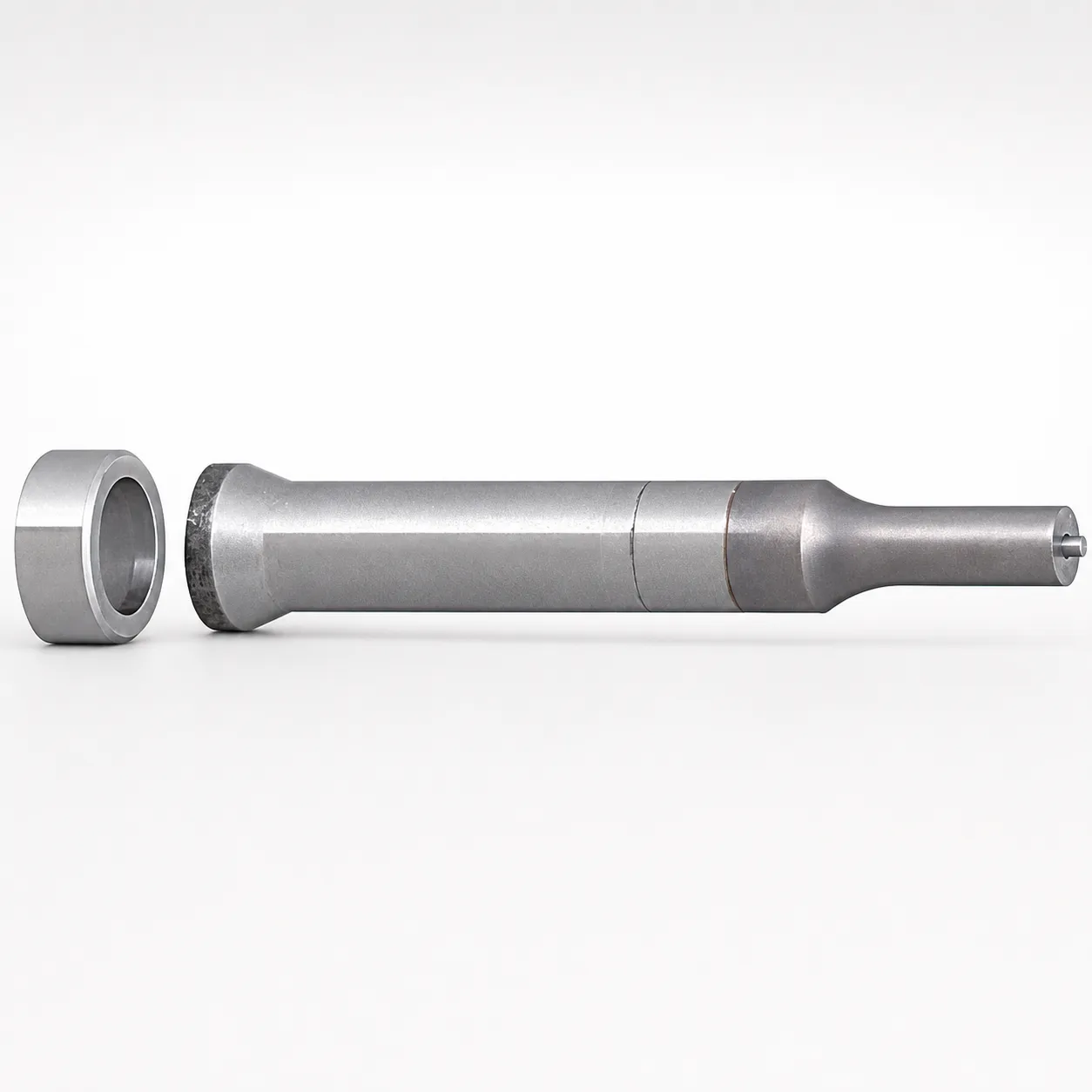

JIS Standard Tapered Head Ejector Punches - HW Coating | Fast Delivery
Tapered Head Ejector Punches - HW Coating provide heavy-load punching with a single-stepped shank. Standard type tip for reliable mold ejection.

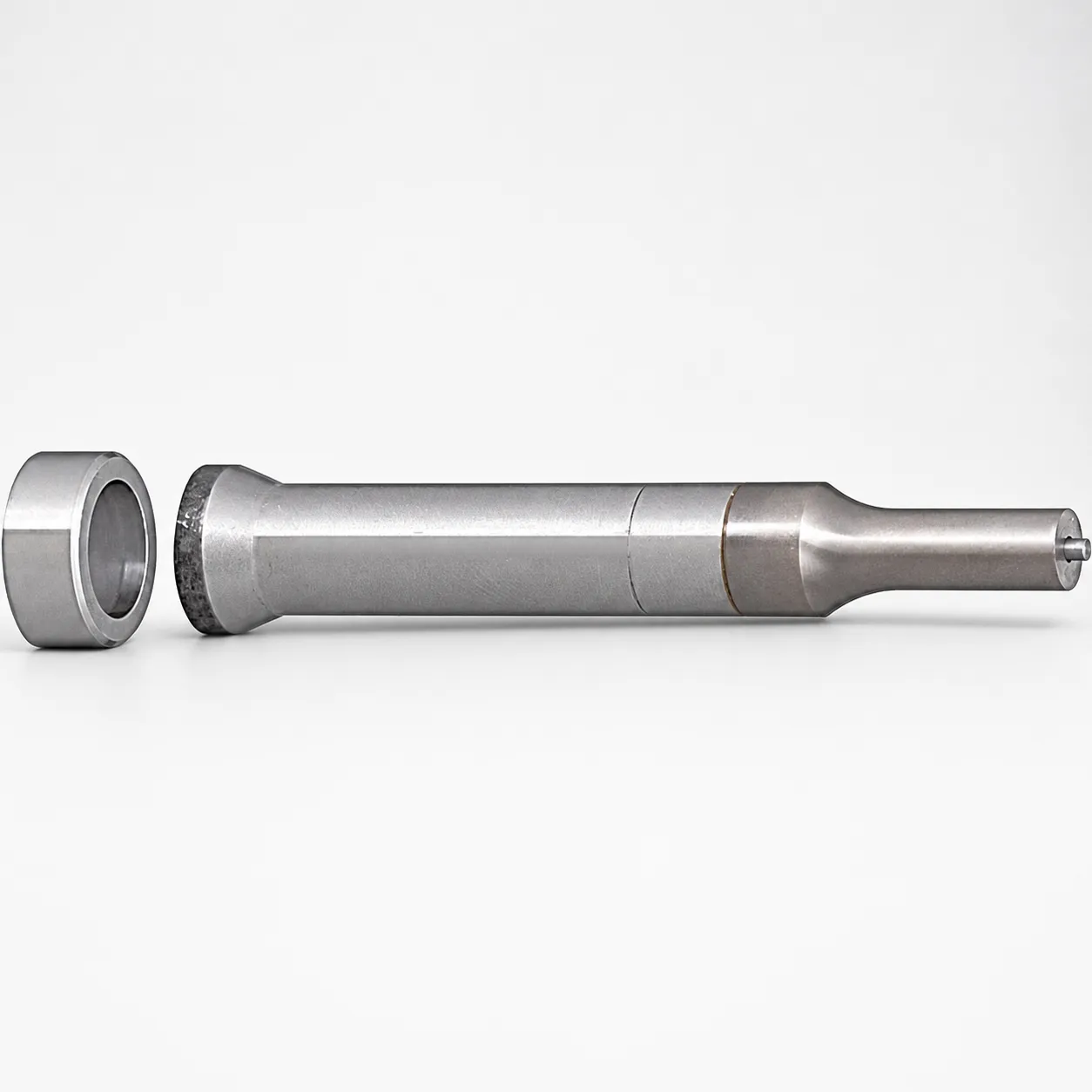

HX Coating Tapered Head Ejector Punches | Precision Performance | Fast Delivery
HX Coating Tapered Head Ejector Punches for reliable punching operations. Durable construction with wear-resistant HX coating helps extend tool life. Request a quote.

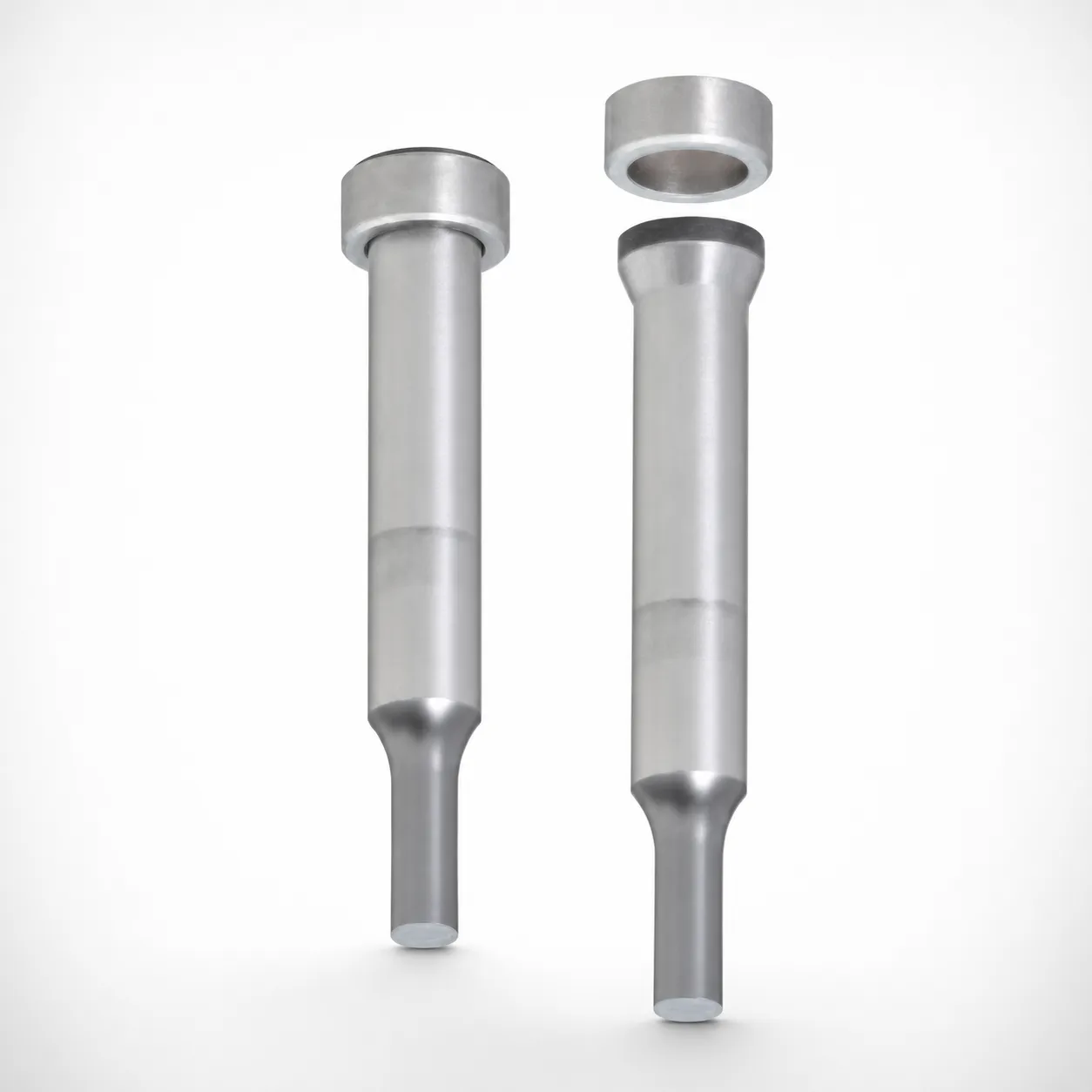

Tapered Head Ejector Punches - RP Coating | Reduced Mold Maintenance Cost
Tapered Head Ejector Punches - RP Coating deliver higher punch life with Al-Cr based coating and alpha treatment. Designed for reduced maintenance cost.

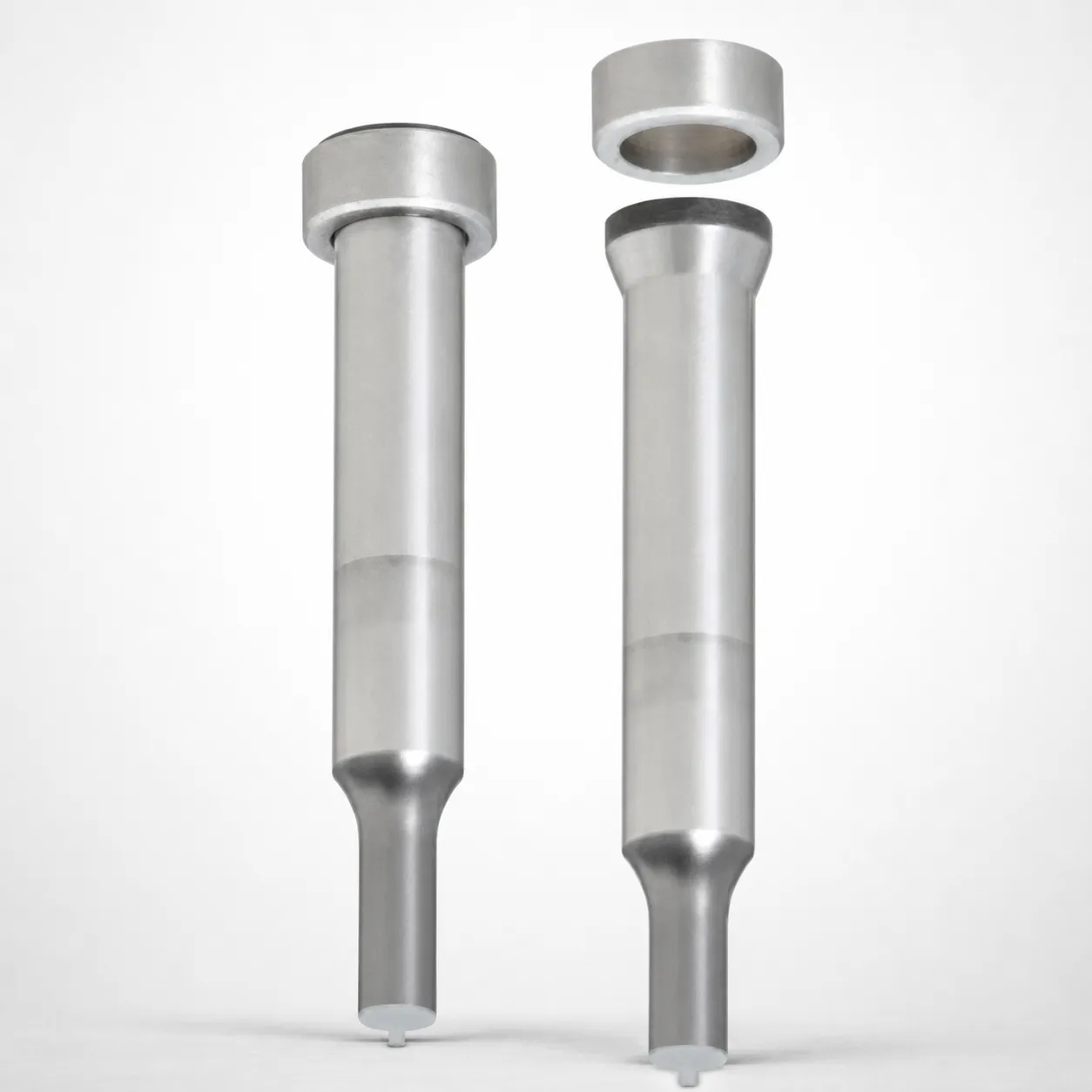

RP Coating Tapered Head Ejector Punches - Al-Cr Coating + Alpha Treatment | MISUMI
RP coating tapered head ejector punches feature Al-Cr high-hardness, high-heat resistance coating plus Alpha treatment. Extend punch life, reduce maintenance costs.
Tapered Head Ejector Punches - RW Coating | Heavy-Load Single-Stepped Punch
Tapered Head Ejector Punches - RW Coating for heavy-load punch applications. Features single-stepped shank and durable RW treated surface. Request a quote.

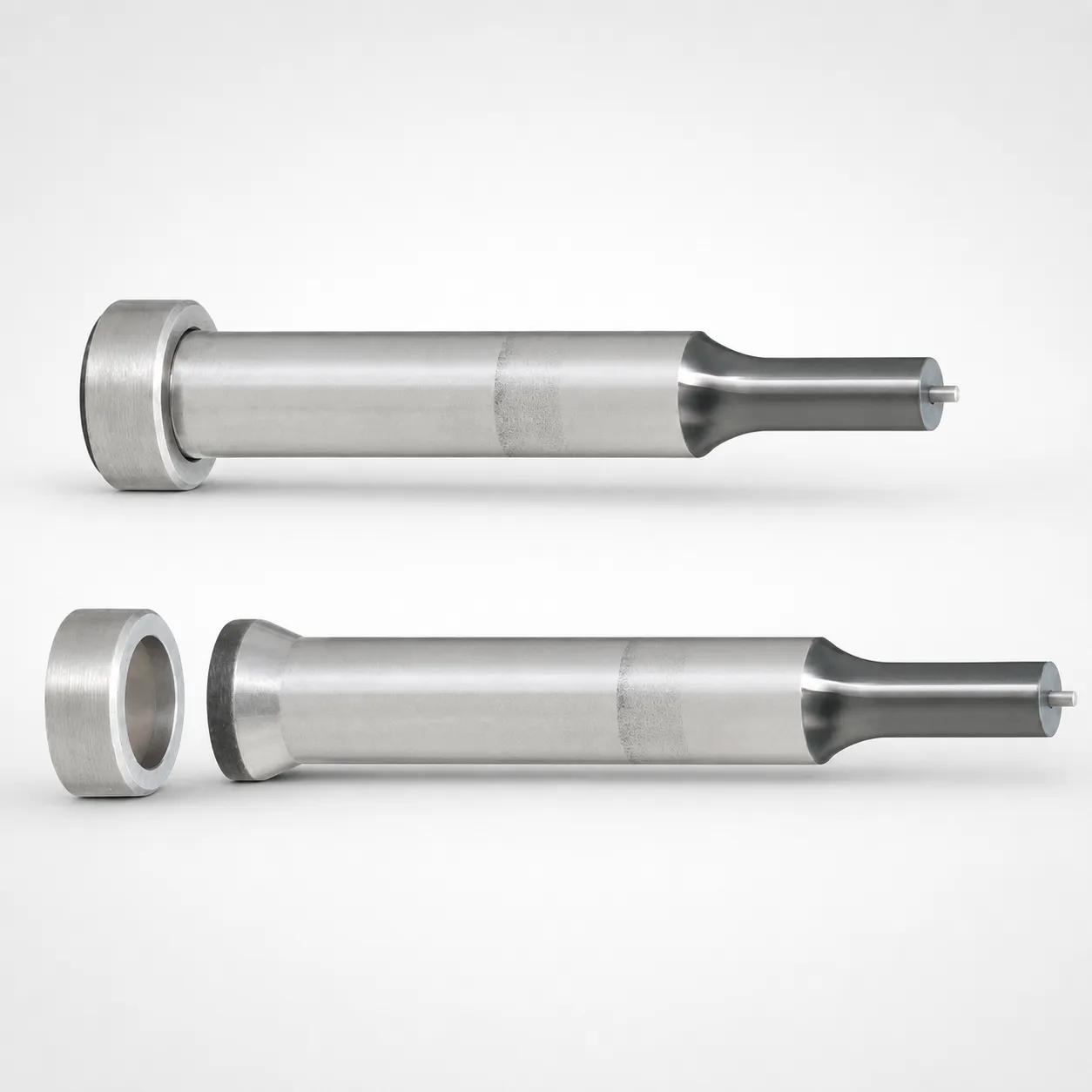

RX Coating Tapered Head Ejector Punches | Powder High-Speed Steel | MISUMI
RX coating tapered head ejector punches in powdered high-speed steel offer durable wear resistance for consistent punch performance in tooling and production. Request a quote.

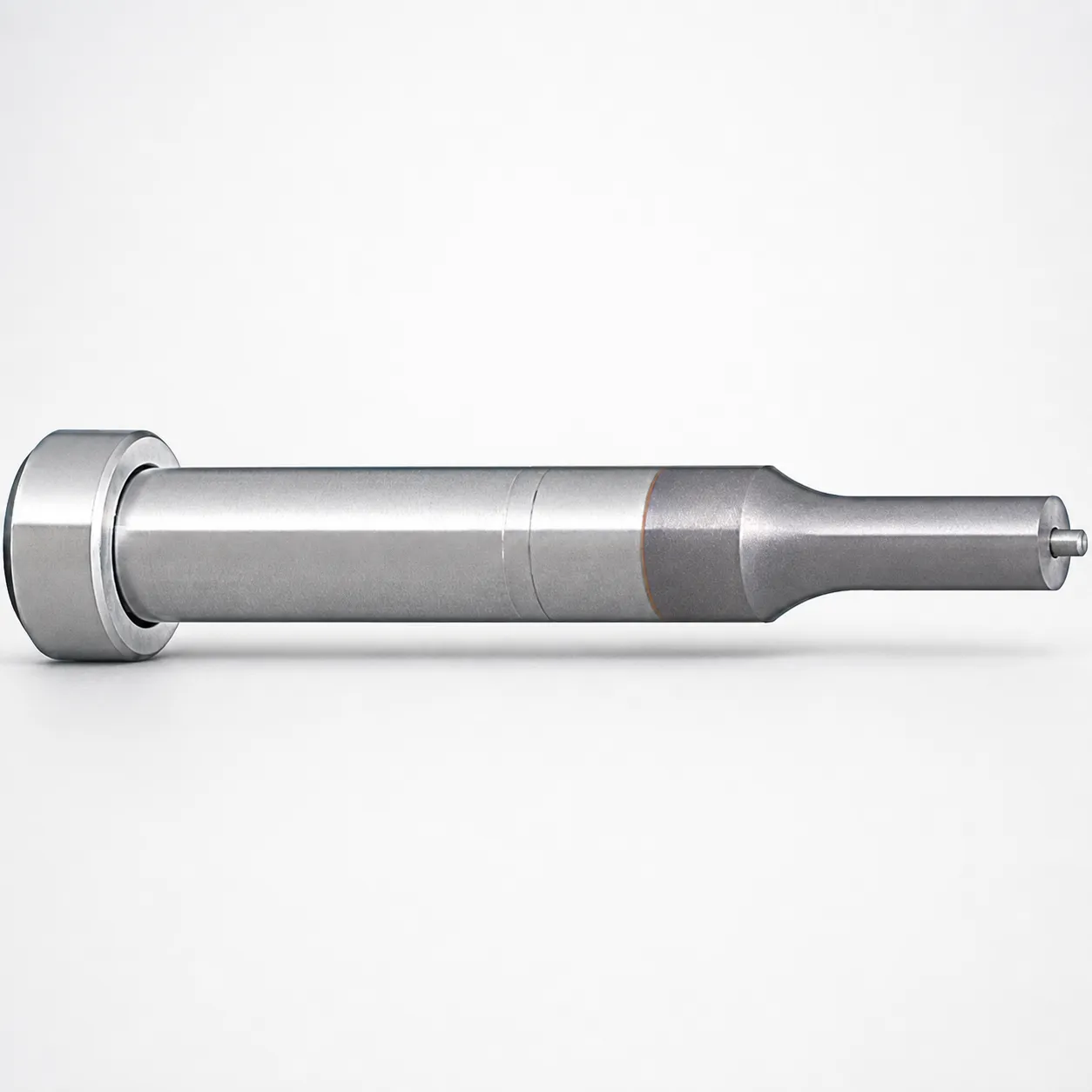

TiCN Coated Tapered Head Ejector Punches | Heavy-Load Single-Stepped Punches
TiCN coated tapered head ejector punches for heavy-load punching applications, featuring single-stepped shanks and standard tips. Request a quote.

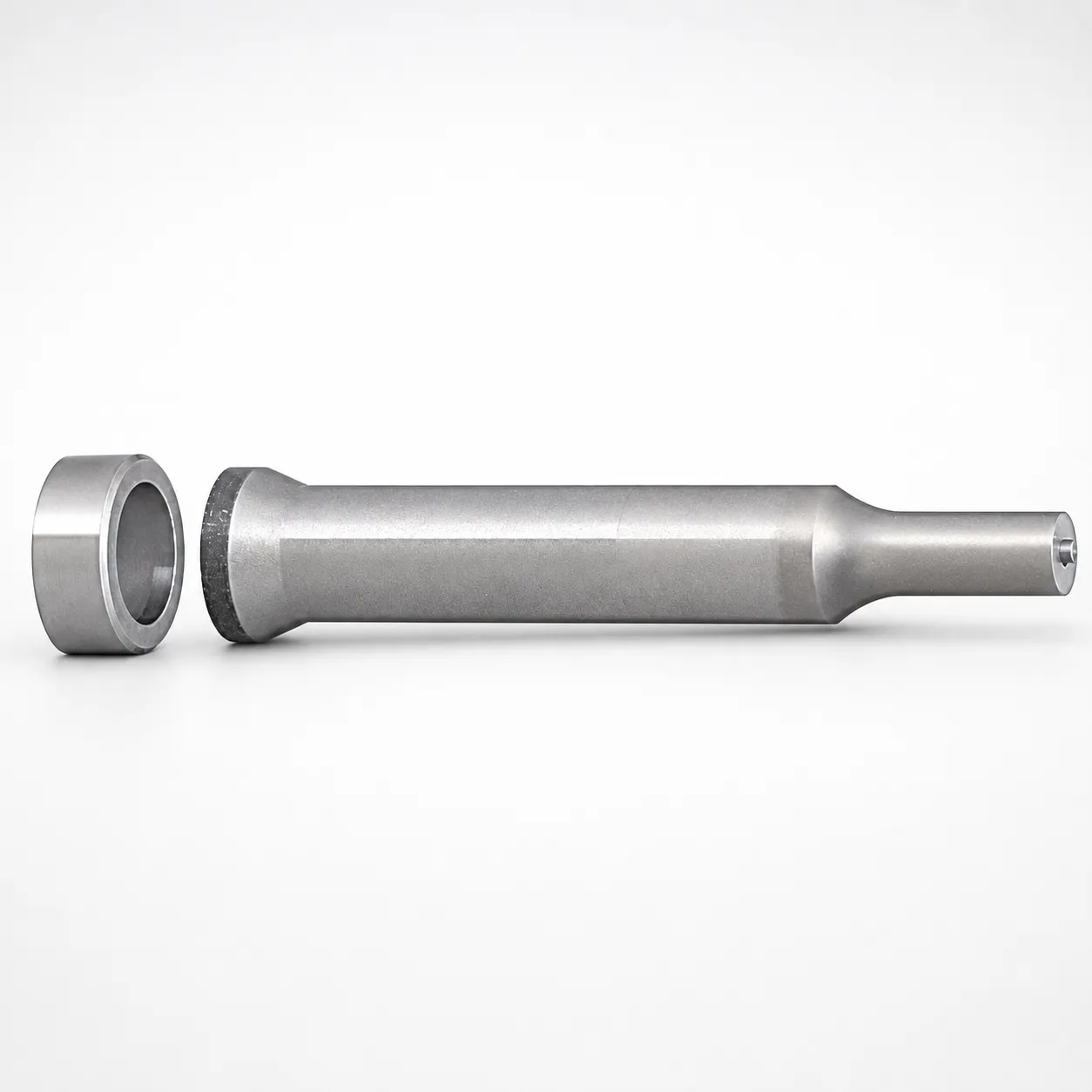

Tapered Head Ejector Punches WPC Treatment | Heavy-Load, Single-Stepped Shank | MISUMI
Tapered Head Ejector Punches WPC Treatment for heavy-load die applications. Single-stepped shank and standard tip geometry for reliable ejection.

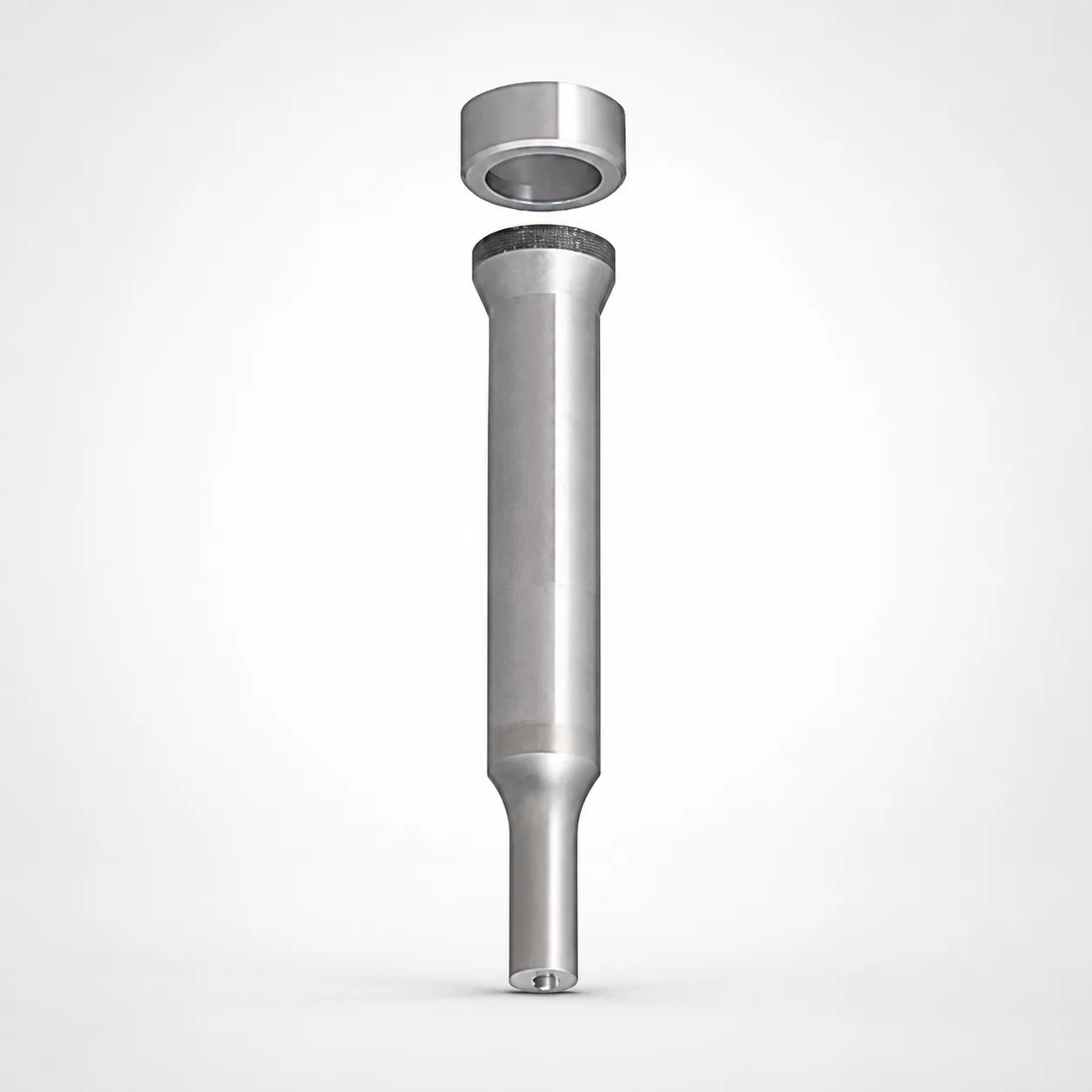

Alpha Treatment Tapered Head Ejector Punches | Reduced Friction Surface Coating-Free Hardening
Alpha Treatment Tapered Head Ejector Punches use nanocrystallized surface hardening and microtexture to reduce friction for smoother ejection and oil retention. Request a quote.

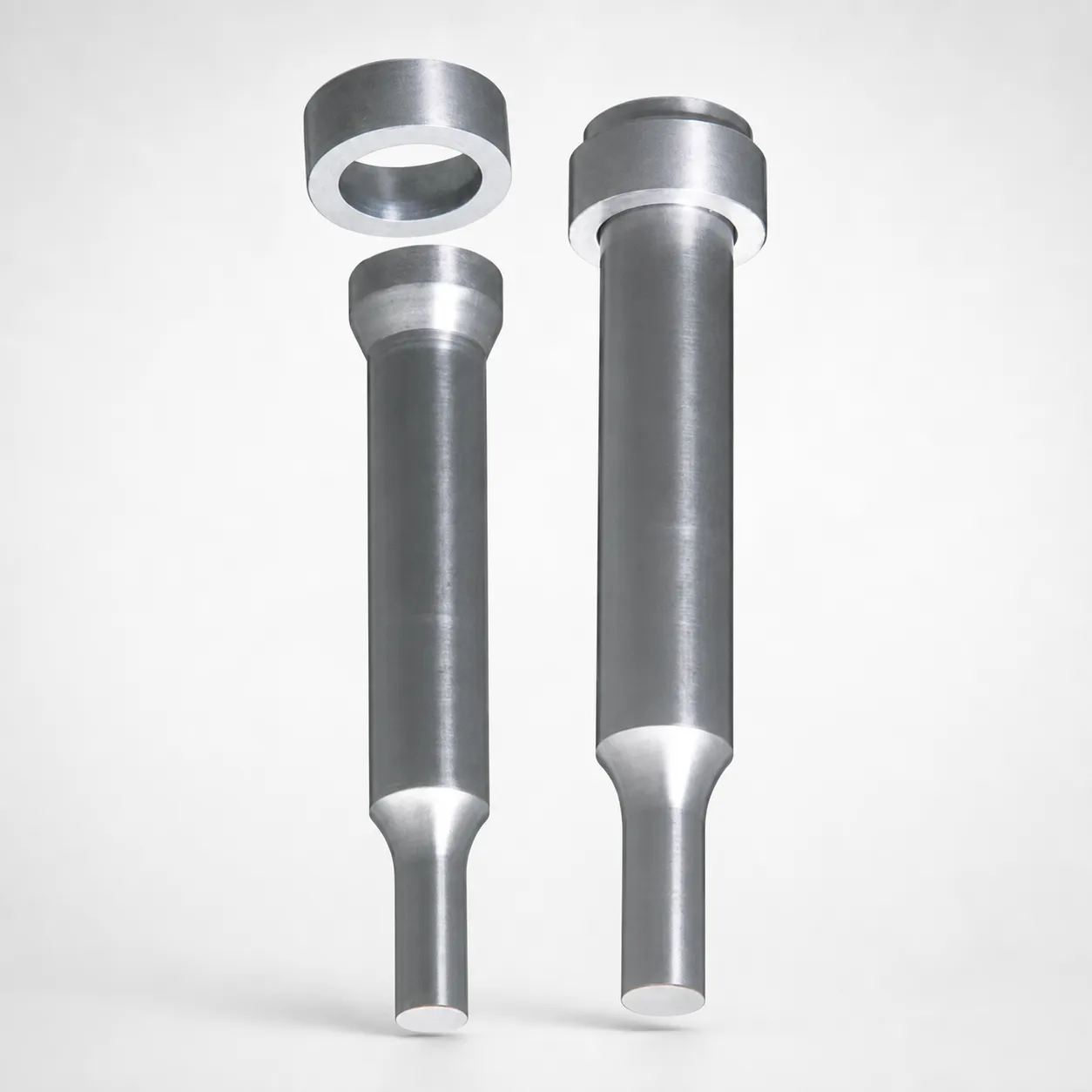

Alpha Treatment Tapered Head Ejector Punch | Nanocrystallized Surface Hardness | Custom Options
Alpha Treatment tapered head ejector punch enhances surface hardness via nanocrystallization microtexture for lower friction. Improve tool life and performance.

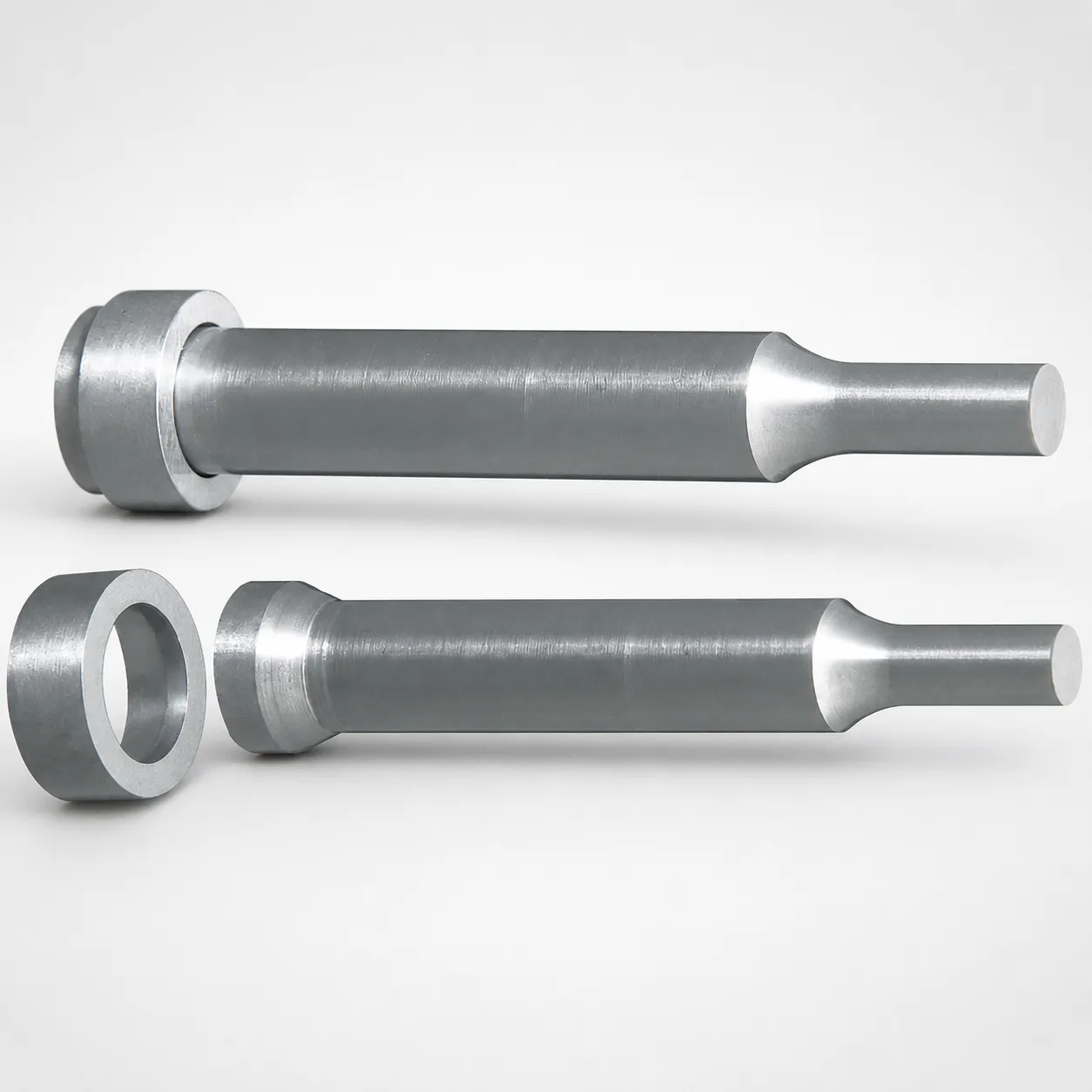

DIN Standard Tapered Head Punches | Heavy-Load Single-Stepped Shank
Tapered Head Punches for heavy-load die work with a single-stepped shank and tapered head. Designed for stable positioning and durable performance.
Self-Aligning Insertion Mechanics
How Tapered Head Geometry Works
The tapered (conical) head geometry provides a self-centering effect during punch insertion into the punch plate bore. The cone angle (typically 5-10 degrees half-angle) guides the punch into alignment as it enters the bore, eliminating the need for precise manual alignment during die setup. This reduces punch installation time by 50-70% compared to flat-head punches that require careful bore-to-shank alignment.
Maintenance Speed Advantage
In SMED (Single Minute Exchange of Die) environments, every second of die changeover time has a direct cost impact. Tapered head punches can be replaced by pushing the new punch in from above - the taper self-centers as it enters the bore. Flat-head punches require careful visual alignment and often need a pilot pin to guide insertion, adding 30-60 seconds per punch. For a 20-punch die, this saves 10-20 minutes per changeover.
Vibration Damping
The conical head-to-bore contact creates a wedge preload that reduces rattling and micro-movement during stamping. This is particularly beneficial at high speeds (>200 SPM) where flat-head punches may develop clearance-induced vibration in their seating bores.
About Tapered Head Punches
Tapered head punches feature a conical head (5-10 degree half-angle) that provides self-centering insertion into the punch plate bore. This reduces punch installation time by 50-70% compared to flat-head designs, making them ideal for SMED (Single Minute Exchange of Die) environments and high-frequency maintenance operations. This 17-product range covers standard taper angles in SKD11 and SKH51 materials.
Application Scenarios
SMED Quick Die Change Systems
Automotive stamping plants practicing SMED require sub-10-minute die changeovers across multiple presses.
Why tapered head punches fit: Self-centering insertion eliminates alignment time. Combined with ball-lock retainers, punches can be replaced in under 30 seconds each without tools.
Multi-Shift High-Volume Production
24/7 production lines with scheduled punch replacement every 8-hour shift cannot afford extended maintenance windows.
Why tapered head punches fit: The self-aligning feature allows less-skilled maintenance technicians to perform punch replacements accurately without special training or alignment tools.
