Close Space Straight Punches - Inch

Q: Which head style should I choose for tight clearance tooling: KCX (regular) or KWX (angled)?

Use KCX (regular head) when the punch can enter and seat directly with minimal interference from nearby tool steel. Select KWX (angled head) when your forming setup or fixture geometry benefits from an offset/lead-in while still supporting close-space alignment.

Q: What are the available fixed size ranges for this inch close-space straight punch?

The product provides fixed ranges for L (Length) = 150–400 in and P = 0.04–0.25 in . Choose L to cover the needed engagement depth and choose P to match the close-clearance requirement for your die/punch relationship.

Q: Do you have coated surface options for improved wear, and how should I account for them?

This series references coated surface options intended to improve wear resistance under production loads. When specifying, confirm the coating option available for your selected SKU and consider its effect on friction and long-run tool life in your maintenance plan.

Q: Can I treat this as a standard punch for general die work, or is it specifically for close-space layouts?

It is explicitly designed for close-space straight guidance , meaning tight tool layouts where alignment stability is essential. For applications with conventional spacing, the benefits may be less critical than in close clearance die and punch programs.

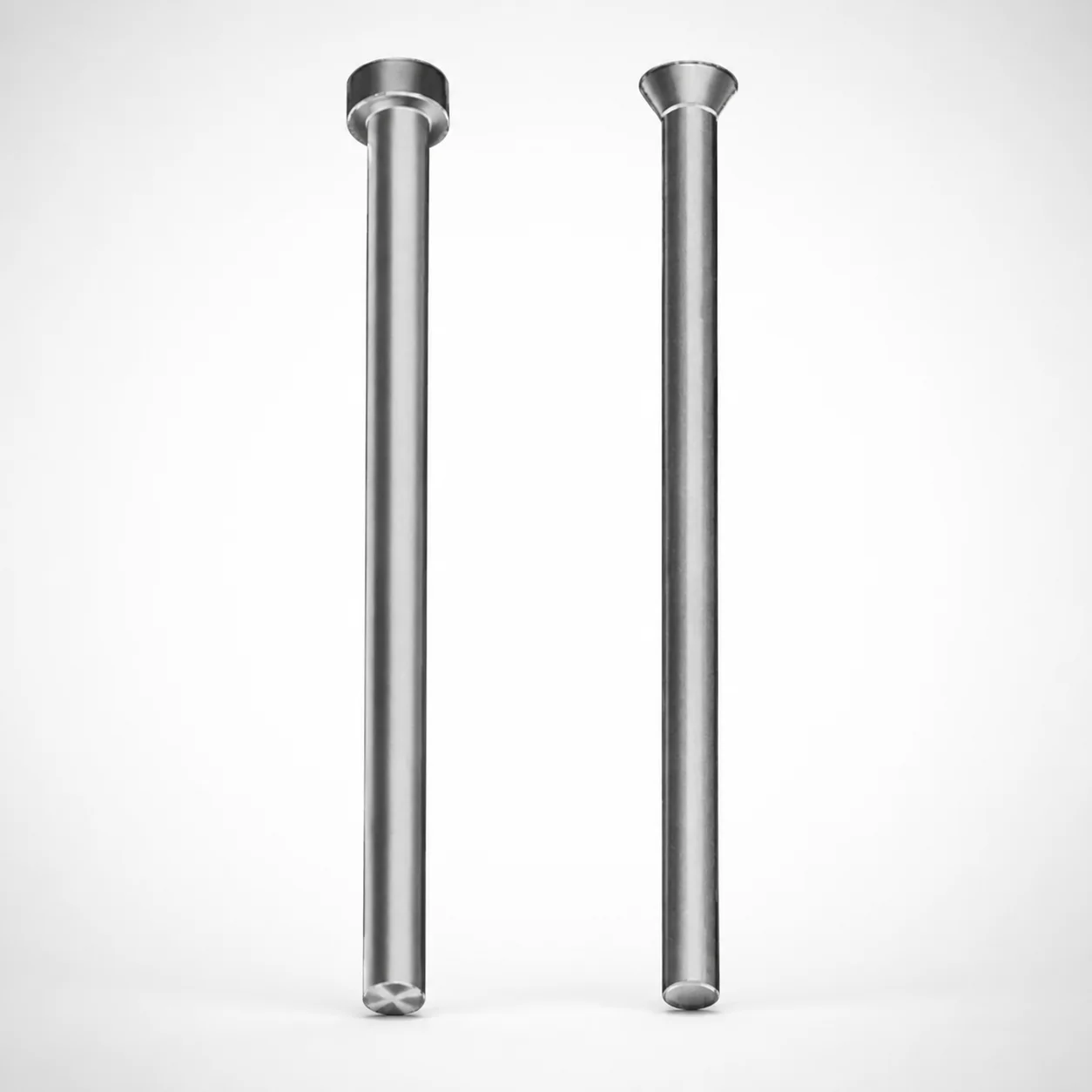

Close Space Straight Punches - Inch are designed for die and punch applications where space is limited and straight guidance is critical. Select angled or regular head styles to match your forming setup and maintain reliable positioning during high-rate cycles.

Straight punch geometry suited for close-space tool layouts
Choose angled head (KWX) or regular head (KCX) for fit
Coated surface options help improve wear resistance under production loads
Built for shop-floor reliability in inch-based die maintenance programs

Request a Quote Back to Category

Specifications

2 configurations available

Type	L (Length) (in)	P Dimension (in)
Regular head - KCX	150 ～ 400	0.04 ～ 0.25
Angled head - KWX	150 ～ 400	0.04 ～ 0.25

Product Guide

🏭Application Scenarios+

Close-space straight punches are used in injection-mold tooling and related forming operations where the tool layout is constrained and the punch must maintain stable alignment. In automotive connector and bracket production, they support consistent blanking/embossing with tight spacing between adjacent features, helping reduce positional drift during high-rate cycles.

For consumer electronics housings and snap-fit components, select the regular head (KCX) when your tooling requires a straightforward punch entry and consistent seating depth. Choose the angled head (KWX) when your press/fixture geometry benefits from an offset that improves lead-in or clearance to nearby elements.

Close-space tool layouts: straight guidance supports repeatable feature formation under cycling loads.
Head style matching: KCX for direct alignment; KWX to accommodate forming/fixture geometry.
Coated surface options: improve wear behavior for sustained production.

🔧Material & Process Details+

The provided variant information focuses on head geometry and size ranges; a specific steel grade, hardness (HRC), and heat-treatment state are not listed in the input data. Accordingly, material and treatment details (e.g., quench & temper, nitriding, or target HRC) cannot be stated without risking inaccuracy.

From a manufacturing perspective, straight punches are typically produced by precision machining of punch blanks followed by surface finishing to support straight guidance in close clearance tooling. Where coated surface options are available, the coating is used to enhance wear resistance under repetitive production loads; this can help balance service life versus anti-friction behavior.

Material grade: not specified for this SKU.
Heat treatment: not specified for this SKU.
Coating: offered as an option to improve wear under production cycling.

📐Sizing & Selection Guide+

When selecting dimensions, anchor your selection to the fixed ranges provided: L (Length) = 150–400 in and P = 0.04–0.25 in. Use L to ensure the punch extends sufficiently for the required forming/blanking depth while still allowing safe clearance within the die block and any surrounding tool steel features.

The P dimension should be matched to your required close-clearance relationship between punch and die elements. Because this product is intended for tight layouts, verifying that P fits the die cavity/core spacing helps maintain guidance stability and prevents interference during press travel.

L selection: choose within 150–400 in based on required engagement depth.
P selection: choose within 0.04–0.25 in to meet the die/punch clearance spec.
Tolerance/fit: confirm your drawing tolerances for die block seating and alignment before assembly; close-space designs are sensitive to stack-up.

The head type is the configurable element: KCX (regular head) or KWX (angled head), while L and P are constrained by the fixed ranges above.
