Mold Cooling Plugs
Aluminum, brass, and steel mold cooling plugs with O-ring, pressure, threadless, and screw-type sealing — including 150°C heat-resistant options — for sealing unused waterline ports and cross-drilling exits.
All Products (13)

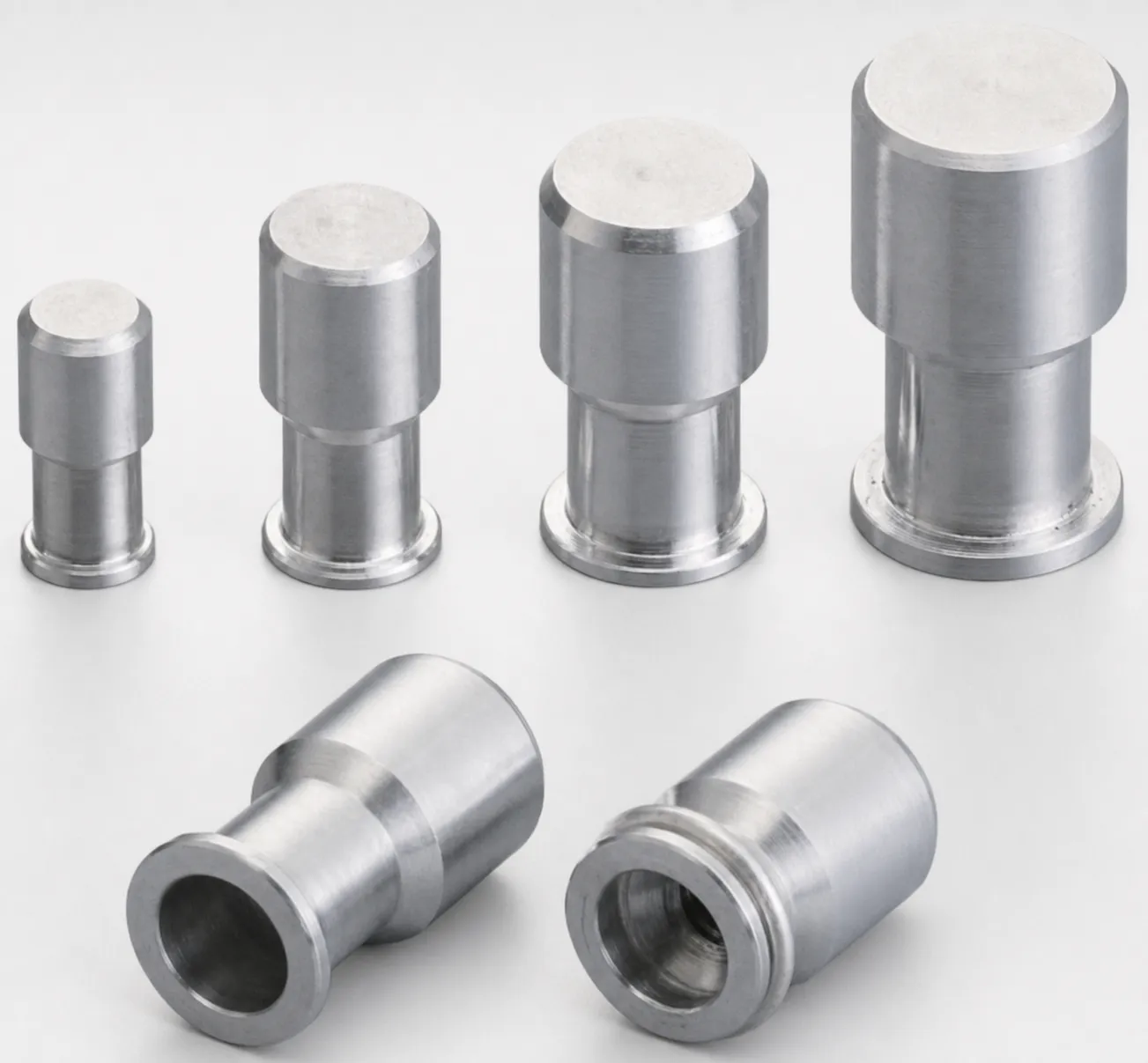

JWPZ Type Aluminum Cooling Circuit Plugs
Cooling Circuit Plugs (JWPZ Type) provide reliable sealing to prevent coolant leaks and maintain stable fluid flow in...
View Details

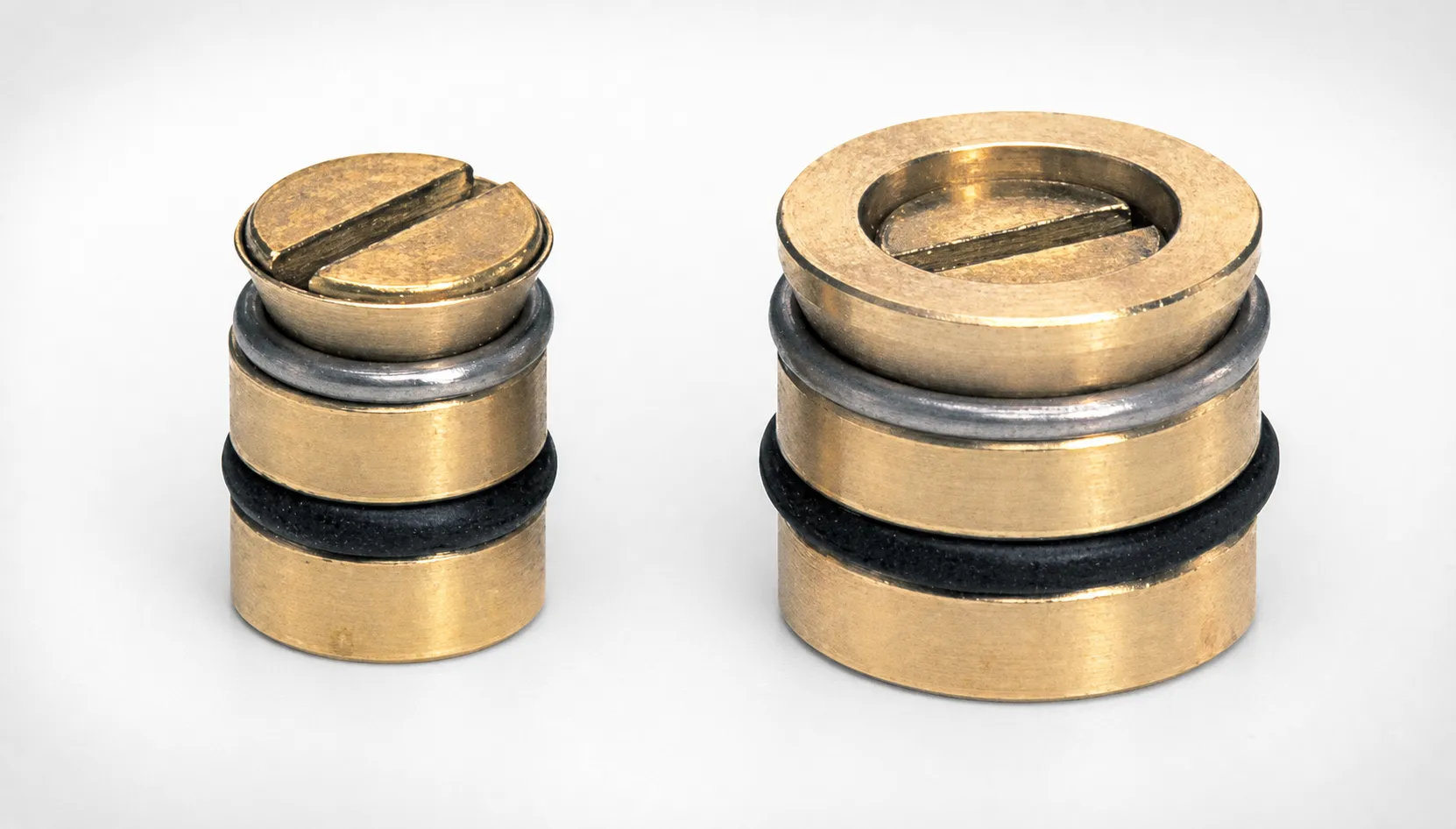

JWP Type Cooling Circuit Plugs with Brass O-Ring
Cooling Circuit Plugs with Brass O-Ring sealing for JWP type systems. Helps prevent coolant leakage and maintain stab...
View Details

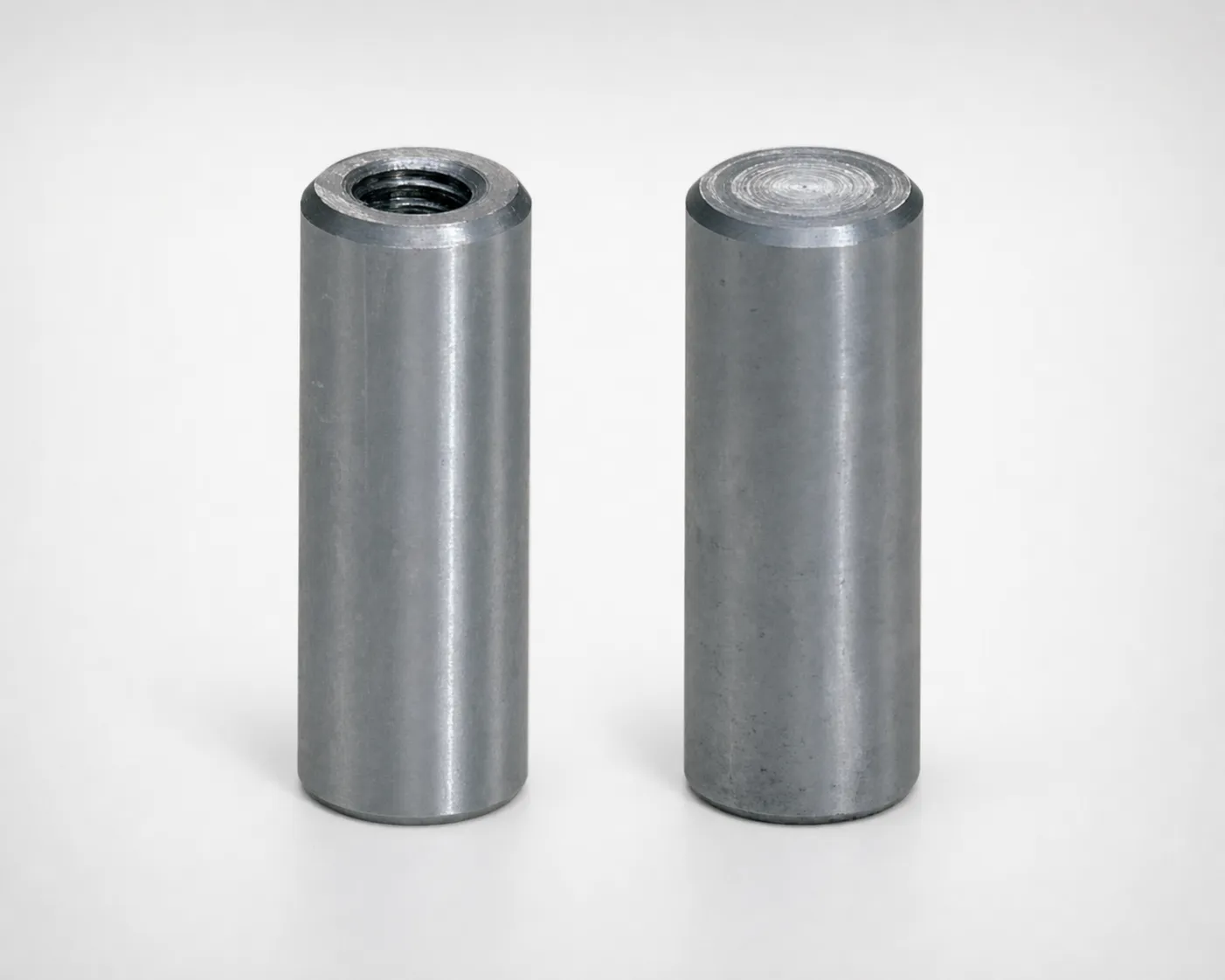

Cooling Circuit Plugs JWPMT Metal Bar Tapped
Cooling Circuit Plugs JWPMT Metal Bar Tapped provide reliable sealing and cooling efficiency by preventing fluid loss...
View Details

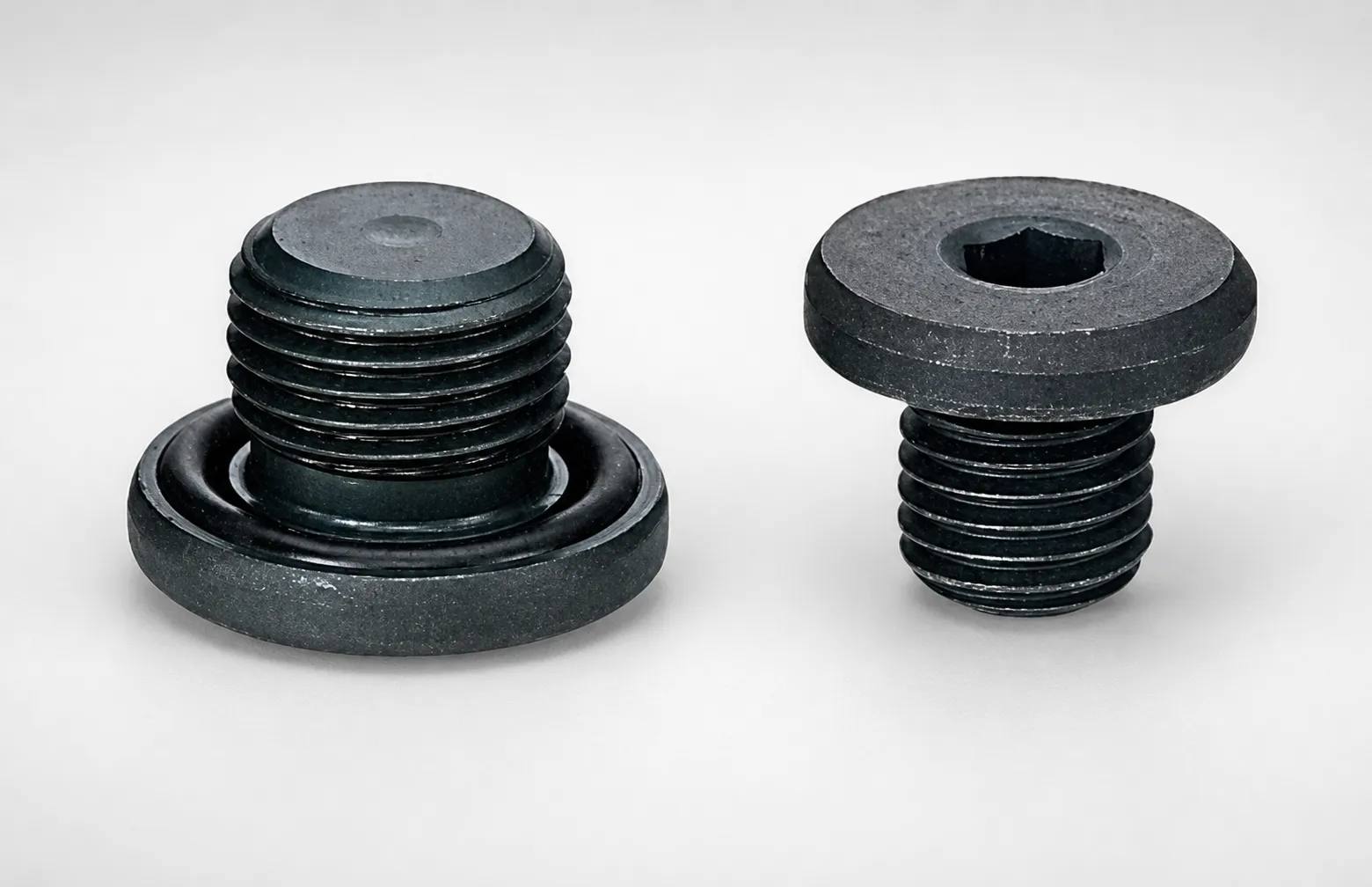

MSWM Cooling Circuit Plugs for Screw Plugs with O-Ring - ...
MSWM Cooling Circuit Plugs for screw plugs with O-ring and hex socket flange keep cooling circuits sealed, preventing...
View Details

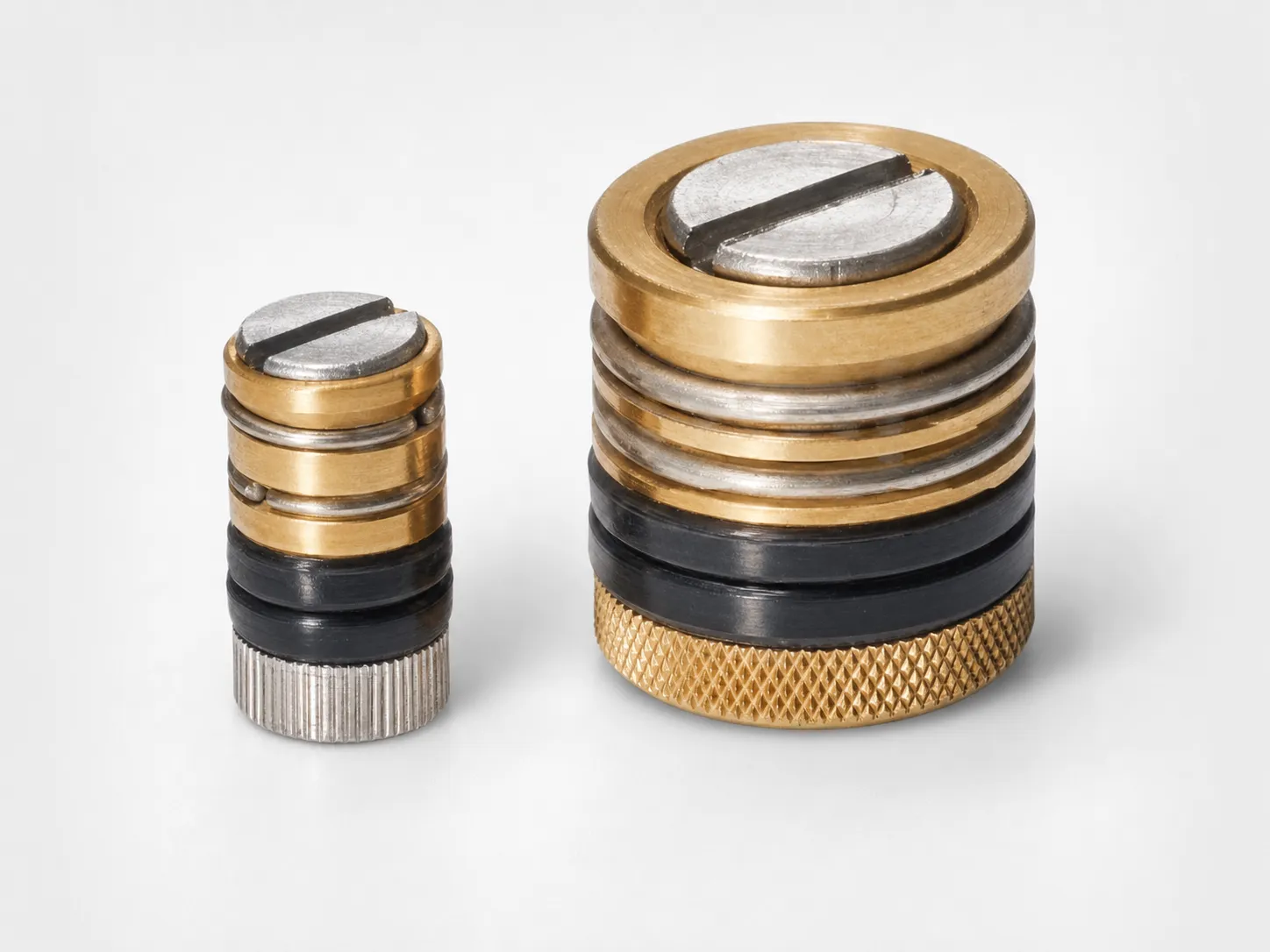

JWPH Cooling Circuit Plugs (150°C Heat Resistance)
JWPH Cooling Circuit Plugs with 150°C heat resistance for reliable cooling circuit sealing. Suited for industrial mol...
View Details

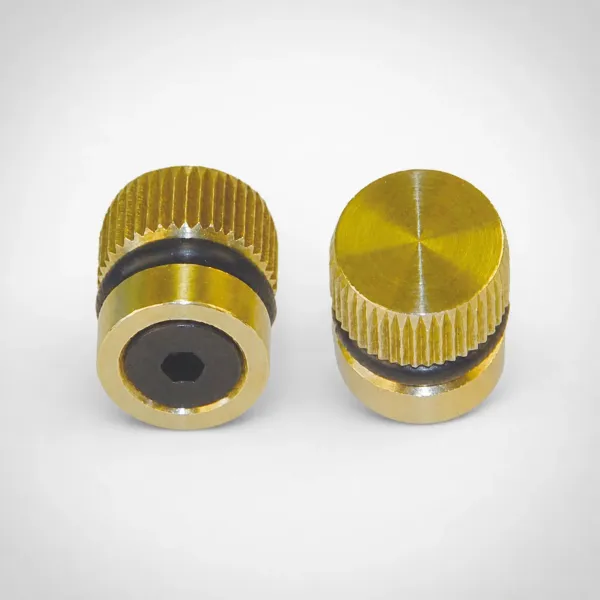

Threadless Plugs - Inch Buna O-Ring
Threadless Plugs (Inch) with Buna O-Ring sealing for pressure lines. Tensioned hex adjustment expands the O-ring for ...
View Details
Brass Waterline Spacers - Inch
Brass Waterline Spacers - Inch for redirecting water flow in tooling systems. Longer-than-diameter design helps preve...
View Details
Steel Core Pin Retainers - Inch
Steel Core Pin Retainers - Inch for hardened-steel retention of core pins. Eliminates backup plates and provides a se...
View Details

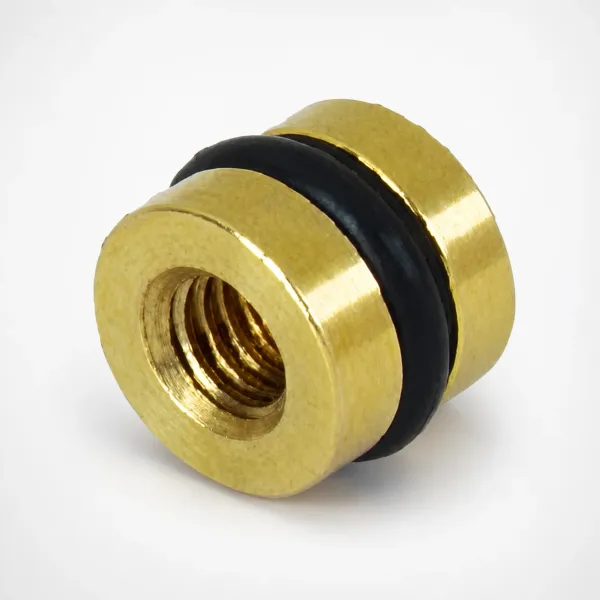

Inch O-Ring Plugs
Inch O-Ring plugs with a standard Buna o-ring seal designed for mold inserts and holder blocks. Compact fit reduces i...
View Details

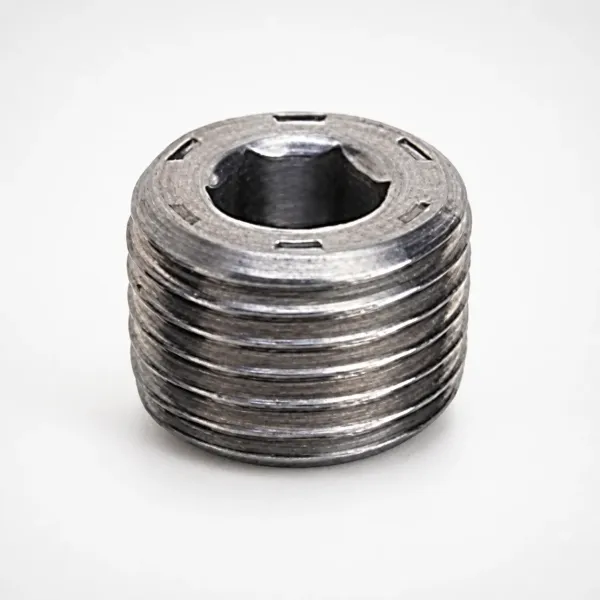

Pipe Plugs Inch Taper-Flush
Pipe Plugs Inch taper-flush design for reliable sealing in threaded openings. Available packaged for 1/16" to 3/8" si...
View Details

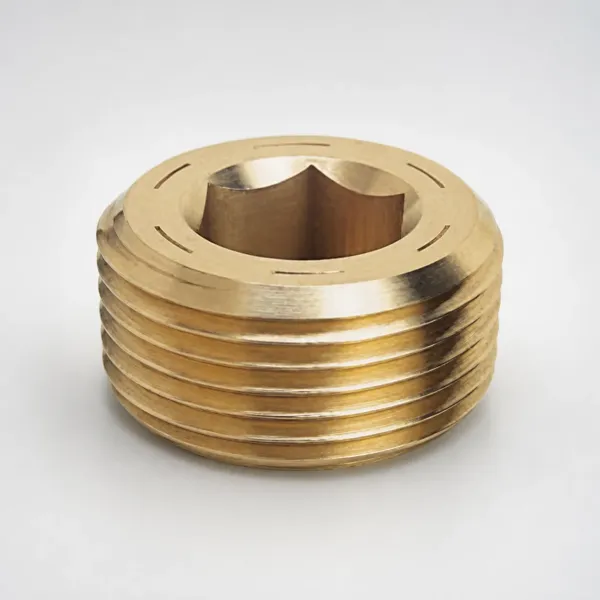

Pressure Plug - Brass, Inch
Pressure Plug - Brass, Inch for sealed pipe ends with a flush taper plug design. Available in 1/16"–3/8" sizes. Made ...
View Details
Pressure Plug Steel Inch Taper Plug
Pressure Plug for steel-inch taper plug applications with flush fit standards. Available in packaged inch sizes; made...
View Details
Heavy Duty Pipe Plug Fittings Solid Brass Extra-Deep Socket
Heavy Duty Pipe Plug Fittings (solid brass) with an extra-deep socket for stronger retention. Used to plug cooling ch...
View DetailsPlug Material & Seal Type Selection
Choose your plug based on material requirements, mechanical sealing pressure, and temperature limits.
| Dimension | Aluminum One-Piece | Brass O-Ring | Steel Pressure (PFPE) | Threadless (PLGT) |
|---|---|---|---|---|
| Seal Mechanism | Interference thread deformation | Captive elastic O-Ring squeeze | Mechanical expansion sleeves | Press-fit friction on unthreaded bore |
| Removability & Reuse | Removable; prone to thread stripping | Easily removable; highly reusable | Non-removable (permanent locking) | Removable only with puller rod |
| Max Temperature | $\le 80^\circ\text{C}$ (thermal deformation limits) | $\le 200^\circ\text{C}$ (FKM-sealed variant) | $250^\circ\text{C}+$ (metal-to-metal contact) | $\le 80^\circ\text{C}$ (limited by friction shear) |
| Pressure Limit | 3 - 6 bar (standard waterline) | Up to 8 bar (high-pressure seal) | 15+ bar (high-integrity seal) | 3 - 5 bar |
| Port Preparation | Requires tapped metric thread M/Rc | Requires tapped parallel G/Rp thread | Requires straight drilled blind hole | Requires straight reamed bore |
| Relative Cost | $ (lowest, economy block) | $$ (moderate, reusable) | $$$ (higher cost, heavy-duty) | $ (economical speed install) |
| Best For | Standard plates, low-temp economy | Zone maintenance, core inspection | Cross-drilling exits, permanent plugs | Unthreaded thin walls, space-limited cores |
Selection rule: For routine cooling channel plugging with future access needs, brass O-ring plugs are the best balance of reliability and serviceability. For permanent sealing of cross-drilling exits, pressure plugs are preferred. See our Plug Selection Guide.
Choose Your Plug in 3 Steps
Installation note: Proper torque is critical — over-tightened plugs crack mold plates, under-tightened plugs leak. Use a torque wrench and follow manufacturer specifications. See our Plug Installation Guide.
Compatible Accessories
Ensure correct sizing and thread standards when selecting plug installation tools and replacement seals:
Plug ↔ Replacement O-Rings
Replace elastomer seals at every maintenance cycle to prevent seal set leakage:
- M6 / M8 Plugs $\rightarrow$ ORSO 4.8 (NBR) / ORSO 4.8-V (FKM)
- M10 / M12 / PT1/8 Plugs $\rightarrow$ ORSO 6.8 (NBR) / ORSO 6.8-V (FKM)
- PT1/4 Plugs $\rightarrow$ ORSO 9.8 (NBR) / ORSO 9.8-V (FKM)
Threadless Plugs & Drivers
Threadless plugs (PLGT Series) must be driven into the bore using dedicated alignment tools to prevent bore scoring.
E.g., PLGT ø8 plugs require the PLGT-8 installation tool.Threaded Plugs & Anaerobic Sealants
Tapered pipe threads (Rc/NPT) without O-rings require liquid anaerobic sealant to seal micro-gaps. Use Loctite 567 (rated up to $204^\circ\text{C}$) to prevent leaks under cyclic expansion.
About Mold Cooling Plugs
mold cooling plugs seal unused waterline ports, cross-drilling exits, and backup cooling channels in injection molds. Every mold has multiple points where cooling channels intersect or exit the mold surface — each one requires a reliable plug to prevent coolant leaks during operation. Our range spans 13 products covering aluminum, brass, and steel materials in O-ring, pressure, threadless, and screw-type sealing methods, plus a specialized 150°C heat-resistant variant for high-temperature applications.
Application Scenarios
Cross-Drilling Exit Sealing
Every cross-drilled cooling channel creates two exit points on the mold surface that must be permanently sealed. These are the most common plug application in any mold.
Steel pressure plugs provide a permanent, high-pressure seal for cross-drilling exits. The expansion fit ensures no loosening over millions of cycles — critical because these plugs are never meant to be removed.
Recommended → Pressure Plug - Steel
Serviceable Cooling Channel Ports
Cooling channel access points that need periodic removal for descaling, inspection, or cooling circuit reconfiguration during mold maintenance.
Brass O-ring plugs install and remove cleanly without damaging threads. The captive O-ring provides reliable sealing through multiple install/remove cycles. Simply replace the O-ring at each service interval.
Recommended → Cooling Circuit Plug - Brass, O-Ring
High-Temperature Mold Cooling
Engineering plastic molds (PC, PA, POM) running at 80-150°C where standard NBR-sealed plugs degrade within weeks, causing persistent coolant weeping.
The 150°C heat-resistant plug variant uses FKM (Viton) O-rings that maintain elasticity at elevated temperatures. Combined with heat-treated body construction, these plugs provide reliable sealing for 2+ years in high-temperature environments.
Recommended → Cooling Circuit Plug - 150°C Heat Resistant
Frequently Asked Questions
What is the difference between O-ring plugs, pressure plugs, and threadless plugs?+
What material should I choose for mold cooling plugs?+
Can mold cooling plugs withstand temperatures above 150°C?+
Do I need a special tool to install mold cooling plugs?+
Are mold cooling plugs available in both metric and inch sizes?+
Engineering Resources
Need a Custom Quote?
Specify your bore diameter, thread type (metric/NPT/none), material (aluminum/brass/steel), and temperature requirement. Non-standard sizes and special sealing configurations available.
