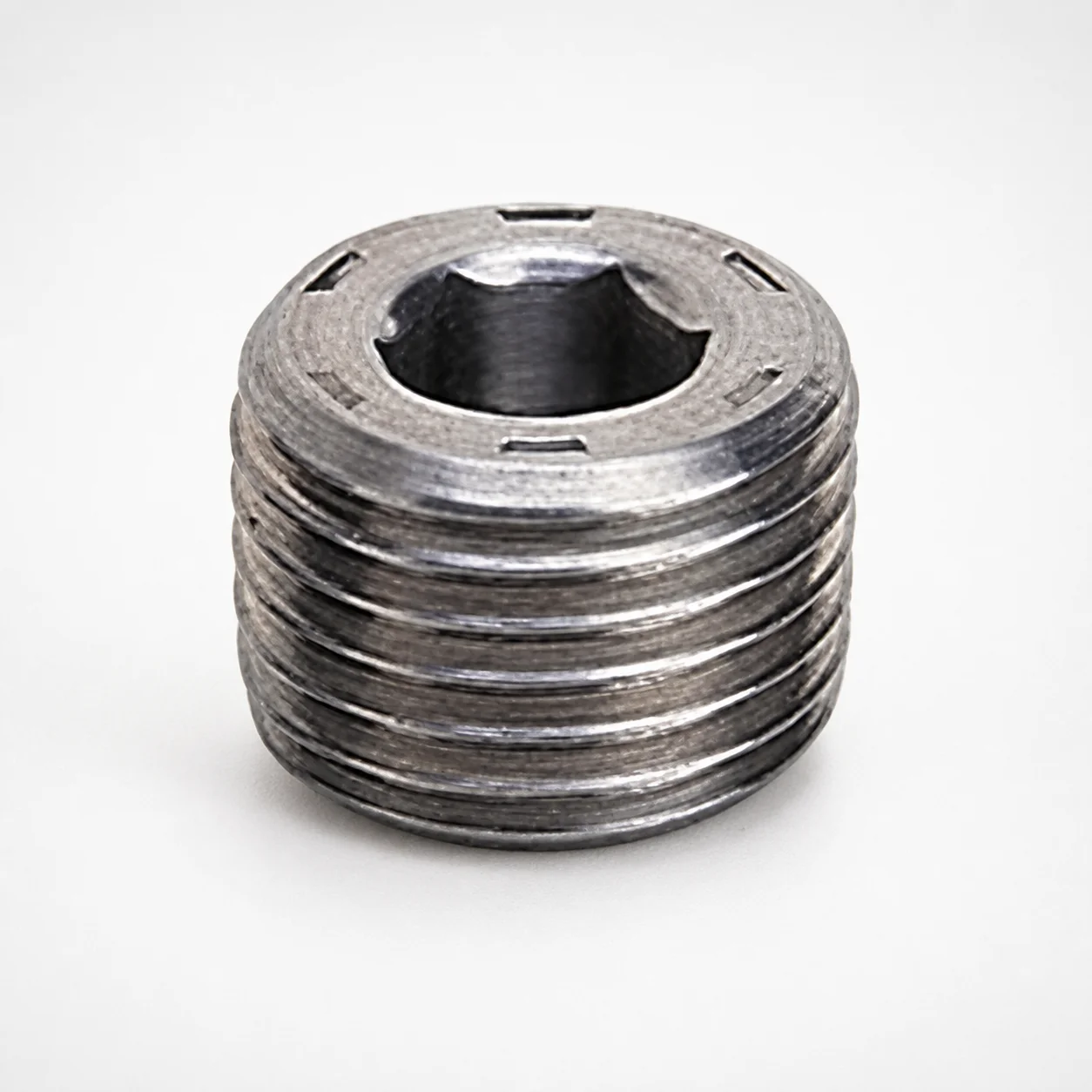

Pipe Plugs Inch Taper-Flush
Pipe Plugs Inch are taper-flush fittings designed to provide a clean, reliable seal for threaded openings in industrial plumbing and fluid systems. Standard plugs feature a 7/8" taper that matches common plug requirements.
- Standard 7/8" taper for a tight, flush sealing profile
- Inch sizing packaged for quick selection in the field
- Suitable for nominal pipe sizes 1/16" to 3/8"
- Made in the USA for consistent production quality
Specifications
8 configurations available
| Nominal Pipe Size (in) |
|---|
| 1/16" |
| 1/8" |
| 1/4" |
| 3/8" |
| 1/2" |
| 3/4" |
| 1" |
| 1-1/4" |
Product Guide
Application Scenarios+
This taper-flush pipe plug is used inside injection mold and tooling cooling circuits where threaded ports must be sealed to prevent coolant leakage and to maintain stable thermal performance. The taper-flush sealing profile helps create a clean, flush finish that is compatible with tight tooling clearances around mold interiors.
- Automotive connector/terminal molds: Seal unused branch ports in cooling manifolds after drilling and tapping. The taper-flush design supports reliable sealing in threaded openings while minimizing protrusion into the cavity area.
- Medical device housings: Plug small-size threaded coolant passages during iterative mold builds. Because the plugs are specified for nominal pipe sizes 1/16" to 3/8", they fit small internal cooling layouts common in compact mold designs.
- General industrial housing molds: Close off end sections of micro-cooling lines to balance flow and reduce pressure loss. The inch-based packaging enables fast selection when configuring multiple circuit layouts.
Material & Process Details+
The provided product data specifies an inch taper-flush plug for threaded sealing, but it does not include a steel grade or heat-treatment/hardness values. As a result, material-specific parameters such as HRC, nitriding/quenching temper, and wear-resistance trade-offs cannot be stated from the supplied specifications.
For engineers planning repeated assembly/disassembly in cooling circuits, confirm the plug’s material grade and surface finish with the supplier to ensure compatibility with coolant chemistry and to prevent galling or thread damage in the mold’s tapped ports. If multiple materials are offered for different service conditions, selection should be based on the requested toughness vs. hardness balance and any required heat treatment state (e.g., quenched & tempered or nitrided).
- Data available: taper-flush sealing geometry and nominal pipe-size compatibility (1–3).
- Not provided: steel grade (e.g., SKD61/H13 equivalent), hardness (HRC), and heat-treatment condition.
Sizing & Selection Guide+
Select this plug by matching its Nominal Pipe Size (in) to the threaded port size in the mold’s cooling circuit. The specification lists a nominal pipe-size range of 1 ~ 3, which corresponds to the availability stated for 1/16" to 3/8" sizes.
- Match the port: Choose the plug size that aligns with the tapped opening for the cooling line being sealed.
- Ensure flush fit: Because this is a taper-flush design, it should seat to produce a clean profile that avoids interference with surrounding mold features.
- Tolerance/fit: For threaded sealing components, real-world fit depends on tap quality and thread class of both plug and mold port. Use the mold shop’s threading/tapping standard for the cavity/core thread specification, and verify sealing performance on a trial assembly.
If your tooling uses multiple circuit branches, keep a consistent size mapping per manifold section to maintain repeatable sealing and coolant balance.
Frequently Asked Questions
What nominal pipe size should I use for a threaded cooling port in the 1/16" to 3/8" range?+
This series is specified for Nominal Pipe Size (in): 1 ~ 3, and it is available for 1/16" to 3/8" sized applications. Match the plug’s nominal pipe size to the tapped opening in your mold cooling circuit to ensure the taper-flush sealing profile seats correctly.
If your port is near a boundary size, verify the tapped thread size before final assembly.
How does the taper-flush design affect interference in tight mold interior cooling layouts?+
The taper-flush geometry is intended to form a flush sealing profile in threaded openings, which helps reduce protrusion into nearby mold features. This is especially relevant when plugging small branches or end sections of cooling lines close to the cavity/core.
When designing clearance, confirm that the plug seats fully and does not interfere with drilled coolant channels or surface transitions.
Is this plug intended for sealing unused branch ports after tapping and drilling cooling circuits?+
Yes—this type of cooling-circuit plug is used to close off threaded openings in mold interiors to prevent coolant leakage. In practice, engineers commonly use it after drilling and tapping when a branch is not required or during layout changes.
Choose the correct nominal pipe size (1 ~ 3) to align with the threaded port.
What material grade and heat treatment should I expect for wear resistance in repeated maintenance cycles?+
The supplied product data does not list a steel grade, hardness (HRC), or a specific heat-treatment state (e.g., quenched & tempered or nitrided). To select for repeated maintenance cycles, request the material specification and surface condition from Axiom Molds or PCS.
This is important to avoid thread galling and to ensure reliable sealing in the coolant environment.
