Mini Slide Core Units
Ultra-compact mini slide core units for small undercuts and tight spacing.
Products

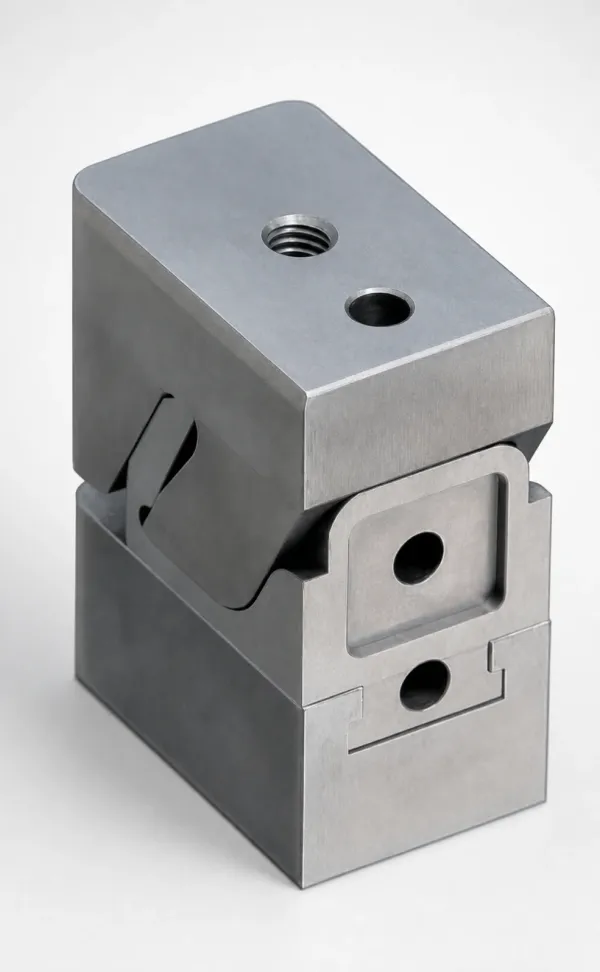

Mini Slide Core Units Slim Slide Stroke 10 mm Retracting Mechanism | Retractor for Combined Guide Rail
Mini Slide Core Units Slim slide stroke 10 mm with built-in retracting mechanism for combined guide rail systems. Designed for inlay tapped options.
View Details

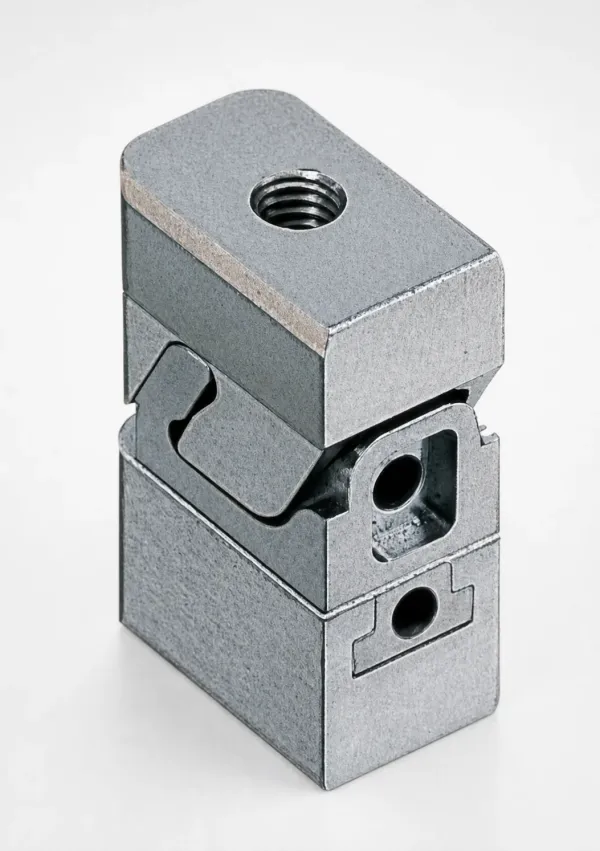

Mini Slide Core Units Slim Slide Stroke 3 mm Retractor Mechanism | Fast Quote
Mini Slide Core Units with Slim slide stroke 3 mm and built-in retractor mechanism for compact dies. Ideal for precision mold actuation. Request a quo
View Details

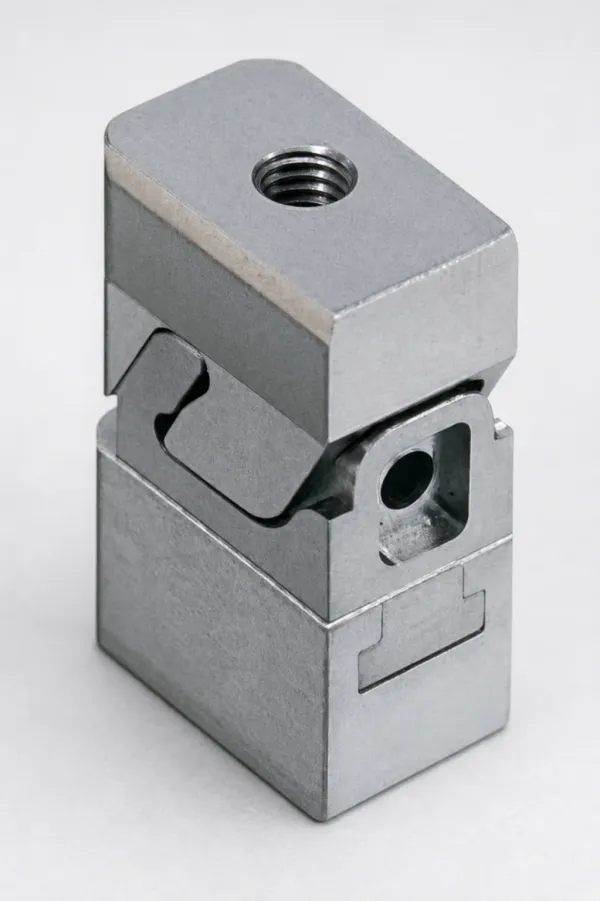

Mini Slide Core Units (3 mm Stroke) Slim Type | Mini Slide Core for Inlay Tapped | Fast Delivery
Mini Slide Core Units Slim Type with 3 mm slide stroke provide smooth combined rail guidance for compact molds. Inlay tapped slide core options | Requ
View Details

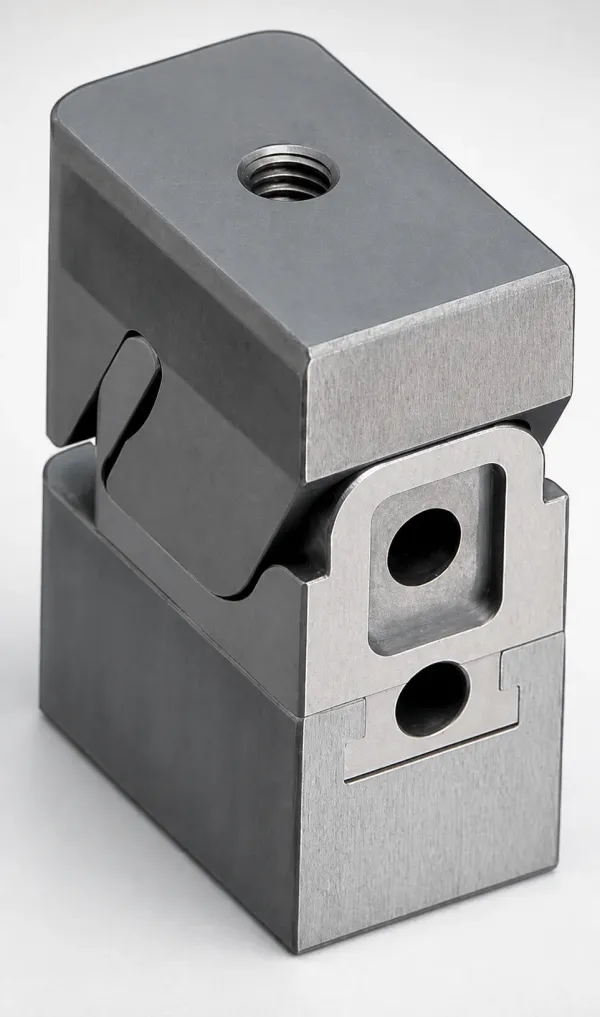

Mini Slide Core Units Slim Slide Core Retractor 6 mm Stroke | Inlay Tapped Type
Mini slide core units with slim retractor design and 6 mm stroke for compact two-piece motions. Inlay tapped type options for reliable actuator fit.
View Details

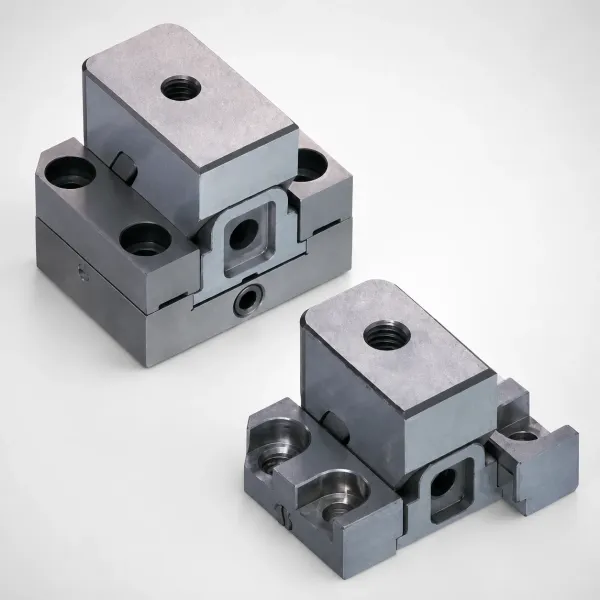

Standard Type Mini Slide Core Units | Compact Precision Linear Motion | Smooth Sliding | MISUMI
Standard Type Mini Slide Core Units deliver reliable precision linear motion with compact design for automation and machinery. Smooth sliding performa
View Details

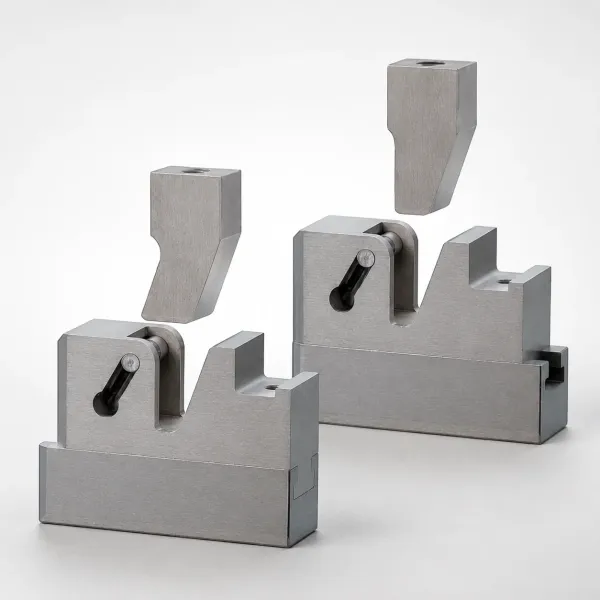

SCTM Two-Color Slide Core Units | Combined Guide Rail Type | Slide Core No Processing | Fast Delivery
SCTM Two-Color Slide Core Units for combined guide rail systems, with slide core no processing (SCTM type). Improve stable two-color molding.
View DetailsBoundary Check: Mini Units vs Standard Slides
Mini slide core units are self-contained, pre-engineered assemblies that save design time, but they have strict load limits.
✅ You're in the Right Place If:
- The undercut feature is small (e.g., small holes, snap fits under 10mm wide).
- Mold space is highly constrained (multi-cavity medical/electronic molds).
- You want to eliminate the design time required to calculate pin angles and clearances.
🔄 Consider Switching To:
Compact Design Principles
Integrated Kinematics
Mini slide units encapsulate the angled pin, sliding body, and locking block into a single cylindrical or compact rectangular cartridge. This guarantees perfect alignment, as the critical tolerances (H7/g6) are machined at the factory rather than relying on the mold builder's plate boring accuracy.
Pre-Load Mechanisms
Many mini units utilize internal springs rather than angled pins for actuation. The mold closing force compresses the spring and locks the core, while opening releases the spring to pull the core. This entirely eliminates the need for angled pin clearance calculations.
Application Scenarios
Medical Syringe Molds (32+ Cavity)
Requires 32 tiny side-holes. Designing 32 traditional slides is impossible due to space constraints.
