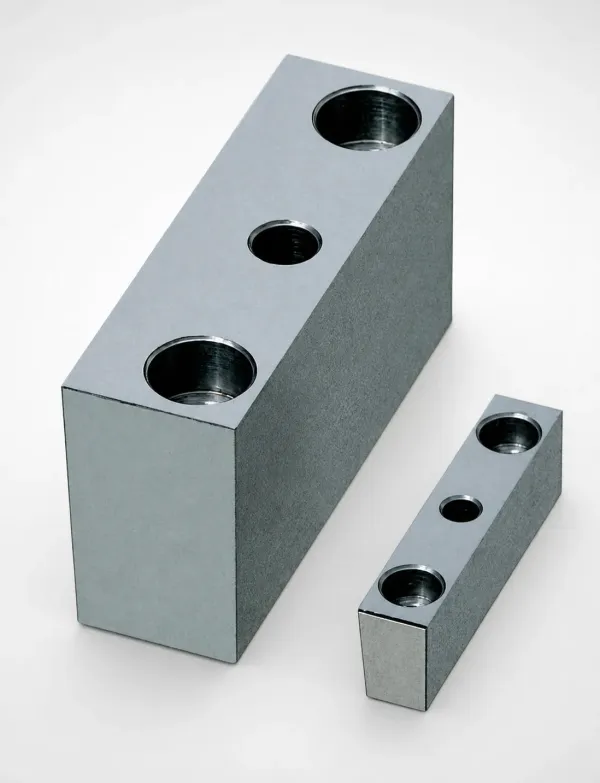

Cavity Insert Wedges
Cavity insert wedges ensuring tight fit and zero flash locking.
Wedge Locking Principles
Cavity insert wedges are critical for securing inserts securely into pockets while compensating for thermal expansion and machining tolerances.
Self-Locking Taper Mechanics
Insert wedges typically utilize a 3° to 5° taper. This shallow angle creates a high mechanical advantage, converting vertical clamping force from a screw into massive lateral locking force. This ensures the insert is pressed firmly against the datum surfaces of the pocket, completely eliminating the micro-gaps that cause flashing.
Thermal Expansion Compensation
During molding, the insert block heats up and expands. If rigidly pinned, this causes stress fractures. A wedge lock allows the insert to remain perfectly registered against its datum edge while the wedge absorbs dimensional variations on the non-datum side through slight vertical slippage.
Application Scenarios
Large Segmented Core Blocks
Large cores split into multiple pieces for cooling require rigid locking to prevent resin penetration between segments.
Blind Pocket Installations
When inserts must be secured from the parting line side because rear access is blocked by cooling lines or hot runners.
