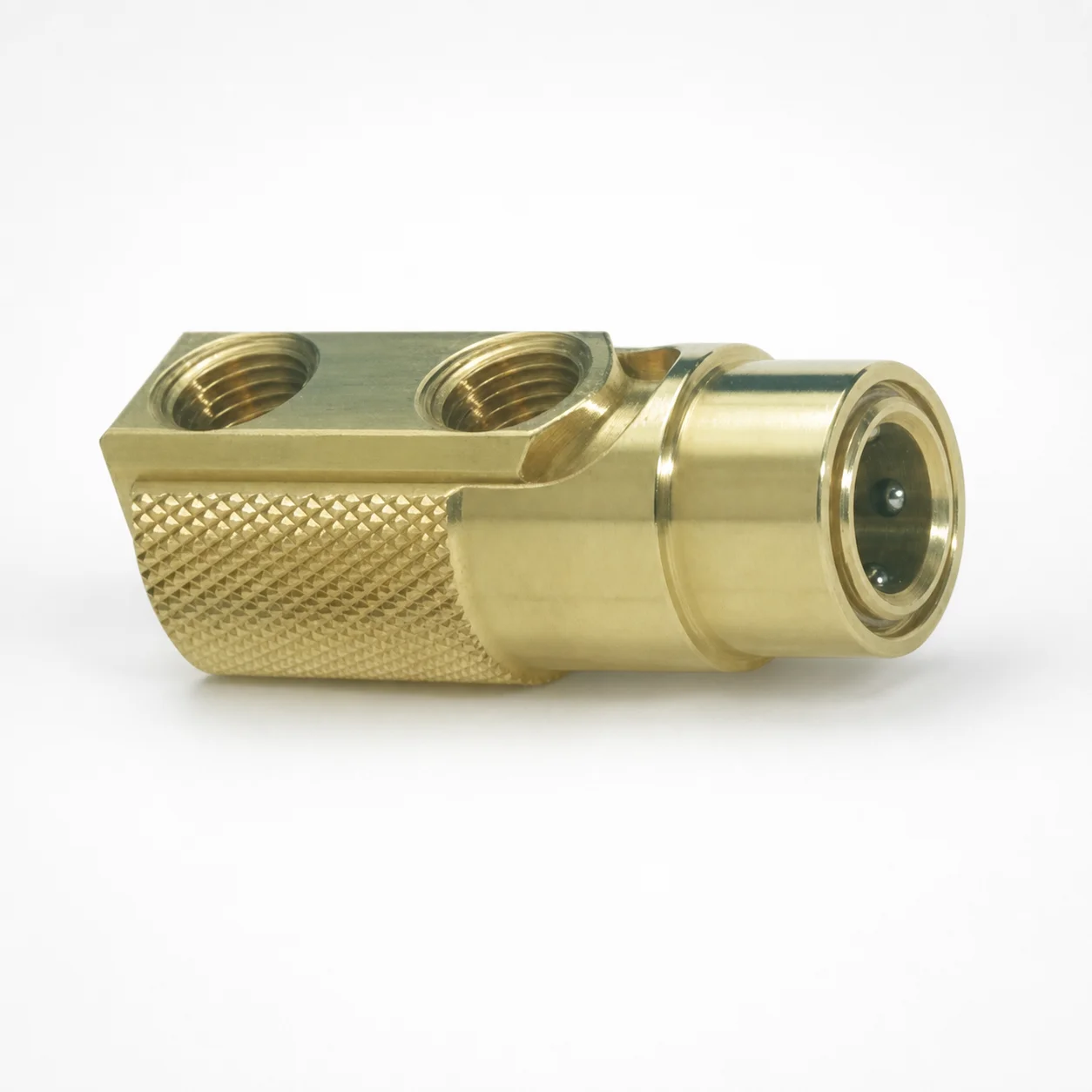

Inch Quick-Coupler Cascade Replacement Heads

These inch quick-coupler cascade replacement heads are used in mold interior cooling circuits that rely on a cascade connection strategy. In production environments, they support rapid connect/disconnect during maintenance so cooling performance can be restored quickly without prolonged downtime.

• Automotive and high-cycle industrial molds: Replace worn heads on inch quick-coupler cascade systems to maintain reliable alignment between coolant channels and reduce leakage risk during repeated service cycles.
• Appliance and electronics housings: Ideal for molds where intermittent disassembly is required to service manifold blocks, because the quick-coupler interface allows straightforward head changes while keeping the circuit configuration consistent.
• Custom build and retrofit projects: Use as a replacement part when updating cascade cooling lines, benefiting from a precision-fit design that helps preserve circuit geometry.

The solid brass and stainless-steel construction supports corrosion resistance in typical water/glycol service conditions, making this variant suited for dependable, repeatable cooling circuit maintenance.

This replacement head is manufactured from solid brass and stainless steel. Brass provides good machinability and contributes to stable dimensional behavior for sealing and alignment features, while stainless steel improves corrosion resistance where the coupler components contact coolant and cleaning fluids.

• Brass components: Selected for reliable fit in quick-coupler interfaces and for service durability in cooling applications.
• Stainless steel components: Selected to resist corrosion and maintain function during maintenance cycles.
• Manufacturing approach: Solid-stock fabrication with precision-fit assembly to support consistent cascade cooling circuit alignment.

Note: the provided data does not specify a steel grade, heat-treatment state, or hardness (HRC). Therefore, hardness and wear-resistance trade-offs beyond the brass/stainless corrosion-performance intent cannot be stated from the available specifications.

Because no explicit dimensional ranges are provided in the supplied specifications, sizing selection should be based on interchange compatibility with the corresponding inch quick-coupler cascade system in your mold.

• Match interface type: Confirm the replacement head is intended for inch quick-coupler cascade assemblies and that it mates with the existing connector/manifold interface used in your cooling circuit.
• Match connection geometry: Use the existing head as a master reference for critical features (coupler end geometry, sealing interface, and alignment surfaces) to ensure proper seating and coolant flow path continuity.
• Tolerance & fit: Quick-coupler parts depend on controlled fit for repeatable alignment and sealing; replacing with a precision-fit counterpart helps maintain the original cascade cooling circuit alignment.

If you have drawings or part numbers for your current cascade cooling head, cross-check them against the series code to ensure the replacement is a direct fit. Dimensions should not be “scaled” between systems unless compatibility is confirmed.
