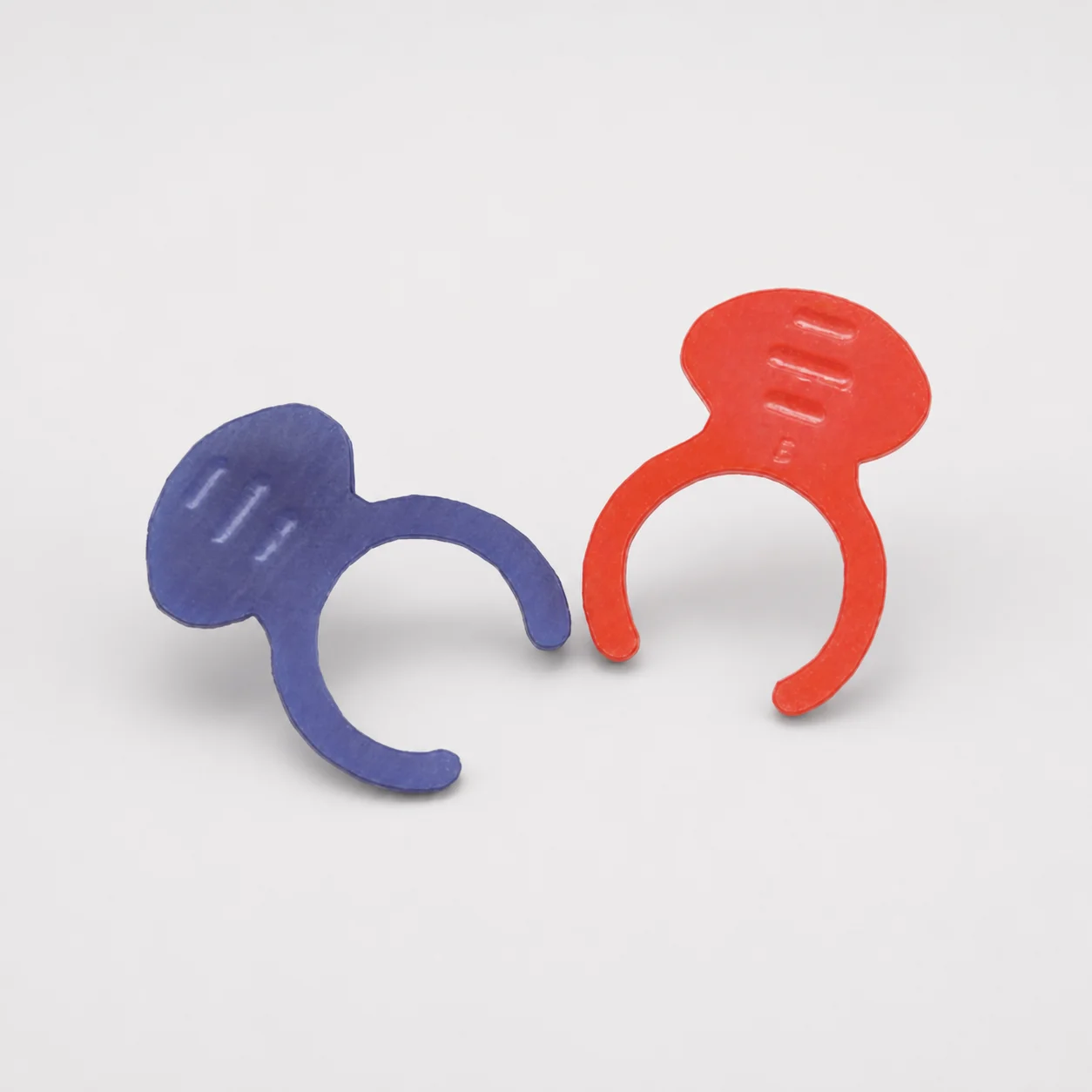

Safety Clips for Waterline Socket Connectors

Safety clips like this are used in injection mold tooling and industrial mold support systems wherever waterline socket connectors are routed for cooling, conditioning, or auxiliary plumbing. In operation, the clip helps maintain connector engagement, reducing the risk of accidental disconnects that can disrupt thermal control.

• Automotive and appliance mold cooling circuits: Use the red/blue color coding to quickly verify hot versus cold lines before installation, helping prevent circuit mix-ups during start-up or maintenance.
• Die-casting accessory plumbing: In large-mold die-casting setups, the clip improves retention at the connector interface, supporting stable cooling plumbing performance under vibration and service handling.
• Connector-line standardization across platforms: This variant is suited for shop floors running mixed connector families; it is designed to fit Parker, DME, Foster, and comparable waterline socket connectors.

Choose the appropriate series (200/300/500) and color (Blue/Red) to match your connector standard and circuit identification needs.

The provided product data specifies functional fit and identification (series and color) but does not list a steel grade, heat-treatment condition, or hardness (HRC). As a result, material properties such as wear resistance and toughness trade-offs cannot be confirmed from the current metadata.

• Material/grade: Not specified in the supplied specifications.
• Heat treatment state: Not provided (e.g., nitrided, quenched & tempered, or pre-hardened details are unavailable).
• Hardness (HRC) and wear behavior: Not stated; therefore, performance claims related to abrasion or impact resistance should be validated with the manufacturer’s material documentation for the specific series/color you select.

If you can share the part material (e.g., stainless, tool steel, or alloy) and the series-specific datasheet, the correct grade equivalence and heat-treatment hardness targets can be described accurately.

This safety clip is selected primarily by series and color, not by an explicit shaft/bore/length specification in the provided data. The metadata lists Series: 200, 300, 500 and Color: Blue, Red, so dimension matching must be done by aligning your existing waterline socket connector interface to the correct series variant.

• Match the series to the connector type: Use the same connector family/size you currently run (e.g., Parker, DME, Foster or comparable) and choose Series 200/300/500 that corresponds to that connector’s mating geometry.
• Use color for circuit verification: Select Blue for the cold line and Red for the hot line to support correct circuit identification during installation and maintenance.
• Tolerance/fit checks: Because no tolerance values are provided for the clip, confirm fit by dry assembly on the specific connector model and verify that the clip fully retains the connector without excessive force.

If you share the connector model/part number and the clip’s mating interface dimensions, a more exact dimensional selection guide can be produced.
