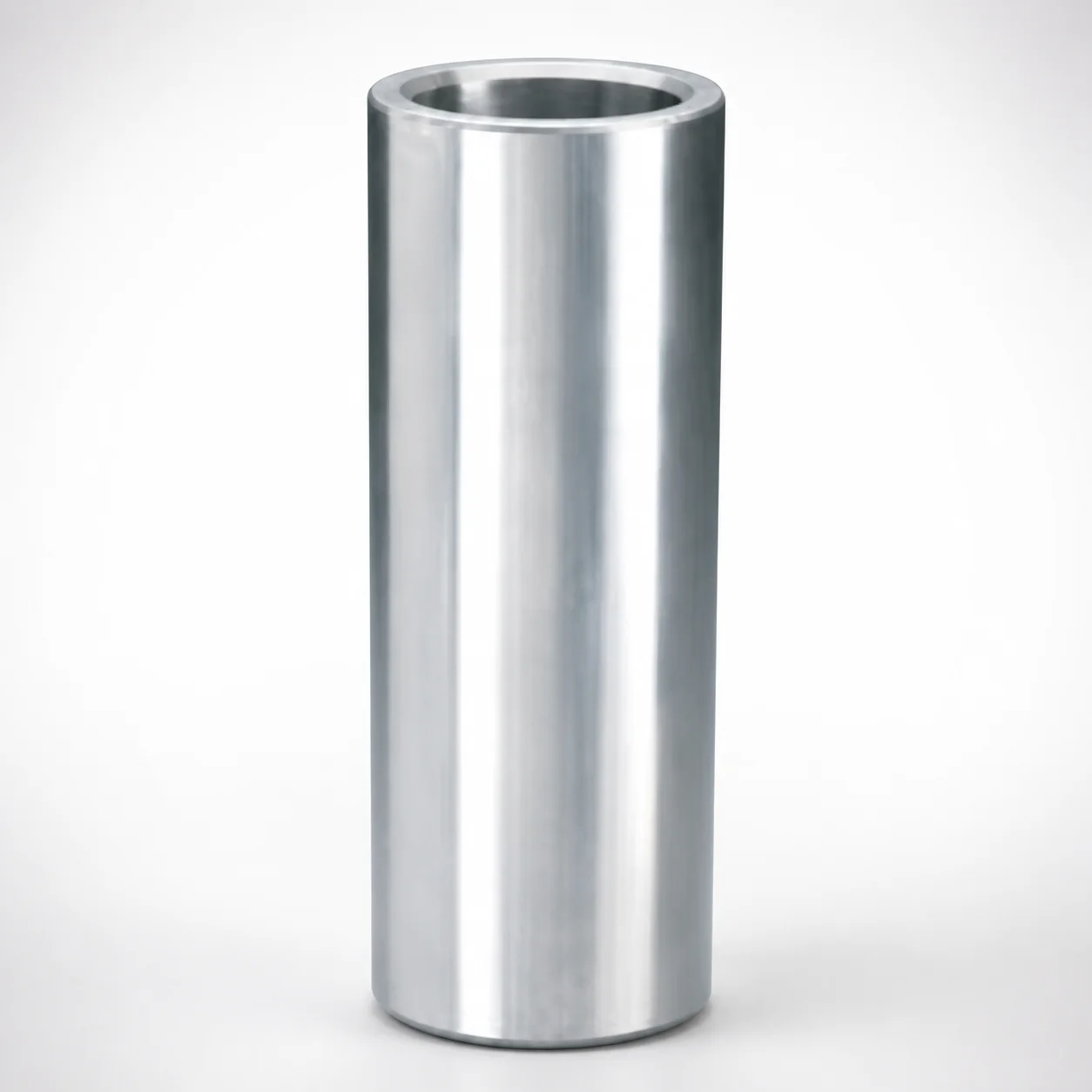

Press Fit Steel Sleeve Bushings for Ball Bearing - Inch

Press-fit steel sleeve bushings are used inside injection mold tooling and industrial fixtures where ball-guided alignment is required for repeatable motion. Because the bushing is installed by a controlled press fit, it helps maintain a stable in-position relationship between the guide elements and surrounding steel structure.

• Die-casting and large mold assemblies: Ideal for ball-guide arrangements that must resist misalignment as loads cycle during opening/closing.
• Automated handling fixtures: Common in jigs and end-effectors that use ball-guided posts to keep motion smooth and consistent over time.
• Inch-standard tooling interfaces: The inch-series dimensional format supports compatibility with existing mold shop designs and spares.

This variant is suited when you need dependable guide stability and a straightforward, clean installation approach—since it is bushing-only and relies on the press-fit interface for proper seating.

The product is a steel sleeve bushing supplied for press-fit installation. While the exact alloy grade and heat-treatment state are not specified in the provided data, steel sleeve bushings are typically selected for a balance of wear resistance and toughness in long-running tooling.

• Wear resistance: Steel provides good abrasion resistance against fretting and sliding contact in ball-guided mechanisms.
• Toughness trade-off: Achieving higher hardness generally improves wear but can reduce toughness; for guide sleeves, designers often prioritize stable seating and dimensional integrity.
• Heat treatment: Common approaches for precision steel guide components include quench-and-temper or nitriding to improve surface durability, but the specific treatment cannot be confirmed from the input data.

When choosing between materials for similar sleeves, steel is often preferred over softer alloys for rigidity and durability; however, the final selection should be aligned with load, motion frequency, and expected contamination levels.

Select the correct sleeve bushing size by matching the interface diameter and the required guide stack length in your mold or fixture. The provided spec ranges are: Nom. post diameter (in) = 1 ~ 3 and L (Length) (in) = 1 ~ 14.

• Match the post diameter: Choose the bushing nominal post diameter within 1–3 in that corresponds to your ball guide post size. This is the primary determinant of the press-fit seating behavior.
• Set the length L: Select L (1–14 in) to cover the effective guide engagement length needed to stabilize alignment under load. Ensure sufficient bushing overlap inside the housing to support repeatable guidance.
• Fit and tolerances: Because it is a press-fit component, performance depends on the interference/clearance between the sleeve OD and the mating bore (bore size tolerance should be coordinated with the supplier’s intended press-fit requirements).

If your cavity/core layout is based on inch tooling standards, use the inch-series dimensional format for drop-in compatibility with existing designs and spares.
