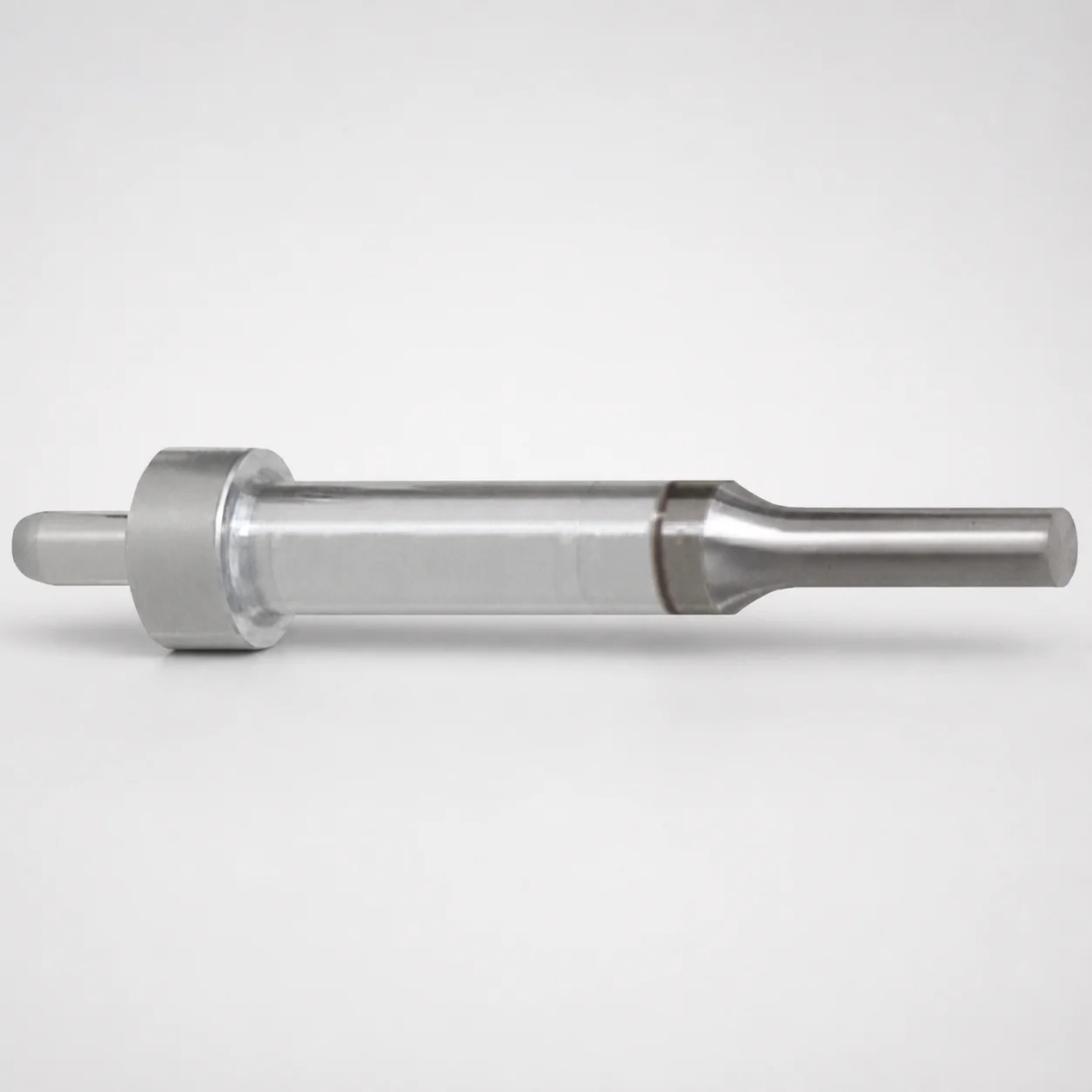

HX Coating Center Dowel Punches for Heavy Load

Center dowel punches are used to maintain repeatable alignment between tooling members during high-cycle punching operations. This heavy-load variant with an HX wear coating is well suited for automotive and industrial connector stamping, where misalignment can cause progressive die wear and dimensional drift.

In progressive die sets, these punches help distribute impact forces into the die structure while preserving central guidance. The HX coating supports stable performance under abrasive contact, helping reduce tip degradation during long runs.

They are also commonly specified for die maintenance and press station tooling that demands consistent centering after component replacement. With available SKH40-equivalent (powdered high-speed steel) or M2-equivalent (SKH51) options, the tool can be matched to the expected wear rate and toughness needs for demanding production cycles.

These center dowel punches are offered in SKH40-equivalent (powdered high-speed steel) or M2-equivalent (SKH51) materials. The selection is intended to balance wear resistance against toughness for heavy-load punching environments.

• SKH40-equivalent (powdered HSS): fine/controlled microstructure for consistent wear performance under repeated cutting and contact loading.
• M2-equivalent (SKH51): a higher-performing HSS option for long-life punching when abrasion and edge wear are dominant.

All variants benefit from the HX coating, which is designed to improve wear resistance at the working surfaces. For best results, choose the harder, wear-focused option (SKH51/M2-equivalent) when high abrasion is expected, and use SKH40-equivalent when a balanced wear/toughness response is required.

To select the correct dowel punch, match the shank diameter D (10 ~ 45 mm) to the guide/bushing bore or tooling feature that supports the center punch load path. Then select the tip dimension P (2.5 ~ 35 mm) and the tip shape (Round, Rectangle, Oblong, Double flatted round, Radius rectangle) to align with the required punch contact geometry.

• Tip length B (L or S): choose based on how much engagement is needed for reliable centering without bottoming.
• Overall length L: available in ranges 60 ~ 150, 70 ~ 150, or 50 ~ 150 depending on the configuration.
• Full length change LC: 37 ~ 149.9 and tip dimension change PC: 1.25 ~ 17.5 indicate allowable dimensional variation across the family.

Tip corner R is specified at 0.15 mm. When integrating into a die, maintain clearance for assembly and account for the specified change values (LC/PC) during final adjustment, especially if tight centering is required at high force.
