Mold Lifting & Handling
Swivel lifting eye bolts and heavy-duty lifting bars engineered for safe crane handling of injection molds. Properly rated lifting hardware prevents mold damage and ensures operator safety during mold changes.
Lifting Components
Eye Bolts vs Lifting Bars — Which to Use
| Factor | Lifting Eye Bolts | Lifting Bars |
|---|---|---|
| Lifting Point | Single point (top of mold) | Multi-point (spans mold width) |
| Mold Stability | May tilt if center of gravity is off-center | Distributes load evenly, prevents tilting |
| Plate Locking | Does not lock plates together | Locks mold halves together during transport |
| Best For | Single-plate lifts, light molds (<500 kg) | Multi-plate molds, heavy molds (>500 kg) |
Safety rule: For three-plate molds, always use a lifting bar that locks all three plates together. Lifting with eye bolts alone risks plate separation during crane movement, which can cause plate drops and serious injury.
📖 In-Depth Technical Guide: Read our full analysis onHow to Safely Lift Injection Molds — Eye Bolt & Lifting Bar Selection →
Why Investing in Proper Mold Lifting Equipment Saves Money
Professional mold lifting equipment costs 3-5x more than improvised solutions (chains, standard hooks, shop-made brackets). But the economics strongly favor purpose-built lifting hardware when you factor in the full cost picture:
| Cost Factor | Improvised Lifting | Professional Lifting Hardware |
|---|---|---|
| Equipment Cost | $50-200 (chains, hooks) | $300-800 (eye bolts + lifting bar) |
| Mold Change Time | 45-90 min (manual alignment, repositioning) | 15-30 min (secure, repeatable lift) |
| Mold Damage Risk | High — drops, scratches, parting line damage | Near zero — controlled lift at all times |
| Average Mold Repair Cost (per incident) | $2,000-15,000 | N/A (prevented) |
| Operator Injury Risk | Significant — OSHA-reportable incidents | Minimal — rated hardware with safety factors |
| 5-Year TCO (50 mold changes/year) | $200 + $10,000 avg damage = $10,200+ | $800 (one-time, reusable across molds) |
Bottom line: A single mold drop incident costs 10-50x the price of a complete professional lifting kit. The ROI is immediate after preventing the first incident.
Frequently Asked Questions
How do I calculate the Safe Working Load (SWL) for mold lifting?+
SWL must exceed the total mold weight by a minimum factor of 4:1 (safety factor per EN 1677). For a 2,000 kg mold: Required SWL = 2,000 / 4 = 500 kg minimum per lifting point. If using two eye bolts at 45° sling angle, the load per bolt increases — multiply by the sling angle factor (1.41 at 45°).
Can I use standard hardware store eye bolts for mold lifting?+

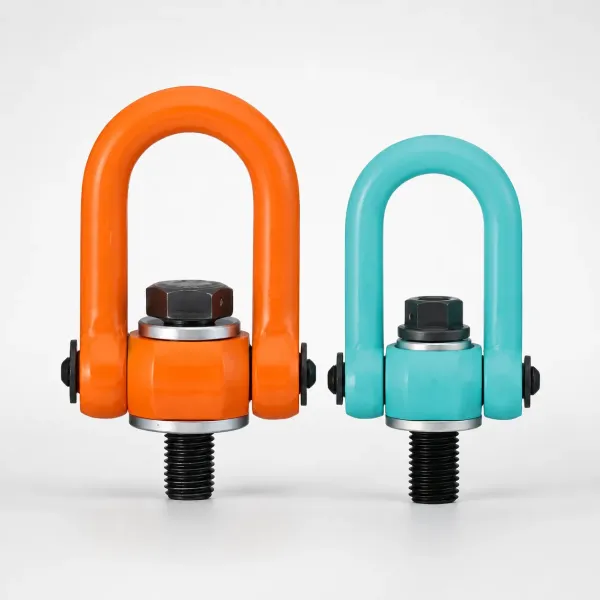

No. Standard eye bolts are not rated for angular loads (off-axis lifting). Mold lifting requires swivel-head eye bolts (SLEB type) that can rotate to align with the sling angle without bending the bolt shank. Using non-swivel eye bolts under angular load can cause sudden bolt failure.
How often should lifting hardware be inspected?+
Before every use: visual check for cracks, thread damage, and swivel mechanism function. Annually: formal inspection per EN 1677 including thread gauge check and proof load test at 2x SWL. Replace any lifting hardware showing visible wear, deformation, or corrosion.
Need a Custom Quote?
Send your specifications and receive a quote. MOQ: 1 piece. Custom dimensions available.
✓ MOQ 1 piece✓ Custom dimensions✓ Typically replies within 24 hours
