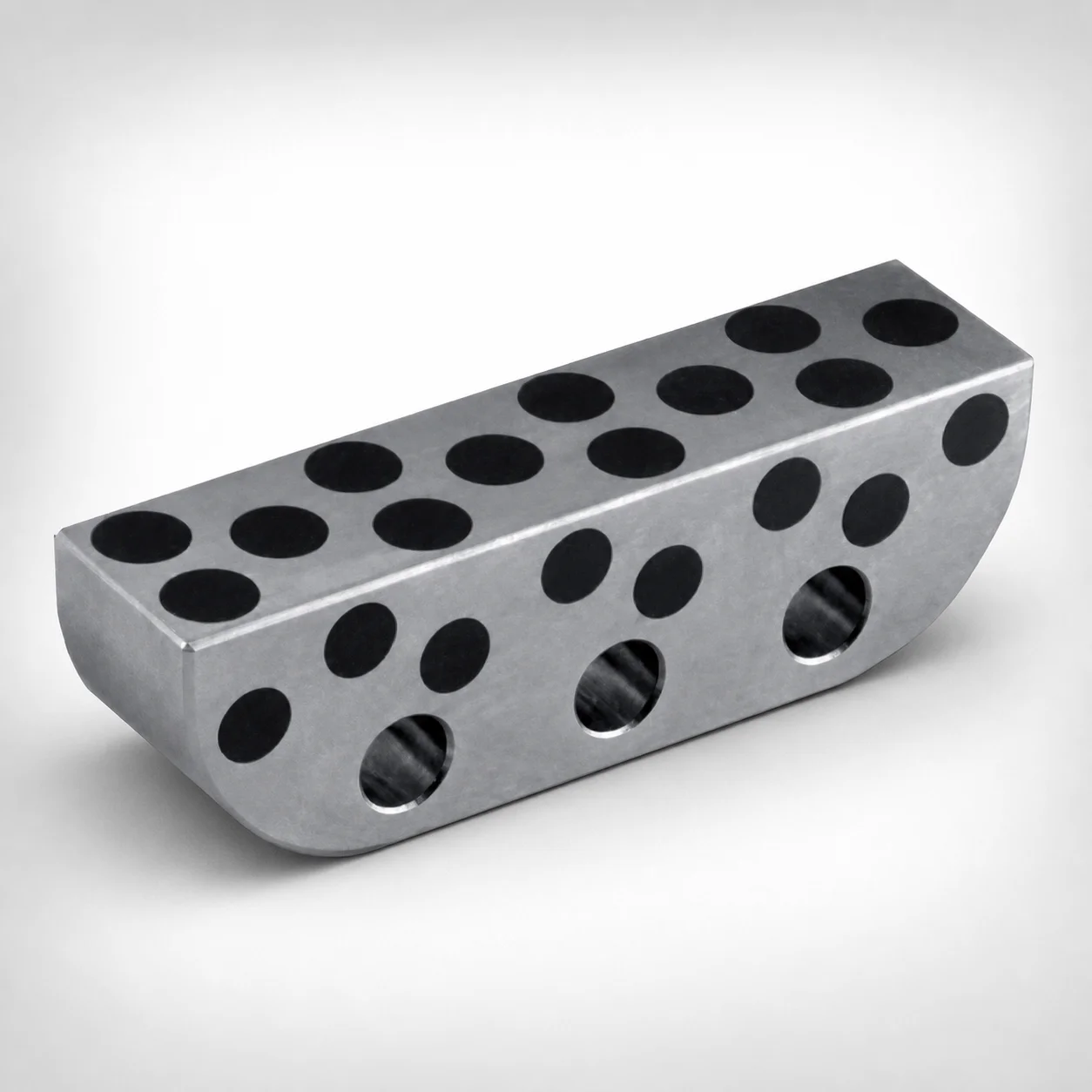

Self-Lubricating Square Gibs - Inch Non-Oil Groove

These self-lubricating gibs are designed for oil-free linear guidance in injection mold tooling where slide/guide rails must hold alignment under repeated open-and-close motion. The non-oil groove configuration supports maintenance-reduced operation by limiting the need for external lubrication while maintaining smooth travel.

• Automotive connector and housing molds: Use the center-rail guidance to stabilize slide plates and reduce chatter as the mold moves across runner/cavity platforms.
• Packaging and consumer goods mold bases: The oil-free wear behavior is well-suited for high-cycle actuation where consistent alignment improves dimensional repeatability of molded features.
• Industrial forming inserts and movable components: Fit these inch rail sizes to guide blocks and slide plates, supporting stable positioning when loads vary during cycling.

This variant matches applications that prioritize stable alignment and lower lubrication dependence, leveraging self-lubricating material behavior for long service life.

The provided specification set focuses on inch rail geometry (thickness 0.75–1.5 in, width 1–2.00 in, length 4–12 in). However, for DANLY IEM self-lubricating gib applications, the key material requirement is the self-lubricating, oil-free sliding behavior that reduces friction and helps limit wear without additional lubrication.

In typical gib designs, manufacturers balance wear resistance (to maintain flatness and guidance accuracy) with toughness (to resist edge loading and stick-slip under cycling). Heat treatment and hardness (e.g., HRC) are not specified in the provided data, so selection should be aligned with the supplier’s material grade/process documentation for the specific part number and intended load profile.

• Trade-off: Higher wear resistance generally benefits dimensional stability, while toughness helps prevent damage under intermittent peak loads.
• Heat-treatment note: Confirm quenched & tempered/nitrided or other state with the manufacturer if you require measured hardness and surface durability targets.

Select rail thickness, width, and length to match the mold’s guide rail or slide plate interface. The supported rail thickness range is 0.75, 1, or 1.5 in, the rail width range is 1, 1.25, or 2.00 in, and the rail length range is 4.00, 5.00, 6.00, 8.00, 10.00, or 12.00 in.

• Thickness match: Choose the thickness that matches the mating pocket/gibs clearance designed into the guide system to avoid binding during thermal growth.
• Width match: Ensure the gib width aligns with the guide rail support area so loads distribute across the intended bearing face.
• Length match: Match the gib length to the effective contact travel zone; use a longer length when you need full support over the full slide stroke.

Because tolerance values are not provided, validate clearance and fit with your internal drawings (recommended mounting/lateral play and assembly tolerances) to ensure smooth motion without excessive clearance-induced vibration.
