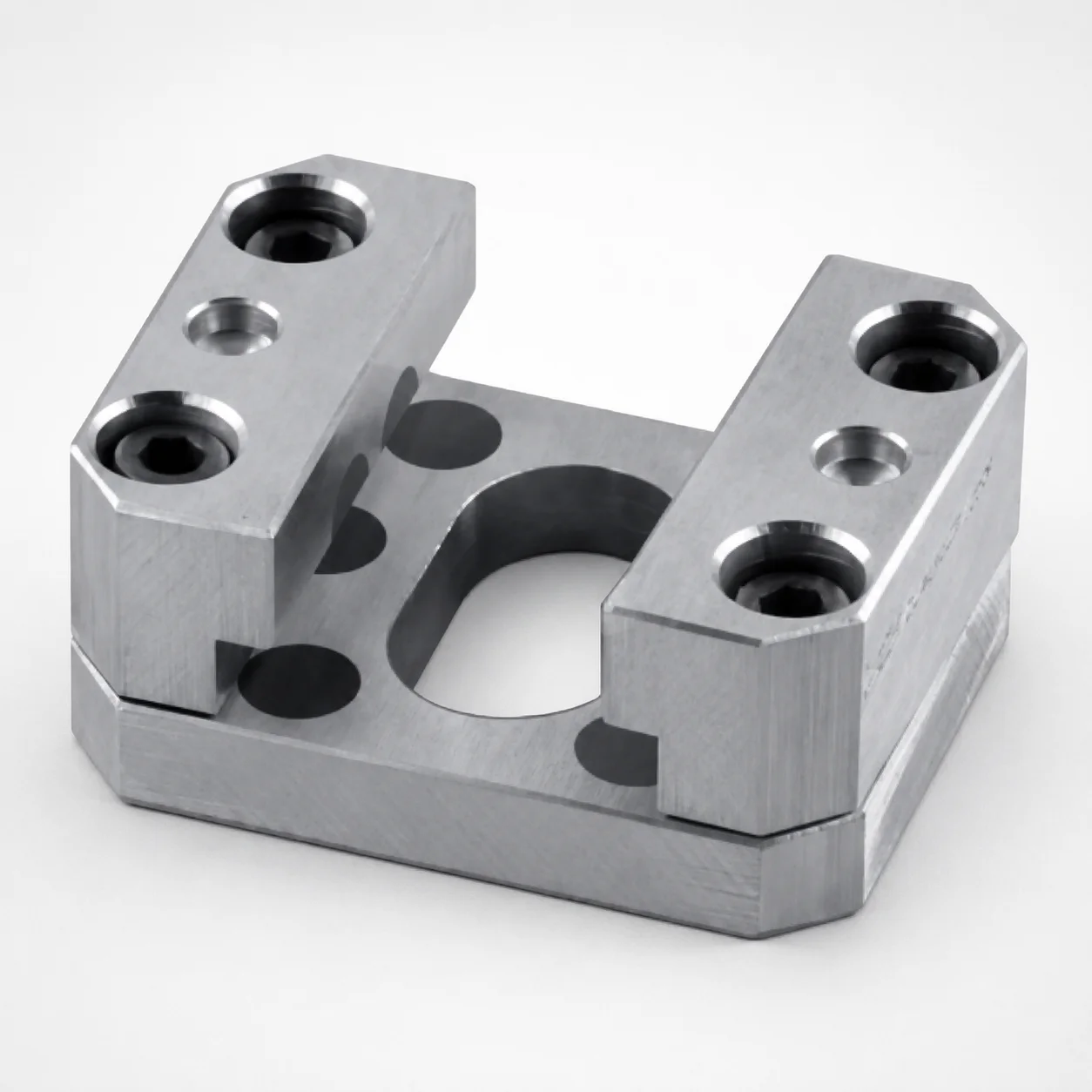

Self-Lubricating Gib Assemblies T-Slide Option Inch

Self-lubricating guide assemblies are typically installed in sliding support systems inside injection mold tooling where long, straight travel must remain stable. This T-slide option is suited for automotive connector housings molds that use precision slide inserts or linear actuated features, because smooth motion helps maintain consistent parting and return under repeated cycles.

Another common use is medical device housing molds, where operators prefer low-maintenance mechanisms during cleaning and inspection. The oil-free design reduces dependency on external lubrication while supporting quiet, steady movement of guide rails and slide plates.

Finally, these components fit industrial machine tool style mold bases and auxiliary slides that require predictable travel with minimized friction. The copper alloy self-lubricating approach provides wear resistance in dry-running conditions, helping maintain guidance performance across the available rail width and rail length options.

• Use in linear guidance for slide plates, guide-rail supports, and T-slide features
• Oil-free operation supports maintenance reduction during routine mold handling
• Compatible with common mold auxiliary motion systems requiring stable travel

This assembly uses a copper alloy self-lubricating gib construction, designed to provide stable friction behavior without relying on oil grooves. Copper-alloy-based self-lubricating guides are commonly selected for dry-running linear motion because they can sustain sliding contact while improving wear protection on the mating rail surface.

• Wear resistance: optimized for guidance under repetitive motion where lubrication access is limited
• Toughness trade-off: self-lubricating copper alloys prioritize low-friction performance; they are generally not intended to replace hardened steel bearing systems for highly abrasive, impact-heavy duty

Because the input data does not specify a steel grade or heat-treatment state (e.g., quenched & tempered or nitrided), hardness values (HRC) are not provided here. For selection, focus on matching the copper alloy gib to your rail finish, load, and cycle requirements to achieve the intended dry-running lifetime.

Select dimensions by matching the rail width and rail length ranges to the mold’s guide-rail and slide-plate geometry. The available rail width options are 2.62 in, 3.12 in, 4.12 in, and 4.62 in. The available rail lengths are 2.00 in, 3.00 in, 4.00 in, 5.00 in, and 6.00 in.

For correct fit, measure the cavity/core-side guide interface and confirm the T-slide mounting pocket or plate opening can accommodate the selected gib width. Match the length to the full effective travel region of the slide mechanism so guidance remains continuous through the intended stroke.

• Width matching: choose the closest rail width (2.62–4.62 in) to the mating rail/support surface
• Travel coverage: choose rail length (2.00–6.00 in) to span the guide engagement along the motion path
• Tolerance consideration: confirm your mounting and rail surface tolerances with the supplier drawings to prevent binding or excessive clearance

Dimensions listed are selectable in fixed increments per rail width and length; verify whether your application requires custom machining beyond these catalog sizes.
