Toggle Clamps
European standard quick-change mould systems and toggle clamps for rapid die changeover in injection molding, stamping, and machining. 5 models from compact 156×196 format to variable-dimension configurations with integrated ejector systems.
Toggle Clamps — 5 Products

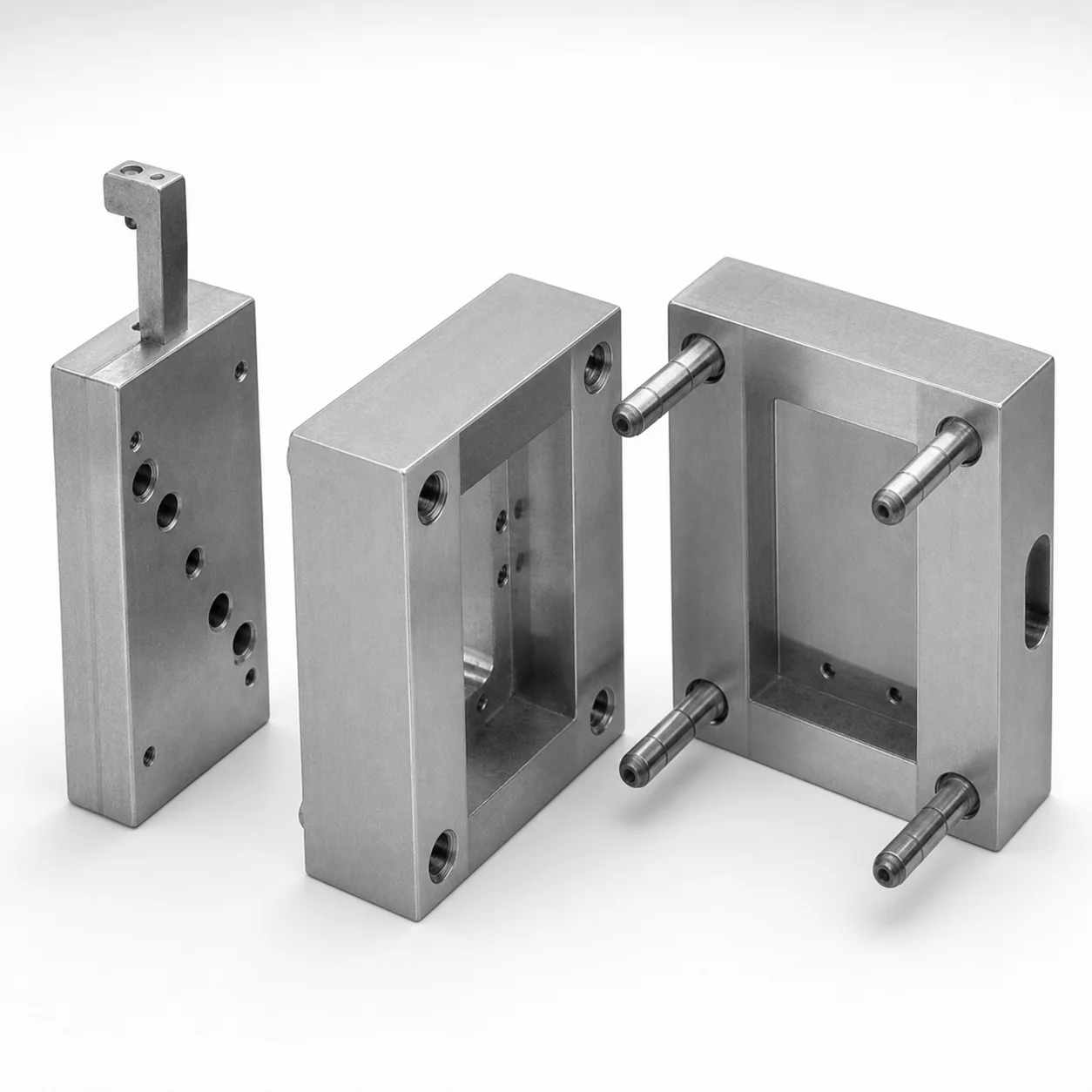

Toggle Clamps K1
European standard mould changing system. Compact 156×196 format. Quick-change tooling for small to medium molds.

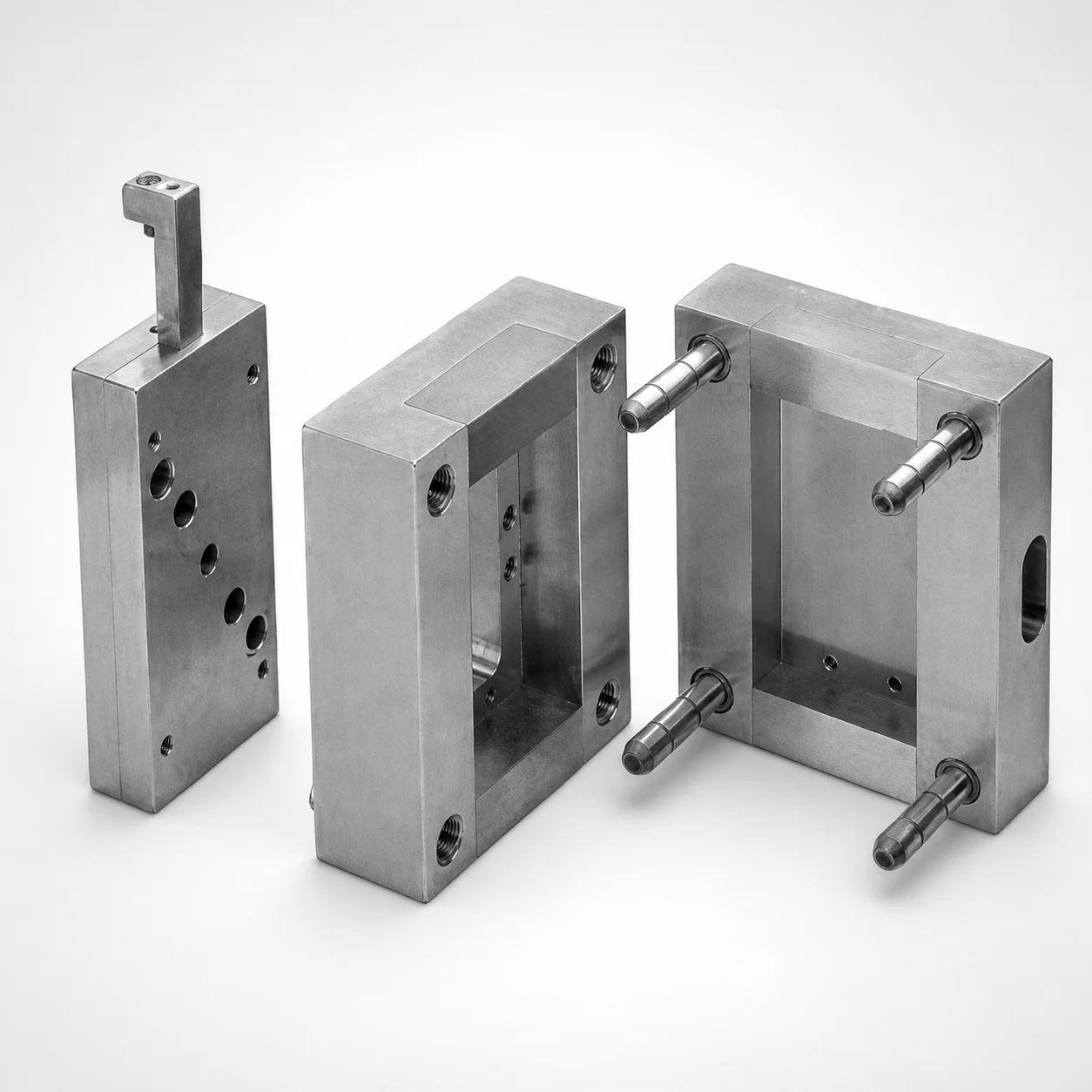

Toggle Clamps K2
European standard mould changing system. Variable dimensions. Scalable quick-change tooling for any mold size.

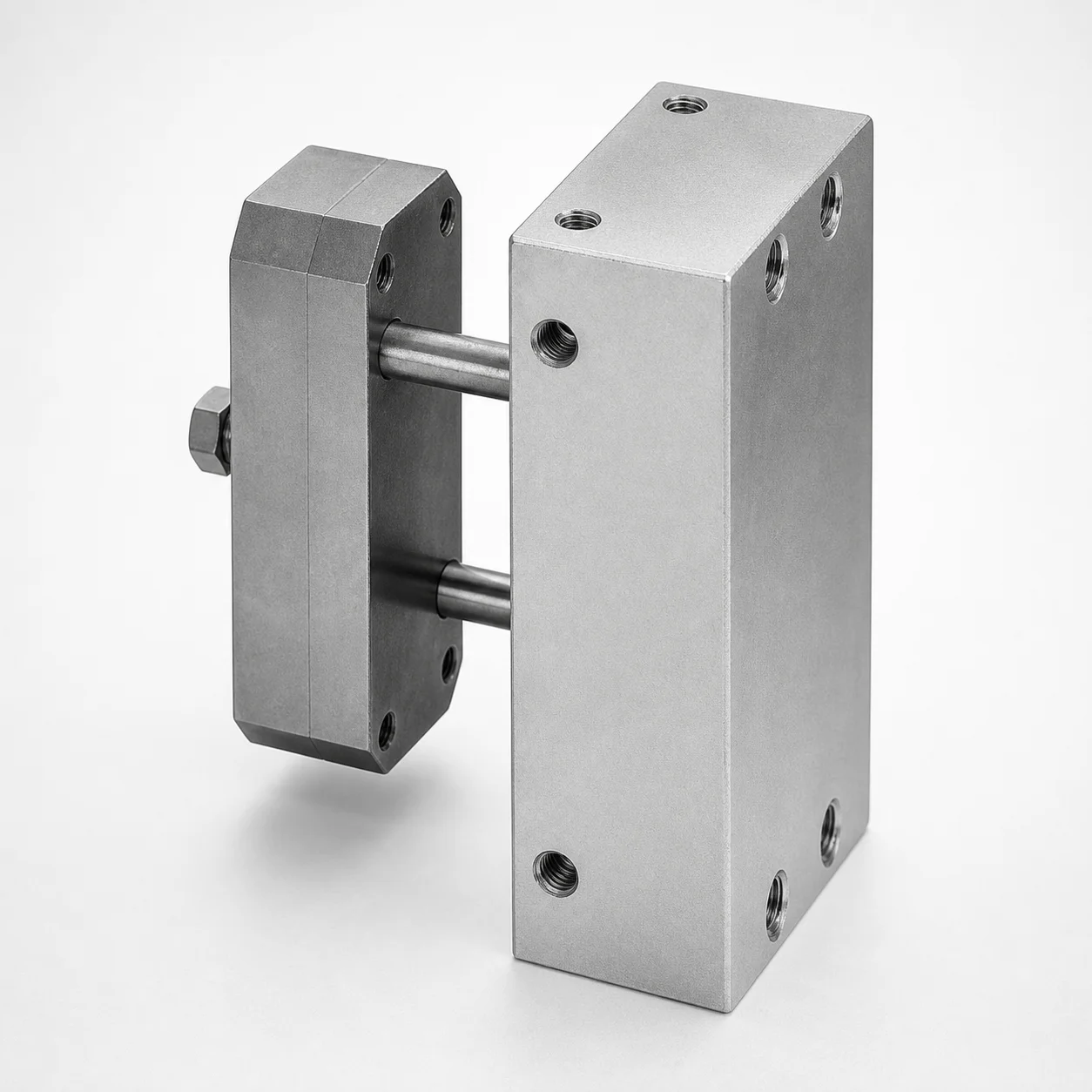

Toggle Clamps K3
European standard mould insert with integrated ejector system. 156×196 format. Enables changeover without disconnecting ejection.

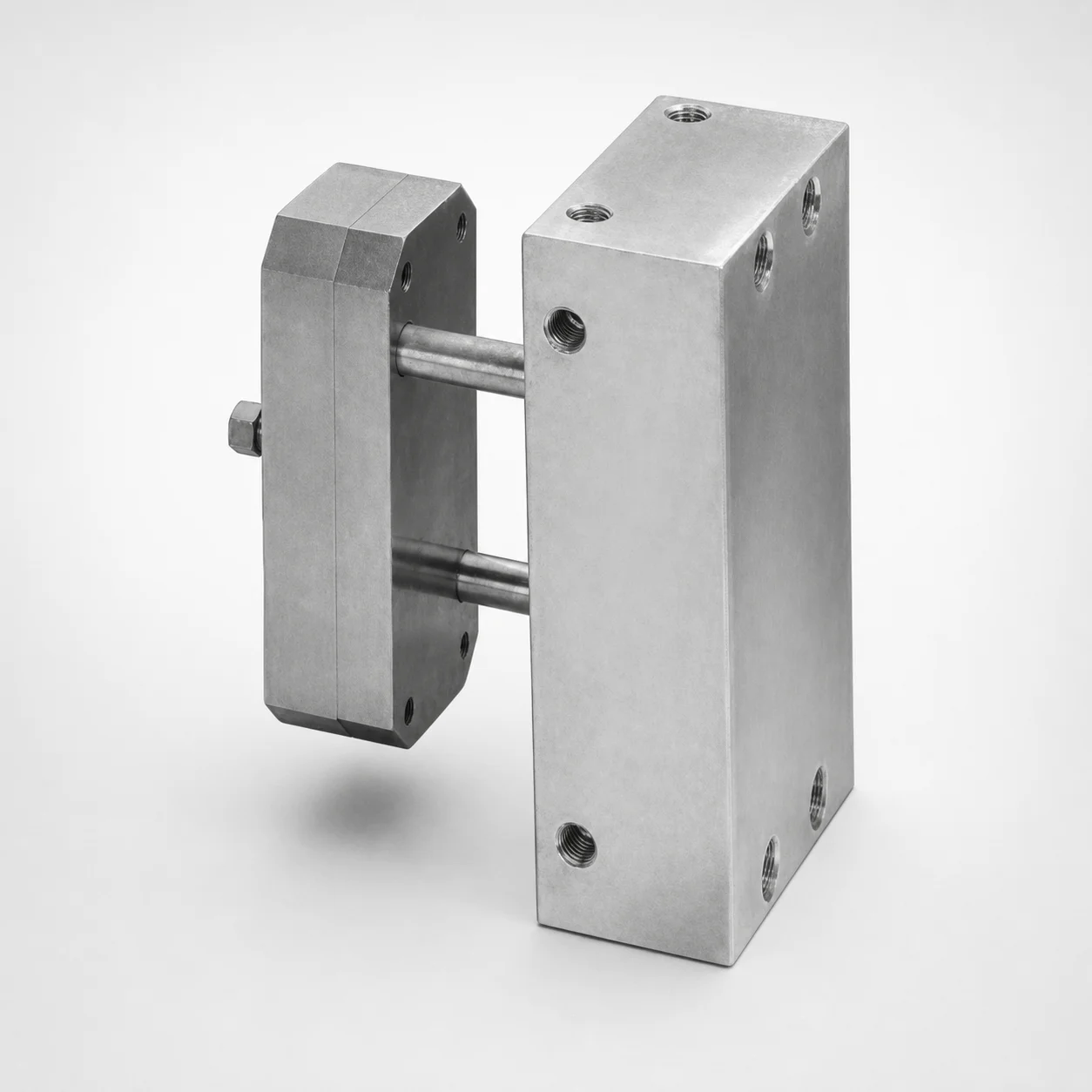

Toggle Clamps K4
European standard mould insert with integrated ejector system. Variable dimensions. Flexible changeover for large molds.

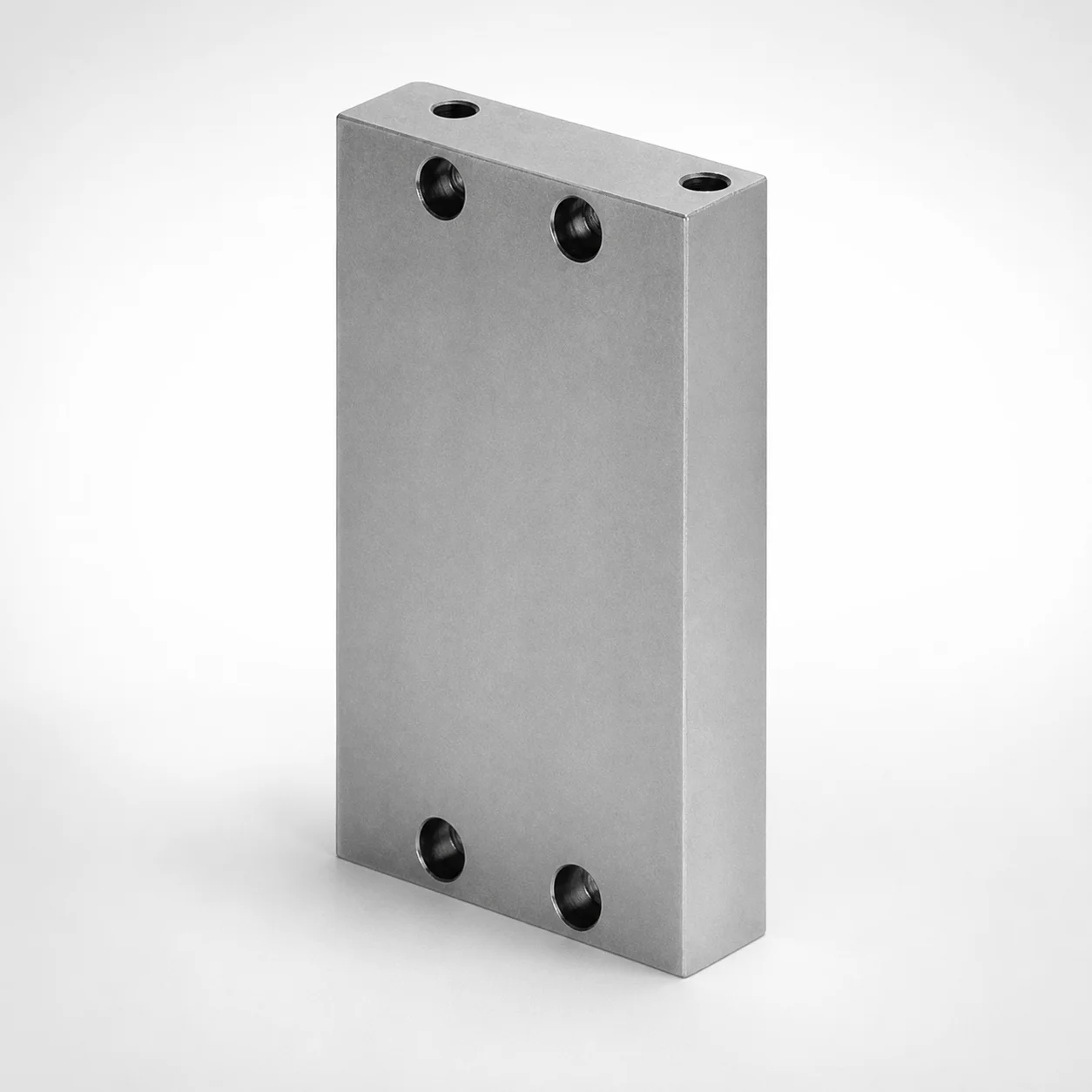

Toggle Clamps K5
European standard mould insert. Basic configuration. Economical quick-change solution for standard applications.
Toggle Clamp Models K1–K5 Comparison
Five models covering two format families and three feature levels. Use this matrix to select the right system:
| Model | Format | Ejector System | Best For |
|---|---|---|---|
| K1 | Compact 156×196 mm | No | Small to medium molds, standardized footprint |
| K2 | Variable dimensions | No | Large or non-standard molds requiring custom sizing |
| K3 | Compact 156×196 mm | Yes — integrated | Small molds requiring changeover without ejector disconnection |
| K4 | Variable dimensions | Yes — integrated | Large molds with ejection — full system changeover |
| K5 | Standard insert | No | Economical applications, basic quick-change capability |
Deep dive: Read Manual vs Pneumatic Toggle Clamps — Performance, Cost, and Setup Time for a detailed model-by-model comparison.
How to Choose the Right Toggle Clamp System
Step 1 — Do you need an integrated ejector system?
- Yes → K3 (compact) or K4 (variable) — saves ejector reconnection time during changeover
- No → proceed to Step 2
Step 2 — What mold size are you working with?
- Small to medium (fits 156×196 mm footprint) → K1
- Large or non-standard dimensions → K2
- Budget-constrained, basic needs → K5
Step 3 — Volume and ROI consideration:
- High changeover frequency (>3 changes/shift) → invest in K3/K4 with ejector integration for maximum time savings
- Low changeover frequency (<1 change/day) → K1/K5 provides sufficient ROI
Learn more: See How to Calculate the ROI of Switching to Pneumatic Toggle Clamps for step-by-step calculations.
ROI of Quick-Change Mould Systems
The primary value of a quick-change system is reduced die changeover time, which directly translates to increased machine utilization:
| Metric | Conventional Bolt-Up | Quick-Change System (K1–K5) |
|---|---|---|
| Changeover Time | 30–60 minutes | 5–15 minutes |
| Skill Required | Experienced operator | Standard operator with training |
| Repeatability | Depends on operator skill | ±0.02 mm (mechanical locating) |
| Ejector Reconnection (K3/K4) | 10–15 min additional | Integrated — 0 min |
Deep dive: Read How European Standard Quick-Change Mould Systems Reduce Downtime for a technical deep dive on precision locating and toggle clamping.
How Quick-Change Mould Systems Work
European standard quick-change systems achieve rapid, repeatable mould changeover through three mechanical principles:
- Precision locating: Hardened dowel pins and V-groove locators on the system base plate mate with corresponding bores in the mould insert, achieving ±0.02 mm repeatability without manual indication.
- Mechanical clamping: Toggle or wedge mechanisms apply multi-ton clamping force evenly across the mould insert perimeter. Unlike hydraulic systems, mechanical toggle action provides full force at the lock-over point with no pressure maintenance required.
- Integrated services (K3/K4): Coolant, electrical, and ejector connections are built into the system interface plate. When the mould insert is seated, all service connections engage automatically — no hose swapping or cable reconnection.
Application Scenarios
Injection Mold Changeover
Pain point: Frequent mold changes on injection presses cause 45+ minutes of downtime per changeover, reducing OEE below 60%.
Why it fits: K3/K4 with integrated ejector systems reduce changeover to 10–15 minutes, including ejector reconnection. Precision locating eliminates re-indication.
Recommended: K3 (compact molds) or K4 (large molds)
Stamping Die Quick-Change
Pain point: Die changes on stamping presses require crane work and precision shimming, tying up operators and cranes for extended periods.
Why it fits: K1/K2 provide mechanical locating and clamping that replaces shimming — the die insert drops into the system with self-aligning features.
Recommended: K1 (standard dies) or K2 (oversized dies)
Low-Volume, High-Mix Production
Pain point: Small batch sizes mean constant changeovers, but the capital investment in full automation isn't justified.
Why it fits: K5 provides basic quick-change capability at the lowest cost point — an economical step up from conventional bolt-up without the complexity of K3/K4 systems.
Recommended: K5 (basic mould insert)
Engineering Resources
How to Calculate the ROI of Switching to Pneumatic Toggle Clamps
Step-by-step calculation of time savings, machine utilization gains, and payback period.
X vs Y: Manual vs Pneumatic Toggle Clamps — Performance, Cost, and Setup Time
Complete comparison of manual toggle clamps vs. pneumatic alternatives across key decision criteria.
How European Standard Quick-Change Mould Systems Reduce Downtime
Technical deep dive into precision locating, toggle clamping, and integrated service connections.
Application Scenarios
High-Frequency Mold Changeover
Pain point: Manual mold changes using conventional bolts take 45-90 minutes per changeover, with 3+ changes per shift.
Why it fits: K1/K5 toggle clamp systems enable sub-10-minute mold changes through standardized clamping points and quick-release mechanisms.
Automated Injection Molding Lines
Pain point: Ejector system reconnection during mold changes adds 15-20 minutes per changeover and risks misalignment.
Why it fits: K3/K4 systems with integrated ejector coupling eliminate separate ejector reconnection, saving 15+ minutes per changeover.
Budget-Conscious Quick-Change Retrofit
Pain point: Full quick-change systems (K1-K4) exceed budget for low-changeover-frequency operations (≤1 change/day).
Why it fits: K5 standard insert system provides basic quick-change capability at significantly lower cost, with payback within 6-12 months at 1 change/day.
Frequently Asked Questions
What are the main types of toggle clamps (vertical, horizontal, push-pull)?+
How does a European standard quick-change mould system reduce setup time?+
What is the ROI of switching from manual clamps to pneumatic toggle clamps?+
What clamping force range do the K1-K5 toggle clamp models cover?+
What is the minimum order quantity for toggle clamps?+
