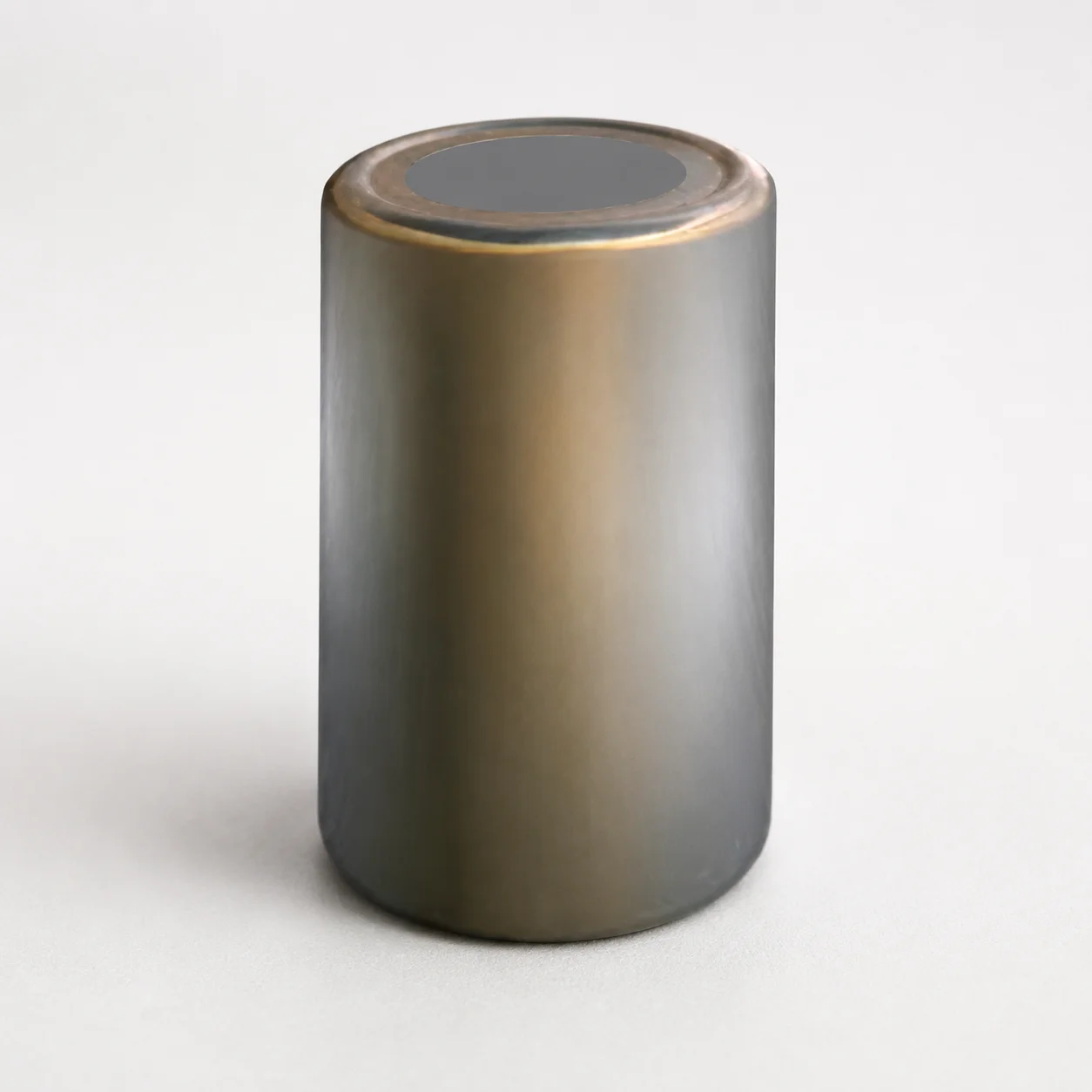

Inch Spring Cages

Inch Spring Cages are used in injection mold tooling and industrial mechanisms where a coil spring must stay correctly located through repeated compression cycles. In automotive connector or latch tooling, they help maintain consistent spring alignment so clamp or ejection features return reliably after actuation.

They are also suited for medical device housings and inspection fixtures that require stable spring-driven positioning. The steel construction supports predictable compression retention, reducing variability that can affect part fit or functional checks.

For electronics housings and precision assembly jigs, spring cages reduce fretting and wear on mating components during high-frequency cycling. With multiple spring diameter options (3/4" to 2"), the cage variant can be matched to the coil geometry to improve load stability and prevent spring migration.

• Press tooling and mechanical mechanisms needing repeatable spring support
• Stable compression/tension positioning across cycling
• Wear reduction on adjacent moving parts

The inch spring cage is specified as steel to provide a balanced combination of stiffness, wear resistance at sliding contact points, and toughness against shock loads during spring compression and release. Steel cages are commonly selected because they maintain dimensional stability under cyclic loading and retain their functional geometry in press and mechanism environments.

Because the input data does not list a specific steel grade, hardness (HRC), or heat-treatment state, only the base material intent can be stated reliably: the steel construction is intended to support consistent compression/tension retention and reduce wear in cycling assemblies.

• Wear resistance vs. toughness: steels with higher surface hardness typically offer better wear performance, while lower-hardness conditions improve impact tolerance.
• Heat treatment: the cage is typically supplied in a hardened or tempered state in many applications, but the exact condition (e.g., quenched & tempered, nitrided) is not provided in the current specifications.

Select the cage based on two variables from the provided range: Length L (1 ~ 12 in) and spring diameter (3/4", 1", 1-1/4", 1-1/2", 2"). Correct matching helps keep the coil spring centered, preventing migration that can lead to load fluctuations and accelerated wear.

To size for a mold or mechanism: first identify the coil spring diameter required by the design (choose one of the available sizes). Then choose cage length L so the cage fully supports the active spring region during maximum compression while maintaining clearance for motion.

• Match spring diameter: 3/4" to 2" options cover common small-to-medium coil springs.
• Match support length: use L from 1 to 12 in to cover the functional travel/support area.
• Tolerance/fit: the input data does not provide tolerance values; verify clearances in your assembly drawing to prevent binding at stroke extremes.

If your design requires a specific support height beyond standard length options, confirm whether custom lengths are available; otherwise select the nearest L within 1–12 in and validate the stroke envelope.
