Punches for Heavy Load
Reinforced Shank Design for Thick Plate Stamping. Browse 96 products from MISUMI and DAYTON with configurable dimensions and same-day shipping on standard catalog items.
Punches for Heavy Load (96 Products)

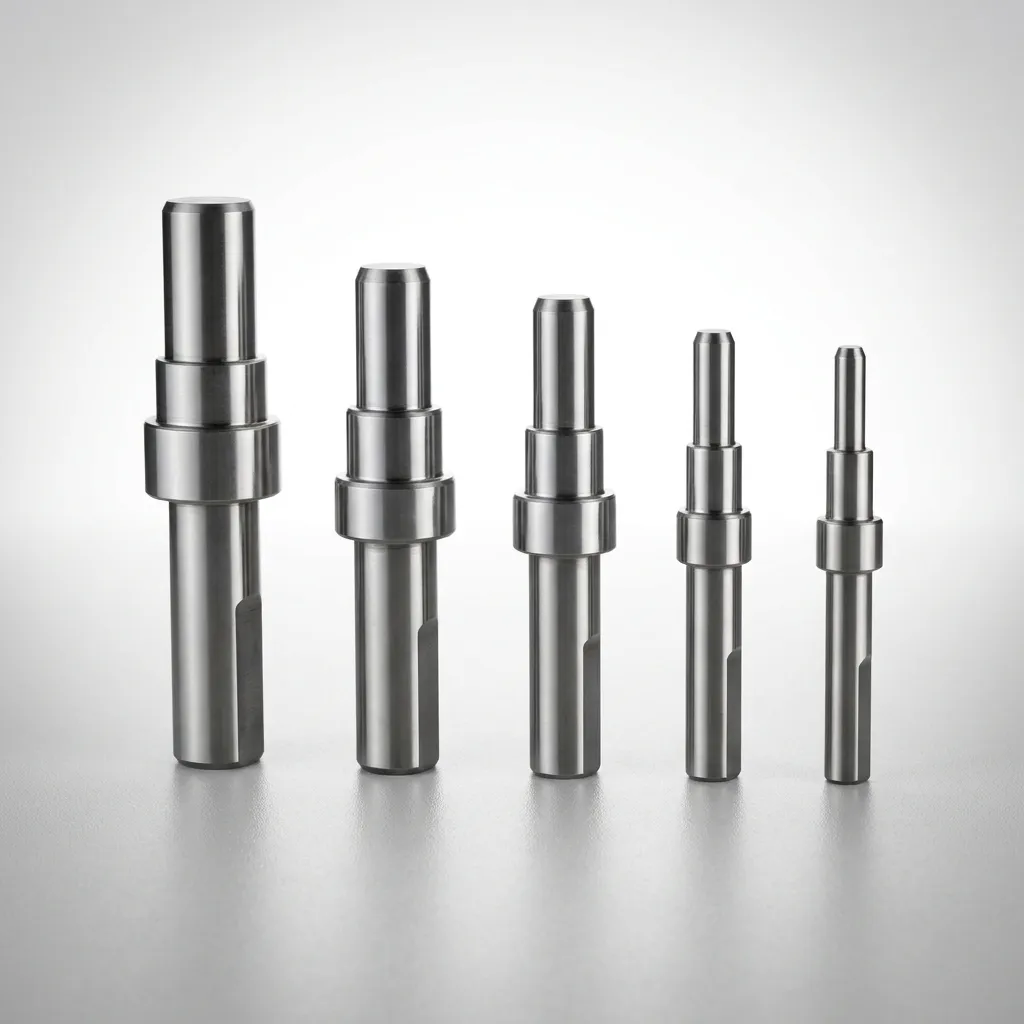

Ejector Punches for Heavy Load Double-Stepped Shoulder Punches | Dayton
Ejector Punches for Heavy Load Double-Stepped Shoulder Punches for inch tooling. Durable construction with controlled geometry for reliable ejection. Request a quote.
CRN Coated Inch Heavy Load Ejector Punches | Dayton LAMINA
Inch heavy load ejector punches with CRN coating for improved wear and mold protection. Suitable for die sets and heavy press applications.
Inch Ejector Punches for Heavy Load with XAN DayTAN™ Coating | DAYTON
Inch Ejector Punches for Heavy Load with XAN DayTAN™ coating deliver reliable wear resistance and stable punch performance. Suitable for heavy-duty tooling.
Ejector Punches for Heavy Load - Inch XCD Coating | Dayton Lamina
Ejector Punches for Heavy Load (Inch) with XCD coating for long service in heavy-duty dies. Dayton Lamina standardized part numbering—order today.
XCDP Coated Ejector Punches for Heavy Load - Inch | DAYTON Cutting Performance
XCDP coated ejector punches for heavy load (Inch) for press tooling. Built for wear resistance and consistent punch performance—request a quote.
JIS Standard Ejector Punches for Heavy Load - Inch, XCN Coating | Dayton LAMINA Parts
Ejector Punches for Heavy Load - Inch, XCN Coating for durable die components. Built for wear resistance and stable punch performance. Request a quote.
Ejector Punches for Heavy Load - Inch XN DayTride Coating | DAYTON Tool Steel Punches
Ejector Punches for Heavy Load - Inch XN DayTride Coating by DAYTON. Coated punch design improves wear performance for die sets; request a quote.
XNA Coating Inch Ejector Punches for Heavy Load | DAYTON LAMINA Standard | Factory Direct
Inch Ejector Punches for Heavy Load with XNA coating support stable knockout performance in heavy tooling. Manufactured to DAYTON LAMINA part standards. Request a quote.
Dayton XNAD Coated Inch Heavy Load Ejector Punches | Factory Direct
Inch Dayton ejector punches for heavy load with XNAD coating help reduce wear and support stable ejection in demanding tooling—request a quote.
Inch Standard Steel Ejector Punches for Heavy Load XNAP Coating | DAYTON
Ejector Punches for Heavy Load with XNAP coating. Built for inch molds, durable hardened steel construction supports long service life. Request a quote.
Inch Standard XNM Coated Ejector Punches for Heavy Load | Fast Delivery
Inch Standard XNM coated ejector punches for heavy load for reliable part release in die tooling. Durable wear protection and stable performance. Request a quote.
Inch Standard Ejector Punches for Heavy Load | XNP Coating | DAYTON | Factory Direct
Ejector Punches for Heavy Load use durable XNP coating for reliable cutting and ejection in inch tooling. DAYTON design supports heavy-duty production. Request a quote.
Heavy Load Upgrade: Cost-Benefit Analysis
Heavy load punches use reinforced shank designs (thicker body, shorter unsupported length, or composite construction) to withstand the higher compressive and buckling forces generated when piercing thick plate (>3mm) or high-strength materials (>590 MPa).
| Cost Factor | Standard Punch | Heavy Load Punch |
|---|---|---|
| Unit Price | $15-45 (baseline) | $25-75 (1.5-2x premium) |
| Life per Regrind (3mm SPCC) | 50K-100K hits | 200K-400K hits |
| Regrinds Before Replacement | 3-5 regrinds | 5-8 regrinds (more regrindable length) |
| Total Life | 150K-500K hits | 1M-3.2M hits |
| Cost per Million Hits | $90-300 | $23-75 |
| Unplanned Downtime Risk | High (frequent breakage on thick plate) | Low (reinforced against buckling) |
When to Upgrade: Standard vs Heavy Load Boundary
You Should Upgrade to Heavy Load If:
- Material thickness exceeds 3mm for mild steel or 2mm for AHSS (590+ MPa)
- Punch length-to-diameter ratio exceeds 6:1 (buckling risk zone)
- Standard punches are breaking before 100K hits
- You are stamping high-tensile materials: DP590, DP780, DP980, spring steel
- Stamping speed exceeds 150 SPM on material thicker than 2mm
Standard Punches Are Sufficient If:
- Material thickness is under 2mm for any material grade
- Punch L/D ratio is under 4:1
- Production volume is under 100K total pieces (prototype/short run)
- Stamping material is aluminum, brass, or copper (low shear strength)
About Punches for Heavy Load
Heavy load punches are engineered with reinforced shank geometry to withstand the elevated compressive and buckling forces of thick-plate stamping (>3mm) and high-strength materials (AHSS, spring steel). The reinforced design provides 4-6x longer total life compared to standard punches on equivalent materials, making them the economically superior choice for any production run exceeding 200K hits on thick plate. This 96-product range includes shoulder and straight variants in SKD11 and SKH51 materials.
Application Scenarios
Automotive Structural Member Piercing
AHSS structural members (B-pillars, door beams) require piercing of DP780-DP980 steel at 2-4mm thickness.
Why heavy load punches fit: The reinforced shank prevents buckling failure under the 2-3x higher piercing forces generated by AHSS compared to mild steel. SKH51 material maintains edge hardness under the elevated heat from high-strength steel shearing.
Construction Hardware Stamping
Thick-plate (4-6mm) stamping of structural brackets, hinges, and hardware from hot-rolled steel.
Why heavy load punches fit: Standard punches buckle or break above 3mm in hot-rolled steel. Heavy load shanks distribute the compressive force across a wider cross-section, enabling reliable piercing up to 6mm thickness.
Frequently Asked Questions
At what material thickness (>3mm) should I upgrade to heavy-load punches?+
How does the reinforced shank design prevent premature punch breakage?+
Will heavy load punches fit into standard ball-lock retainers?+
What is the typical ROI when switching to heavy-duty punch tooling?+
Engineering Resources
Need a Custom Quote?
Send your specifications and receive a quote. MOQ: 1 piece. Custom dimensions available.
