Spring Guide Pins
SGAMK Series spring guide pins for precise coil spring alignment in injection mold ejector and stripper plate systems. Prevents buckling, lateral deflection, and uneven wear in deep spring pockets where the free length-to-diameter ratio exceeds 4:1.
Spring Guide Pins

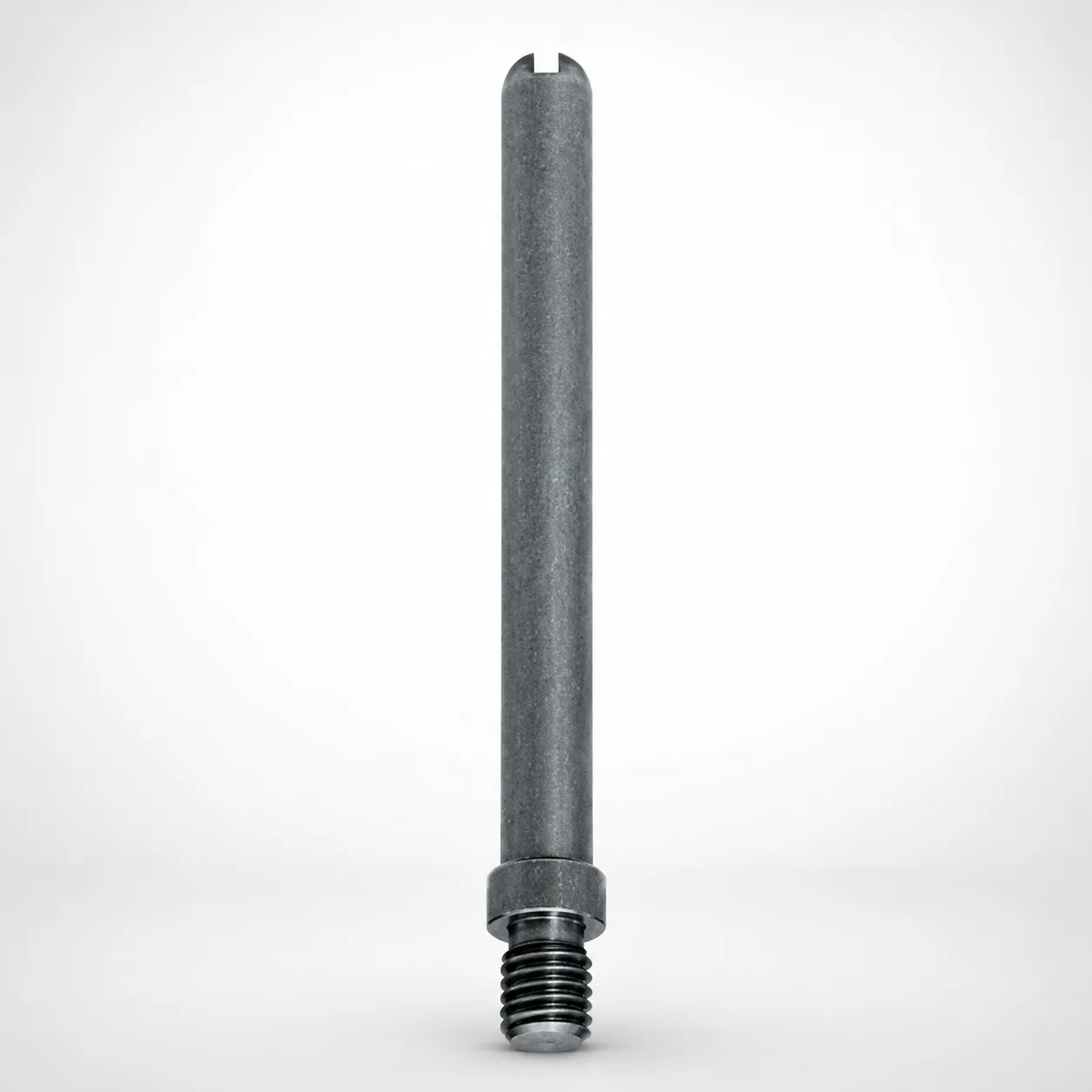

SGAMK Series Spring Guide Pins
Precision ground guide pins for coil spring alignment. Prevents buckling in deep bore applications. Configurable length and diameter.
Spring-Pin Pairing Reference
Each spring guide pin must be matched to the coil spring's inner diameter. The pin OD should provide 0.5-1.0mm radial clearance to the spring ID:
| Spring Inner Diameter (mm) | Guide Pin OD (mm) | Radial Clearance | Compatible Spring Series |
|---|---|---|---|
| 5.0 - 6.0 | 4.0 - 5.0 | 0.5 mm | SWF, SWL (small OD) |
| 8.0 - 10.0 | 7.0 - 9.0 | 0.5 - 1.0 mm | SWF, SWL, SWM |
| 12.0 - 16.0 | 10.0 - 15.0 | 1.0 mm | SWM, SWH, SWU |
| 18.0 - 25.0 | 16.0 - 23.0 | 1.0 mm | SWH, SWU, SWY |
Why Spring Guide Pins Prevent Buckling
Compression springs are prone to buckling when the free length-to-outer diameter ratio (L/D) exceeds approximately 4:1. In injection molds, spring pockets are often deep relative to the spring diameter, making buckling a common failure mode.
What happens when a spring buckles:
- The spring deflects laterally, concentrating stress on one side of the coil
- Uneven force distribution causes the ejector plate to tilt, leading to uneven ejection
- The stressed coils fatigue faster, reducing spring life by 60-80%
- In severe cases, the spring can jam in the pocket, requiring mold disassembly
A spring guide pin acts as an internal mandrel, constraining lateral movement while allowing free axial compression. The pin surface should be hardened (HRC 55+) and ground to Ra 0.4 or better to minimize friction against the spring ID.
Application Scenarios
Deep Ejector Plate Springs
Pain point: Springs in deep pockets (L/D > 4:1) buckle and jam, requiring emergency mold stops for spring replacement.
Why it fits: SGAMK guide pins constrain the spring coils during compression, eliminating buckling even at L/D ratios up to 8:1. Ground surface finish minimizes friction.
Recommended: SGAMK Guide Pin matched to spring ID with 1.0mm clearance
High-Cycle Production Molds
Pain point: Springs wear unevenly without guides, requiring replacement every 300K-500K cycles instead of the rated 1M+ life.
Why it fits: Guide pins ensure uniform compression across all coils, distributing stress evenly and extending spring life to the full rated fatigue life (1M+ cycles).
Recommended: SGAMK Guide Pin with hardened surface (HRC 55+)
Engineering Resources
Frequently Asked Questions
When do I need a spring guide pin?+
Can I use a standard dowel pin instead of a dedicated spring guide pin?+
How do I install a spring guide pin?+
Need a Custom Quote?
Send your specifications and receive a quote. MOQ: 1 piece. Custom dimensions available.
