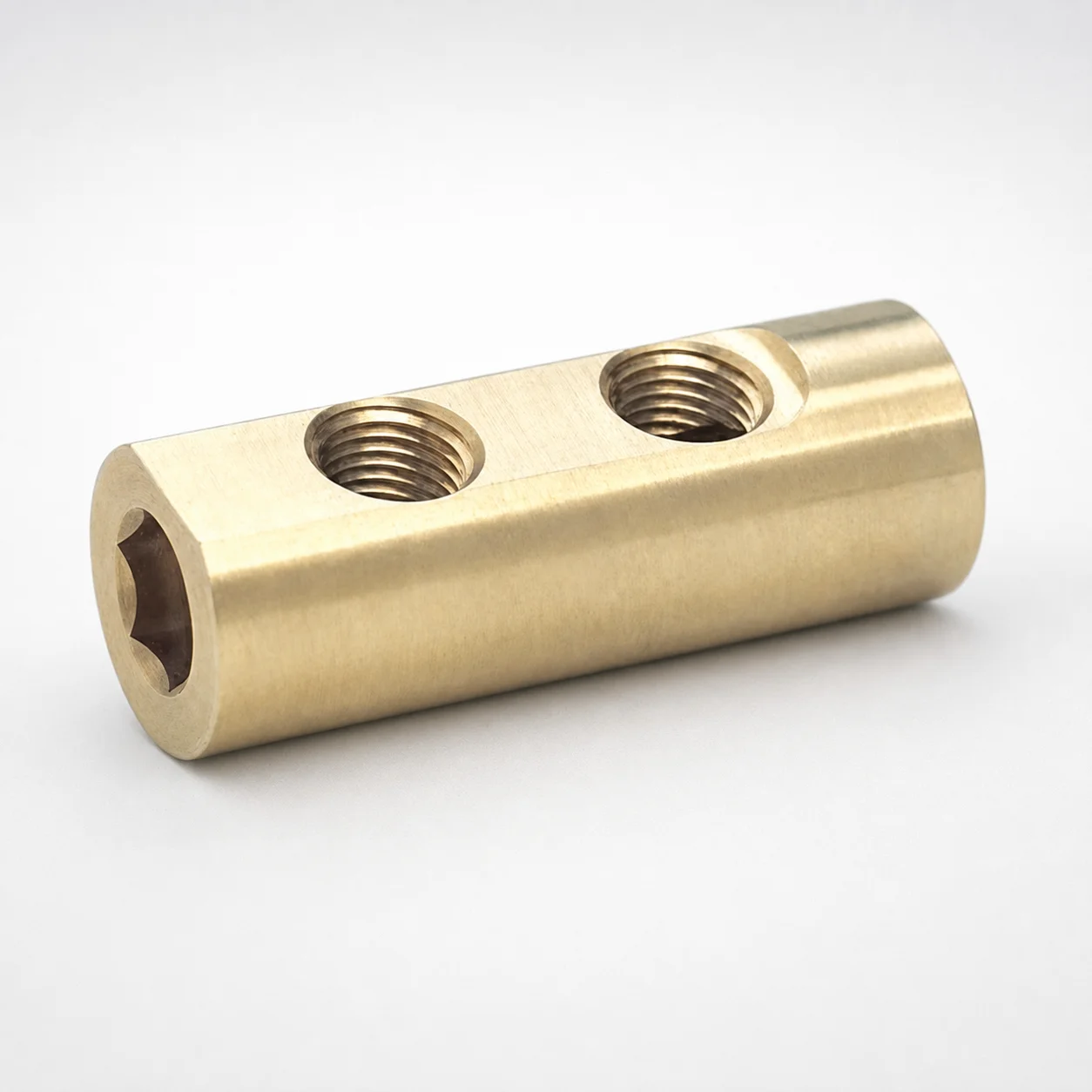

Hex Key Cascade Water Junction Replacement Heads (Brass)
Hex Key Cascade Water Junction replacement heads (brass) provide a reliable retrofit option for hex key cascade cooling connections, designed to restore flow performance with minimal installation clearance.
- Solid brass replacement head construction for stable sealing
- Requires minimum clearance to install in tight cooling layouts
- Built for high flow tubes only to maintain rated performance
- Service part for hex key cascade water junction assemblies
Specifications
4 configurations available
| Tube Thread Size |
|---|
| 5/16"-24 |
| 1/4"-28 |
| 1/4"-28 |
| 3/8"-24 |
Product Guide
Application Scenarios+
These brass replacement heads are used in mold interior cooling circuit retrofits where hex key cascade water junctions connect to high-flow tube systems. Their purpose is to restore rated flow and sealing performance while fitting into constrained layouts.
In automotive and appliance housing molds, cooling channels and junction blocks are often packed tightly near core steel and lifter zones. The minimum-clearance installation design helps you service the cascade connection without major rework of surrounding cooling components.
- High-flow tube systems: suited to maintain the junction’s intended flow path.
- Service/maintenance in cascade circuits: used as a replacement head for hex key cascade water junction assemblies.
For high-volume production tools that run extended heating/cooling cycles, replacing the junction head with this variant can help recover stable water transfer while keeping the cooling circuit configuration consistent.
Material & Process Details+
The replacement heads are made from solid brass, selected for its machinability and good corrosion resistance in water-based cooling environments. This brass construction supports stable sealing behavior when installed on the hex key cascade water junction interface.
Heat treatment is typically not required to achieve functional performance for standard brass replacement heads, as brass is generally used in the as-machined or lightly conditioned state rather than being hardened like tool steels. As a result, the primary performance focus is dimensional stability for sealing and reliable fit within the cooling circuit.
- Wear resistance: adequate for sealing surfaces in water service when properly installed.
- Toughness trade-off: brass provides sufficient ductility for connection handling, but it is not intended for high-impact or abrasive wear compared to hardened tool steel components.
- Comparison: compared with steel heads, brass prioritizes corrosion resistance and installation practicality for cooling circuit junctions.
Sizing & Selection Guide+
Selection is driven by the tube thread size and the need to match your mold’s existing hex key cascade water junction tube connection. This replacement head is specified for three options: 5/16"-24, 1/4"-28, and 3/8"-24.
- Confirm the tube thread size on your current high-flow tube end before ordering.
- Match the replacement head thread to ensure proper engagement and a leak-resistant seal.
- Use the minimum-clearance installation guidance to verify that the head’s geometry will clear nearby mold steel, core blocks, or inserts in the cooling layout.
Because thread interfaces rely on fit, ensure you maintain correct alignment during installation. While no tolerance values are provided in the specification, proper thread matching is critical—select only the exact thread size to avoid cross-threading, incomplete sealing contact, or restricted flow.
Frequently Asked Questions
Which tube thread sizes does this hex key cascade replacement head support?+
This brass replacement head is specified for three tube thread sizes: 5/16"-24, 1/4"-28, and 3/8"-24. When selecting, confirm the thread size on the high-flow tube end of your existing cooling circuit and match it exactly to the replacement head.
Is this brass replacement head compatible with standard cooling circuits or only high-flow cascade systems?+
It is designed specifically for high flow tubes used in hex key cascade water junction assemblies. For lower-flow or non-cascade layouts, performance expectations may not align with the junction’s rated use case, so verify your circuit type before installation.
How does the minimum-clearance design affect installation in tight mold cooling layouts?+
The variant is intended for minimum clearance installation, which helps when junction areas are crowded near core steel, lifters, or dense channel networks. Confirm that there is enough access for the hex key connection method and that surrounding mold components do not interfere with the replacement head.
What sealing reliability can be expected from the solid brass construction?+
The head uses solid brass to provide stable sealing when installed on the hex key cascade water junction interface. For best results, ensure correct thread size matching (5/16"-24, 1/4"-28, or 3/8"-24) and proper alignment during tightening.
Does the replacement head require heat treatment to achieve hardness or wear performance?+
No specific heat-treatment or hardness specification is provided for this brass head. Brass replacement components are typically used for corrosion resistance and installation practicality in water cooling service rather than being hardened like tool steels (e.g., nitrided or quenched & tempered).
