Adjustable Support Pillars
Support pillars with a threaded height adjustment mechanism — set precise pillar height without grinding for rapid mold setup and changeover.
Adjustable Support Pillars Products

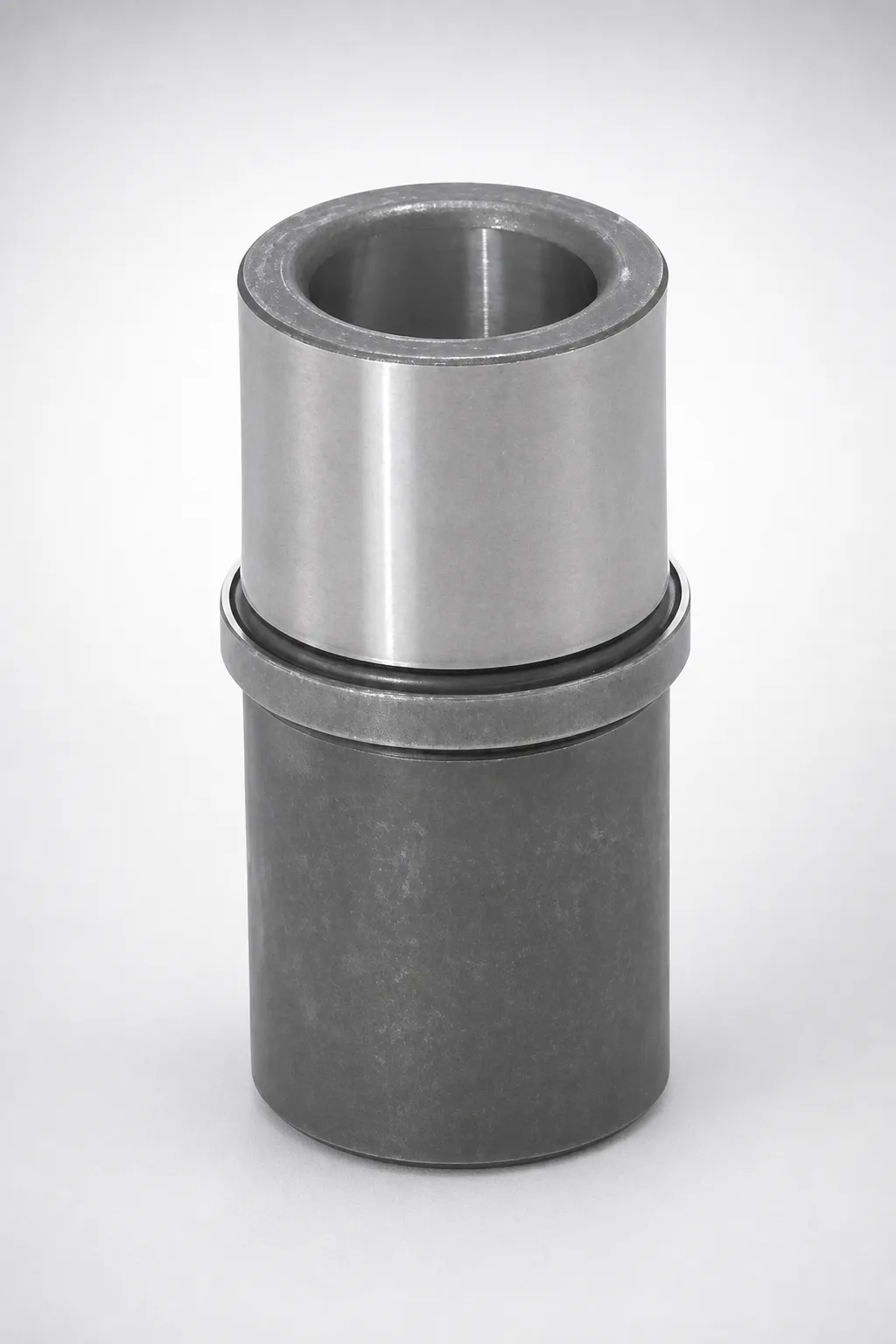

Adjustable Support Pillars — Type A
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
Adjustable Support Pillars — Type B
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
Adjustable Support Pillars — Type C
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
Adjustable Support Pillars — Type D
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
Adjustable Support Pillars — Type E
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
Adjustable Support Pillars — Type F
S45C + SUJ2 | Adjustable ±2 mm | Threaded screw
How the Height Adjustment Mechanism Works
Adjustable support pillars consist of two parts: a threaded base (screwed into the mold base) and an adjustable cap (threaded onto the base). Rotating the cap changes the overall pillar height. A lock nut secures the setting.
This eliminates the need to precision-grind pillars to exact height — a time-consuming process that adds 1-2 hours per pillar during mold assembly. Instead, install the pillar at approximate height and adjust to final dimension with a wrench.
Trade-off: The threaded joint reduces maximum load capacity by ~25% compared to solid round pillars (60 kN vs 80 kN at Ø40 mm). This makes adjustable pillars best suited for prototype molds and frequent-changeover applications, not maximum-tonnage production.
Learn more: For detailed technical guidance, see How Adjustable Support Pillars Reduce Downtime in Frequent Mold Changes.
Cost-Benefit: Fixed vs Adjustable
| Factor | Round (Fixed) | Adjustable |
|---|---|---|
| Unit Cost | $15 | $45 |
| Grinding Cost/Pillar | $30 (1-2 hours) | $0 |
| Height Change Time | 2-4 hours (remove, grind, reinstall) | 5 minutes (wrench + lock nut) |
| Load Capacity (Ø40) | 80 kN | 60 kN |
About Adjustable Support Pillars
Adjustable support pillars use a threaded mechanism for on-mold height adjustment without grinding. The two-piece design (threaded base + adjustable cap) allows ±2 mm height setting with a wrench, saving 1-2 hours per pillar during mold assembly. Best suited for prototype molds, trial molds, and applications with frequent mold changeovers.
Application Scenarios
Frequent Mold Changeover
Facilities running multiple molds on the same press need quick pillar height adjustment to match different mold base thicknesses.
Why it fits: Adjustable pillars set to any height in 5 minutes vs 2-4 hours for grinding fixed pillars.
Prototype and Trial Molds
Prototype molds undergo frequent design changes that alter plate thickness and pillar height requirements.
Why it fits: Adjustable height accommodates design iterations without purchasing new pillars.
Frequently Asked Questions
How does the height adjustment mechanism work?+
What is the adjustment range for adjustable support pillars?+
Are adjustable pillars suitable for production molds or only prototyping?+
Engineering Resources
Need Custom Adjustable Support Pillars?
Precision adjustable support pillars manufactured to JIS and DIN standards. Custom dimensions available. MOQ 1 piece.
