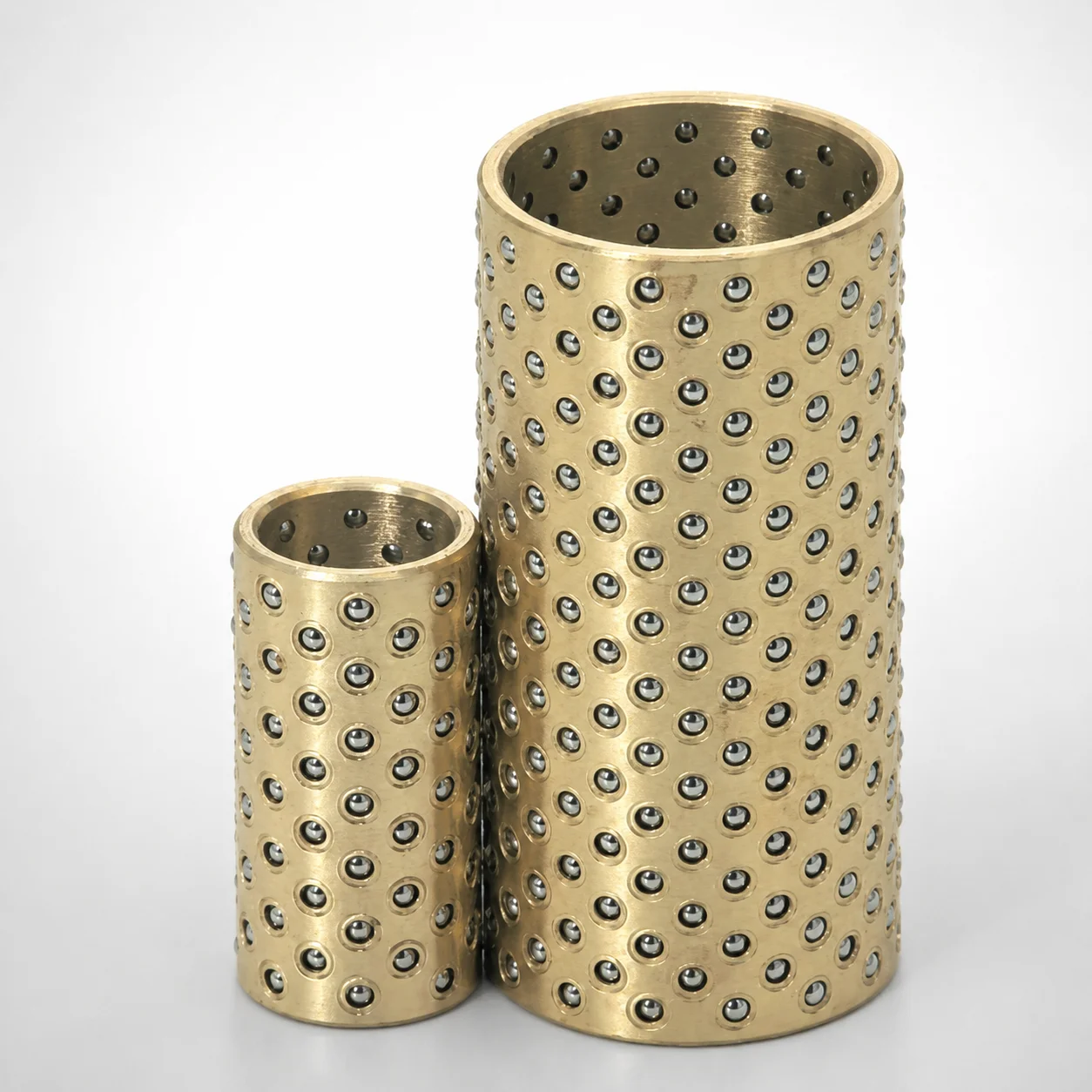

EMBS Type Ball Retainers for Ejector Leader Bushing

Ball guidance in ejector systems is where this component performs: it is used inside injection mold tooling with an ejector leader bushing to keep the leader pin centered and guided throughout the stroke.

• Automotive and large-part molds: In high-cycle ejection events, the ball retainer maintains consistent bearing-ball positioning, which helps preserve smooth leader alignment under repeated start/stop motion.
• Die-casting mold builds with ejector leader bushings: The stable ball pocketing improves fit during assembly, reducing the risk of misalignment that can contribute to uneven wear of the leader and bushing.
• General large-mold tool & die assemblies: Use this variant when you need reliable assembly and repeatable guidance; its defined inner diameter and length ranges allow matching to common leader-pin layouts.

The provided data specifies dimensional ranges only; no steel grade, hardness (HRC), or heat-treatment condition is listed for this EMBS type ball retainer. As a result, material-properties statements (e.g., wear resistance, toughness trade-offs, nitriding vs. quench & temper) cannot be confirmed from the supplied specifications.

For correct material verification in a build-up, request the retainer’s actual grade and treatment report from the manufacturer documentation. When comparing options in the field, engineers typically select based on the expected loading at the ball pocket, the thermal environment of the mold, and whether harder, more wear-resistant treatments are acceptable given the need for sufficient toughness during assembly.

Select the retainer size by matching three dimensions to the leader bushing and leader pin layout: inner diameter d, applicable leader pin diameter, and length L.

• Inner diameter (d): Choose d in the range 8.5 ~ 30.5 mm to suit the ball-retainer internal fit within the ejector leader bushing assembly.
• Leader pin compatibility: Ensure the retainer is specified for an applicable leader pin diameter of 8 ~ 30 mm. This is the governing fit relationship for stable centering.
• Length (L): Select L from 25 ~ 70 mm to cover the required guidance travel and match the bushing length/stack-up.

Confirm tolerances for the bushing bore and leader pin fit during assembly; even with correct nominal dimensions, tight clearance or interference can affect ball motion and centering repeatability.
