Angled Pin Components
Components and accessories for reliable angled pin assemblies.
Available Angled Pin Components

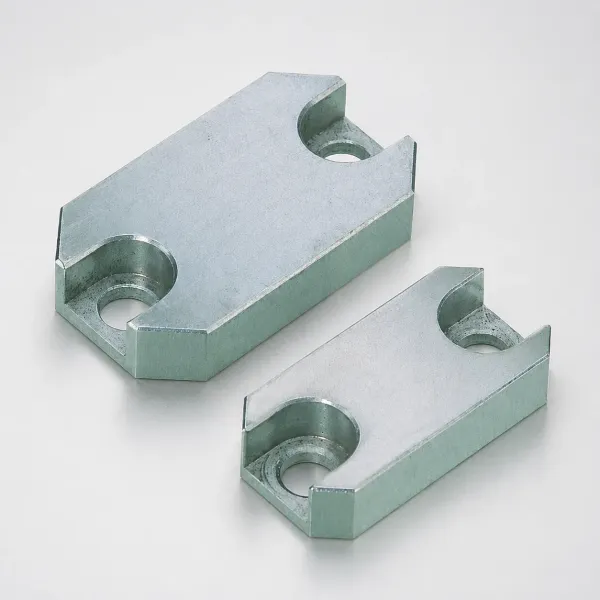

S45C Steel APP Type Stopper Plates for Angular Pins
S45C Steel APP Type Stopper Plates for Angular Pins provide secure plate retention. APP type mounting supports stable angular pin locking.
View Details
Retainer Angular Pins Single/Double Mounting Bolt Holes
Retainer Angular Pins for single or double mounting bolt holes help keep components stable, aligned, and reliably clamped.
View Details
SCM435 Steel Hexagon Head Cap Screws for Angular Pins
SCM435 Steel Hexagon Head Cap Screws for Angular Pins provide reliable clamping with hexagon head drive.
View DetailsComponent Pairing Guide
Angled pins require specific retaining and guiding components to ensure correct kinematic movement and prevent pin failure.
| Component | Purpose | Critical Spec Pairing | Typical Failure if Omitted |
|---|---|---|---|
| Pin Retainer Block | Secures the angled pin head to the fixed mold half | Must match pin flange diameter and angle | Pin backs out under injection pressure |
| Slide Stopper | Limits slide travel at full open position | Stroke length must accommodate spring preload | Pin crashes into slide on closing |
| Angled Pin Guide Bushing | Reduces friction between pin and slide hole | Inner diameter = Pin Dia + 0.5mm | Galling and seizure of the pin |
Application Scenarios
High-Vibration Environments
Fast-cycling molds where vibration can loosen standard bolts. Requires dedicated retainers to prevent pin shift.
Large Slide Assemblies
When slide cores exceed 10kg, standard pin holes gall quickly. Copper alloy bushings are mandatory to distribute the load.
