Carbide Pin Gate Bushings
Cemented carbide pin-point gate bushings for superior wear resistance with glass-filled, mineral-filled, and other abrasive injection molding resins. 3–5× longer life than SKH51 steel.
Products — 2 Variants

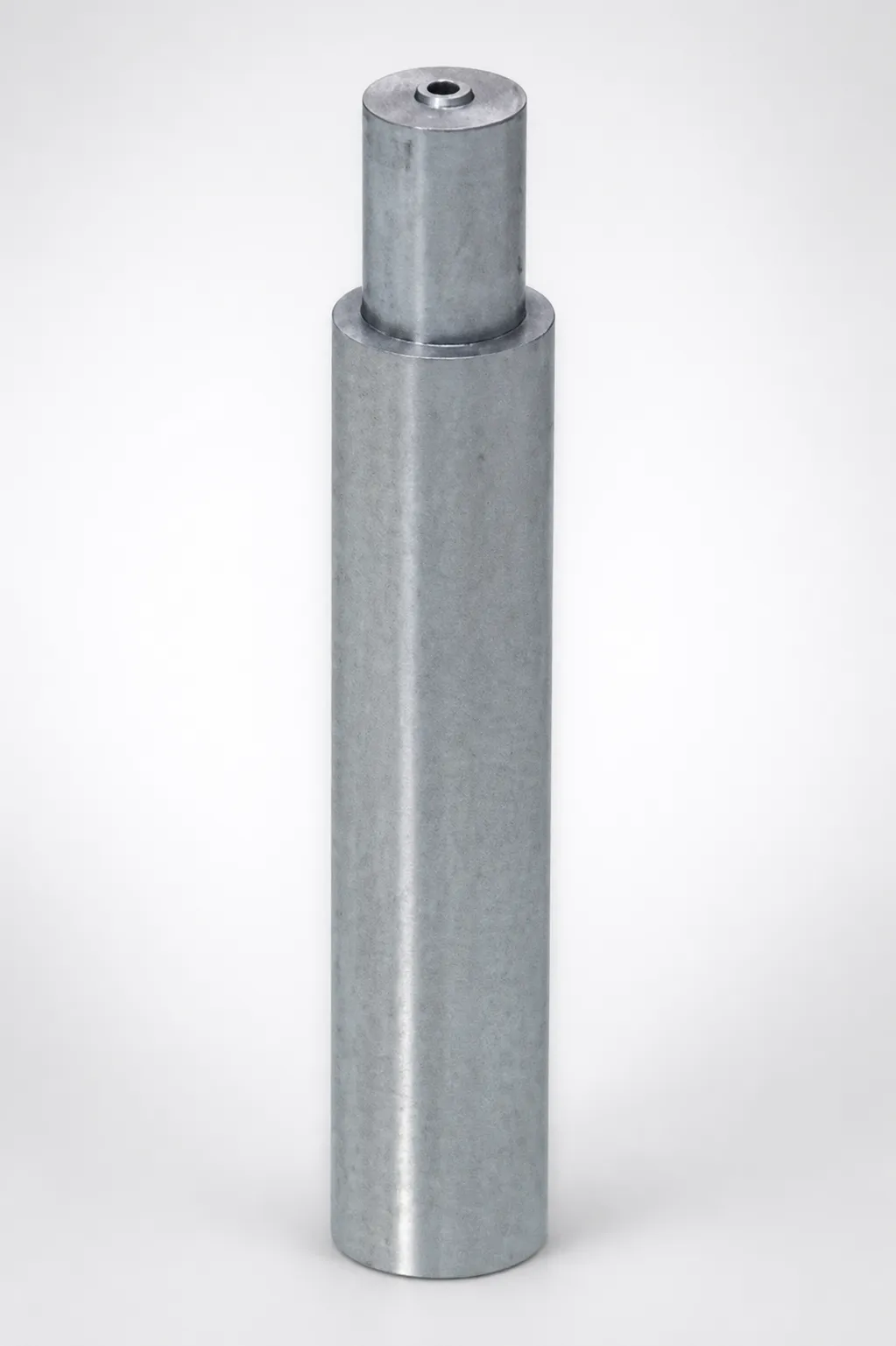

Carbide — Round Gate, Selectable Tip Length
Pre-set tip length options, round gate transition

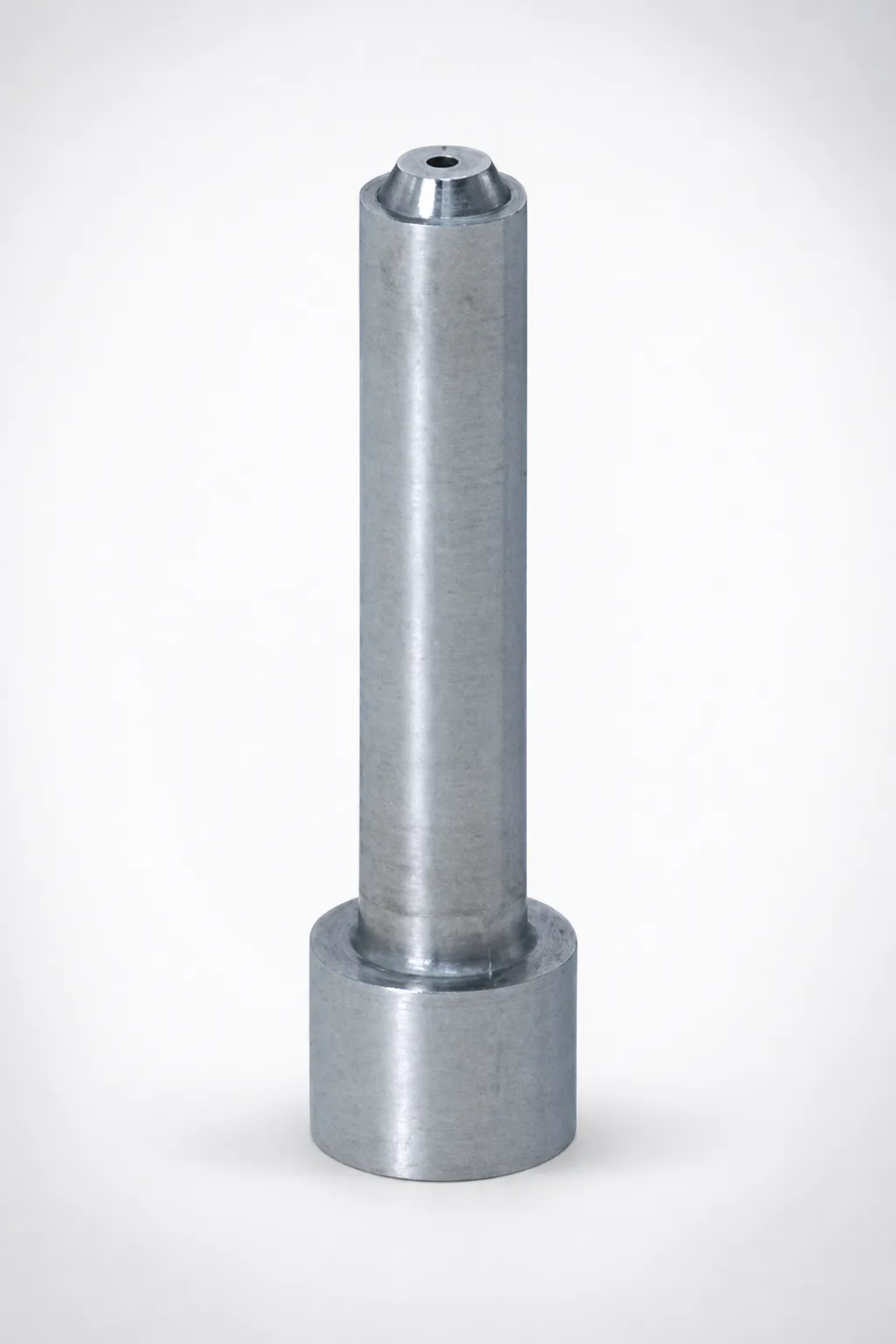

Carbide — Round Gate, Configurable Tip Length
Custom tip length to match exact plate stack
Is the Carbide Upgrade Worth It?
Carbide gate bushings cost 3–5× more than steel. Here's how to determine if the upgrade pays for itself:
| Factor | Steel (SKH51) | Carbide |
|---|---|---|
| Bushing Cost (per unit) | $ — Baseline | $$$ — 3–5× steel price |
| Life with GF-PA66 (30%) | 200K–400K shots | 1M–2M shots |
| Replacement Frequency (500K/yr) | 1–2 replacements/year | 0 replacements/year |
| Downtime per Replacement | 2–4 hours | N/A (no replacement needed) |
| Total Cost of Ownership (3 yr) | $$ (bushings + downtime × 4–6 replacements) | $$ (one bushing, zero downtime) |
| Break-Even Point | N/A | ~300K–500K shots (depends on downtime cost) |
ROI calculation: The exact payback depends on your resin type, shot volume, and downtime cost. For a step-by-step break-even calculator, see our Carbide Pin Gate ROI Calculation Guide.
About Carbide Pin Gate Bushings
Cemented tungsten carbide pin-point gate bushings are engineered for the most demanding injection molding applications. Where standard SKH51 steel bushings wear out after 200–400K shots with glass-filled resins, carbide bushings maintain gate geometry and P tolerance for 1–2 million shots.
Both variants use round gate transition geometry and are dimensionally identical to steel counterparts — making them drop-in replacements for existing molds. Available in selectable (standard increments) and configurable (custom C dimension) tip lengths.
When to Use Carbide Gate Bushings
Carbide is not always necessary. These scenarios justify the upgrade:
Glass-Filled Engineering Resins
Processing GF-PA66, GF-PBT, GF-PPS with 20–50% glass fiber content.
Glass fibers are highly abrasive and erode steel gate tips rapidly. Carbide's hardness (HRA 90+) resists fiber abrasion, maintaining gate geometry 3–5× longer.
High-Volume Medical/Automotive Production
Molds running 24/7 producing 500K+ shots/year with engineering resins.
The cost of mold downtime for gate bushing replacement exceeds the carbide premium. Zero replacement over the mold's lifetime eliminates production interruptions.
Mineral-Filled & Ceramic-Filled Compounds
Resins with talc, calcium carbonate, or ceramic fillers that create significant gate wear.
Mineral particles are less abrasive than glass fibers but still erode steel. Carbide extends gate life to 1M+ shots even with 40%+ mineral fill content.
Frequently Asked Questions
How many shots do carbide pin gate bushings last compared to steel?+
Can I replace a steel pin gate bushing with carbide without modifying the mold?+
Which resins cause the most wear on pin-point gate bushings?+
Engineering Resources
When to Upgrade to Carbide Pin Gate Bushings: ROI Calculation Guide
Break-even analysis and cost justification for the steel-to-carbide upgrade.
Which Resins Require Carbide Gate Bushings? Wear Resistance Guide
Material-by-material wear data and carbide upgrade decision criteria.
Need a Custom Quote?
Specify your tip diameter (P), tip length (C), and whether you need selectable or configurable lengths. Drop-in compatible with existing steel gate bushing mold bores.
