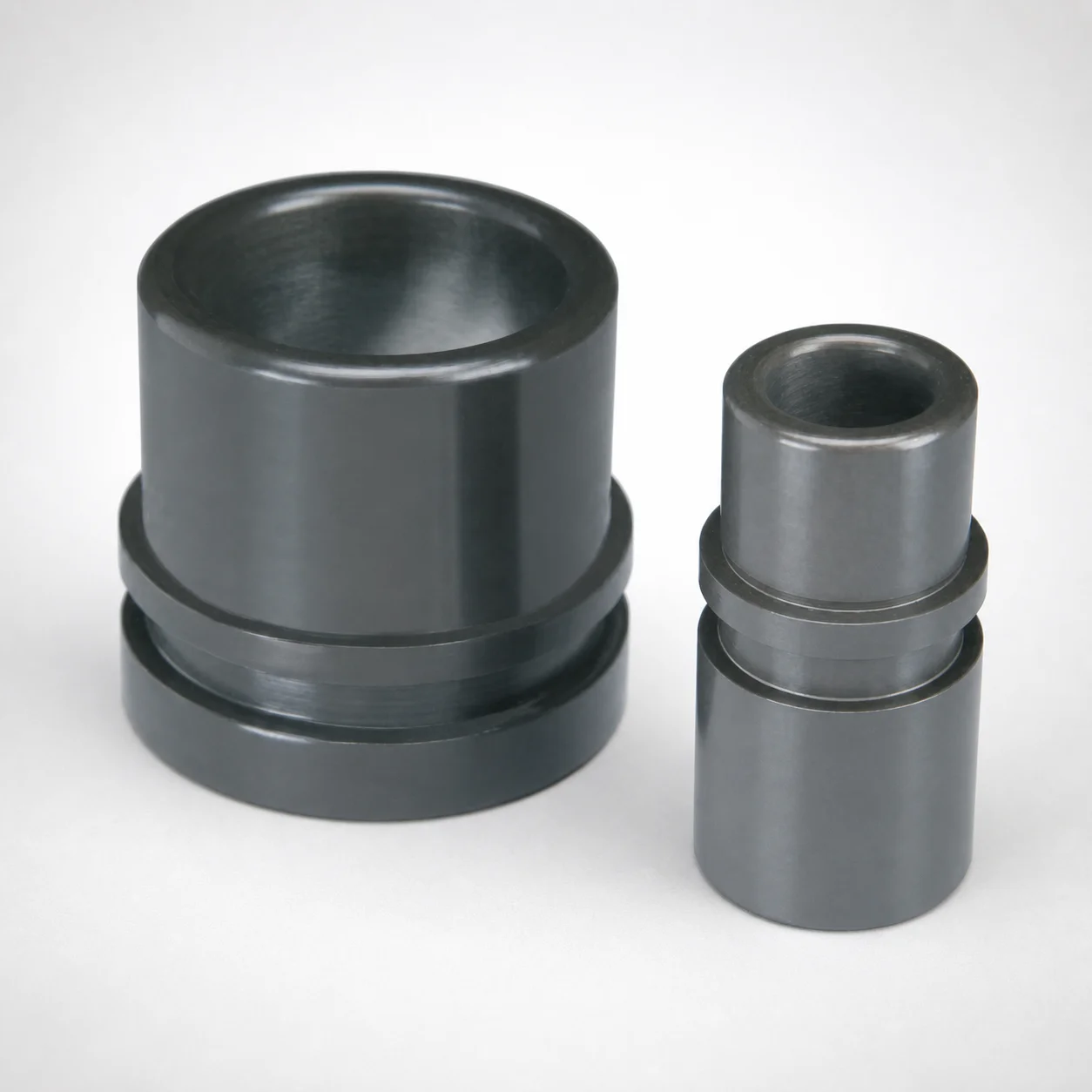

Inch Plain Guide Bushings Oil-Free

Oil-free leader/ejector guide systems in die sets: These inch plain guide bushings are used to maintain stable alignment between moving and fixed die components, especially where lubricant management is difficult. The oil-free copper alloy helps reduce friction while protecting wear-sensitive parts during continuous production.

Automotive and industrial stamping die alignment: In die sets with high start-stop cycles, the detachable construction supports reliable assembly and repeatable positioning. Loctite-bonded guidance helps maintain consistent performance under production loads, reducing the risk of drift that can cause misalignment and scrap.

Die sets using lamina pin options: Where designs include lamina pin geometry, the -LAM suffix option enables compatibility with that mating component. This makes the bushing suitable for controlled-clearance guidance without relying on external oil to achieve low-friction motion.

• Detachable design supports secure die set support and alignment
• Oil-free copper alloy reduces friction and wear sensitivity impact
• Loctite bonding stabilizes guidance under load

Oil-free copper alloy guide material: The bushing is made from an oil-free copper alloy intended to provide low-friction guidance without relying on external lubrication. This supports consistent sliding behavior and helps reduce wear in long-running die set cycles.

Manufacturing and bonding approach: The construction is detachable and Loctite-bonded to maintain alignment stability under production loads. Detachable design also supports maintenance and controlled assembly practices in die tooling.

• Wear resistance vs. toughness trade-off: Copper alloys are selected primarily for friction and wear performance in guide applications; they generally emphasize smooth sliding and stable wear behavior rather than extreme high-hardness toughness.
• Heat treatment: The provided specifications do not include a defined heat-treatment state (e.g., quenched & tempered, nitrided). Confirm heat-treatment details if your application requires hardness targets in HRC.

Material alternatives: If comparing to steel guide components, copper alloy oil-free designs typically prioritize low-friction operation and reduced lubrication dependence, while hardened steels typically prioritize higher hardness for abrasive environments. Choose based on whether friction/wear or hardness/durability dominates your failure mode.

Step 1—Match inner diameter d: Select the bushing based on the required d (Bushing inner diameter) in the range 1 ~ 5 in. This inner diameter must match the mating leader/lamina pin effective diameter to achieve the intended clearance for smooth motion.

Step 2—Choose length L: Confirm the required L (Length) in the range 1 ~ 4 in. Length affects guidance stability; longer lengths generally improve alignment stability across tool motion but must fit within available housing space.

Step 3—Verify assembly clamp compatibility: For models with clamps, use Clamps for Assembly Inside Dia. A Nom. (in) = 1, 1.25 ～ 3.00 to ensure the bushing can be secured inside the leader bushing bore/housing.

• -LAM suffix option: If your die set uses lamina pins, specify the For Lamina pin (-LAM suffix) option to ensure correct functional pairing.
• Tolerance/fit: The dataset provides nominal ranges only; design clearances should be validated against your pin/bore tolerances to ensure low-friction travel without binding.
