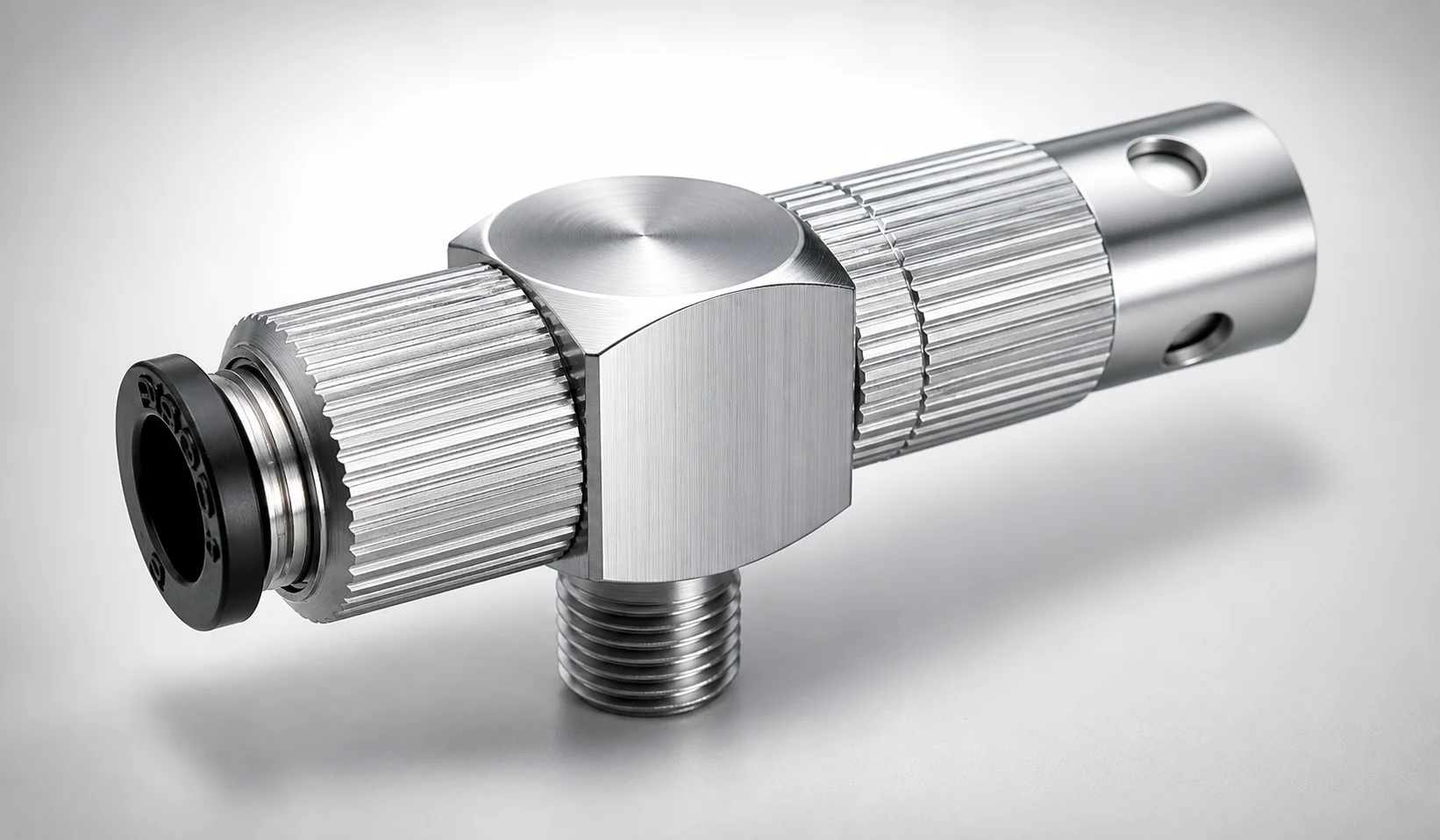

Vacuum Generator for Gas Venting Round Inserts

This vacuum generator insert is used in injection mold tooling where consistent vacuum-assisted gas venting is required to remove trapped air or process gases from the cavity during filling and packing. Its round insert format supports compact integration within gas venting layouts, helping reduce dead zones around the vent area.

• Industrial packaging and appliance housings: Use the heat-proof variant for stable vacuum extraction when mold surfaces or process tooling cycle through up to 60°C, supporting reliable gas release without performance drop.
• Thermally demanding molding lines: Select the 120°C heat-resistant type to maintain extraction capability under hotter service conditions.
• Process equipment add-ons: Compatible with round insert venting modules to support vacuum lines and venting circuits where vent capacity must be matched; choose the M-VCL or M-VCLH type according to the required venting performance.

The provided product data specifies heat-proof / heat-resistant temperature capability for the vacuum generator insert rather than a named steel grade. In practice, selecting the correct heat-proof type (listed as 60°C or 120°C) is the primary material/thermal performance criterion for this component in gas venting systems.

• 60°C heat-proof variant: Designed for moderate operating temperatures where vacuum extraction stability is needed without demanding high thermal endurance.
• 120°C heat-proof variant: Intended for hotter tooling environments; higher thermal capability improves resistance to heat-related performance degradation.

Note: Specific hardness (HRC), heat-treatment state (e.g., quenched & tempered, nitrided), and wear-toughness trade-offs are not provided in the input specifications, so they cannot be stated accurately for this item.

Selection is primarily based on matching the heat-proof capability and the venting module type to your mold’s vacuum gas venting design. The input data defines heat-resistant temperature options at 60°C or 120°C, so choose the variant that aligns with your expected mold/tooling surface and operating conditions.

• Temperature matching: If your application requires stable gas extraction up to 60°C, select the 60°C heat-proof option; for higher thermal environments, select the 120°C heat-proof option.
• Vent capacity matching: Choose the correct type to match required venting performance—options are indicated as M-VCL or M-VCLH.
• Dimension fit: Because no numeric shaft/overall length/diameter tolerances are listed in the provided specs, confirm mechanical compatibility against your existing round insert gas venting layout and interface requirements.

For best results, verify the insert seating/interface dimensions against the gas venting unit design drawings; this product’s key differentiators here are round insert format, temperature rating, and type selection (M-VCL / M-VCLH).
