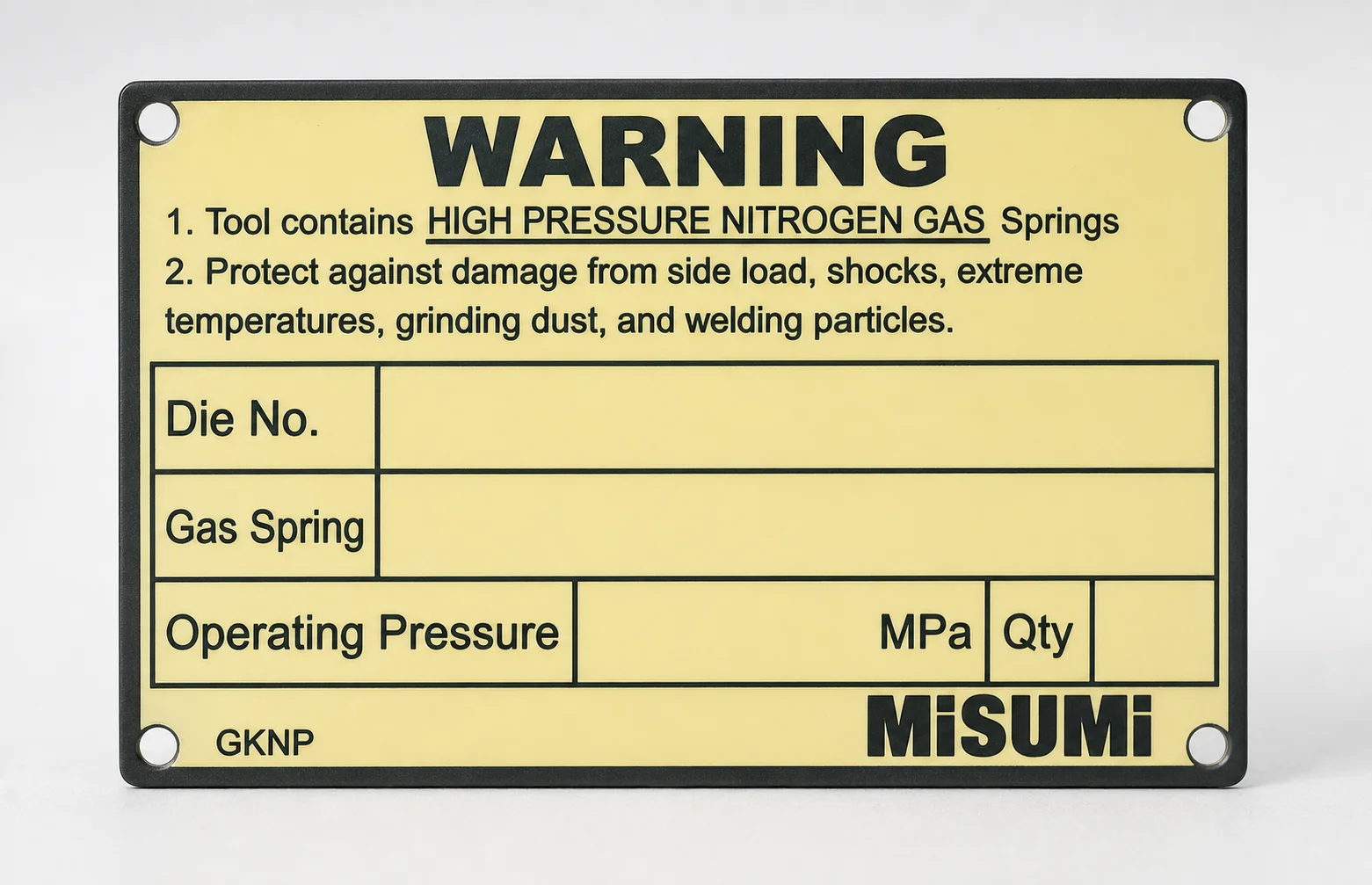

Gas Spring Name Plate with Mounting Bolts Option

This gas spring identification name plate is used on gas spring assemblies where maintenance teams must quickly confirm spring type, revision, or service history. In injection mold tooling and industrial presses, clear labeling reduces downtime during setup changes and part-number audits.

• Automotive assembly tooling: On jigs and ergonomic fixtures that use gas springs, the plate’s legible outer face supports fast gas spring tracking across multiple machine stations.
• Industrial shut-off and guarding systems: Where environments are dusty or frequently cleaned, durable labeling helps preserve visible markings for compliance and inspection.
• Field service and overhaul: The mounting bolts option enables stable retrofit during equipment service, helping the name plate remain secure after repeated handling.

The “plate only” or “plate and bolt set” package supports different maintenance workflows, letting you choose whether you are retaining existing fasteners or equipping a complete replacement.

The provided product data specifies the package configuration (plate only, or plate and bolt set) but does not list a steel grade, hardness (HRC), or heat-treatment state. Therefore, material properties such as wear resistance and toughness trade-offs cannot be stated from the supplied specifications.

For engineering selection, treat this component as a labeling/identification hardware element rather than a load-bearing mold steel part. Focus compatibility on mounting method and durability of the marking under the operating environment.

• Plate only: Assumes existing fasteners meet your fastening and corrosion requirements.
• Plate and bolt set: Supports a controlled, matched mounting package during replacement, reducing variability in fit and installation torque.

If you require a defined steel grade or heat treatment (e.g., nitrided surface, quenched & tempered), request the material certification/details from the supplier before finalizing the tooling documentation.

Based on the available specifications, this item is defined by its package rather than by numeric dimensions (no shaft diameter, length, or thickness ranges are provided). To select the correct version for your mold or machine documentation, match the plate format to the gas spring assembly’s available mounting location.

• Plate only (Package: Plate only): Choose when your gas spring already has the required mounting provisions and existing bolts/holes align with the name plate.
• Plate and bolt set (Package: Plate and bolt set): Choose when you need a complete replacement, ensuring the fasteners are included and the installation is less dependent on reused hardware.

For fit and tolerancing, confirm hole positions/spacing and clearance around the gas spring body using the assembly’s drawing or the existing plate’s bolt pattern. If the plate is attached near moving linkages or covers, verify clearance under full stroke to prevent contact or loosening.
