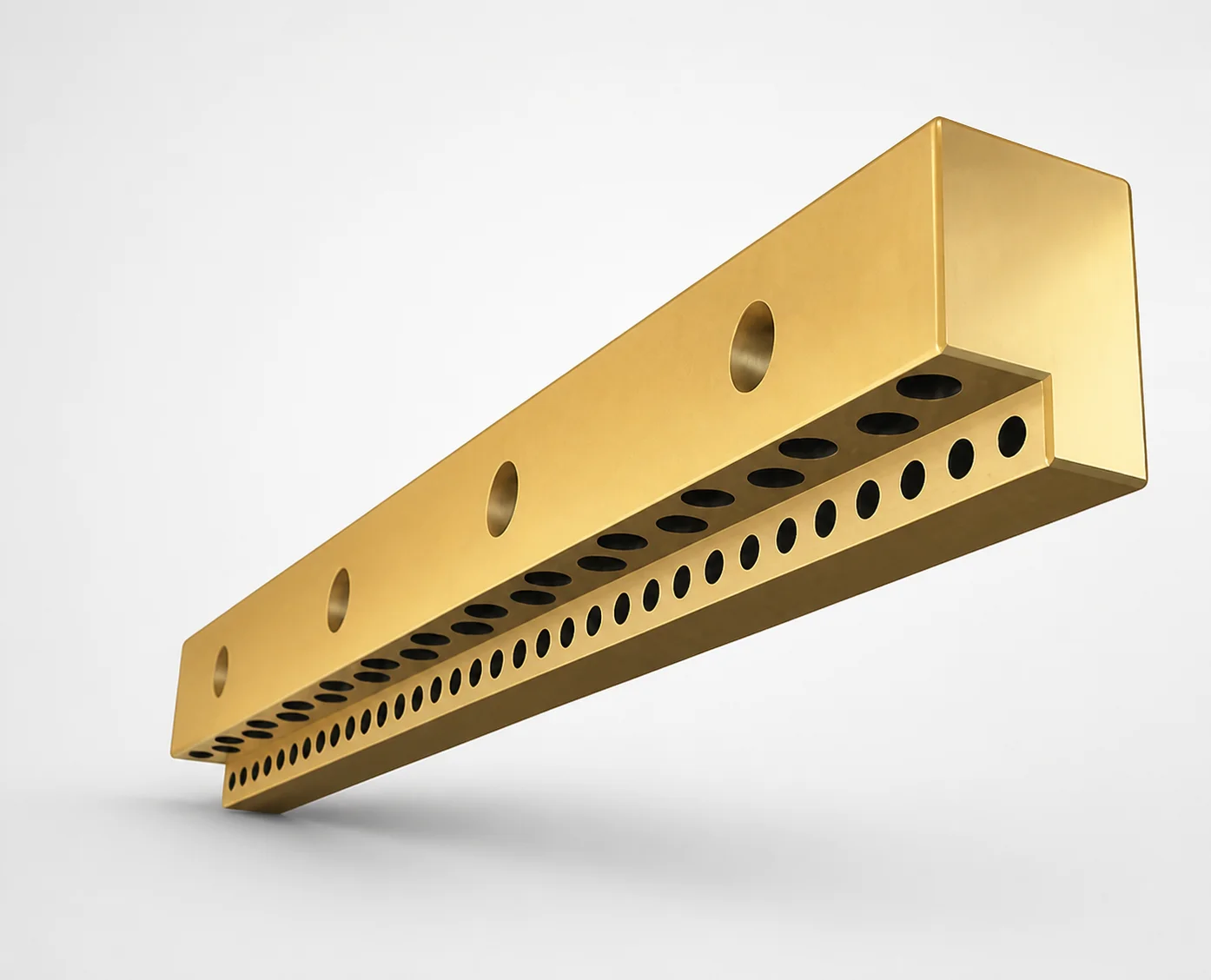

Inch Oil-Free Graphite L-Gibs Solid Bronze Guide Rails

These oil-free graphite L-gibs are used inside injection mold tooling where slide/undercut mechanisms must maintain stable linear motion without relying on frequent lubrication. The self-lubricating graphite contained in a copper alloy body supports consistent movement during repetitive cycling, helping reduce downtime for cleaning and re-lubrication.

Undercut slide plate systems in inch-based molds: In cam-driven or side-action slide rails, the no-groove oil-free heel helps keep lubrication management clean around mold cavities, particularly when processes require tighter contamination control.

• Automotive and general industrial component molds: Suitable for guide assemblies that experience high cycle rates and benefit from wear-resistant, low-maintenance guidance.
• Precision housing and insert molds: The rail’s stable alignment supports smooth travel for moving inserts and runner/plate actuation components.

This guide rail uses a solid bronze (copper alloy) body with embedded oil-free graphite for self-lubrication. The copper-alloy matrix provides mechanical support, while graphite migrates to the sliding interface to reduce friction and wear under dry or minimal-lube conditions.

Heat treatment: The provided data does not specify a specific steel grade, alloy designation, or heat-treatment state (e.g., quenched & tempered, nitrided). Therefore, hardness (HRC) and exact wear/toughness performance must be confirmed from the manufacturer’s material certificate for your specific part number.

• Wear resistance vs. toughness trade-off: Copper alloys with graphite typically emphasize sliding wear reduction and low stick-slip behavior, while toughness depends on the final alloy temper.
• Comparison note: Compared to steel guide rails, these are selected for self-lubricating, oil-free operation rather than maximum impact toughness.

Select rail thickness, width, length, and heel geometry to match the mating gib/slide plate pocket and the stroke alignment requirements of the mold’s moving assembly. Use the rail thickness options 0.75, 0.88, 1.25, 1.5, 2, or 2.5 in to ensure the rail sits at the correct bearing height and supports proper contact without rocking.

• Rail width: choose from 0.75 to 3 in to fit the guided surface length and reduce side loading.
• Rail length: select 5.25 to 24 in to cover the full travel region of the moving core/slide.
• Heel geometry: match heel height 0.312 to 1.5 in and heel width 0.188 to 1 in to the mating heel pocket to control clearances and stable linear guidance.
• Mounting holes: specify the required hole qty.: 3, 4, or 5; if the configuration is None, plan for alternative attachment methods.

For fit, ensure the guided mating surfaces provide adequate running clearance for graphite lubrication behavior; confirm tolerances with the rail’s drawing or mounting interface specs for your mold assembly.
