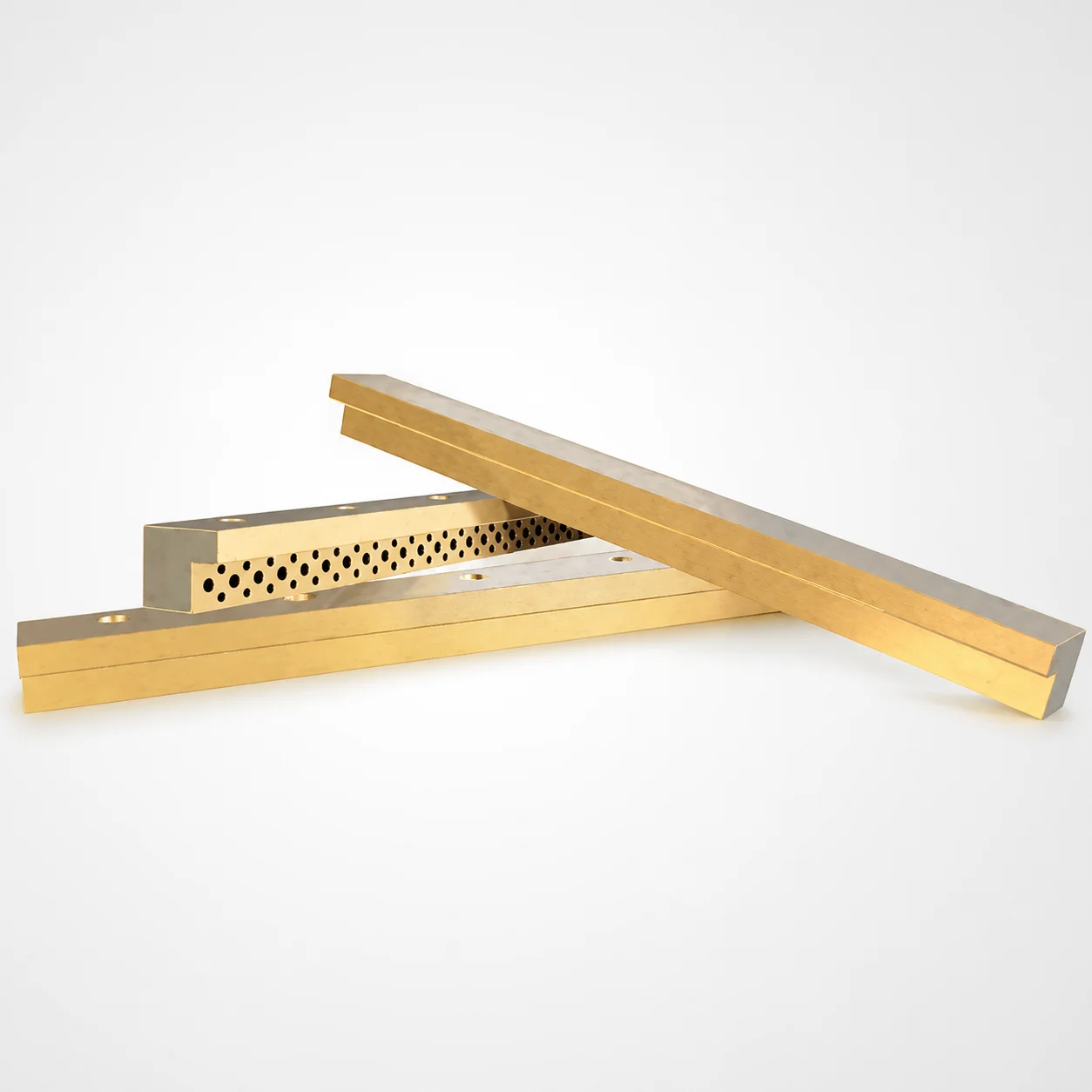

Inch L-Gibs Graphite Self-Lubricating Guide Rails

Where they’re used: These inch L-style gibs are common in injection mold tooling where a sliding component must stay aligned over repeated cycles—especially in moving undercut/side-actuated systems and slide-and-return assemblies.

• Automotive connector and housing molds: Oil-free graphite self-lubrication helps maintain consistent motion for ejector slides and lifter mechanisms without dedicated lubrication workflows. The embedded graphite variant is suited when workshop cleanliness and reduced maintenance are priorities.
• Appliance and consumer electronics housings: In long travel slide plates, stable low-friction motion improves repeatability and helps limit wear-related drift. The graphite option supports dry running and smoother movement under intermittent loads.
• Complex undercut mold inserts: The L-gib geometry with a non-oil groove simplifies pairing into standard guide arrangements where lubrication grooves are undesired or impractical.

Why this variant fits: Oil-free construction with embedded graphite targets friction control and wear reduction while avoiding grease/oil contamination that can affect product aesthetics or downstream operations.

The provided configuration specifies an oil-free, non-oil groove design with embedded lubricant options: None or Graphite. For the graphite self-lubricating variant, the embedded graphite acts as a solid lubricant to reduce metal-to-metal friction and limit wear during dry or low-maintenance operation.

• Lubricant choice: Graphite improves friction control and running stability compared with a non-graphite (embedded lubricant = None) build.
• Steel construction: The rail is described as having “other steel construction,” which is intended to support durability and wear resistance in guide applications. Specific steel grade and heat treatment details (e.g., quenched & tempered, nitrided) are not included in the supplied specifications.
• Hardness/toughness trade-offs: Hardness (HRC) and toughness balance cannot be quantified from the current data; selection typically depends on the sliding load, cycle rate, and desired wear life.

To select the correct inch L-gibs guide rails, match the rail thickness, width, length, and heel dimensions to your guide block/channel and slide-plate geometry.

• Rail thickness (in): choose within 0.485 to 2.47 to fit the available pocket depth and bearing clearance.
• Rail width (in): select from 0.75 to 3 based on the available guide surface width and allowable side load.
• Rail length (in): pick 5.25 to 48 to cover the full sliding/guide contact zone across the stroke.
• Heel height (in) / heel width (in): ensure 0.312 to 1.5 and 0.188 to 1 correspond to your mounting interface so the rail seats correctly.
• Mounting hole qty.: match 3, 4, 5, None, 6, or 8 to your existing guide plate or gib carrier.

Tolerance/fit: Use your mold drawing’s clearance targets to avoid binding—especially with oil-free graphite rails where consistent seating and straightness matter for smooth linear motion.
