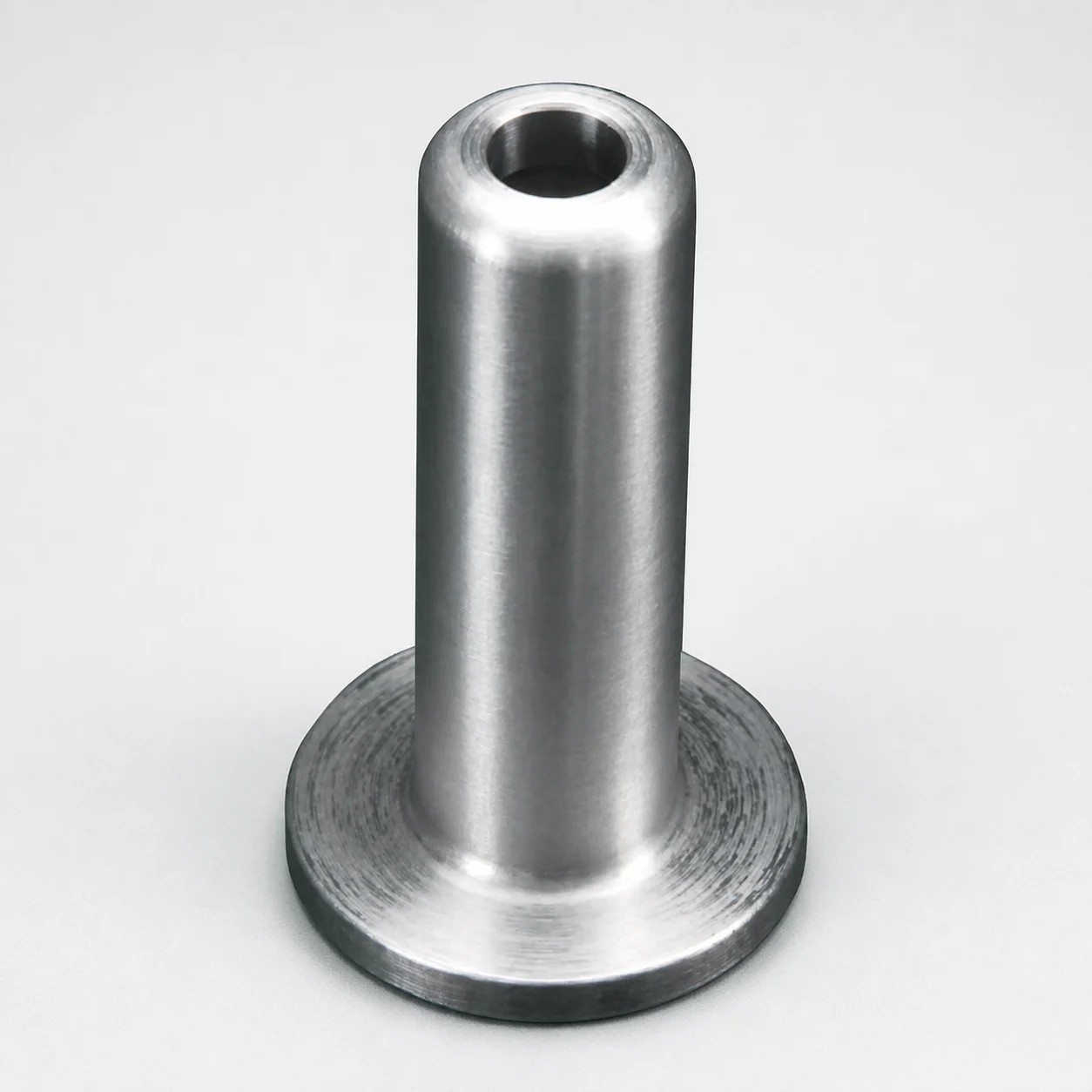

Spring Retainers - Inch

Spring retainers are typically used in injection mold tooling anywhere a spring-loaded mechanism must stay aligned under cycling loads. In mold frames and ejector systems, they help hold components firmly, limiting axial or lateral drift during repeated open/close cycles.

For automotive connector and relay molds, this style of retainer supports stable spring guidance in ejector pin return or slide-related assemblies, helping reduce wear caused by micro-movement and maintaining consistent motion timing.

In industrial packaging or appliance molds, they are commonly integrated into manually or hydraulically actuated mechanisms where reliable retention prevents dislocation and supports long service intervals.

• Use the specified outer diameter (D) and guide length (L) to match the retainer pocket and alignment bore.
• Select the available height (t) to control stack-up and spring seating position for repeatable operation.

The provided metadata does not specify a steel grade or heat treatment for this inch-size spring retainer. As a result, hardness (HRC), nitriding/carburizing, and quench-and-temper details cannot be stated from the current data.

When selecting a material for spring-retainer applications, engineers typically balance wear resistance (to resist fretting and sliding contact) with toughness (to avoid cracking under cyclic loading). For similar retention components, pre-hardened tool steels are often used when dimensional stability is critical, while quenched & tempered grades may be chosen to improve fatigue life.

• Confirm the actual grade and heat-treatment state from the supplier’s material certificate or drawing revision.
• Verify surface finish and any coating requirement to limit wear at the spring seating interface.

Use the inch specification parameters to match the retainer to your mold’s spring and guide geometry. This retainer variant provides D (outer diameter) of 3/4 in or 1 in, t (height) of 1 7/8 in, 1 3/4 in, or 2 7/8 in, and L (guide length) of 1 3/4 in or 2 3/4 in.

To size correctly, pair the retainer with the Spring Diameter of 1 1/2 in or 2 in, then align D with the retainer pocket/land diameter in the housing. Set t to achieve the required spring seating depth and maintain the intended stack-up clearance across the fully assembled cycle.

• Select L to match the guide engagement length and prevent tilting under load.
• Confirm tolerances for slip fit vs. location fit in your drawing stack-up; retention performance depends on how the part seats and how much clearance you allow for alignment.
